SLAMTEC LiDAR

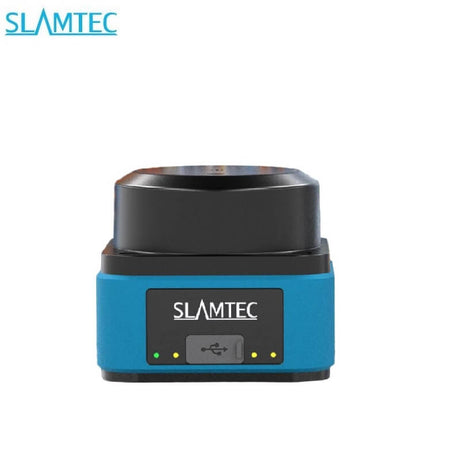

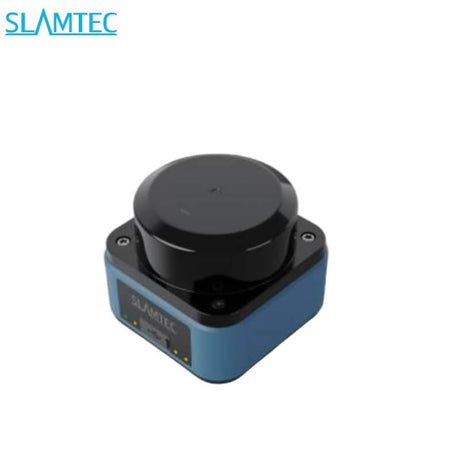

  Technical Specifications Parameter Value Model SLAMTEC LPX-E3P1 Measurement principle SL-dTOF Application Indoor and Outdoor (≥80Klux) Light Source Infrared Laser(905nm) Laser Safety Level 1(IEC60825-1:2014,EN60825-1:2014) Horizontal aperture angle 360° Scanning frequency 20Hz Angular Resolution 0.225° Distance Range 0.05m-25m(≥70%remission) Connection type 1xSH1.012-pinmale(0.8m) Supply voltage 9VDC-30VDC Power...

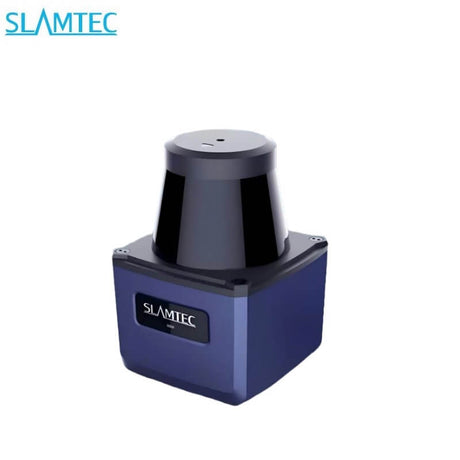

  Technical Specifications Parameter Value Model SLAMTEC LPX-T1  Application Field Indoor/Outdoor Light Source infrared laser(905nm) Laser Safety Level IEC 60825-1:2014 Class 1 Angular Range 270° Scan Rate 20~40Hz Angular Resolution 0.12°( 20Hz scan rate) Distance Range 0.05~40m(Under 70% reflectivity) Distance Resolution 8mm(All distance range)...

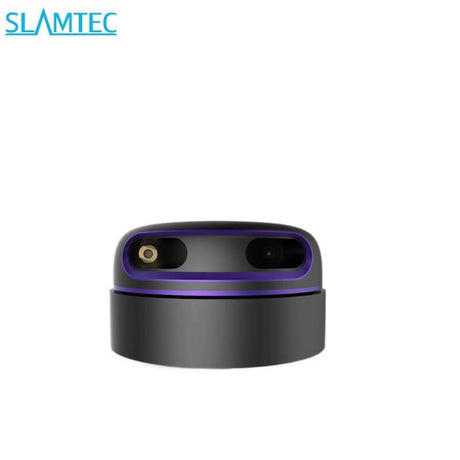

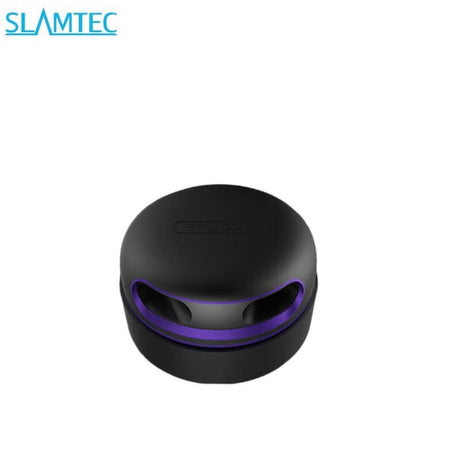

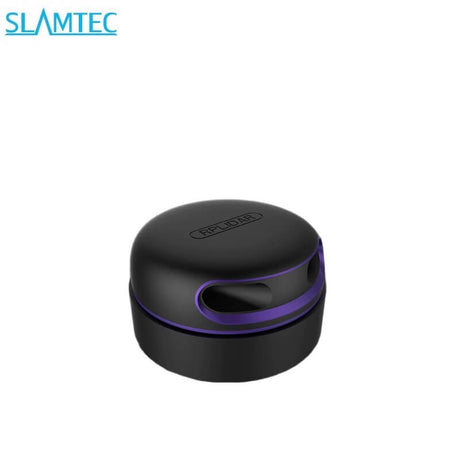

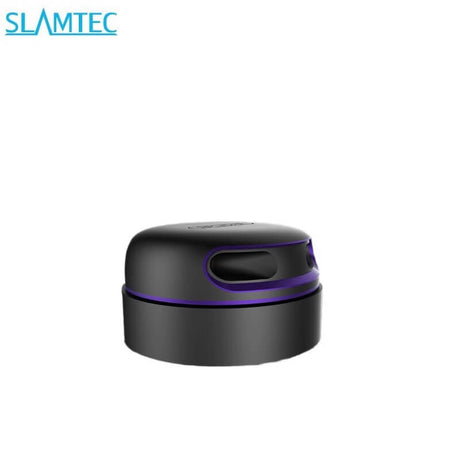

  Technical Specifications Parameter Value Model SLAMTEC RPLIDAR A3 Operating Range White object: 20 meters  Operating Range Black object: TBD  Minimum  Operating   ranging 0.2m Sample Rate 16KHz  Scan Rate Typical value: 10 Hz (adjustable between 5 Hz-15 Hz)  Angular Resolution 0.225° Scan Field...

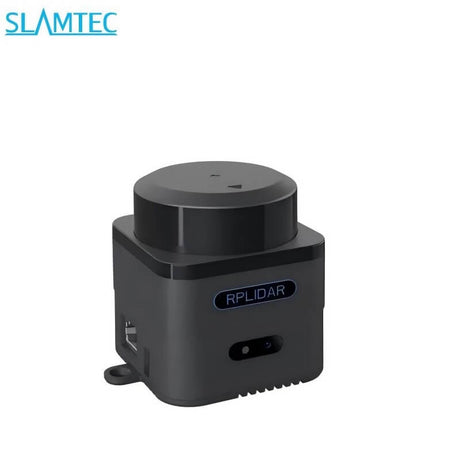

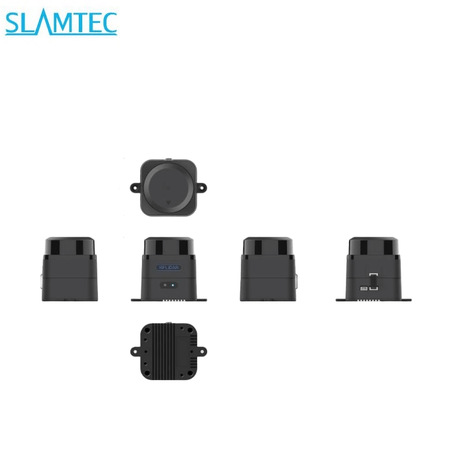

  Technical Specifications Parameter Value Model SLAMTEC Mapper M2M3 Distance Range 40m Sample Rate 10kHz MaximumArea 300m*300m  Mapping resolution 0.05m  Maximum moving speed 2m/s Maximum rotation speed TBD Accuracy <0.02m Graph Optimizing Working Time About1hr Maximum Inclination Angle ±3° Frequency of data refresh 10Hz Laser wavelength 895-915nm Laser...

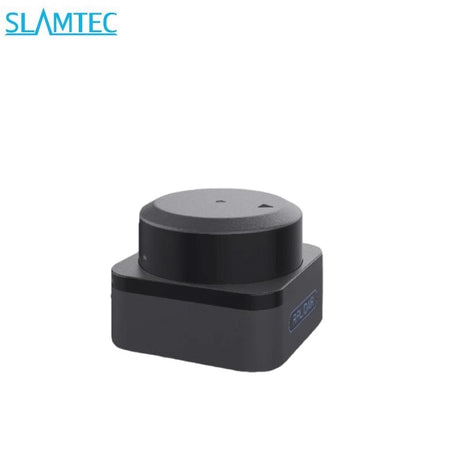

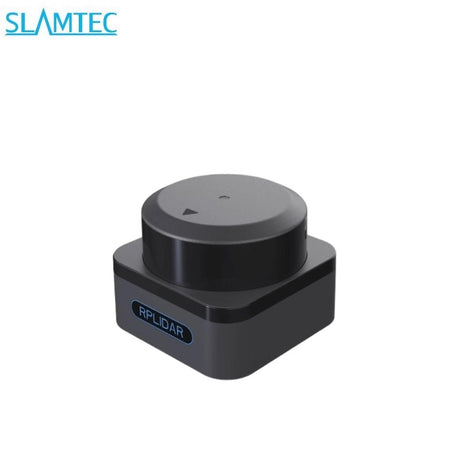

  Technical Specifications Parameter Value Model SLAMTEC RPLIDAR S3 Application Scenarios Ideal for both outdoor and indoor environments with reliable resistance to daylight（≥80Klux） Distance Range White object: 0.05-40 meters (under 70% reflection)  Distance Range Black object: 0.05-15 meters (under 10% reflection)  0.05 - 5...

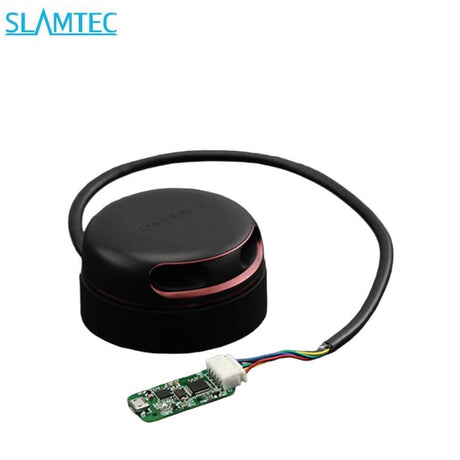

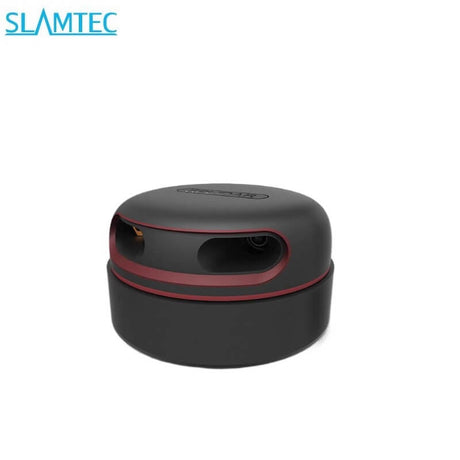

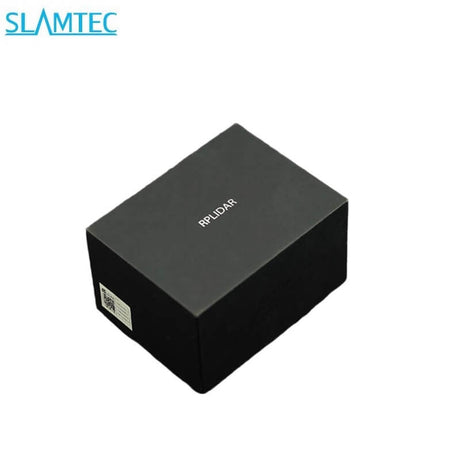

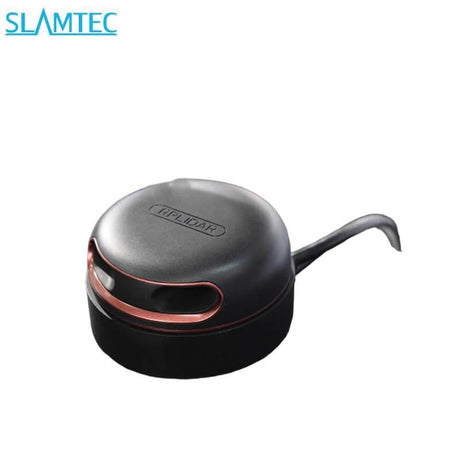

  Technical Specifications Parameter Value Model SLAMTEC RPLIDAR A2 Application Scenarios  Extreme performance Ideal for indoor environments with maximum ranging distance and sampling frequency.  Operating Range White object: 12 meters  Operating Range Black object: 10 meters  Minimum  Operating   ranging 0.2m Sample Rate 16KHz ...

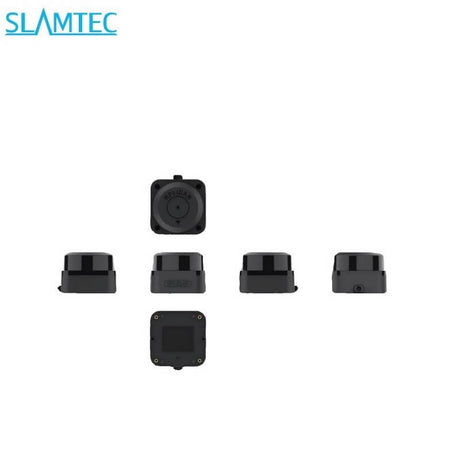

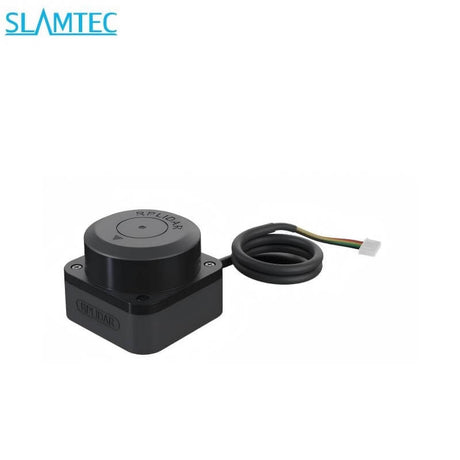

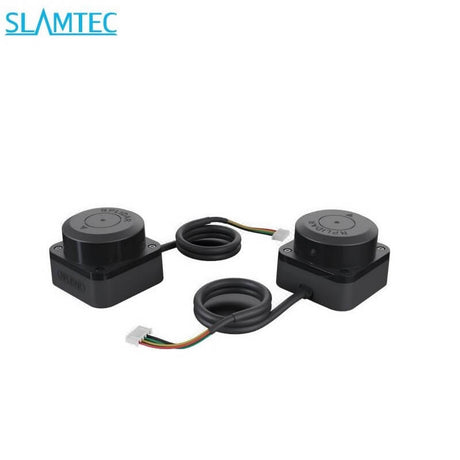

  Technical Specifications Parameter Value Model SLAMTEC RPLIDAR C1 Distance Range White object: 0.05-12 meters (under 70% reflection) Distance Range Black object: 0.05-6 meters (under 10% reflection) Scan Field Flatness 0°~1.5° (can be customized) Sample Rate 5KHz  Scanning Frequency 8~12Hz, 10Hz@typical Angular Resolution 0.72°@typical ...

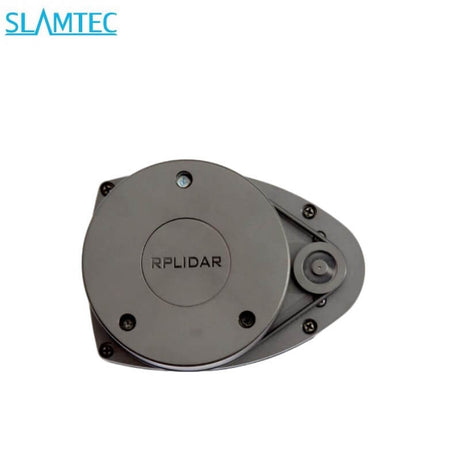

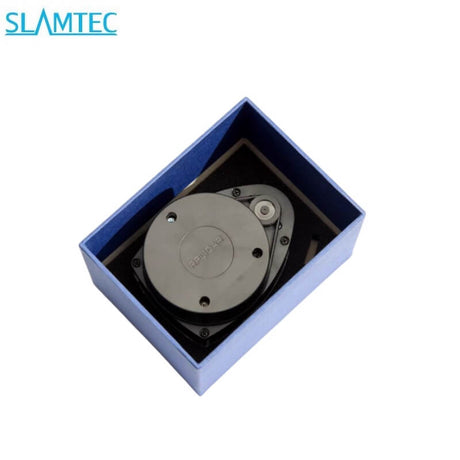

  Technical Specifications Parameter Value Model SLAMTEC RPLIDAR A1 Distance Range 0.15-12m Angular Range 0-360° Scan Field Flatness -1.5-1.5° Distance Resolution <0.5mm (<1.5 meters) <1% of the distance (All distance range) Angular Resolution ≤1° (5.5Hz scan rate) Sample Duration 0.125ms Sample Frequency ≥8000HZ Scan...

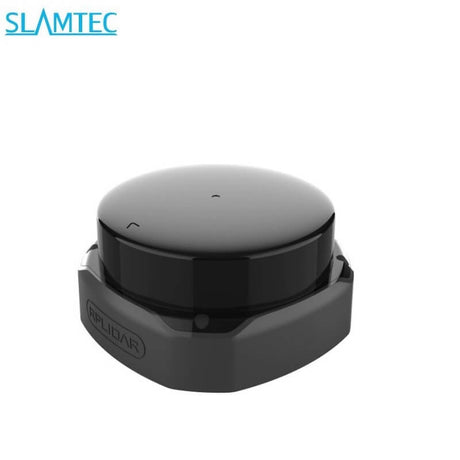

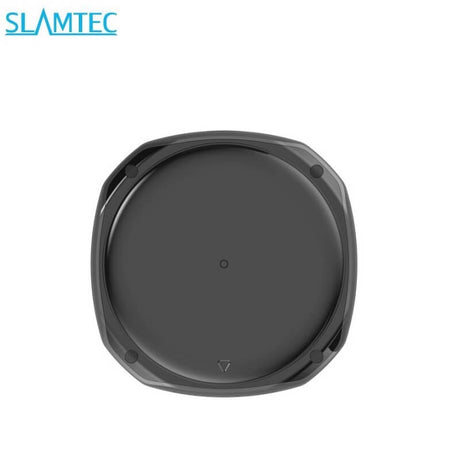

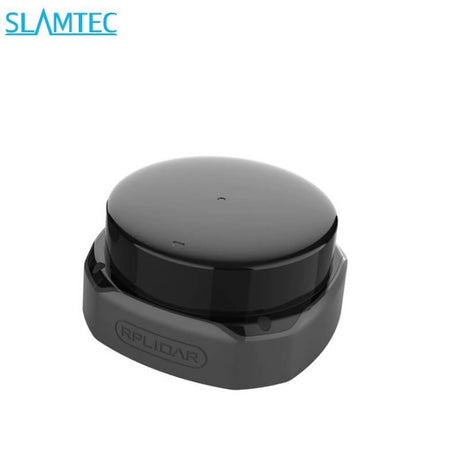

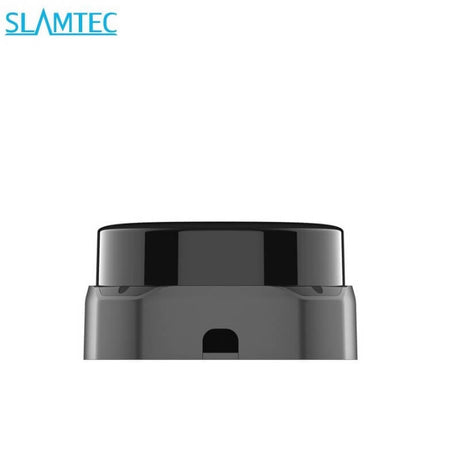

  Technical Specifications Parameter Value Value Value Value Model SLAMTEC RPLIDAR S2 SLAMTEC RPLIDAR S2L SLAMTEC RPLIDAR S2E SLAMTEC RPLIDAR S2P Application Scenarios Ideal for both outdoor and indoor environments with reliable resistance to daylight Ideal for both outdoor and indoor environments with reliable resistance...
