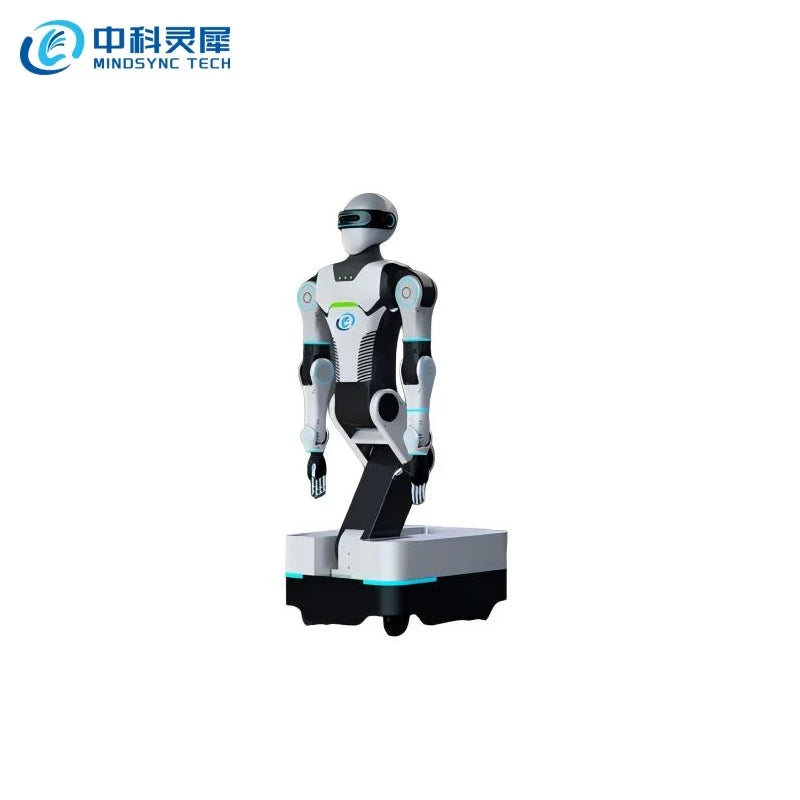

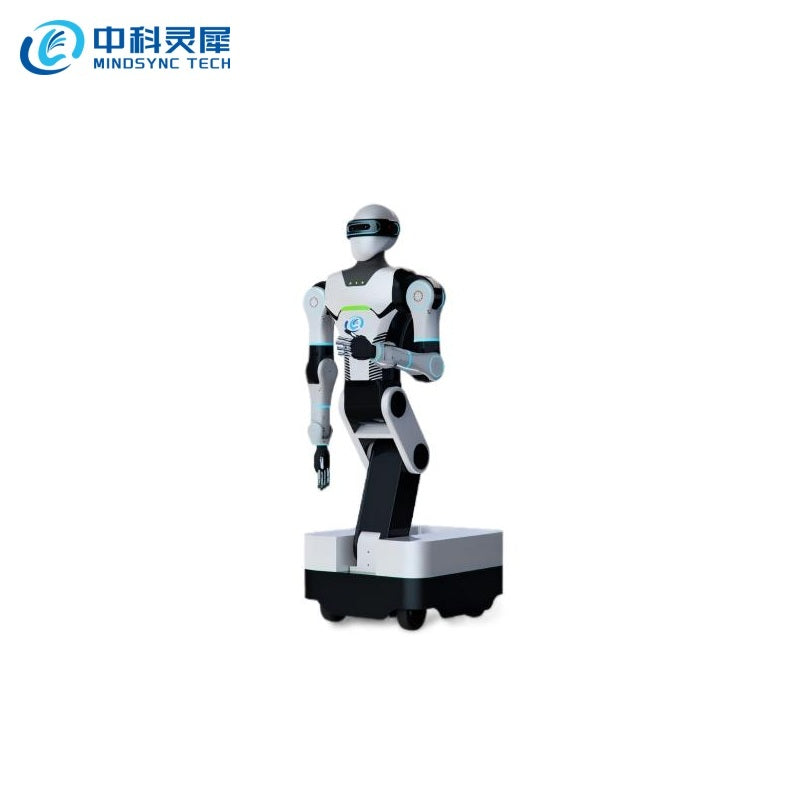

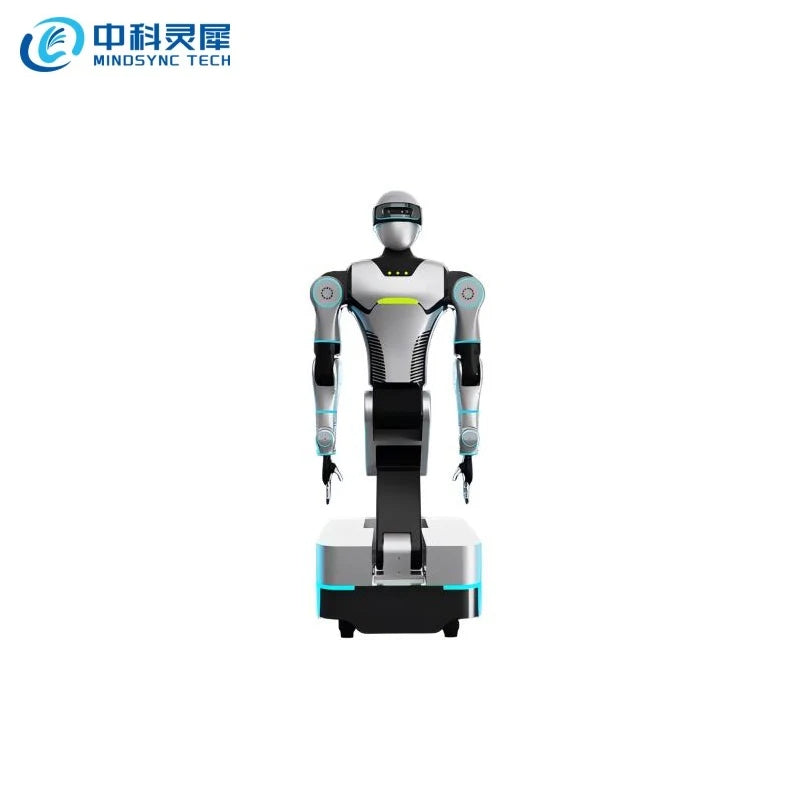

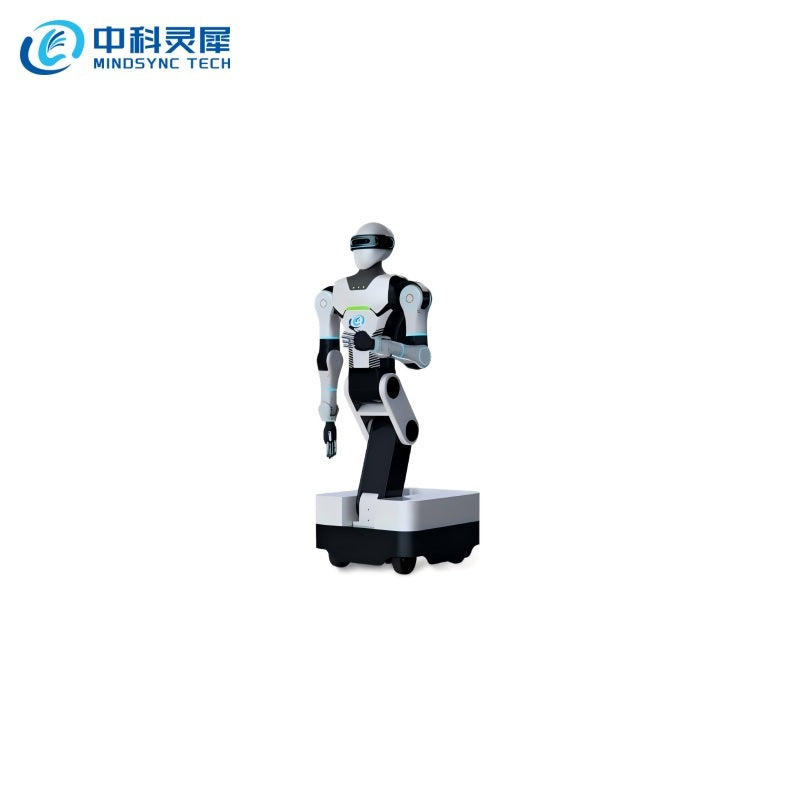

MINDSYNC TECH LSROBOT-001 Robot

$79,000.00

Version

LSROBOT-001

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
Physical Specifications:
Dimensions (L×W×H, after elevation)	800×700×1750 mm
Total Weight	Approx. 150 kg
Locomotion & Performance:
Drive Mode	Four-wheel eight-drive (4W8D)
Locomotion Mode	Four-wheel four-steering (Omnidirectional)
Travel Speed	0 - 1.5 m/s, adjustable
Braking Distance	＜ 0.1 m (at 0.5 m/s)
Turning Radius	500 mm
Maximum Climbing Angle	10°
Obstacle-surmounting Capability	≤ 35 mm
Water-wading Depth	≤ 55 mm
Robotic System:
Total Degrees of Freedom (DoF)	15 (excluding dexterous hand and chassis)
Number of Robotic Arms	2
Degrees of Freedom per Arm	6
Payload per Arm	15 kg (for 2-line 4-rotation arm); 10 kg (for 6-module arm)
Perception System	Vision, Tactile Sensing
Power & Communication:
Battery Capacity	31.2 Ah
Rated Battery Voltage	DC 48 V (Max. 54.6 V, cut-off at 37.7 V)
Charging Method	Wired charging, wireless charging (optional)
Continuous Operating Time (Endurance)	Approx. 6 hours (at 0.5 m/s on flat ground, continuous operation)
Communication Interface	Wi-Fi
