Looper Robotics Data Acquisition Package

$8,870.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Module Recommended Configuration Function

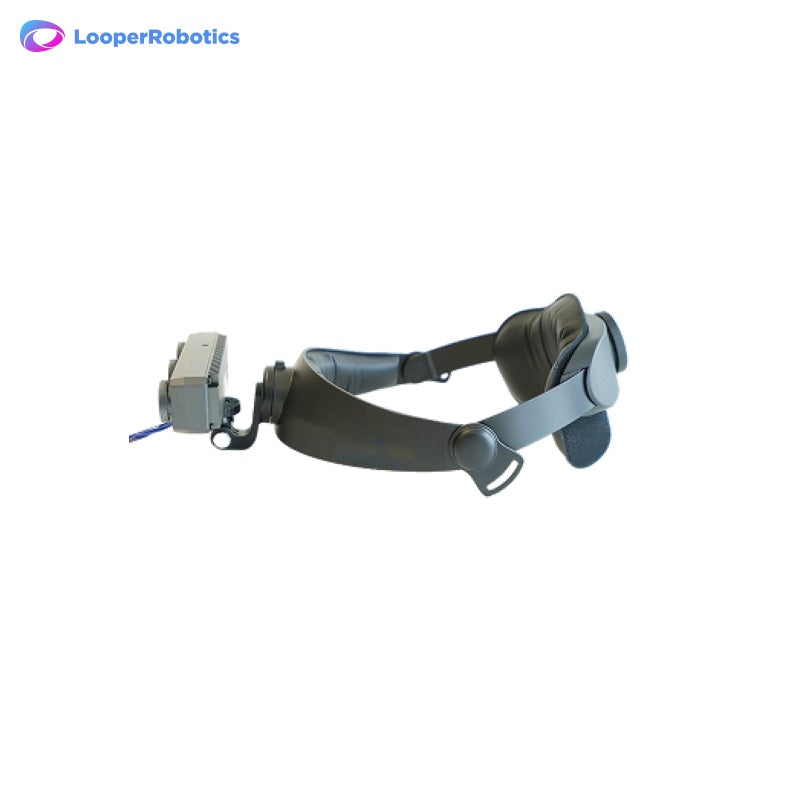

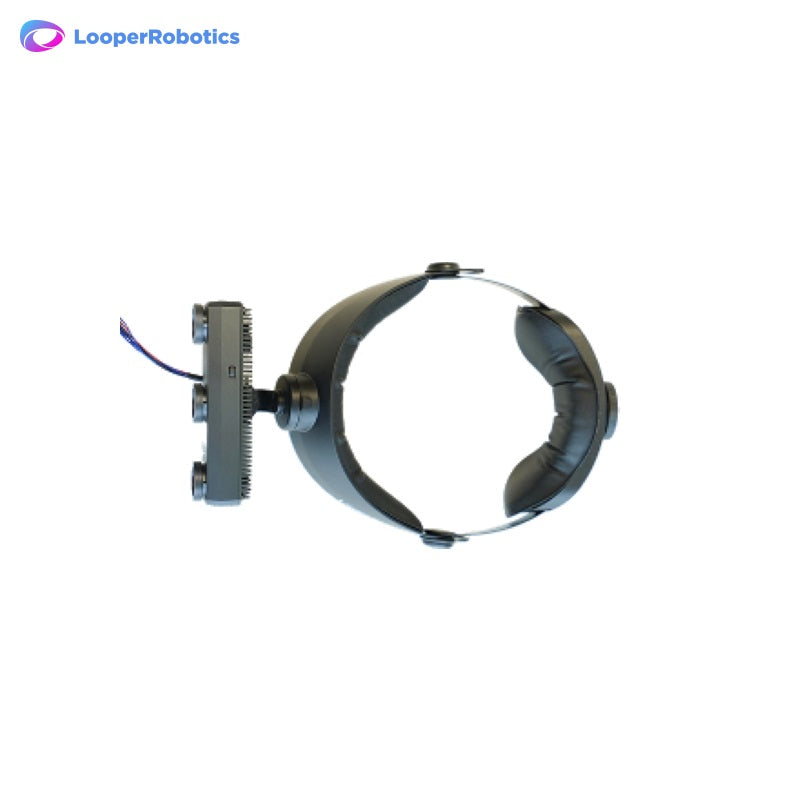

Head Camera 1 × Insight 9 The headset with Insight 9 weighs 360 g in total. It captures ego-view RGB-D, head motion, and 6-DoF pose data for global scene understanding.

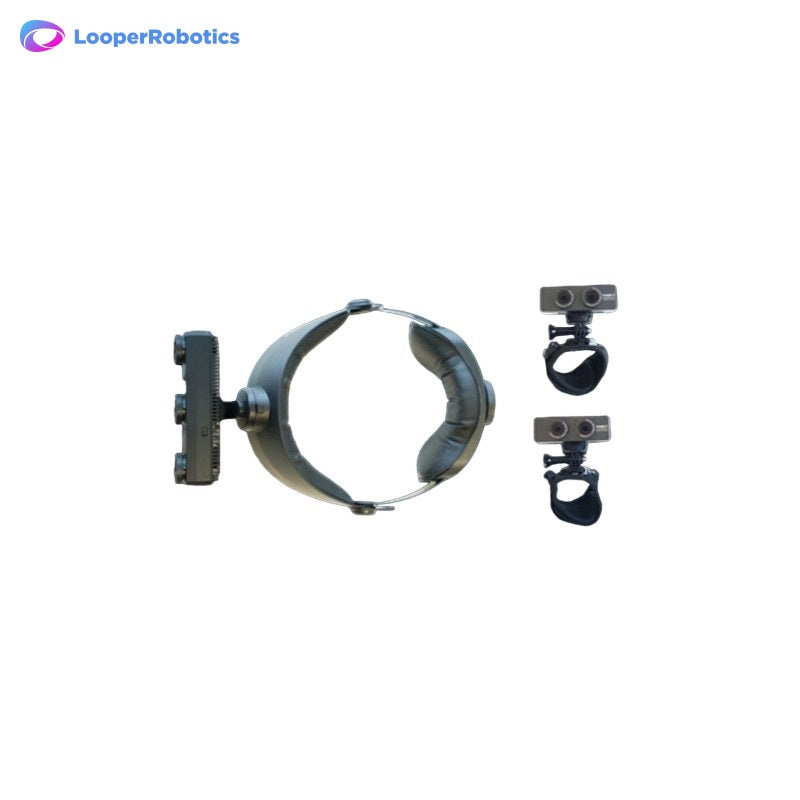

Hand Cameras 2 × Insight 3 Each wrist-mounted Insight 3 module weighs only 158 g. The two hand cameras capture UMI close-range hand interactions, complementing the ego view with fine-grained manipulation data.

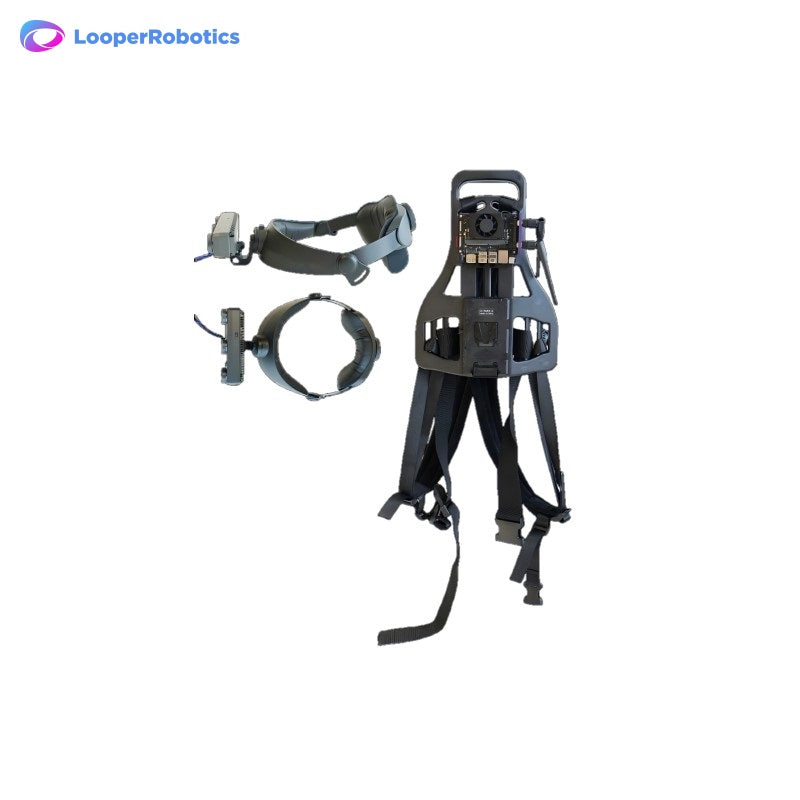

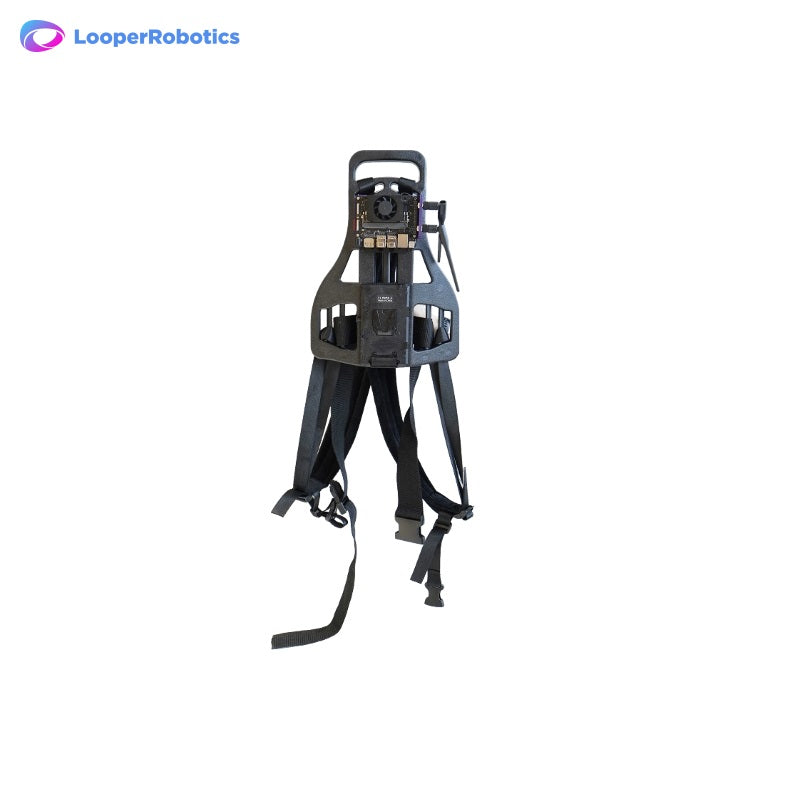

Backpack Unit Jetson Orin NX
128 GB NVMe SSD (Standard)
V-Mount Battery		 The backpack unit weighs approximately 1.8 kg and integrates edge computing, local storage, and mobile power. It runs the acquisition program and stores ROS 2 bags, RGB-D, IMU, VIO pose, calibration parameters, and task metadata. Local storage can be upgraded based on recording duration and data-volume requirements. The battery supports approximately 150–170 minutes of continuous real-world data capture.
Software Environment Ubuntu + ROS 2 Data Acquisition Software Provides unified device connection, recording control, acquisition-status management, data-directory organization, clip management, and a post-processing workflow.
Parameter Insight 9 Insight 3
Product Positioning Mid- to Long-Range VSLAM Spatial Perception Camera Near-Field High-Precision Spatial Perception Camera
Recommended Role in the Package Head-Mounted Main Camera / Large-Workspace View Left- and Right-Hand Cameras / Near-Field Manipulation
Baseline 100 mm 35 mm
Ideal Depth Range 0.3–30 m 0.06–5 m
Depth Accuracy <2% at 3 m <1% at 0.5 m
Depth Output Resolution up to 544 × 640; Frame Rate up to 15 fps Resolution up to 544 × 640; Frame Rate up to 15 fps
RGB Output Resolution up to 3840 × 2160; 1920 × 1080 @ 30 fps Recommended Resolution up to 1088 × 1280; 1088 × 1280 @ 20 fps Recommended
Weight 176 g 103 g
Wearable Weight Head: 360 g (Headband 184 g + Camera 176 g) Wrist: 158 g (Wristband 55 g + Camera 103 g)
