OYMotion

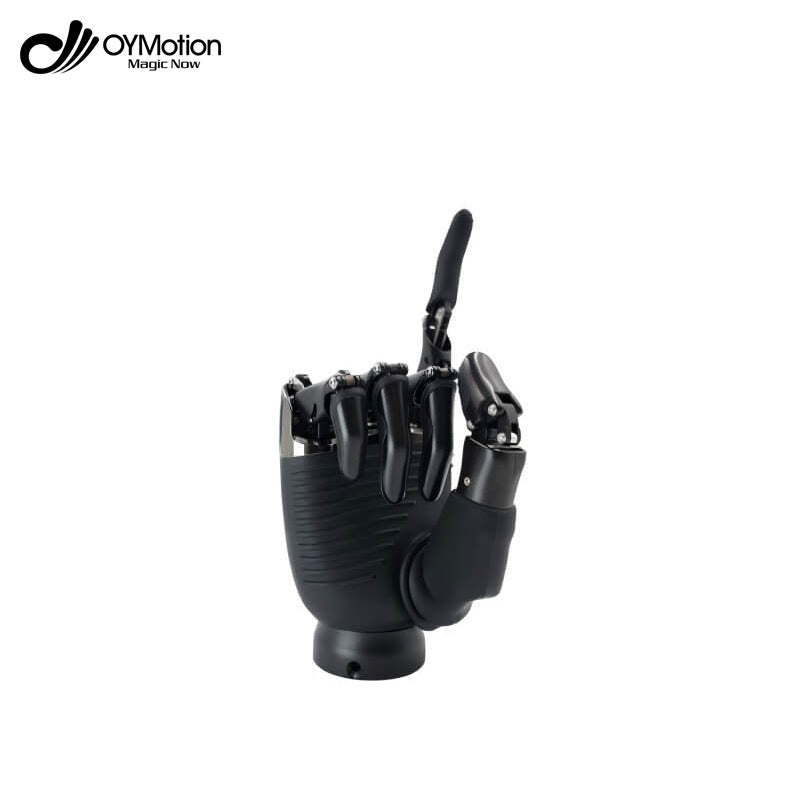

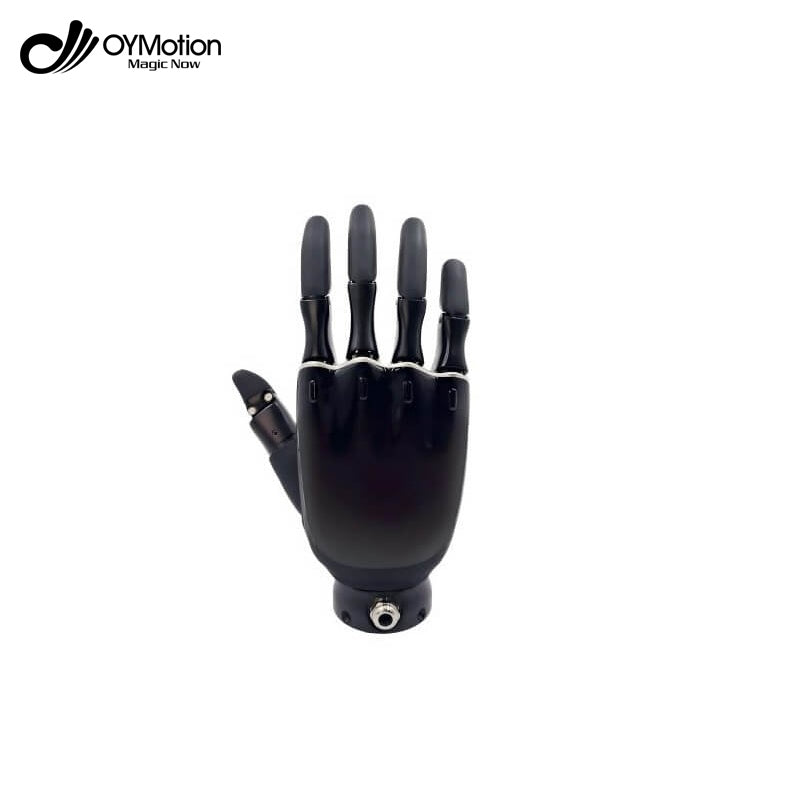

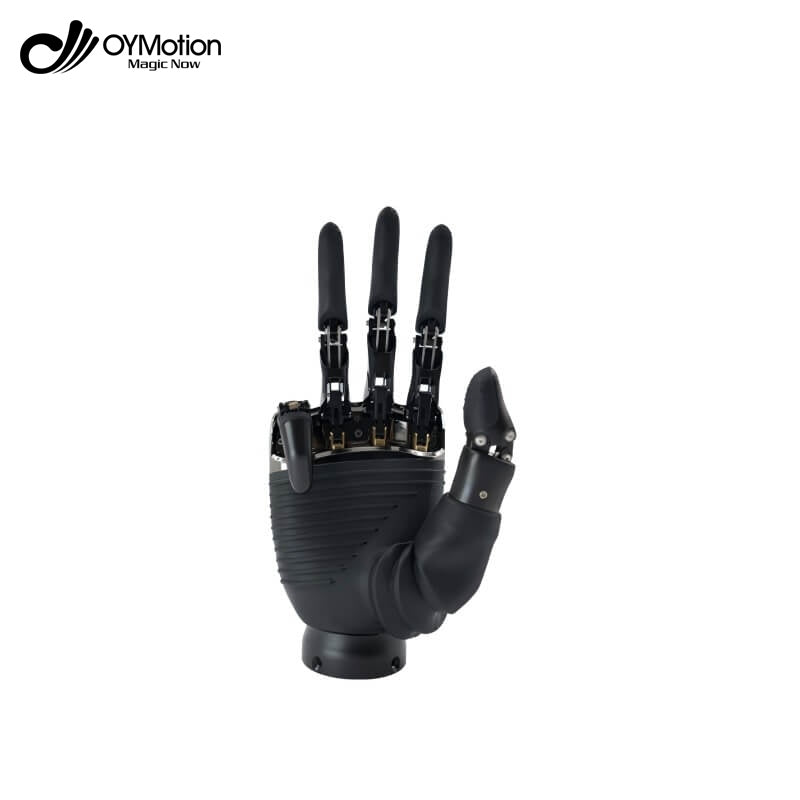

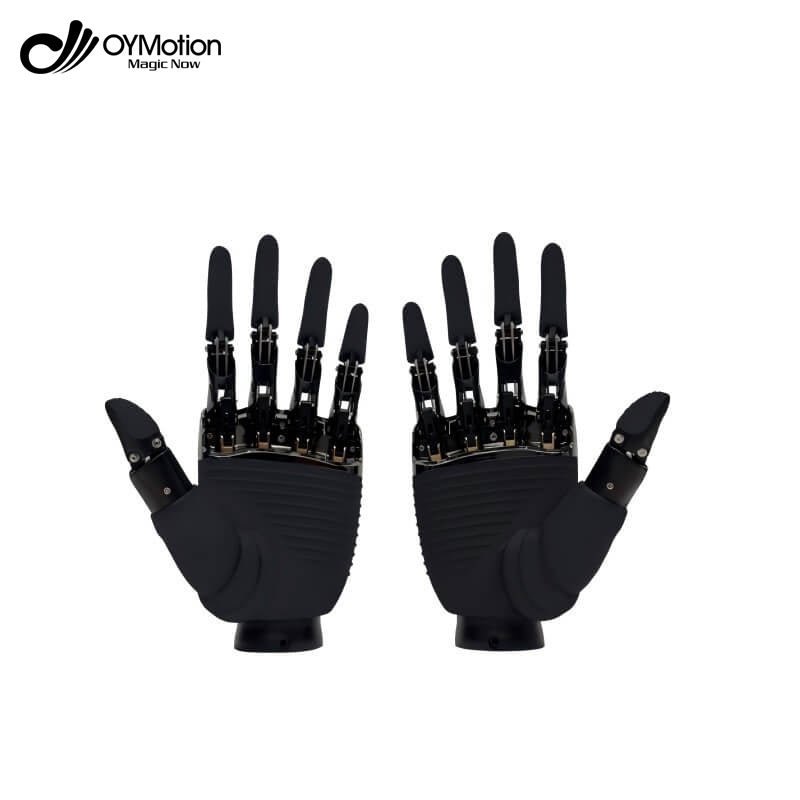

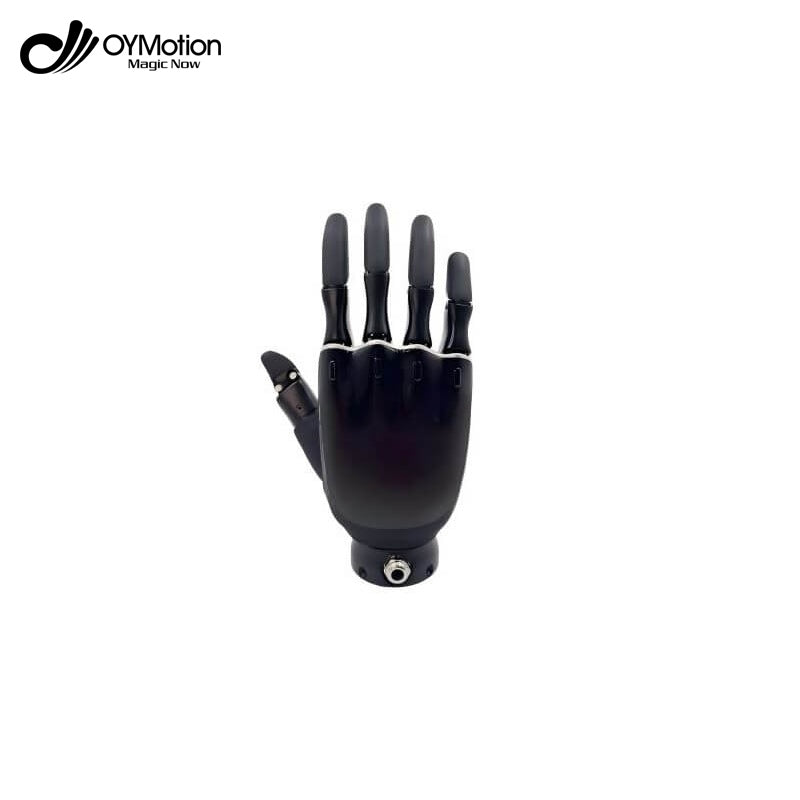

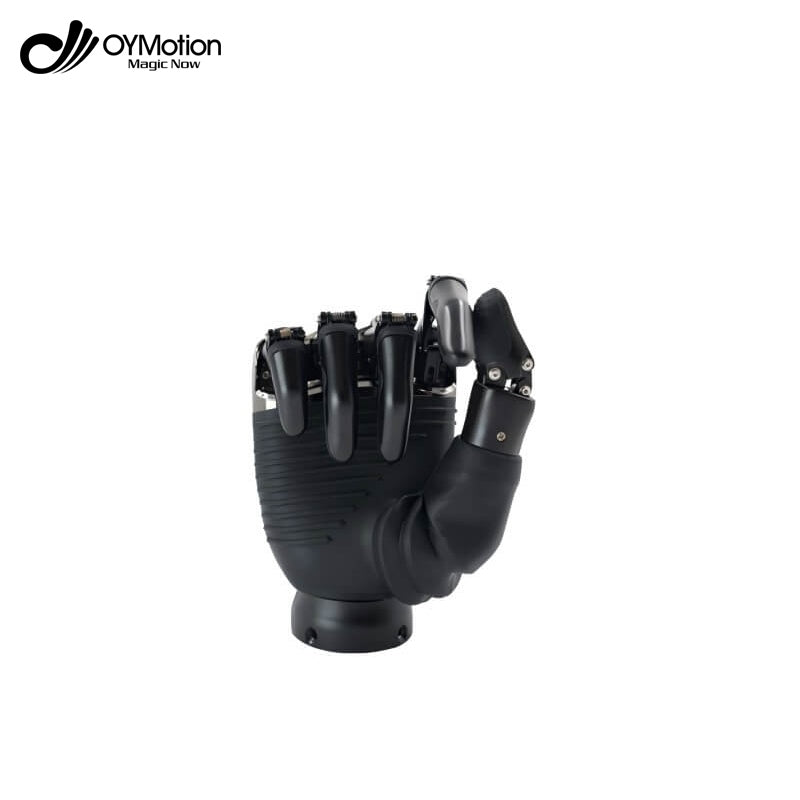

OYMotion ROH-AP001 Dexterous Hand

$15,000.00
Version
Model
Color: Black

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information





Technical Specifications

Parameter Value
  Vertical distance from the tip of the middle finger to the wrist   183 mm
  Vertical distance from thumb tip to wrist
  95 mm
  Thumb length
  111 mm
  Maximum palm width
  82 mm
  Wrist diameter
  49 mm
  Maximum opening and closing angle of the thumb side
  0~31 Degrees
  Maximum opening and closing angle of thumb to palm
  0~50 Degrees
  Thumb lateral rotation angle   0~90 Degrees
  Finger touch screen function    Supported
  Finger force feedback
   Supported
  Working environment   temperature: -10 degrees Celsius ~ +40 degrees Celsius
  Humidity: Maximum relative humidity 85%
Bending/stretching time for full range at maximum speed
0.7 second
Rotation time of thumb for full range at maximum speed
 0.7 second
Active force of each finger tip on stretched state
≥0.5 Kgf
Active force of each finger tip on bended state
 ≥1.0 Kgf
Maximum active force of thumb tip
 ≥1.0 Kgf
Maximum passive load for four fingers on bended state
 30 Kg
Maximum passive load for each fingers on bended state
10 Kg
Maximum passive load for each finger on stretched state
8 Kg
Weight (including wrist)
640g ± 5g
Communication Interface
 UART/RS485/CAN
Baud Rate
UART: 9600/19200/38400/57600/115200/230400/460800/921600
RS485:9600/19200/38400/57600/115200/230400/460800
CAN:1M
Supported Protocol
UART:SerialCtrl \ModBus-RTU
RS485:SerialCtrl \ModBus-RTU
CAN:SerialCtrl
