Ti5 ROBOT | SKU:

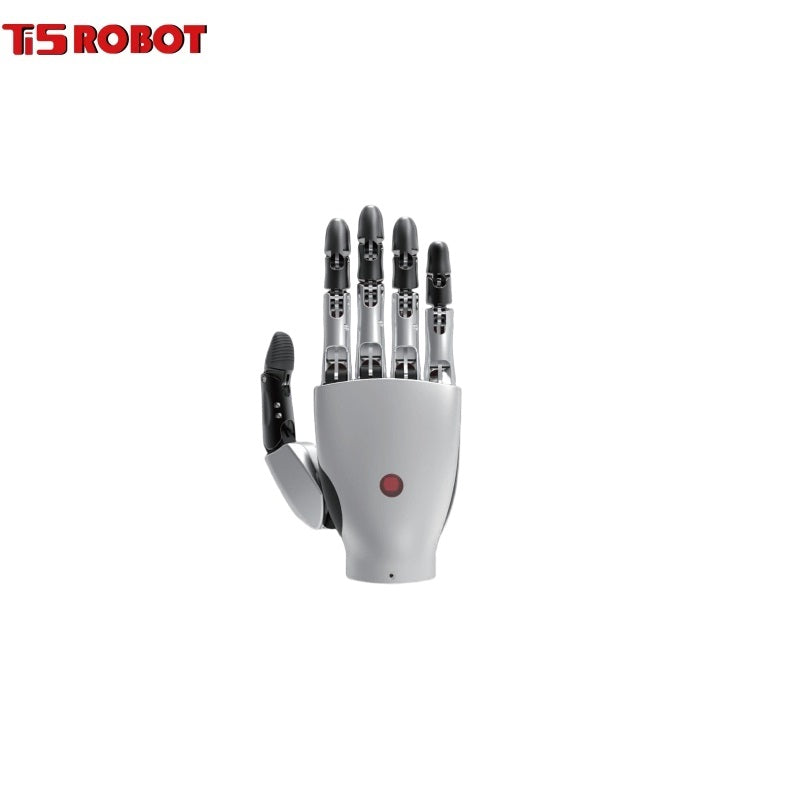

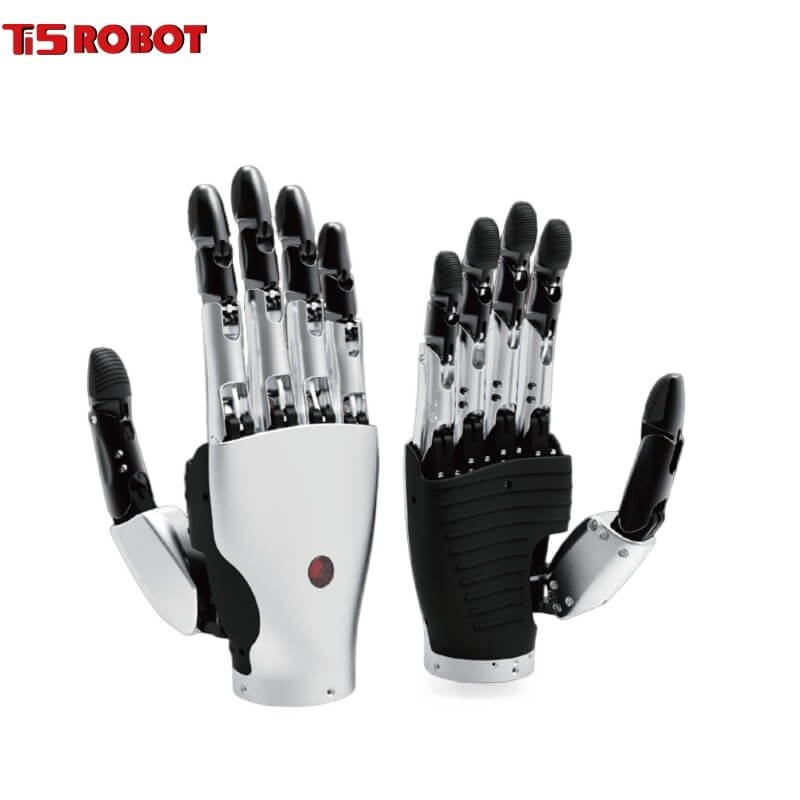

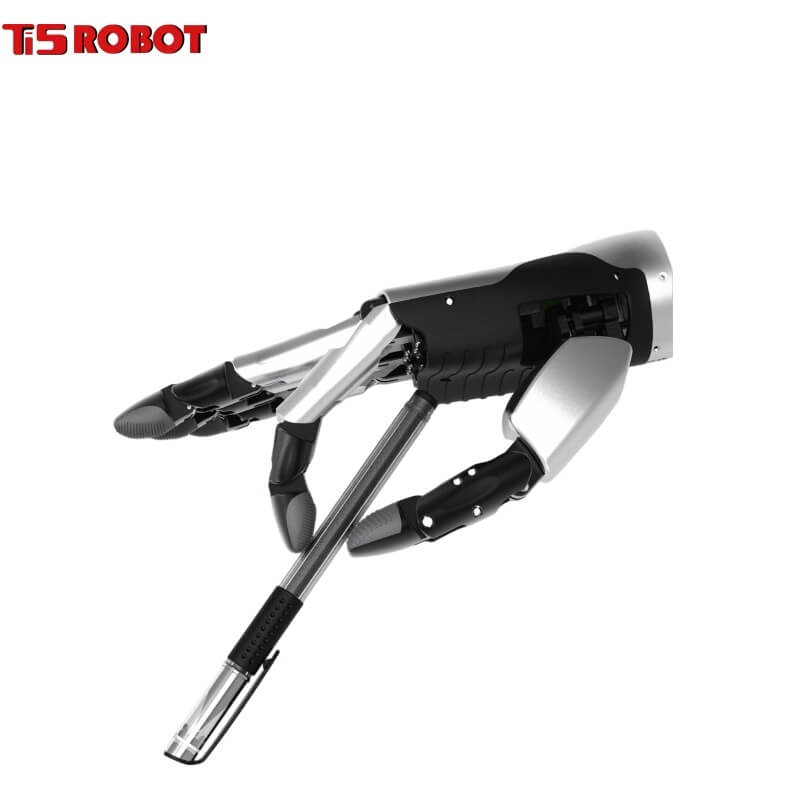

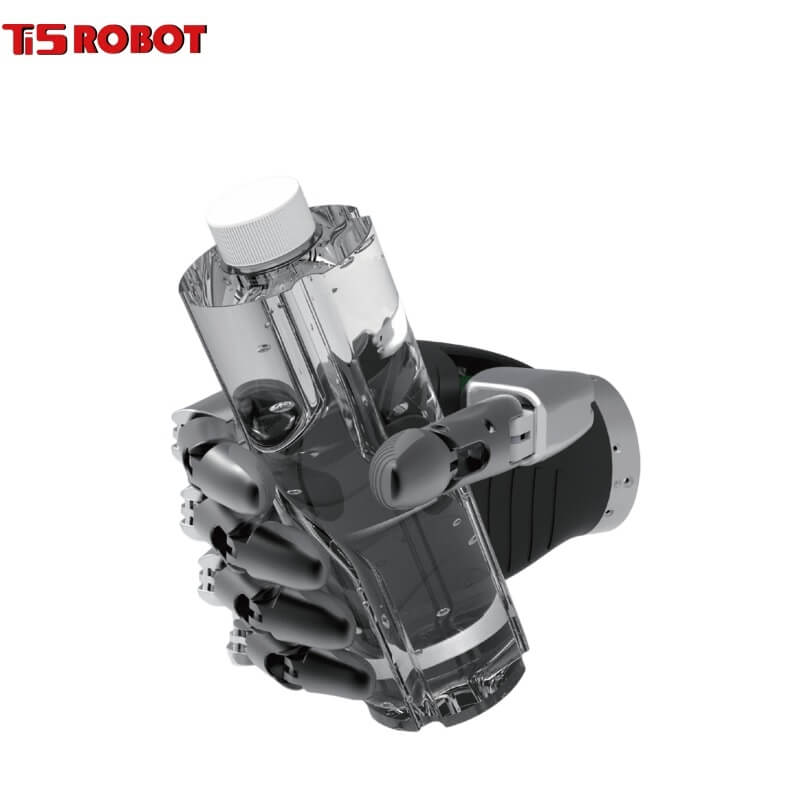

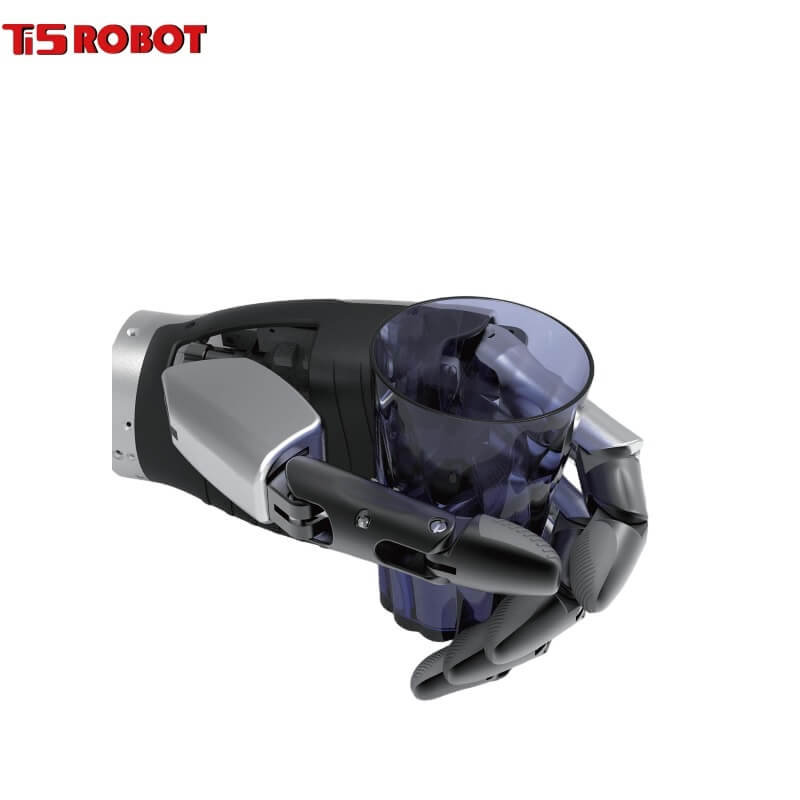

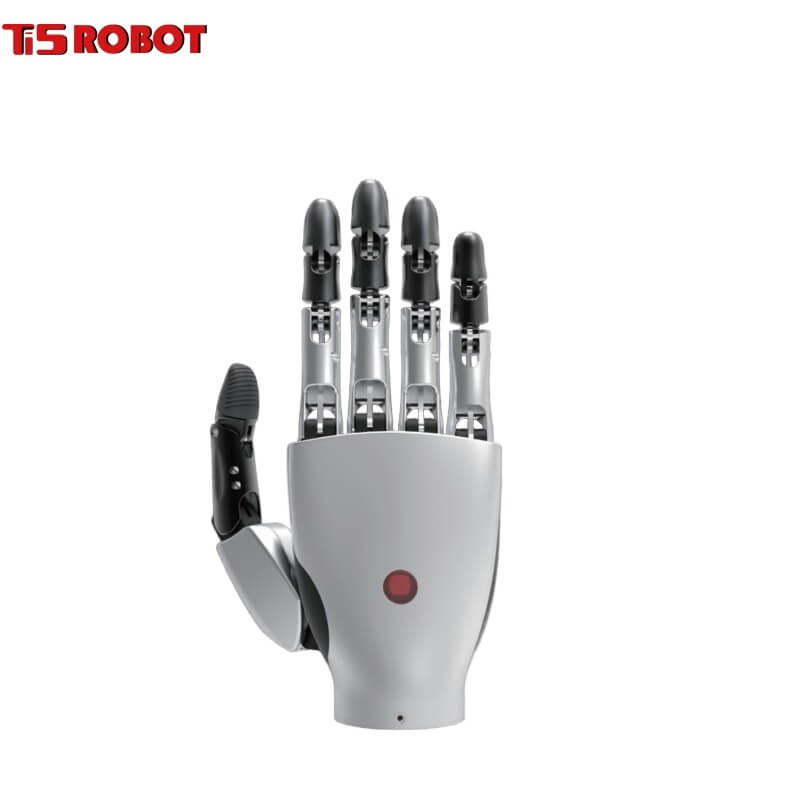

Ti5 ROBOT Cool Hand
Regular price
$2,945.00
Unit price
/
Unavailable
Ti5 ROBOT Cool Hand - Ti5 Cool hand / Left is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Ti5 ROBOT Cool Hand
Regular price
From
$2,945.00
Unit price
/
Unavailable
Product Information
Technical Specifications
| Parameter | Value | Value |
|---|---|---|
| Ti5 Cool Hand | TH-RH-1-L/R | TH-RH-1-L/R-BT |
| Left and right hand |
Left /Right
|
Left /Right
|
|
A.Palm |
80mm
|
80mm
|
| B.The maximum width of the hand | 132mm | 132mm |
| C.The length of the hand | 205mm | 205mm |
| D.The length of the fingers | 97mm | 97mm |
|
The force exerted on the fingertips of each of the four fingers
|
10N
|
10N
|
| The maximum force exerted on the thumb | 12N | 12N |
| Degree of freedom | 6 | 6 |
| Weight | 480g | 480g |
| Operating voltage | DC12V±10% | DC12V±10% |
| Quiescent current | 200mA | 200mA |
|
Maximum current
|
3A | 3A |
|
Number of joints
|
5 | 5 |
|
Control interface
|
RS485 | RS485+Bluetooth |
|
Horizontal rotation range of the thumb
|
90°
|
90°
|
|
The lateral swing speed of the fingers
|
0-6000（pace/s） 90° 1024pace
|
0-6000（pace/s） 90° 1024pace |

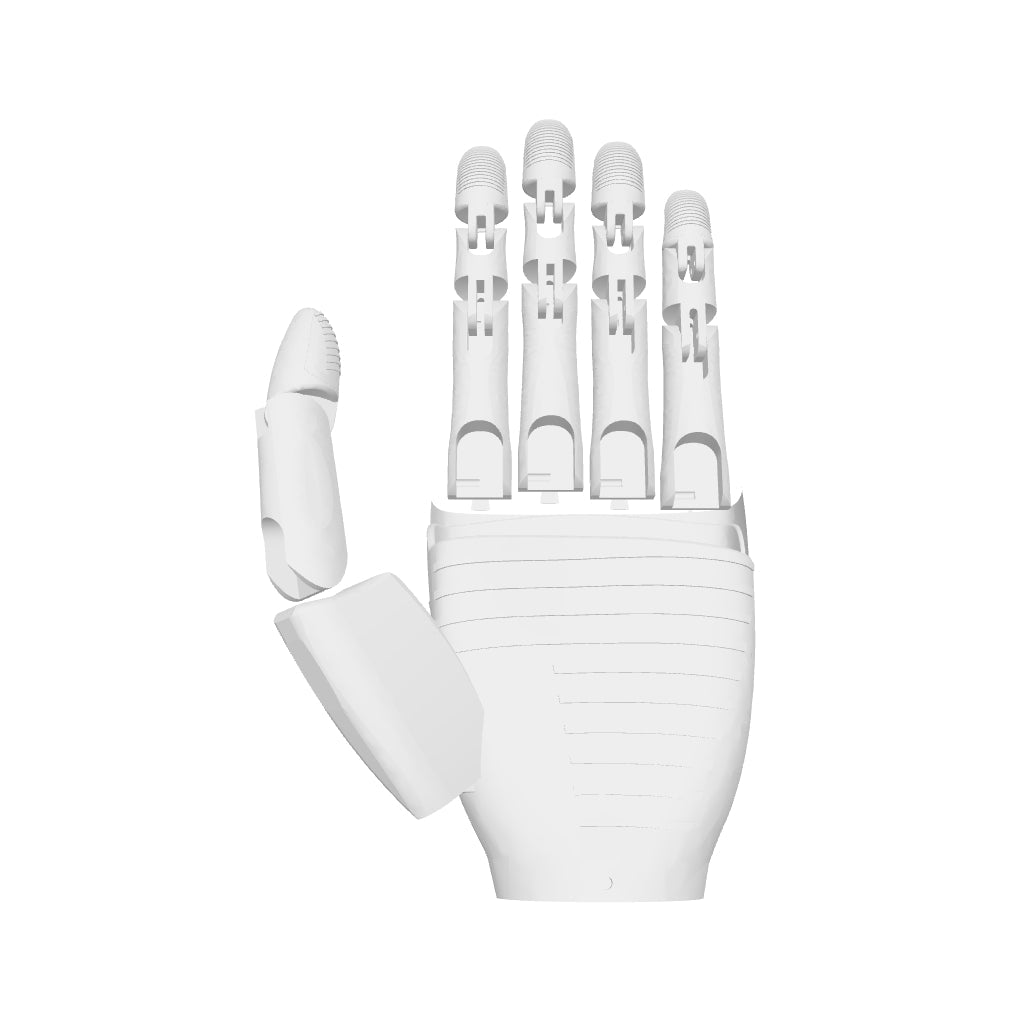

RobotHand_6D_OF_left.stp

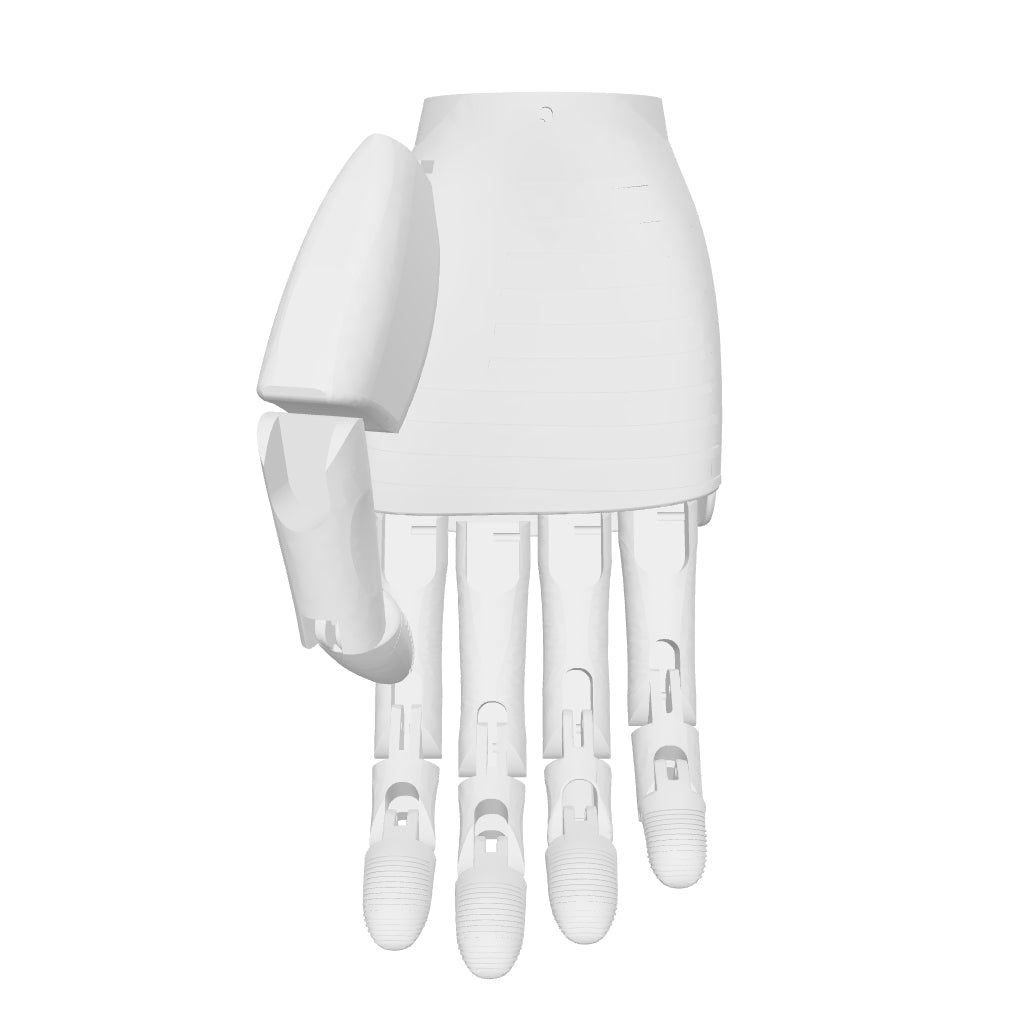

RobotHand_6D_OF_right.stp
