SLAMTEC

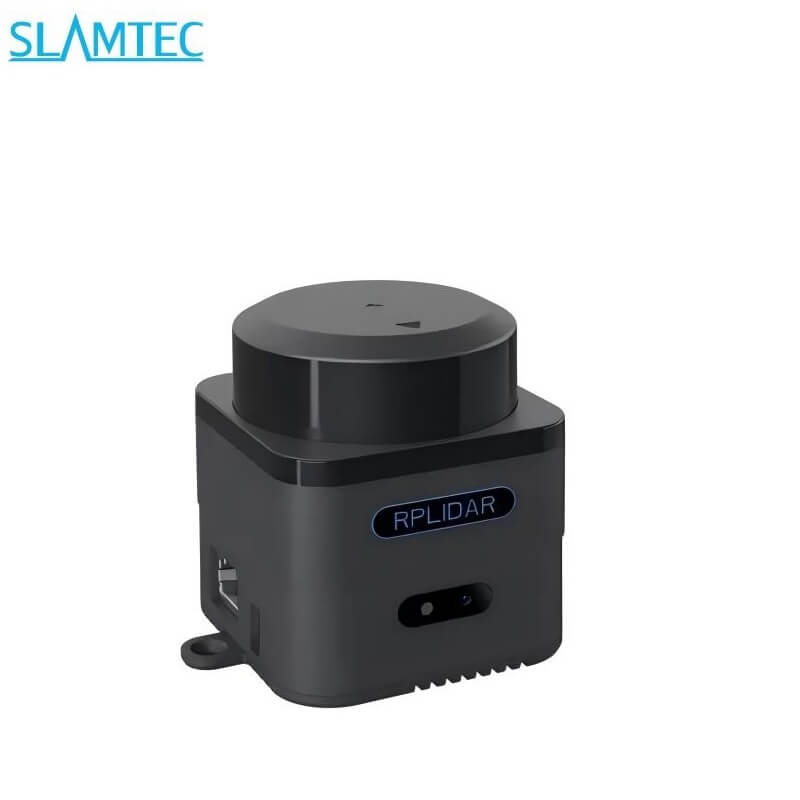

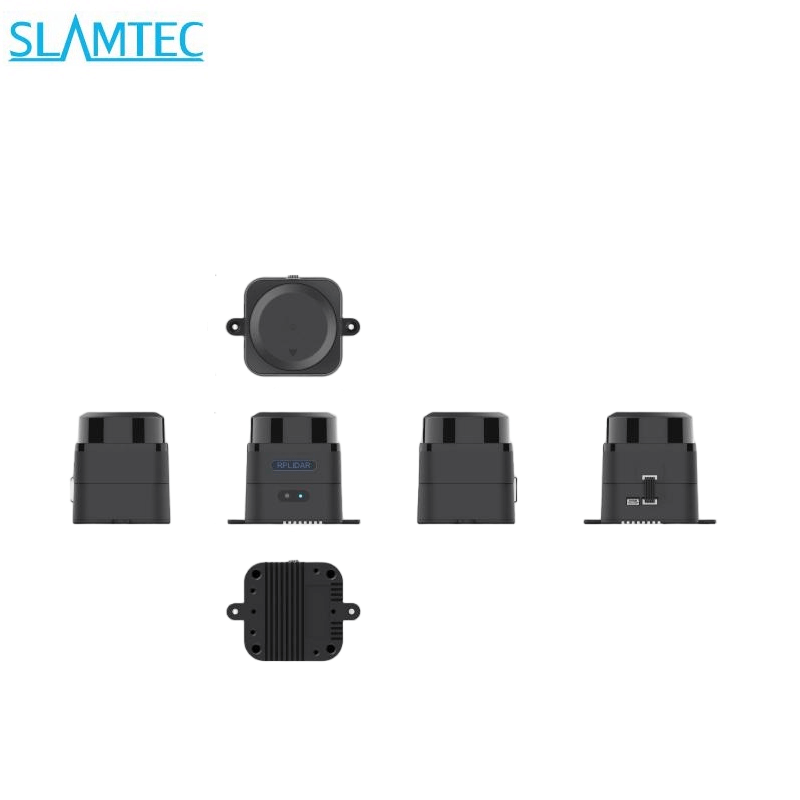

SLAMTEC Mapper M2M3 LiDAR

Regular price $840.00

Version

Delivery and Shipping

  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information




Technical Specifications

Parameter Value
Model

SLAMTEC Mapper M2M3

Distance Range 40m
Sample Rate

10kHz

MaximumArea
300m*300m
Mapping resolution 0.05m
Maximum moving speed 2m/s
Maximum rotation speed TBD
Accuracy <0.02m
Graph Optimizing Working Time About1hr
Maximum Inclination Angle

±3°

Frequency of data refresh 10Hz
Laser wavelength 895-915nm
Laser power 25W
Pulse length 5ns
Laser Safety Class

IEC-60825 Class 1

Power Voltage

4.95—5.3V

Power Voltage Ripple

50mV

System Start Current

1200mA

Power Current 650mA
Weight
163g
Working Temperature Range
-5—45ºC
