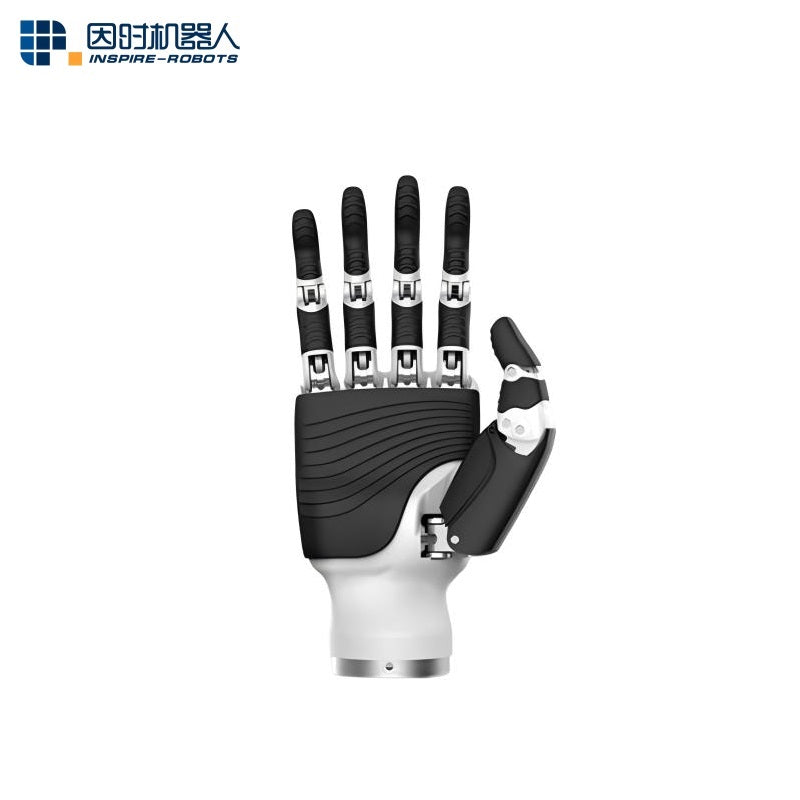

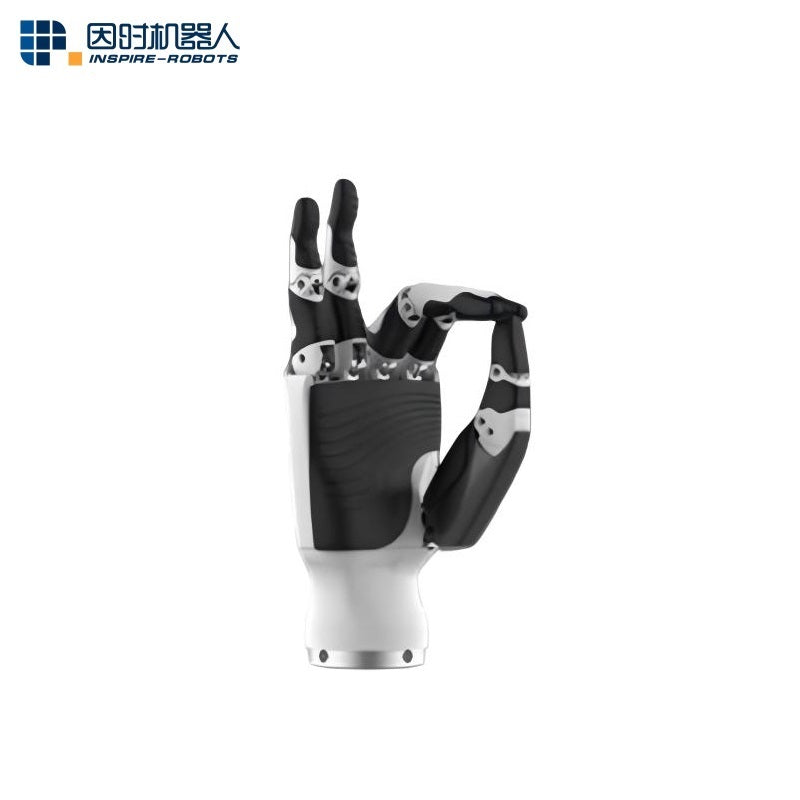

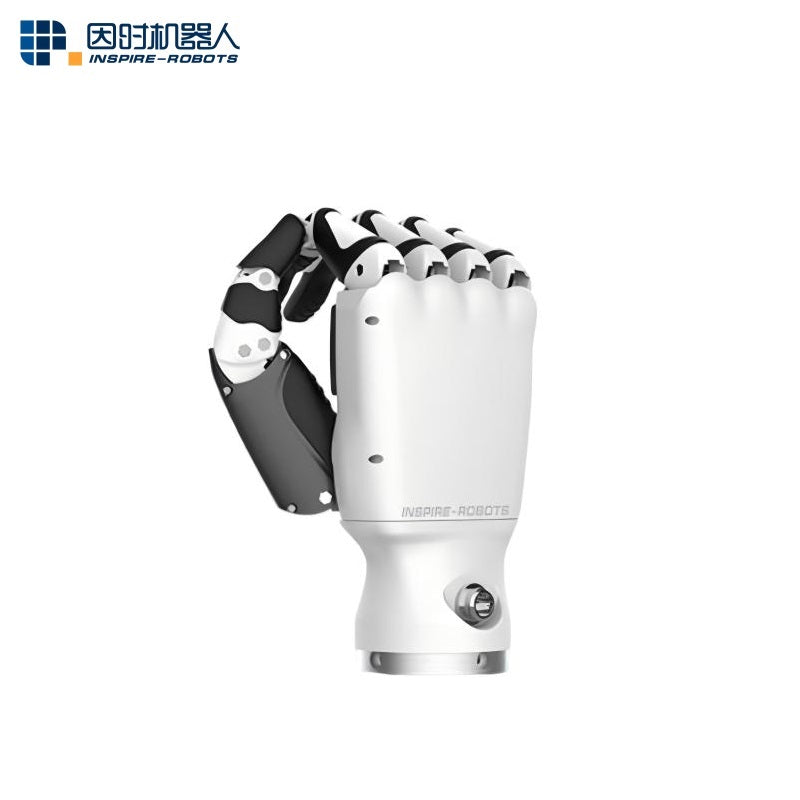

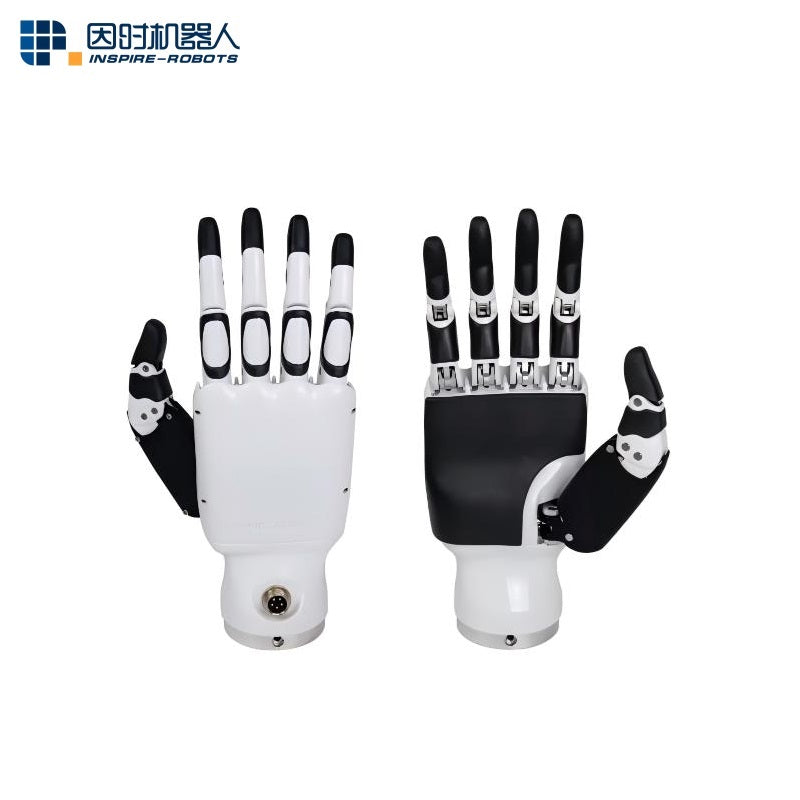

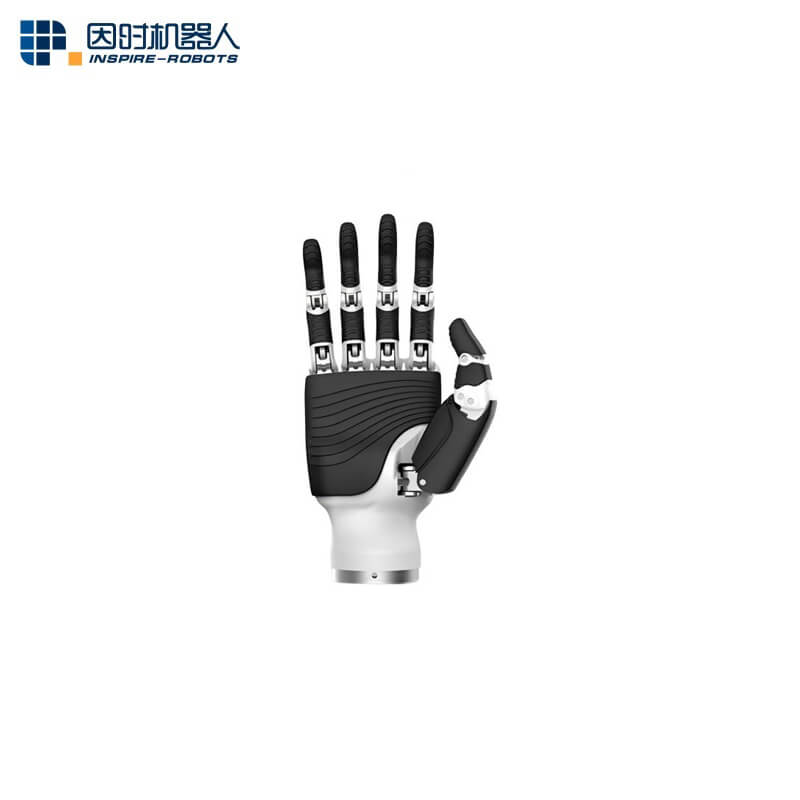

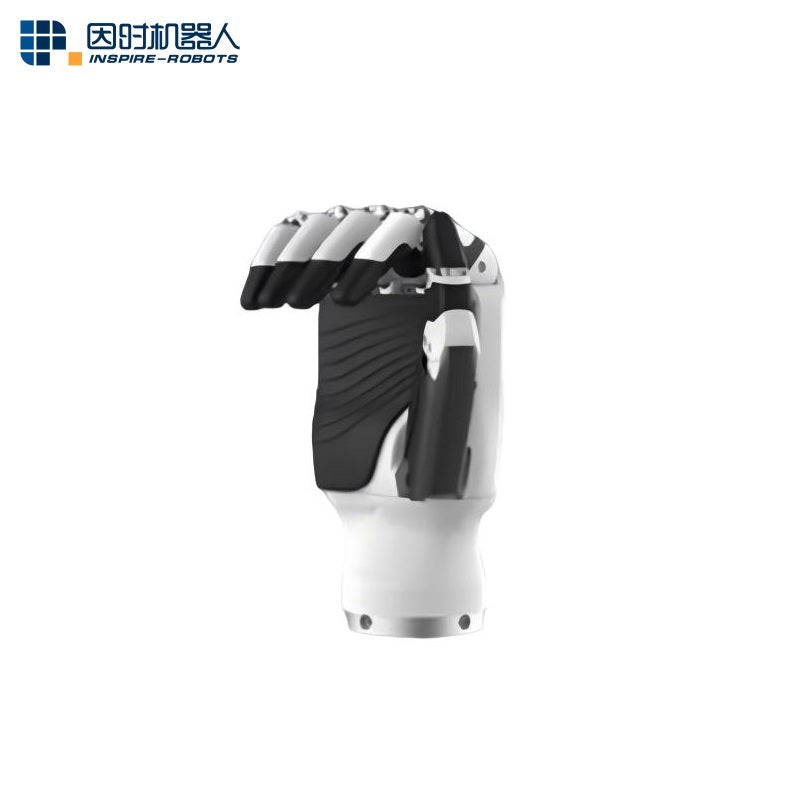

INSPIRE-ROBOTS RH56DFX Robotic Hand

$4,900.00
Version
Left/Right

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Wrist No
Control Interface CAN+RS485
Degrees of Freedom 6
Number of Finger Joints 12
Weight 540g
Operating Voltage DC24V±10%
Static Current 0.09A
Maximum Current 2A
Repeatability ±0.20mm
Thumb Maximum Grip Force 15N
Four Fingers Maximum Grip Force 10N
Grip Force Resolution 0.50N
Thumb Lateral Rotation Range >65°
Thumb Abduction Speed 235°/s
Thumb Flexion Speed 150°/s
Four Fingers Flexion Speed 570°/s

INSPIRE-ROBOTS-RH56DFX-Draw.pdf

INSPIRE-ROBOTS-THE-DEXTEROUS-HAND-RH56-SERIES-USER-MANUAL.pdf

INSPIRE-ROBOTS-THE-DEXTEROUS-HANDS-INSTRUCTIONS.pdf

INSPIRE-ROBOTS-The-Dexterous-HandsCAN-Supplemental-ProtocolV0.0.2.pdf

INSPIRE-ROBOTS-THE-Dexterous-Hand-PC-Instructions.pdf

INSPIRE-ROBOTS-The-Dexterous-Hand-RH56DFTP-User-Manual-V1.0.0.pdf

INSPIRE-ROBOTS-WRIST-MODULE-OF-THE-DEXTEROUS-HAND-INSTRUCTIONS.pdf
