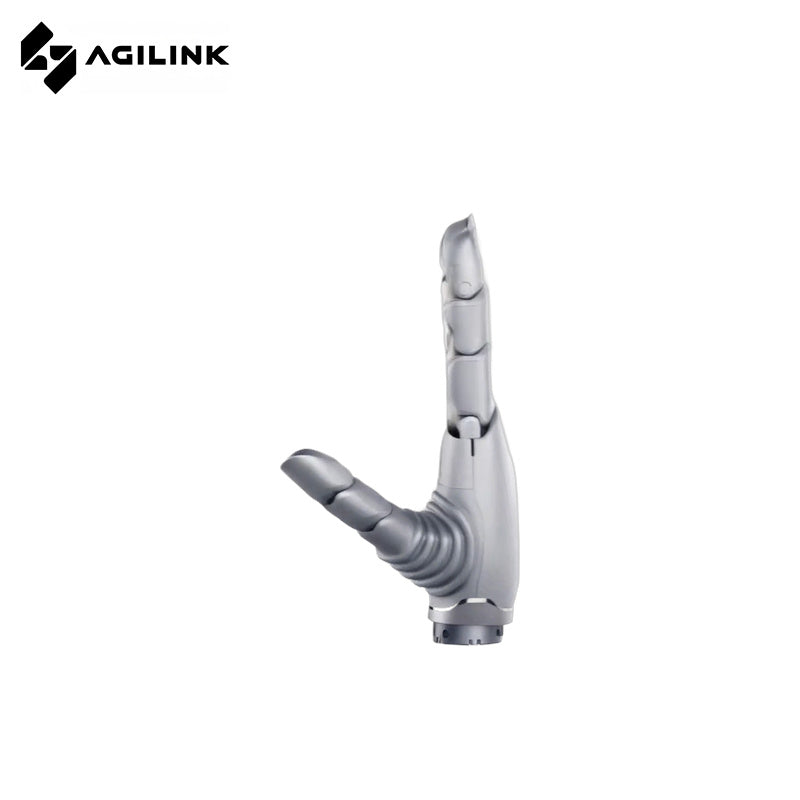

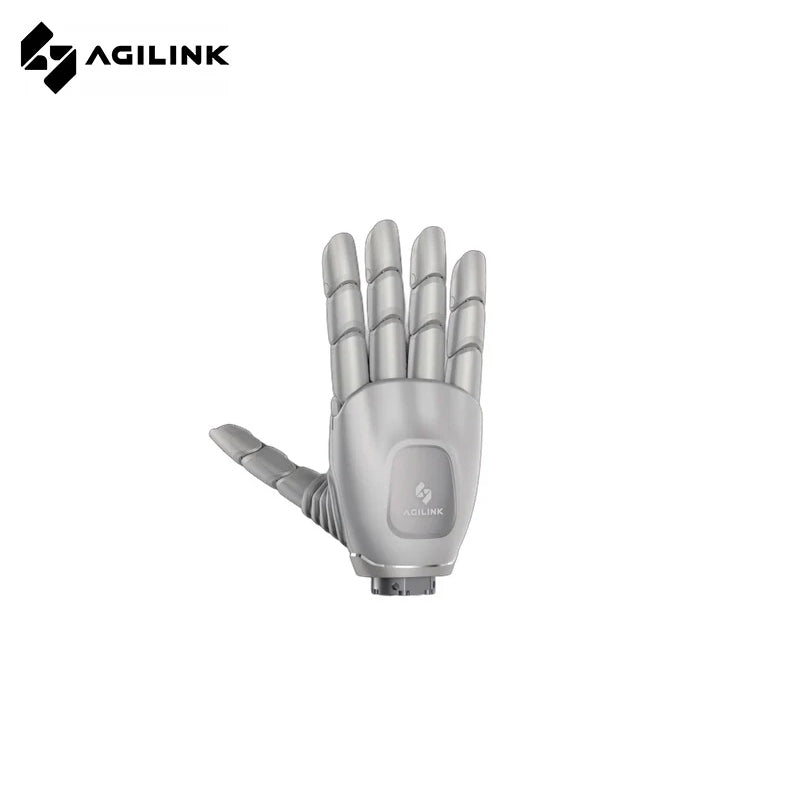

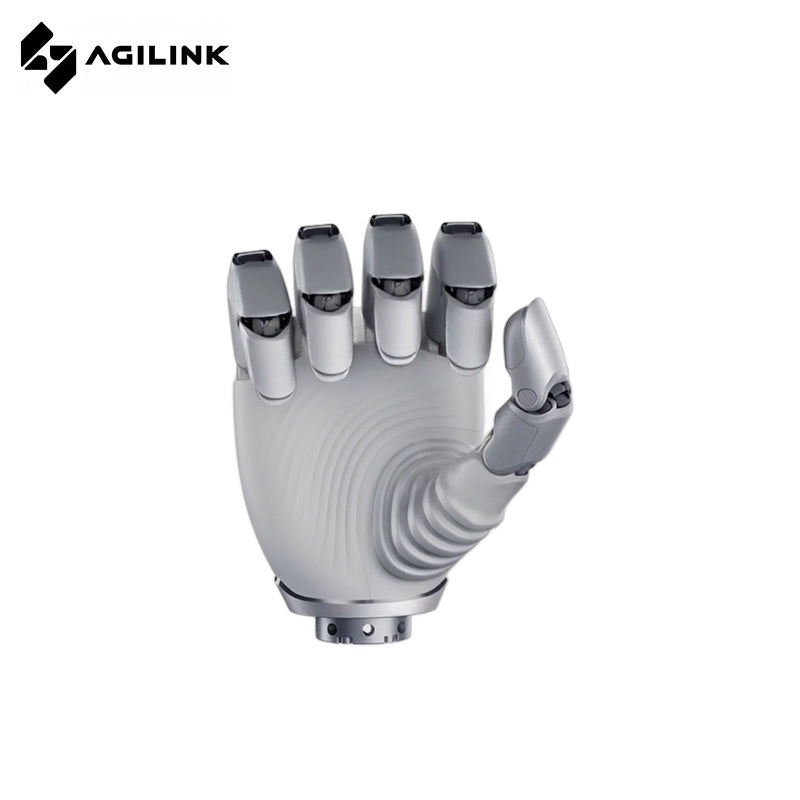

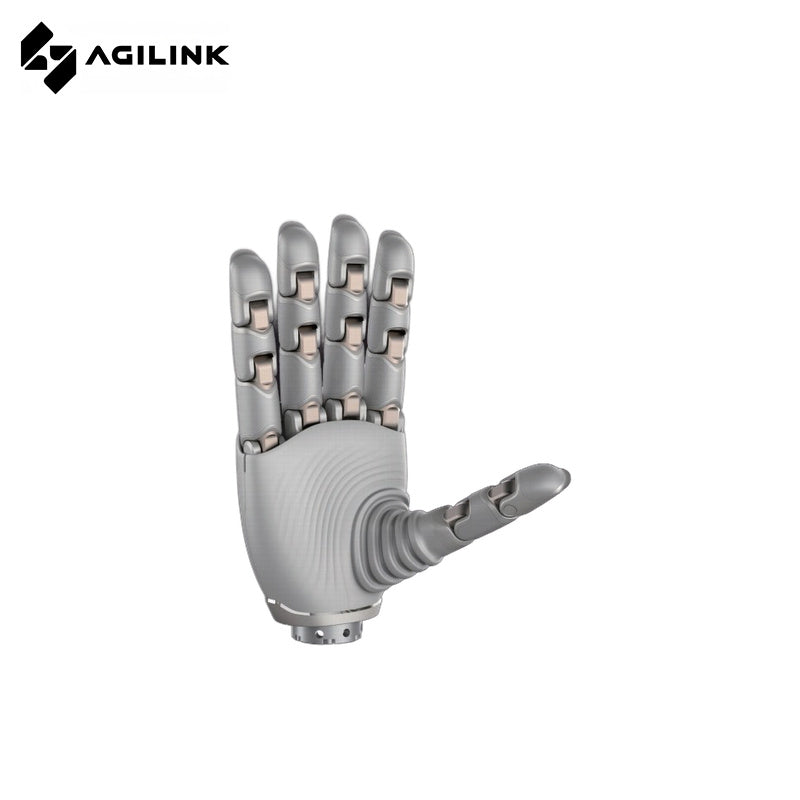

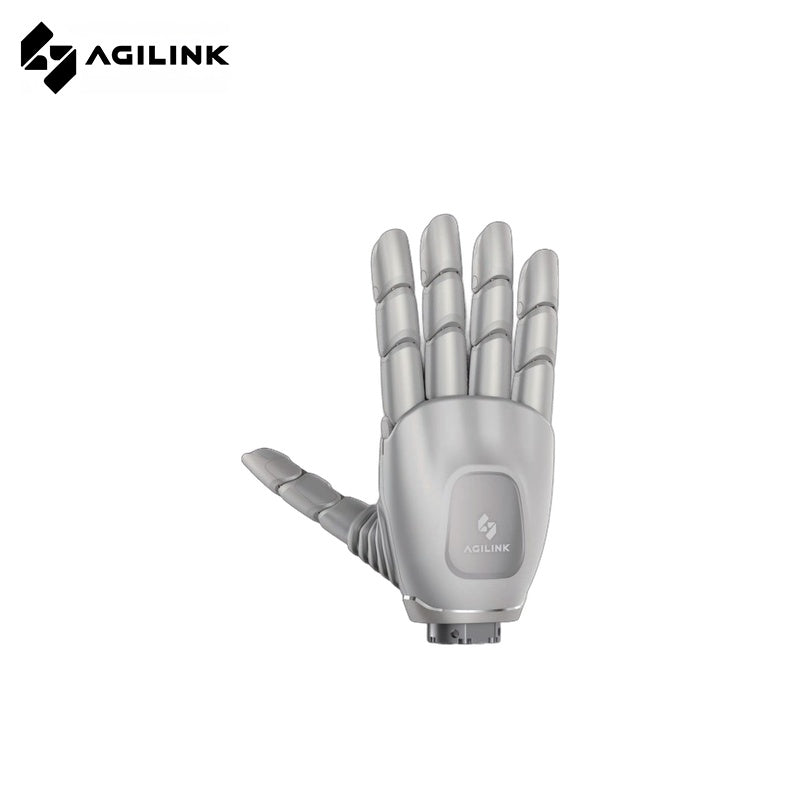

AGILINK OmniHand 3 Ultra-M Robotic Hand
Regular price
$61,300.00
Unit price
AGILINK OmniHand 3 Ultra-M Robotic Hand - OmniHand 3 Ultra-M / Left is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
AGILINK OmniHand 3 Ultra-M Robotic Hand
Regular price
$61,300.00
Unit price
AGILINK OmniHand 3 Ultra-M Robotic Hand - OmniHand 3 Ultra-M / Left is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| General Specifications | |
| Degrees of Freedom | 20 Active |
| Dimensions | 189.5 × 88.5 × 40mm |
| Weight | 630g |
| Payload | 3kg (stable grasping) |
| Opening/Closing Time (Typ.) | 0.3s |
| Repetitive Positioning Accuracy | ±0.2mm |
| Communication Interface | CANFD / RS485 / EtherCAT |
| Tactile Sensor - Palm | |
| Sensing Approach | 3D tactile sensor |
| Force Sensing Resolution | 0.1N |
| Number of Tactile Pixels | 300 |
| Tactile Sensor - Fingertip | |
| Sensing Approach | Vision-based tactile |
| Force Detection Range | 0-30N |
| Force Sensing Resolution | 0.005N |
| Spatial Resolution | 0.04mm |
| Deformation Field Accuracy | 0.08mm |
| Force Measurement | |
| Force Type | 3D distributed force + 6D resultant |
