Vizum | SKU:
Vizum lntelligent Dexterous Hand
Regular price
$5,280.00
Unit price
/
Unavailable
Vizum lntelligent Dexterous Hand - Vizum lntelligent Dexterous Hand (Left) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments

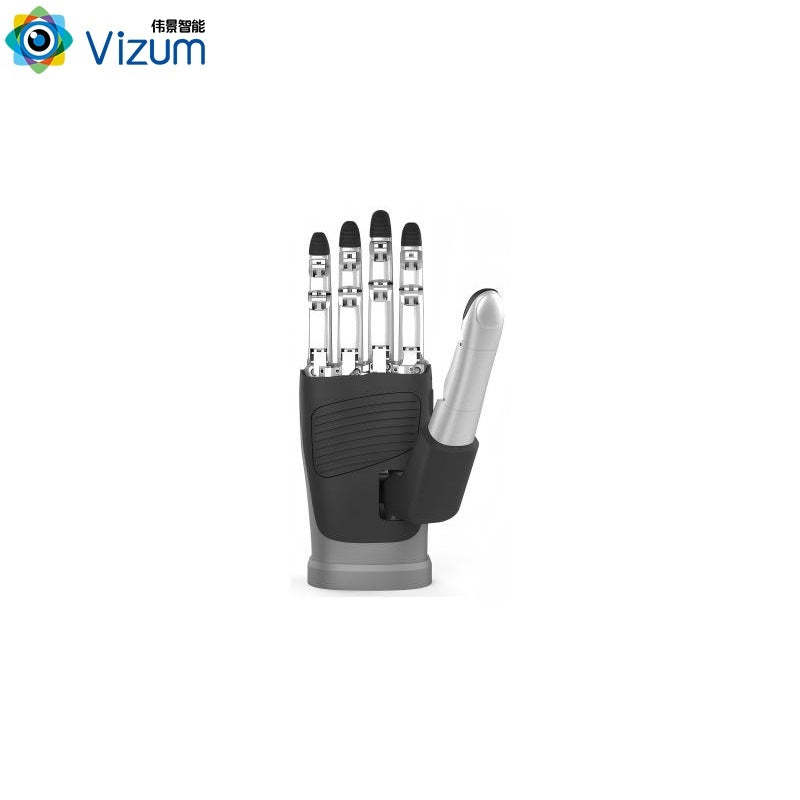

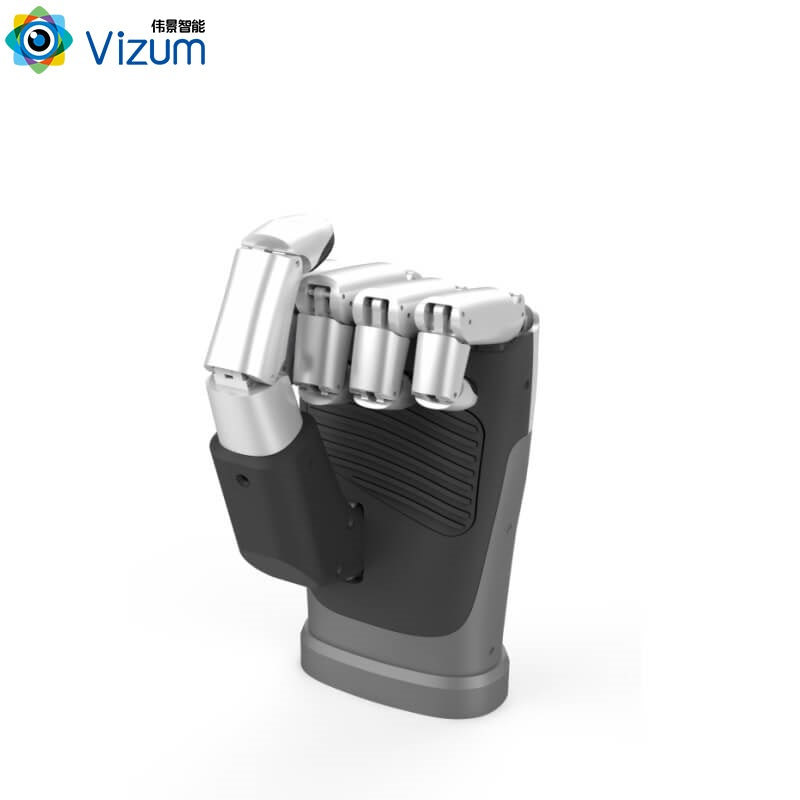

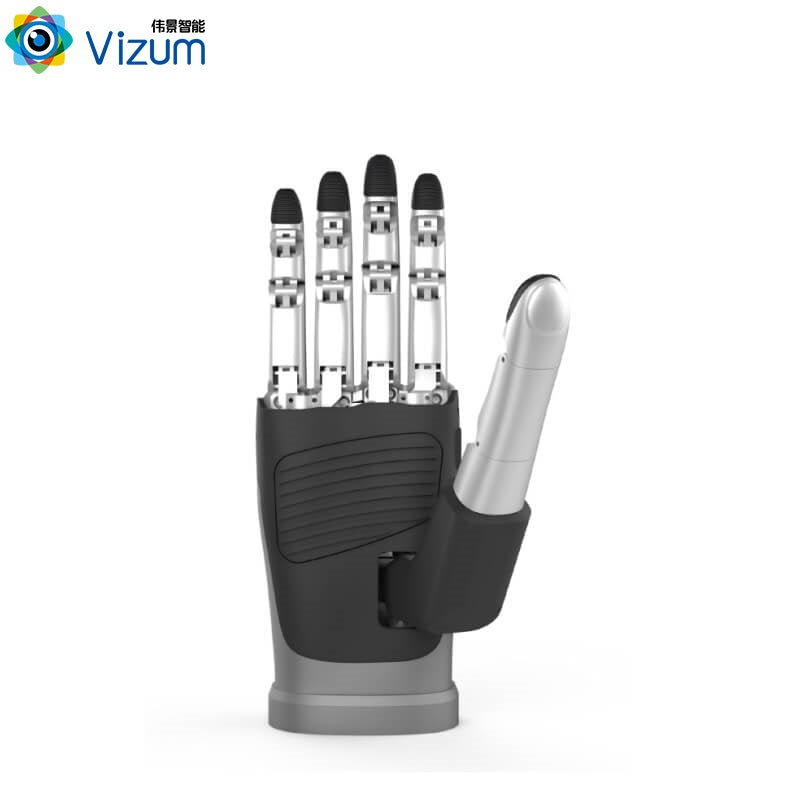

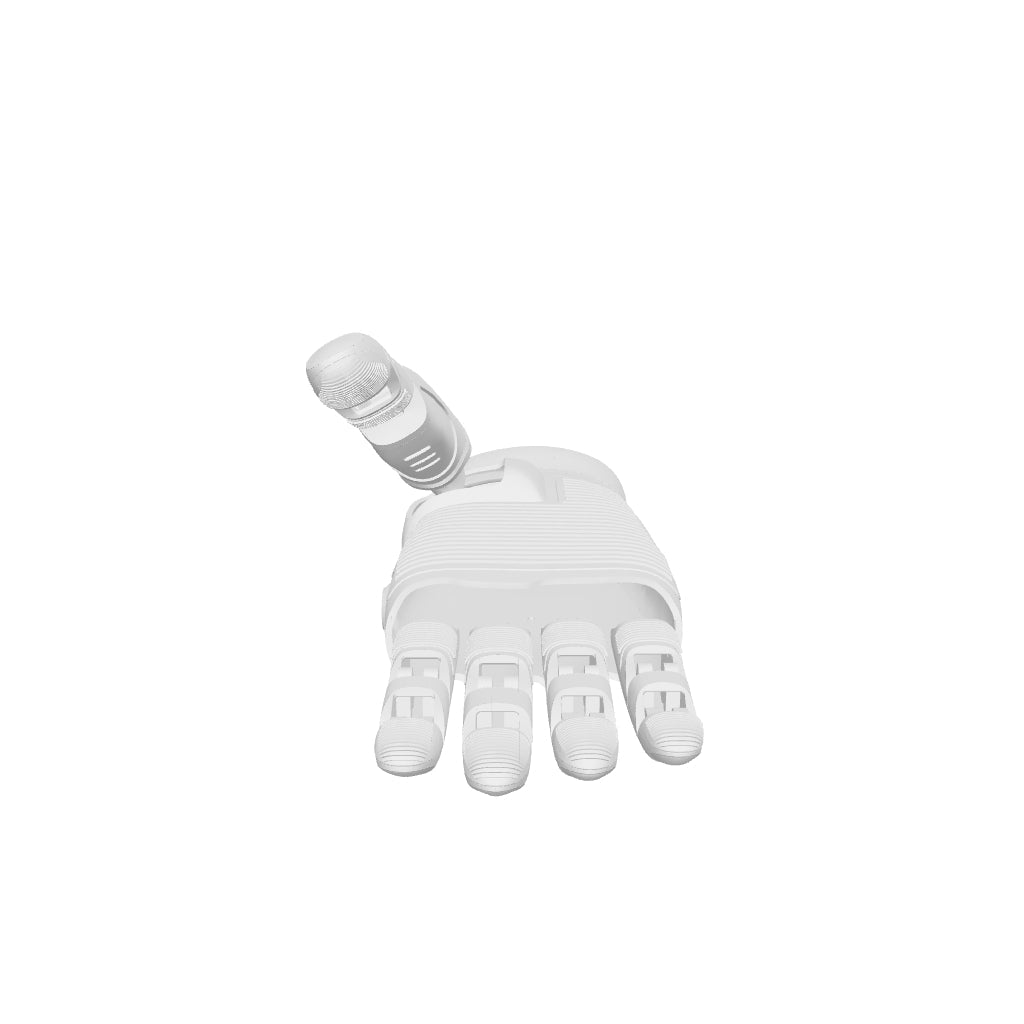

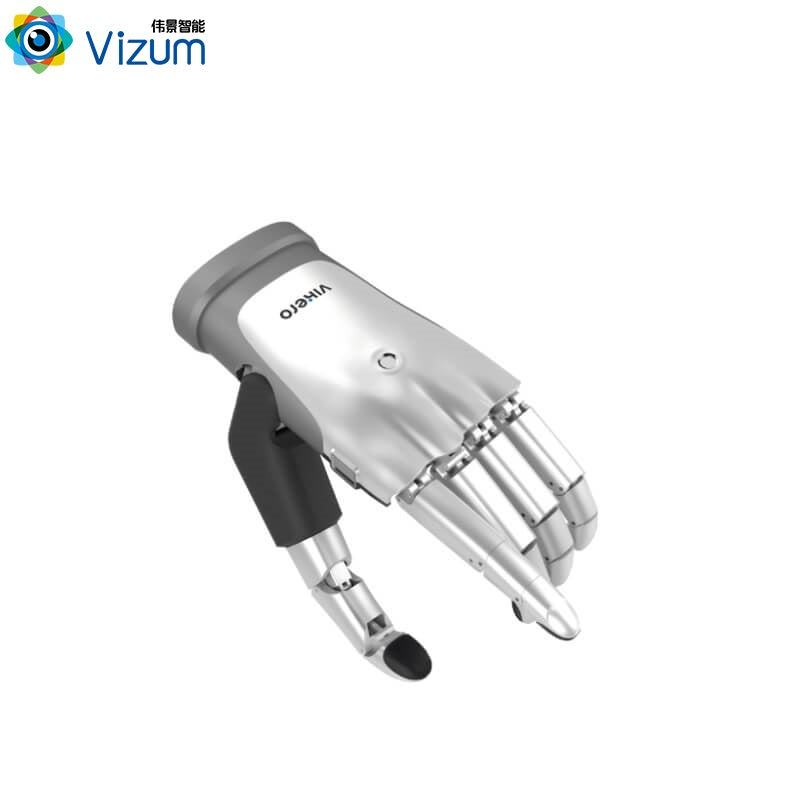

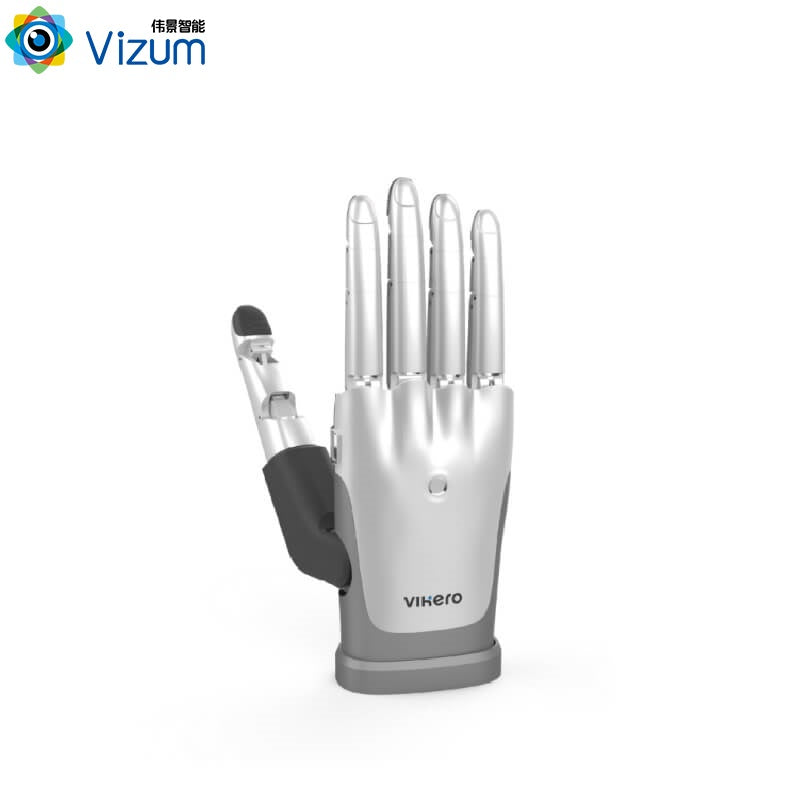

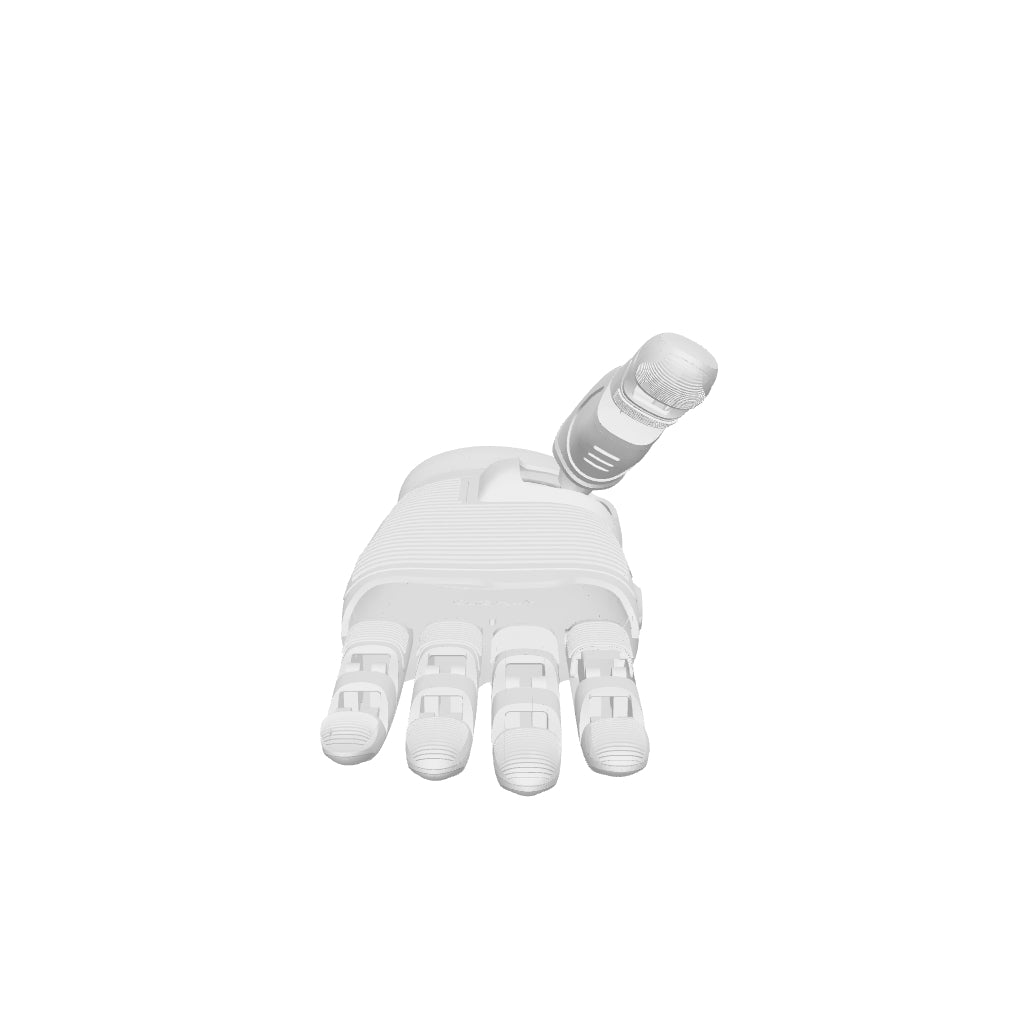

Vizum lntelligent Dexterous Hand
Regular price
$5,280.00
Unit price
/
Unavailable
Product Information
Technical Specifications
| Parameter | Value |
|---|---|
|
Size（L×W×H）
|
233mm × 89mm × 45mm |
| Weight | 780g |
| Number of Fingers |
5 |
| Degree of Freedom | 16 |
|
Number of Joints
|
16 |
| Pressure at Fingertip of Single Finger | 12N |
|
Load of Single Finger
|
1.2kg
|
| Drive Mode |
Motor
|
| Transmission Mode |
Linkage
|
|
Repeat Positioning Accuracy
|
±0.1 mm
|
|
Working Voltage
|
24V
|
| Communication Interface |
CAN FD
|
