LUMOS

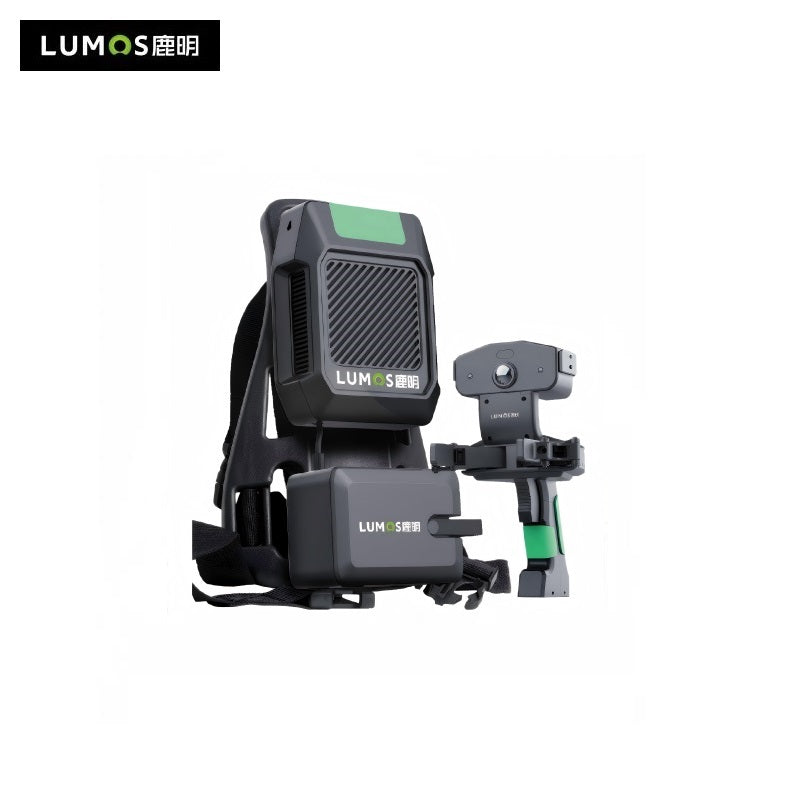

LUMOS FastUMI Go

$33,000.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information



Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value

FastUMI Go
Number of Sensor/Gripper Units 2 (left and right)
Structural Components Ultra-High Definition, Ultra-Wide FOV Fisheye RGB Camera * 2
Ultra-High Precision Visual Odometry Sensor * 2
High-Precision Depth Camera * 2
High-Resolution Gripper Aperture Sensor * 2
Modular and Interchangeable Gripper Fingertips * 2
High-Strength Lightweight Gripper Body * 2
High-Performance Mobile Workstation * 1
Mobile Power Bank * 1
Portable Backpack * 1
Detailed Parameters
Length  ≤ 300mm
Width ≤ 170mm
Height ≤ 250mm
Gripper Unit Mass ≤ 800g
Data Modalities RGB images, Depth images, IMU data, 6-DoF pose trajectory (spatial localization track)
Gripping Force ≥ 2kg
Fisheye RGB Cameras
Sensor ≥ 48 MegaPixel
Output Resolution ≥ 1280 × 1280
Frame Rate ≥ 60 fps
Horizontal FOV > 180°
Vertical FOV > 180°
TOF Depth Camera
Resolution ≥ 640 × 480
Frame Rate ≥ 30 fps
Depth Accuracy <1% error within 4 m range
IMU ≥ 9-axis
Sampling rate ≥ 500 Hz
I/O Interface USB Type-C, supporting USB 3.2 Gen 2 protocol
Transfer rate up to 10 Gbps
Support System Ubuntu 20.04 & 22.04, ROS 1 & 2
