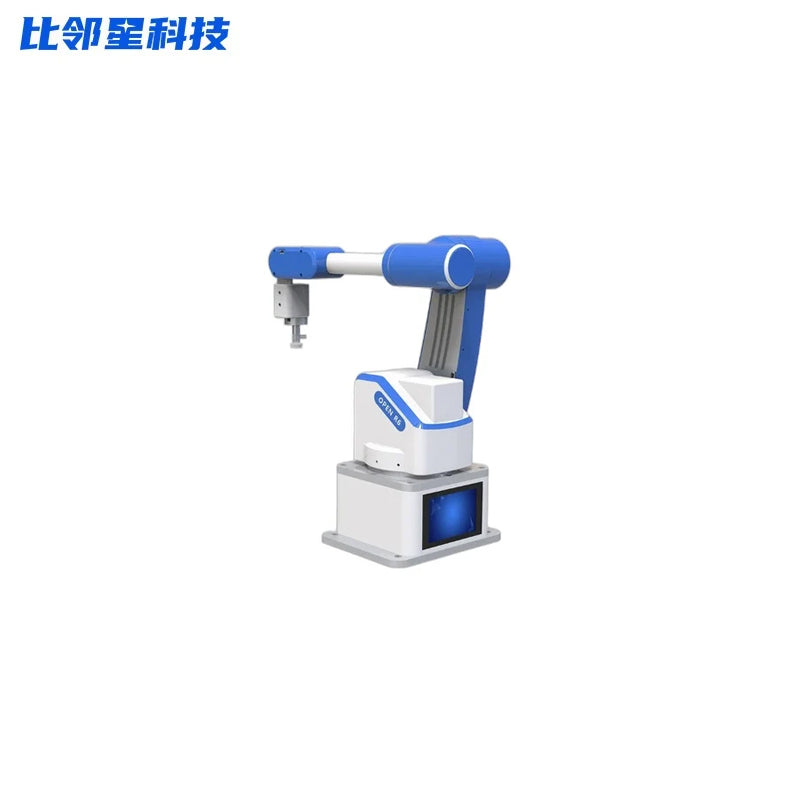

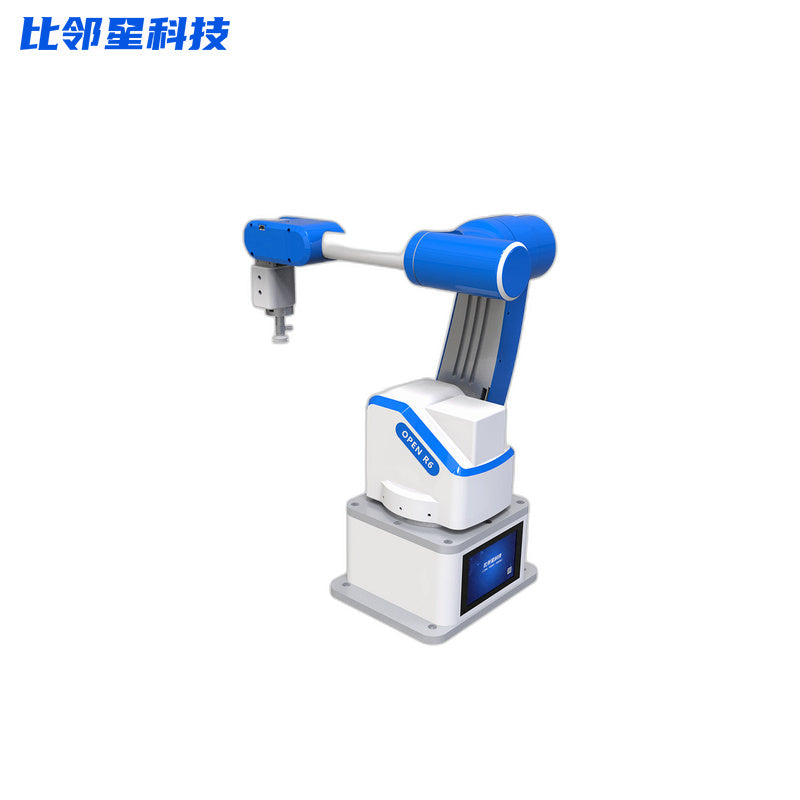

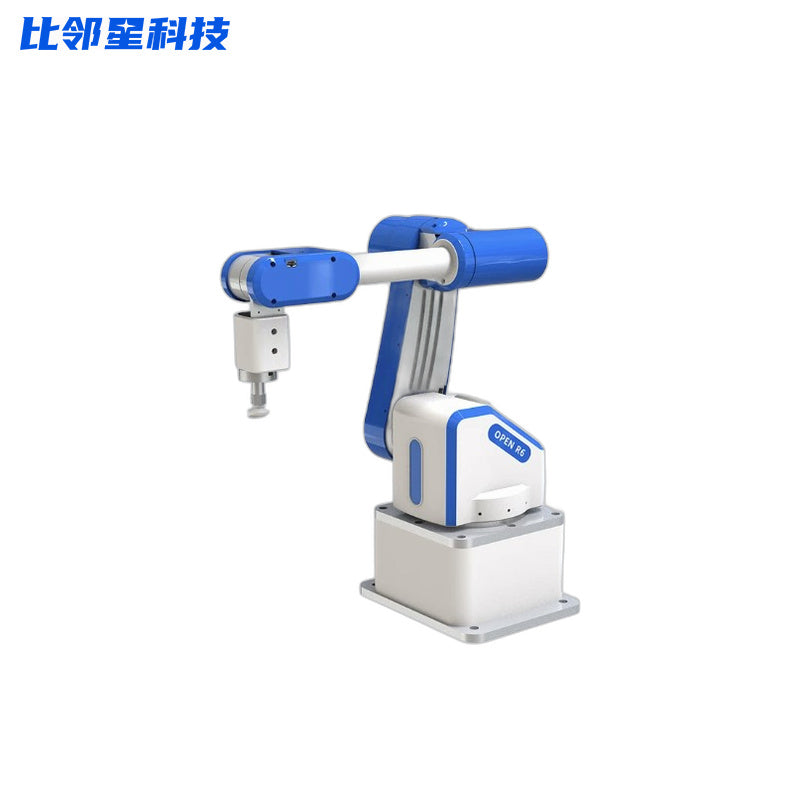

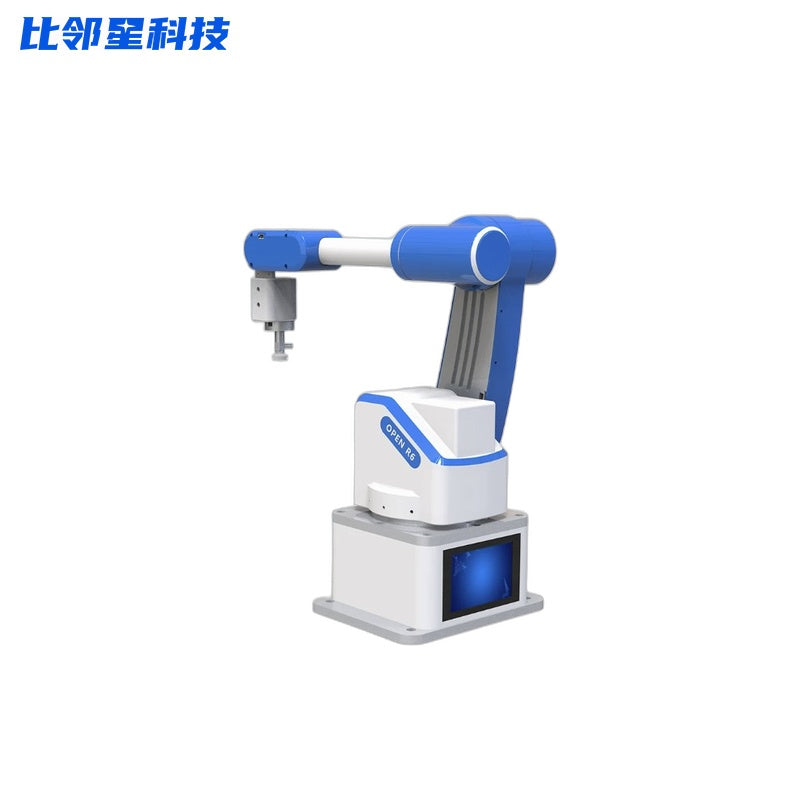

BLINX OpenR6 Robotic Arm
Regular price
$4,500.00
Unit price
BLINX OpenR6 Robotic Arm - OpenR6 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
BLINX OpenR6 Robotic Arm
Regular price
$4,500.00
Unit price
BLINX OpenR6 Robotic Arm - OpenR6 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Number of Axes | 6 |
| Material | Aluminum alloy, High toughness resin |
| Max Load | 1kg |
| Operating Environment | -10°C ~ 40°C |
| Working Radius | 410mm |
| Controller | STM32 |
| Weight | 4.8kg |
| Communication Method | USB / WiFi / Bluetooth / RJ45 |
| Repeat Positioning Accuracy | ±0.1mm |
| Control Method | PC software, Voice control |
| Supply Voltage | 12V/5A DC |
| Base Dimensions | 170mm × 135mm |
| Rated Power | 60W Max |
| Joint Motion Parameters | |
| J1 | ±130°, Max speed: 45°/s |
| J2 | -80° ~ +90°, Max speed: 45°/s |
| J3 | -85° ~ +40°, Max speed: 45°/s |
| J4 | ±160°, Max speed: 45°/s |
| J5 | -192° ~ +15°, Max speed: 27°/s |
| J6 | ±179°, Max speed: 45°/s |
