SLAMTEC | SKU:

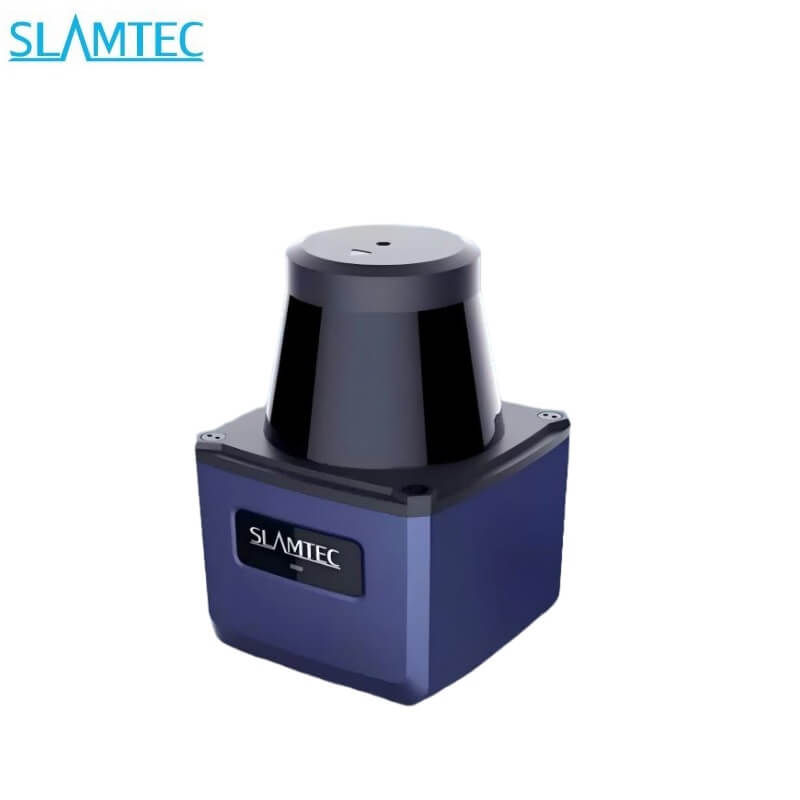

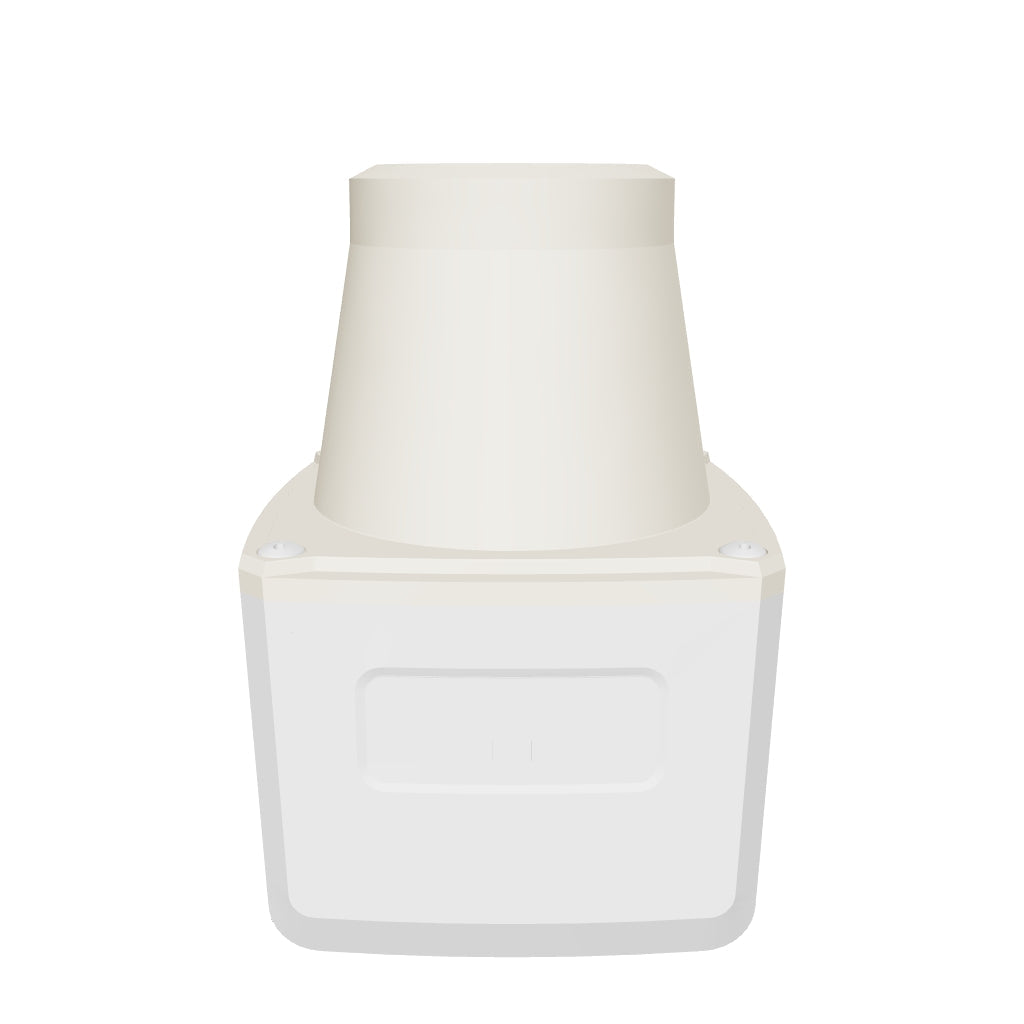

SLAMTEC LPX-T1 LiDAR
Regular price
$475.00
Unit price
SLAMTEC LPX-T1 LiDAR - LPX-T1 (25m) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
SLAMTEC LPX-T1 LiDAR
Regular priceFrom
$475.00
Unit price
SLAMTEC LPX-T1 LiDAR - LPX-T1 (25m) is backordered and will ship as soon as it is back in stock.
Product Information
Technical Specifications
| Parameter | Value |
|---|---|
| Model |
SLAMTEC LPX-T1 |
| Application Field | Indoor/Outdoor |
| Light Source |
infrared laser(905nm) |
| Laser Safety Level |
IEC 60825-1:2014 Class 1
|
| Angular Range | 270° |
| Scan Rate | 20~40Hz |
| Angular Resolution | 0.12°( 20Hz scan rate) |
| Distance Range | 0.05~40m(Under 70% reflectivity) |
| Distance Resolution | 8mm(All distance range) |
| Sample Frequency | 60,000Hz |
| Anti-Ambient Light Ability | 80,000 lx(Outdoor Mode) |
| Electrical Connection |
1X Ethernet Interface 1X Power Input Interface |
| Supply Voltage | 9~28 VDC |
| Power Dissipation | Typ. 4 W |
| Cover Color |
Mountain Lake Blue |
| Cover IP Grade |
IP66 |
| IP Grade |
III (IEC 61000-4-2:2009) |
| Weight |
264 g |
| Dimension(length*width*height) | 60 mmx73mmx85mm |
|
Recognizable Shape
|
Almost any shape
|
|
Statistical Error
|
20 mm
|
|
Integrated Application
|
Ranging data output
|
|
Object Reflection Rate
|
4 %... > 1,000 % (Reflector)
|
|
EMC
|
EN 55032:2015/ EN 55035:2017
|
|
Anti-vibration Ability
|
IEC 60068-2-
|
|
Impact Resistance
|
IEC 60068-2-27
|
|
Operation Temperature
|
–20 °C ... +50 °C
|
|
Storage Temperature
|
–40 °C ... +75 °C
|
