Galaxea

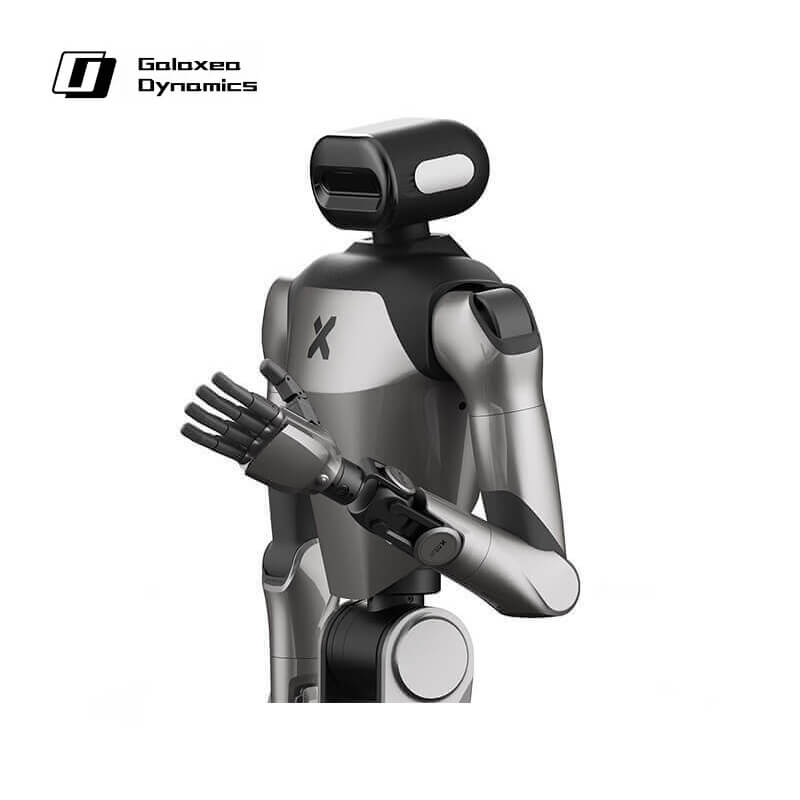

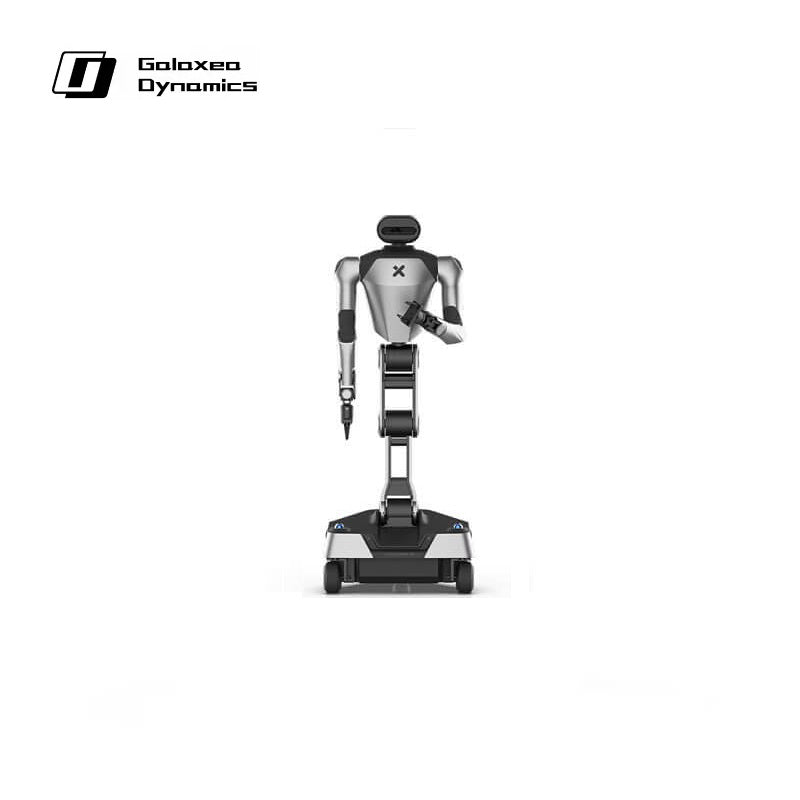

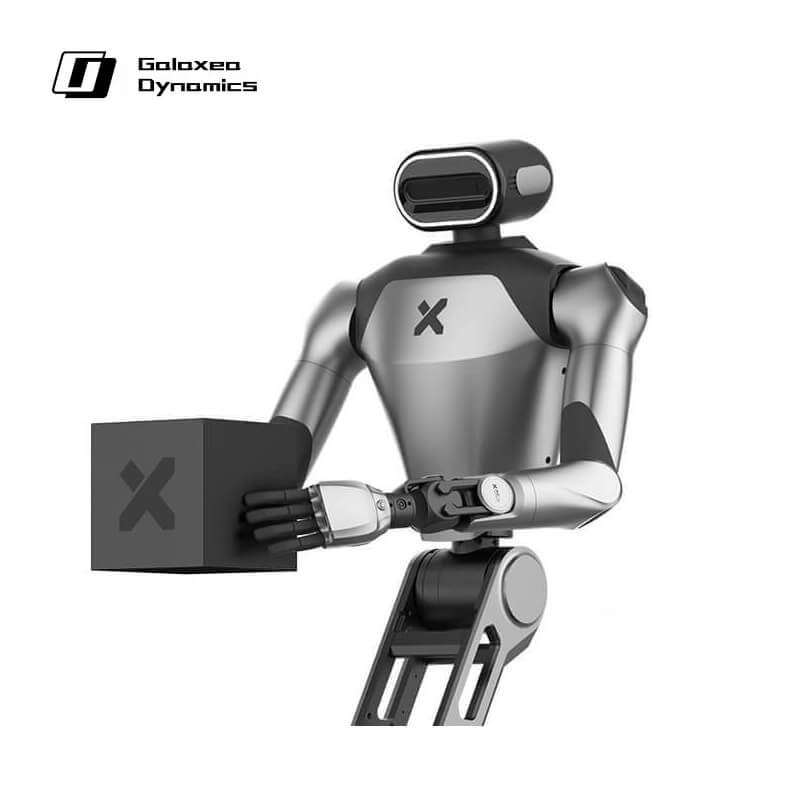

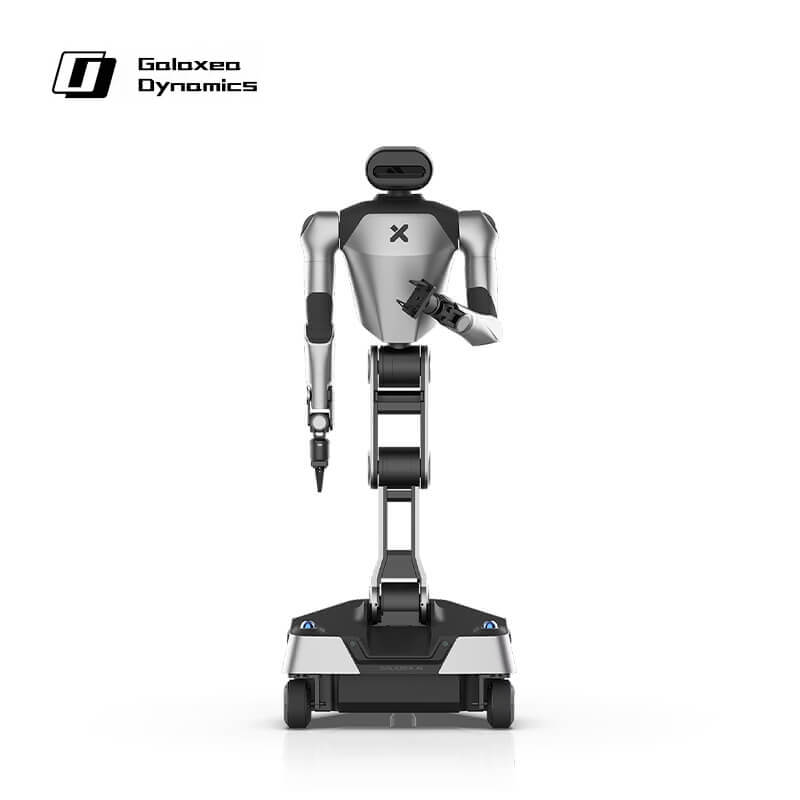

GALAXEA R1 Pro Robot

$69,999.00
Version
Accessory Kit

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Key Dimensions Height: 1700mm, Width: 675mm
Full Body DOF 26
Single Arm DOF 7
Arm Length 64.4cm
Arm Sensors Force sensor, Camera
Single Arm Payload Rated 3.5kg (at 0.5m), Max 5kg
Arm Mounting Type Side-Mount
End-Effector Gripper / Dexterous Hand
Torso DOF 4
Vertical Workspace 0-2m
Chassis DOF 6
Chassis Speed 1.5m/s
Computing Platform NVIDIA Jetson AGX Orin 32GB
Computing Power 200 TOPS
CPU 8-Core
CPU Max Frequency 2.2GHz
GPU Max Frequency 930MHz
Integrated Sensors 7x HD Cameras + 1x LiDAR (Optional: up to 2)
