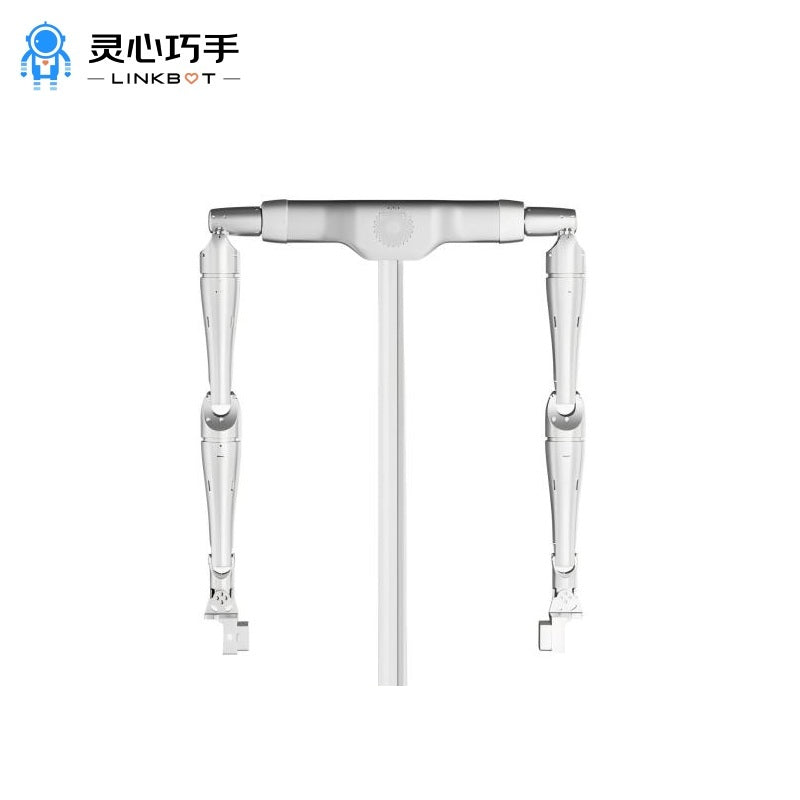

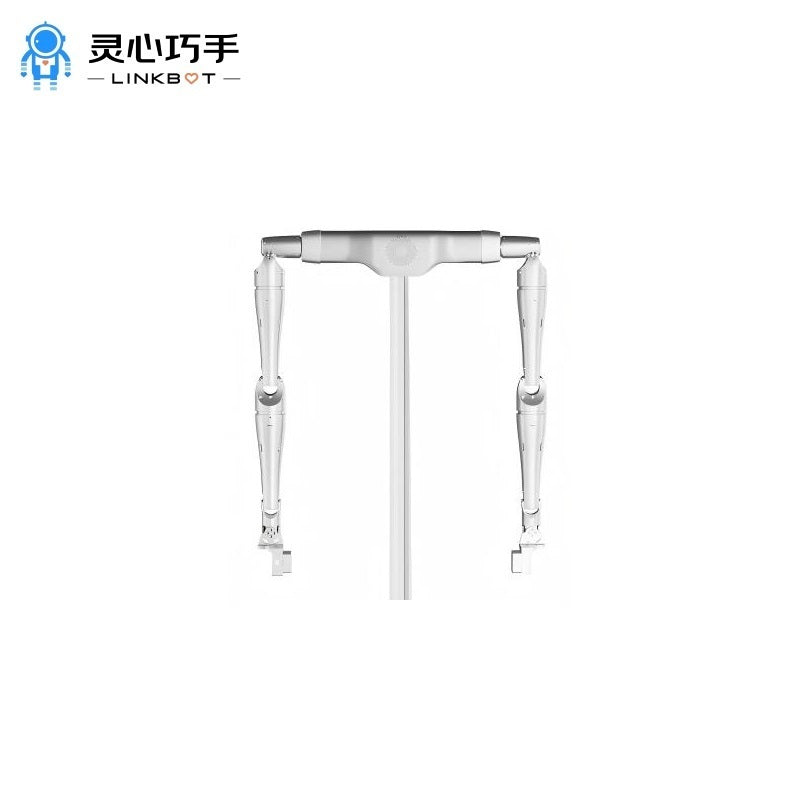

LINKERBOT Linker TA Robotic Arm
Regular price
$2,999.00
Unit price
LINKERBOT Linker TA Robotic Arm - Linker TA is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
LINKERBOT Linker TA Robotic Arm
Regular price
$2,999.00
Unit price
LINKERBOT Linker TA Robotic Arm - Linker TA is backordered and will ship as soon as it is back in stock.
Product Information
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | LTA1 |
| Degrees of Freedom | 14 |
| Single Arm Span | 658mm |
| Wearing Method | Chest-mounted |
| Rated Voltage | 5V |
| Rated Current | 240mA |
| Weight | 1.52Kg |
| Communication Interface | Type-C |
| Baud Rate | 3Mbps |
| Sampling Frequency | >800Hz |
| Encoder Type | Absolute Encoder |
| Encoder Resolution | 12Bit |
| Joint Name | Motion Axis | Angle Range (°) |
|---|---|---|
| Shoulder 1 | Flexion/Extension | -170~170 |
| Shoulder 2 | Abduction/Adduction | -35~65 |
| Shoulder 3 | Rotation | -170~170 |
| Elbow 1 | Flexion/Extension | -120~120 |
| Elbow 1 | Rotation | -170~170 |
| Wrist 1 | Flexion/Extension | -105~105 |
| Wrist 2 | Abduction/Adduction | -80~80 |
| Total per Arm | 7 | |
| Total for Both Arms | 14 |
