Galaxea | SKU:

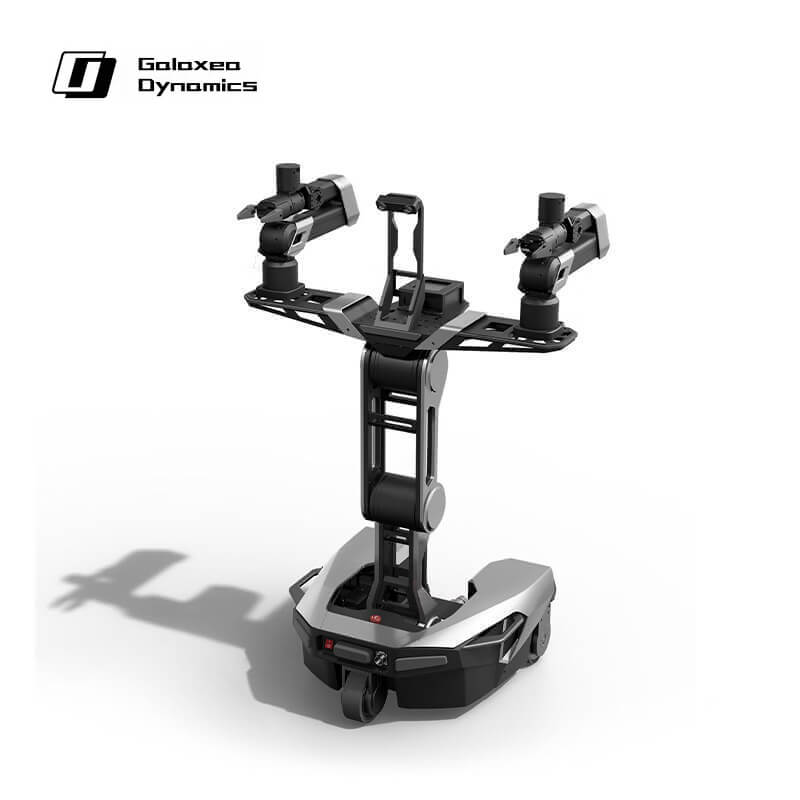

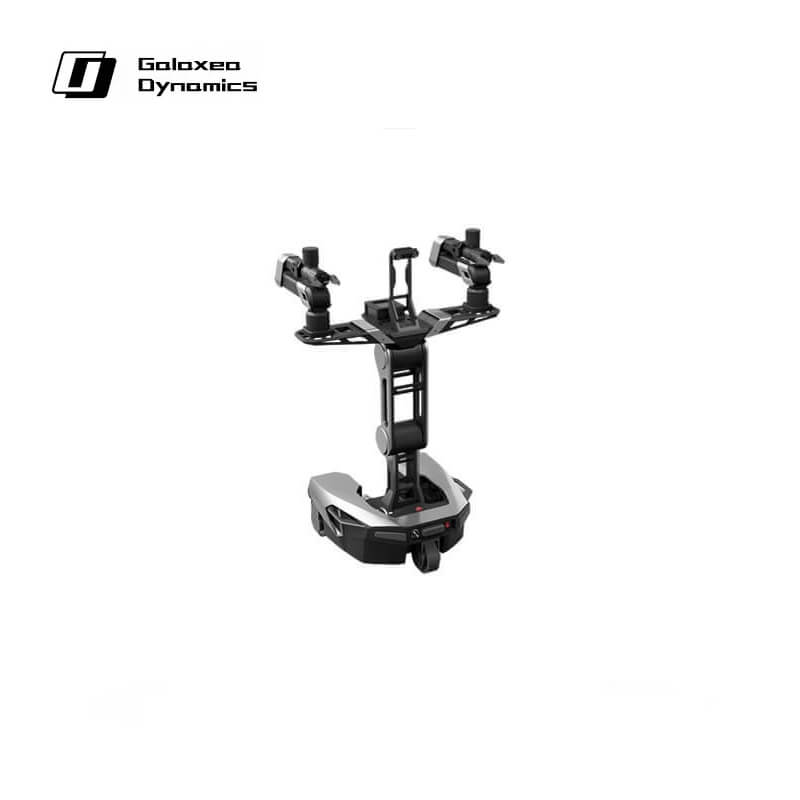

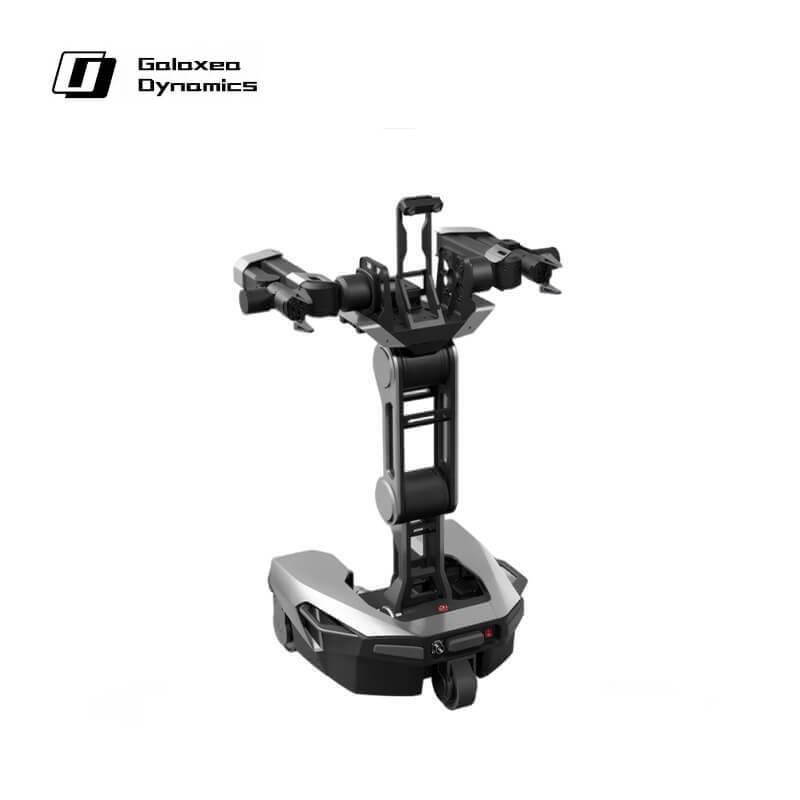

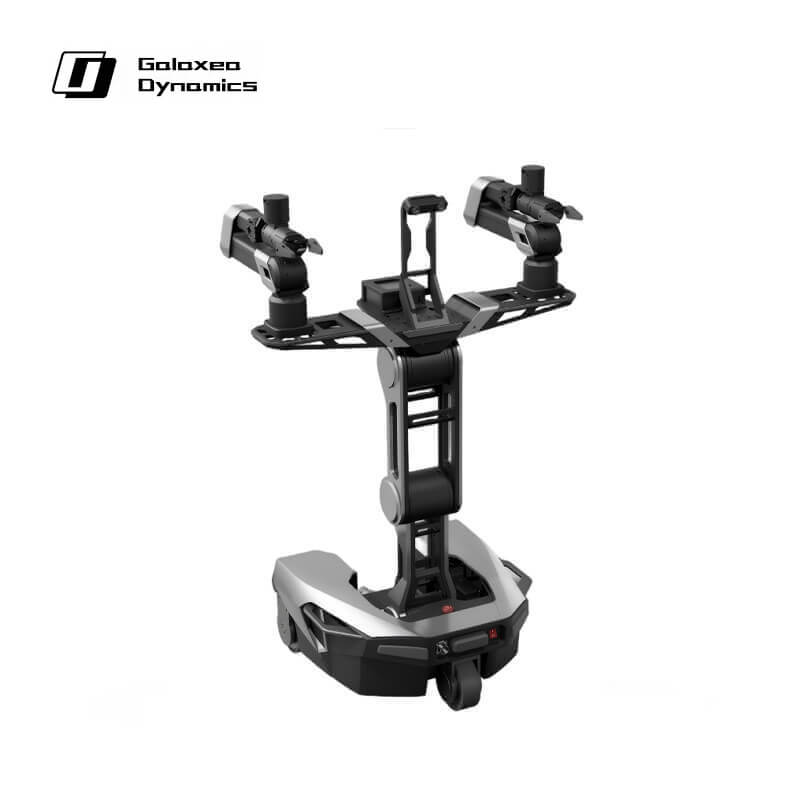

GALAXEA R1 Lite Robot
Regular price
$39,999.00
Unit price
GALAXEA R1 Lite Robot - R1 Lite Robot / NOT Include is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
GALAXEA R1 Lite Robot
Regular priceFrom
$39,999.00
Unit price
GALAXEA R1 Lite Robot - R1 Lite Robot / NOT Include is backordered and will ship as soon as it is back in stock.
Product Information
Application ScenariosHumanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Key Dimensions | Height: 1455mm, Width: 675mm, Torso Platform Width: 780mm |
| Full Body DOF (Standard with Gripper) | 23 |
| Single Arm DOF | 6 |
| Arm Length | 70cm |
| Arm Sensors | — |
| Single Arm Payload (at 0.5m) | Rated 2kg, Max 3.5kg |
| Arm Mounting Type | Top-Mount / Side-Mount |
| End-Effector | Gripper |
| Torso DOF | 3 |
| Vertical Workspace | 0-1.7m |
| Chassis DOF | 6 |
| Chassis Speed | 1.5m/s |
| Computing Platform | NVIDIA Jetson AGX Orin 32GB |
| Computing Power | 200 TOPS |
| CPU | 8-Core |
| CPU Max Frequency | 2.2GHz |
| GPU Max Frequency | 930MHz |
| Integrated Sensors | 1x HD Stereo Camera |
