SLAMTEC | SKU:

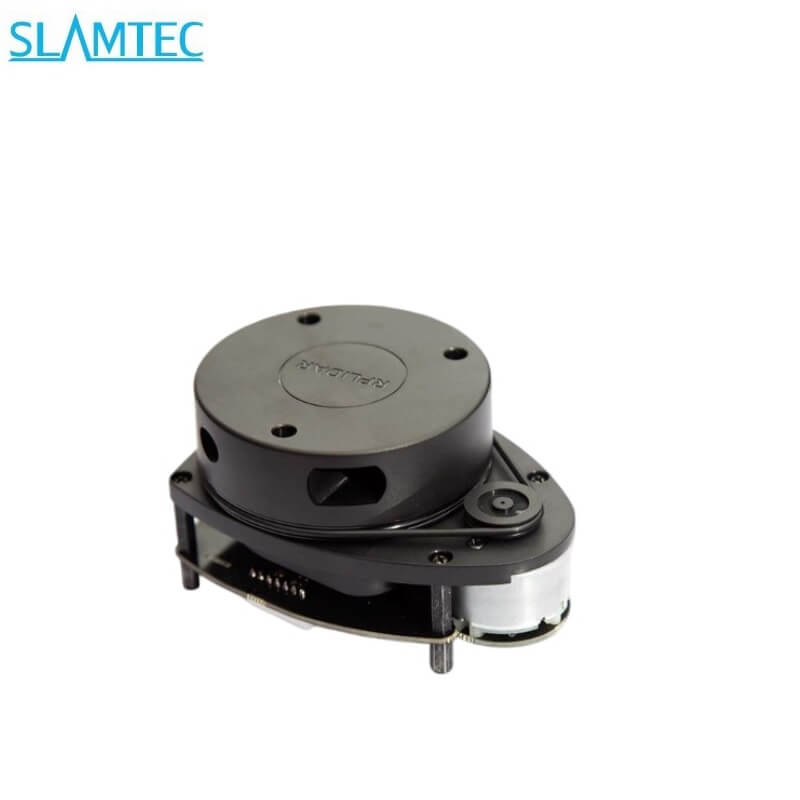

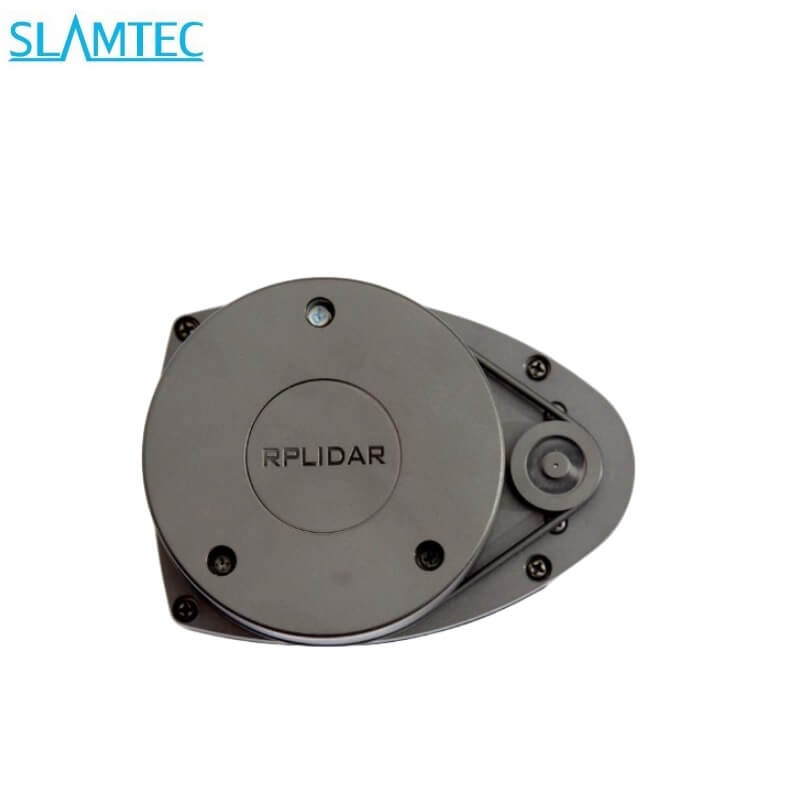

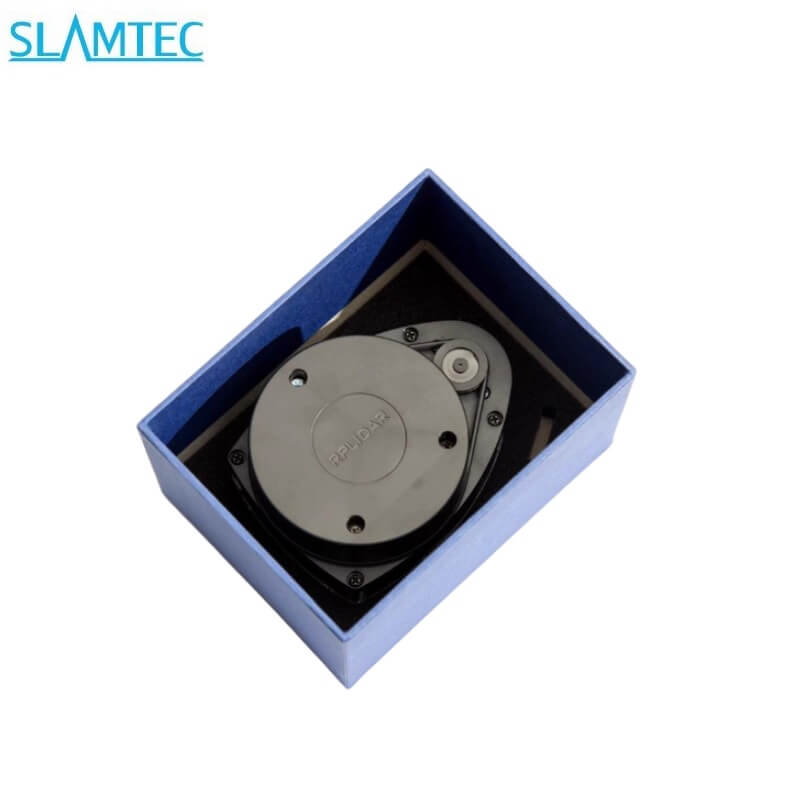

SLAMTEC RPLIDAR A1 LiDAR
Regular price
$100.00
Unit price
/
Unavailable
SLAMTEC RPLIDAR A1 LiDAR - RPLIDAR A1 LiDAR is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Product Information
Technical Specifications
Parameter | Value |
---|---|
Model |
SLAMTEC RPLIDAR A1 |
Distance Range | 0.15-12m |
Angular Range | 0-360° |
Scan Field Flatness | -1.5-1.5° |
Distance Resolution |
<0.5mm (<1.5 meters)
<1% of the distance (All distance range)
|
Angular Resolution | ≤1° (5.5Hz scan rate) |
Sample Duration | 0.125ms |
Sample Frequency | ≥8000HZ |
Scan Rate | 5.5HZ (Typical value is measured when RPLIDAR A1 takes 360 samples per scan) |
Laser wavelength | 785nm (Infrared Light Band) |
Laser power | 3mW |
Pulse length |
110us |
Band rate |
115200bps |
Working mode |
8N1 |
Scanner system voltage |
5V
|
Scanner system voltage ripple |
20mV |
Scanner system start current |
500mA |
Scanner system current |
80mA (Sleep mode, 5V inpu) 300mA (Work mode, 5V input) |
Motor system voltage | 5V |
Motor system current |
100mA (5V input)
|
Weight
|
170g
|
Temperature Range
|
0—40ºC
|
