SLAMTEC | SKU:

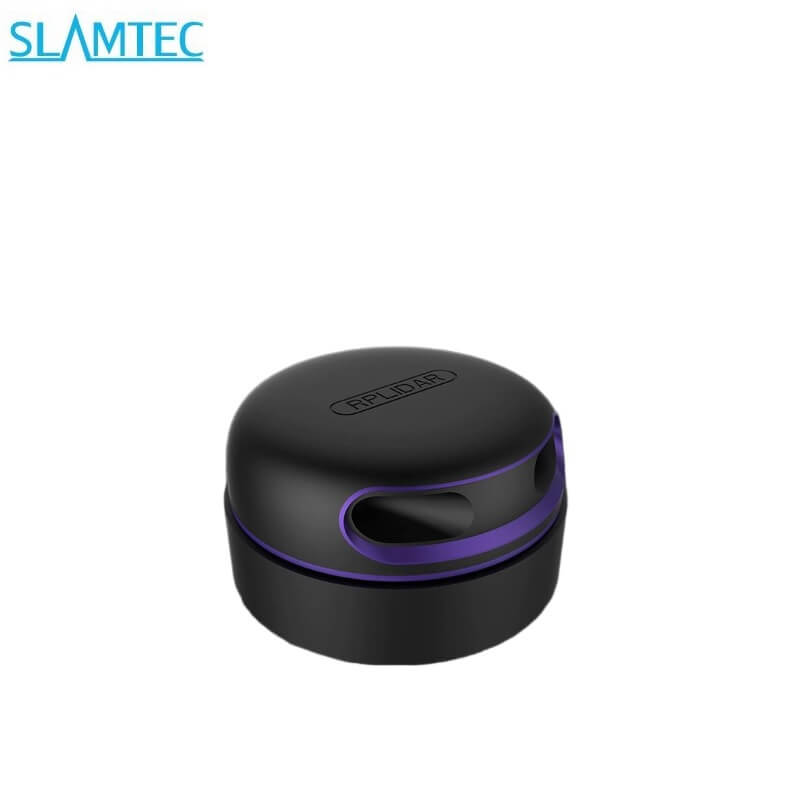

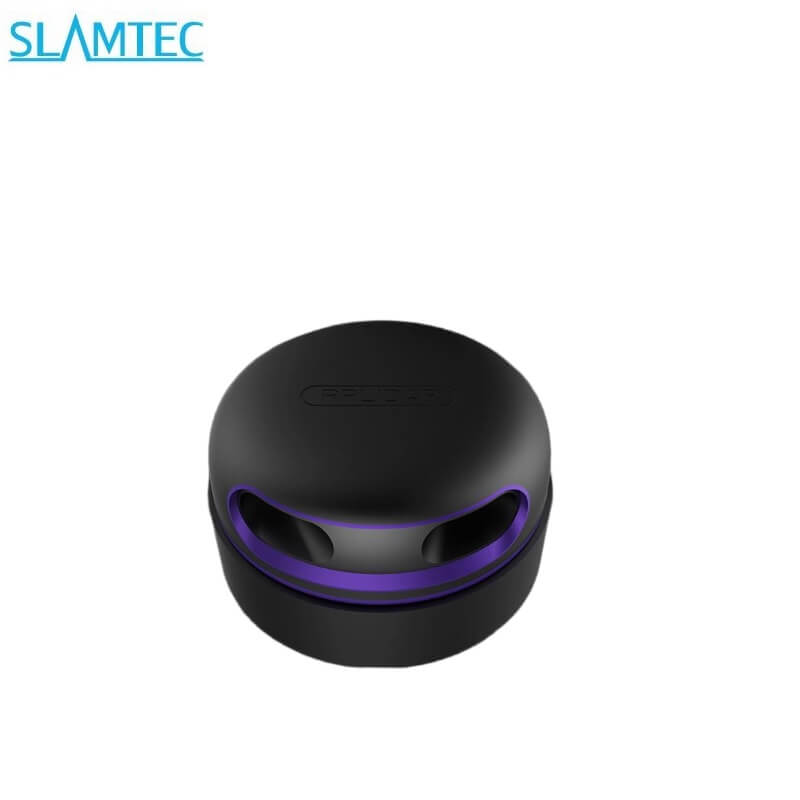

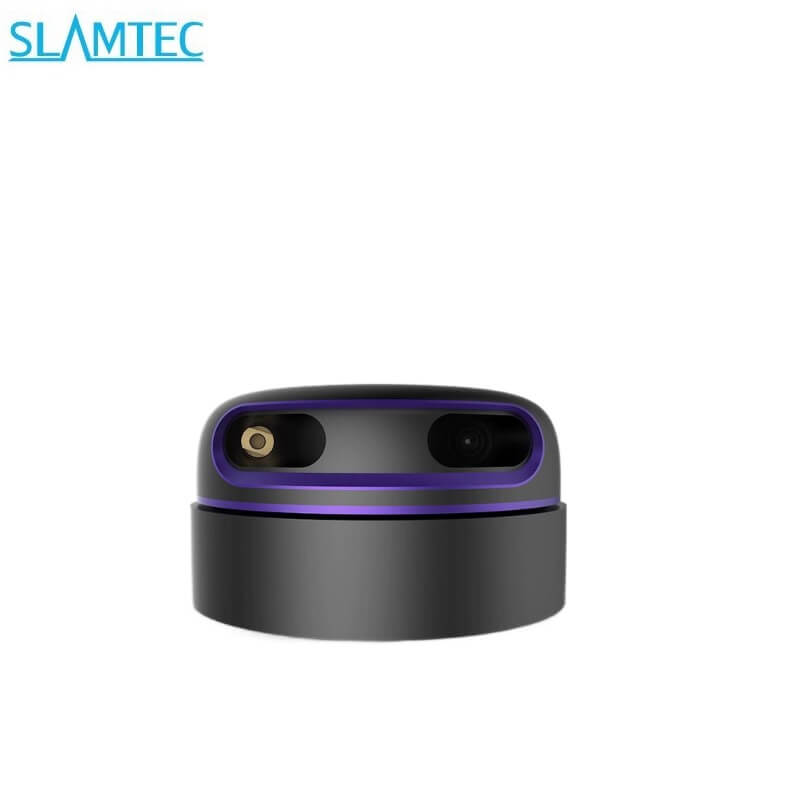

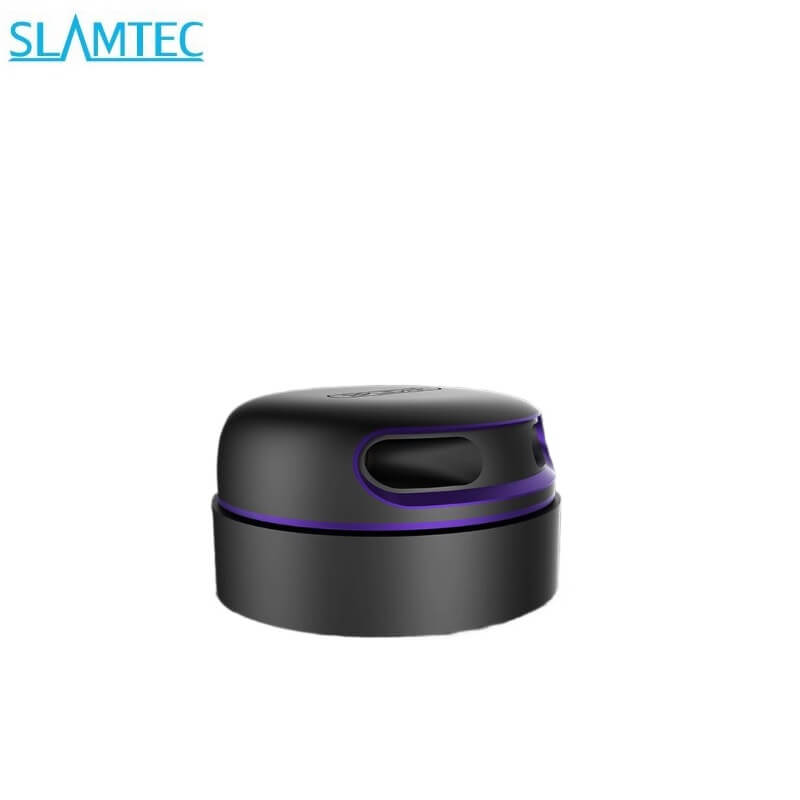

SLAMTEC RPLIDAR A3 LiDAR
Regular price
$765.00
Unit price
/
Unavailable
SLAMTEC RPLIDAR A3 LiDAR - RPLIDAR A3 LiDAR is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Product Information
Technical Specifications
Parameter | Value |
---|---|
Model |
SLAMTEC RPLIDAR A3 |
Operating Range | White object: 20 meters |
Operating Range |
Black object: TBD |
Minimum Operating ranging | 0.2m |
Sample Rate |
16KHz |
Scan Rate | Typical value: 10 Hz (adjustable between 5 Hz-15 Hz) |
Angular Resolution | 0.225° |
Scan Field Flatness | ±1.5 |
Communication Interface | TTL UART |
Communication Speed | 256000 bps |
Compatibility | Support former SDK protocols |
Laser wavelength |
785nm
|
Laser power | 10mW |
Pulse length | 87us |
Laser Safety Class | IEC-60825 Class 1 |
Power Voltage |
4.9—5.2V |
Power Voltage Ripple |
20mV |
Inrush Current |
2500mA(Max) |
System Start Current |
1500mA(Max) |
Power Current |
200mA (5V Power,power off ) 450mA (5V Power,power on) |
Weight
|
190g |
Temperature range
|
0—40ºC |
