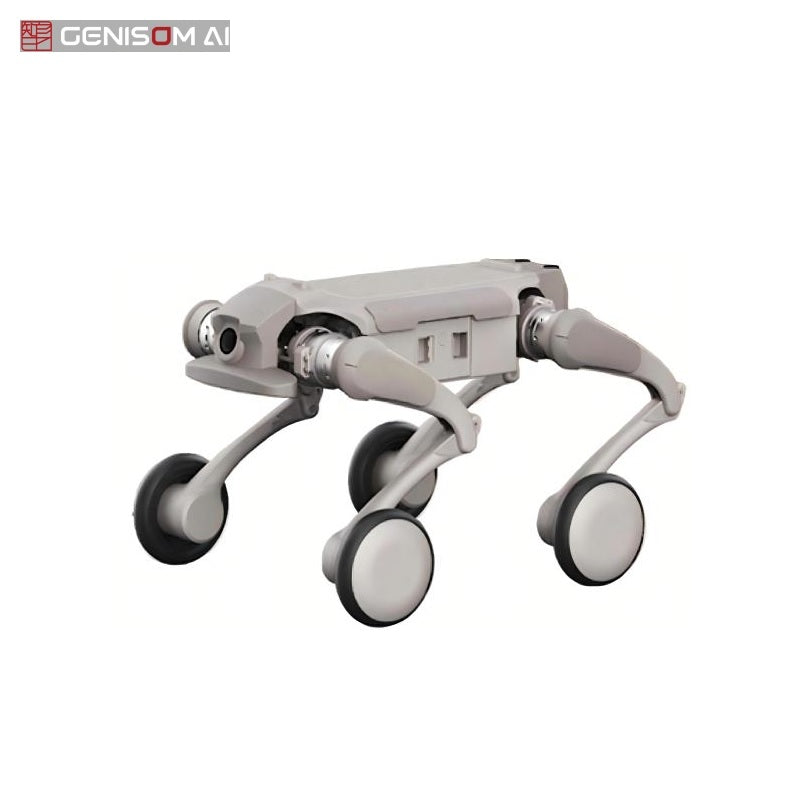

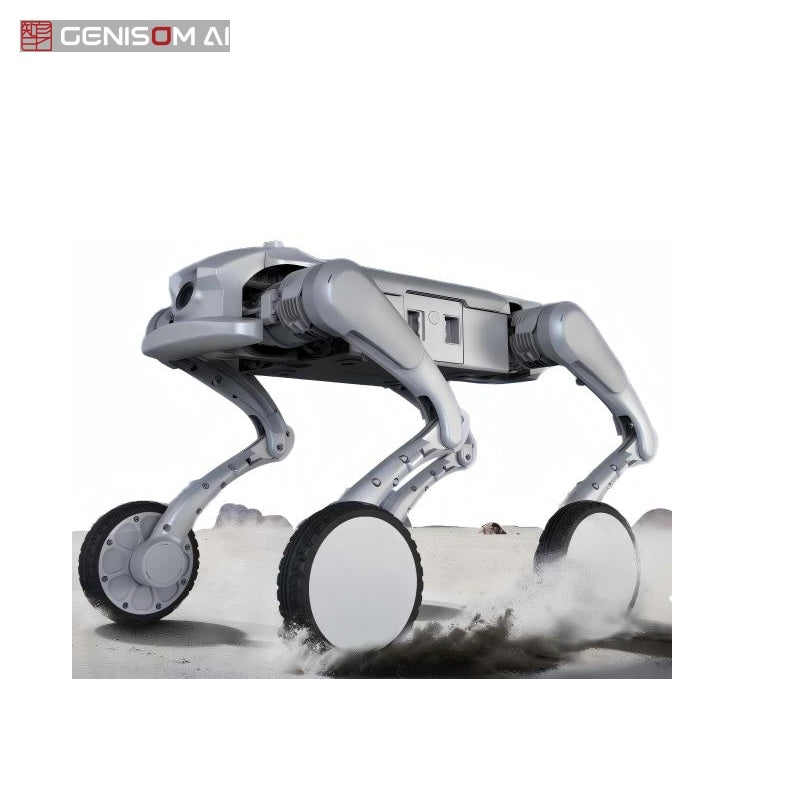

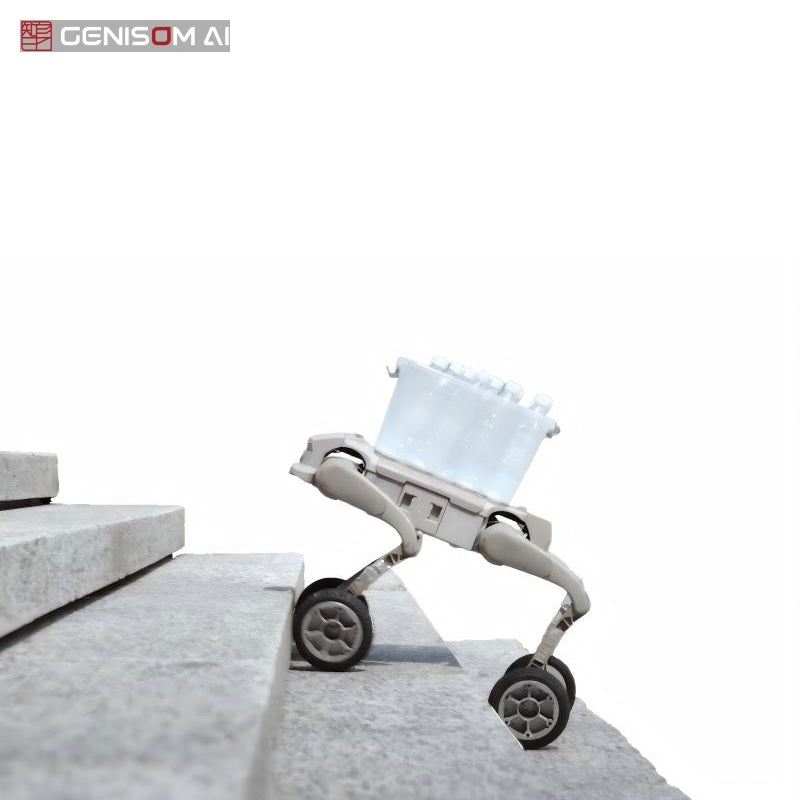

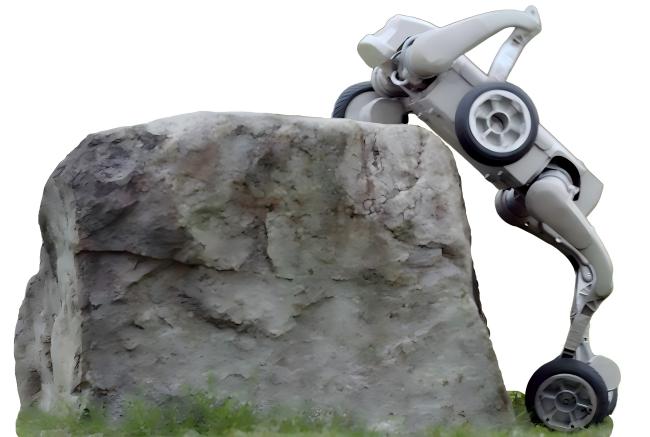

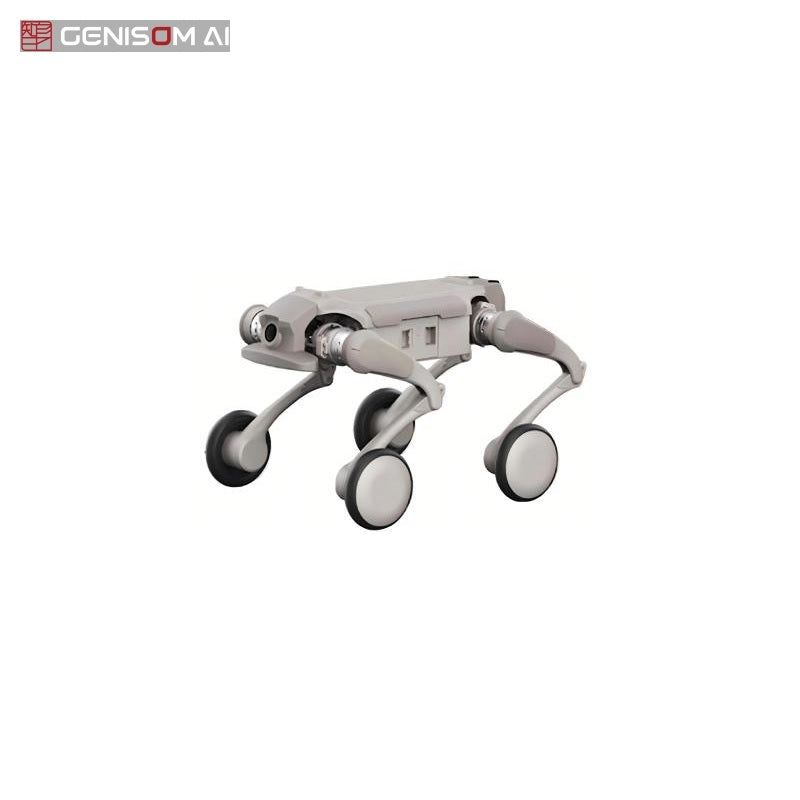

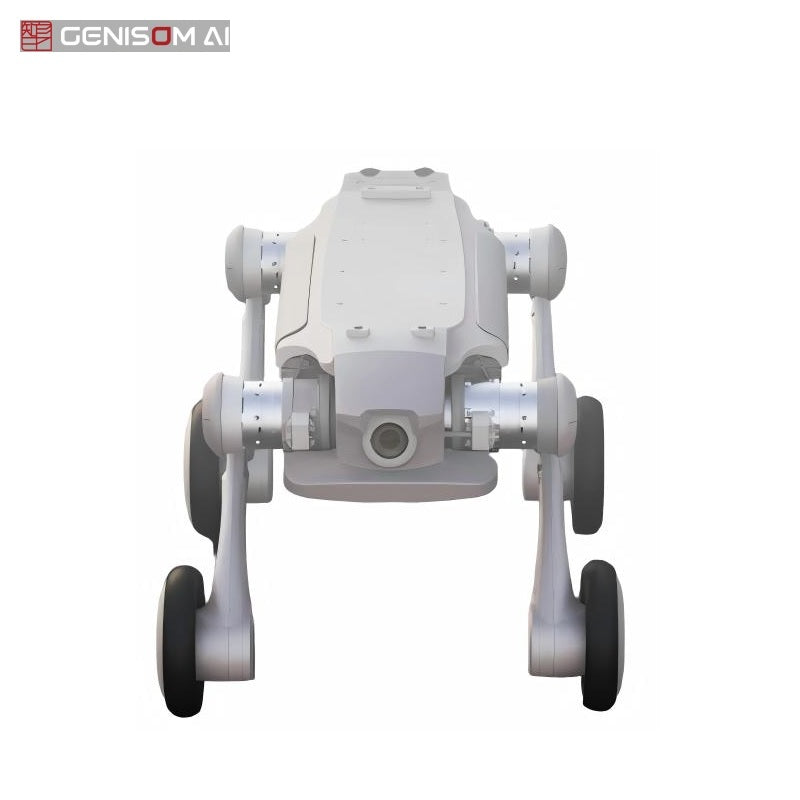

GENISOM L1-W Robot

$13,150.00

Version

GENISOM L1-W GENISOM L1-W EDU

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Parameter	GENISOM L1-W	GENISOM L1-W EDU
Total Degrees of Freedom	12 DOF	12 DOF
Standing Dimensions (L×W×H)	Approx. 630mm × 440mm × 455mm	Approx. 630mm × 440mm × 455mm
Crouching Dimensions (L×W×H)	Approx. 690mm × 580mm × 145mm	Approx. 690mm × 580mm × 145mm
Total Weight	20 kg	20 kg
Battery Life	1–2 h	1–2 h
Maximum Range	9 km	9 km
Maximum Speed	3.7 m/s	3.7 m/s
Maximum Payload	≈10 kg (Extreme ~12 kg)	≈10 kg (Extreme ~12 kg)
Operating Temperature	0 °C – 40 °C	0 °C – 40 °C
Protection Rating	IP54	IP54
Functional Interfaces	Ethernet Port, USB Port, Power Port, SBUS Interface, UART Interface	Ethernet Port, USB Port, Power Port, SBUS Interface, UART Interface
Secondary Development	Supported	Supported
Aluminum Alloy Precision Joint Motors	12	12
High-Performance Hub Motors	4	4
Wheels	6-inch Solid Tires	6-inch Solid Tires
Jetson Orin NX 16G Computing Board	\	√
Mid 360 LiDAR	\	√
Realsense Depth Camera	\	√
GNSS Positioning Module	\	√
5G Communication Module	\	√
RTK Antenna	\	√
Functional Interfaces: Gigabit Ethernet Port, Power Port, SBUS + RS485 Interface, USB 3.0 Port (for Orin NX), USB 3.0 Port (for 3588)	\	√
Zhihang RoamerX Lite Software Package	\	√
