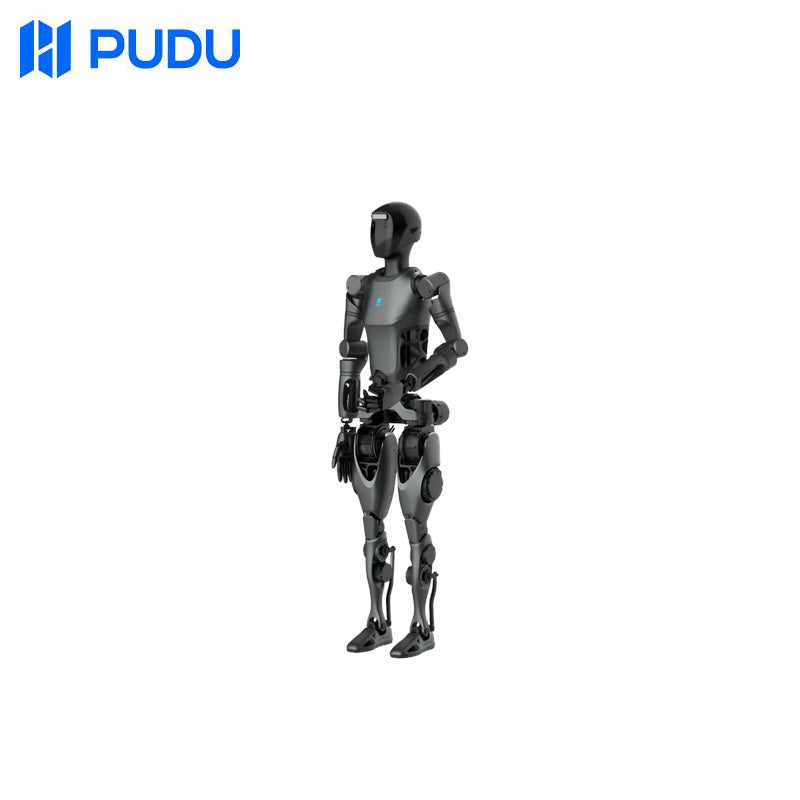

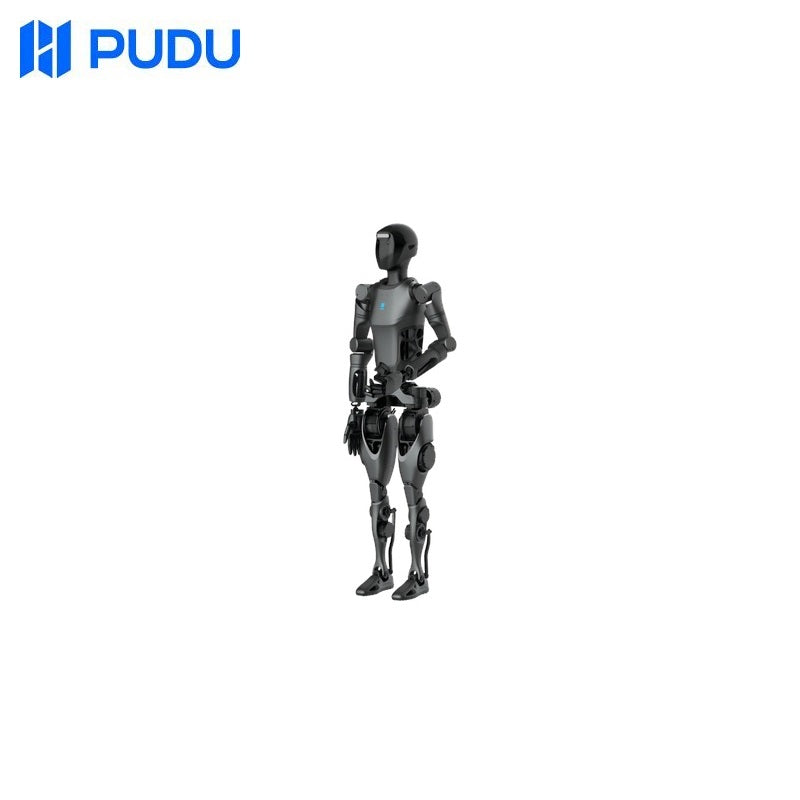

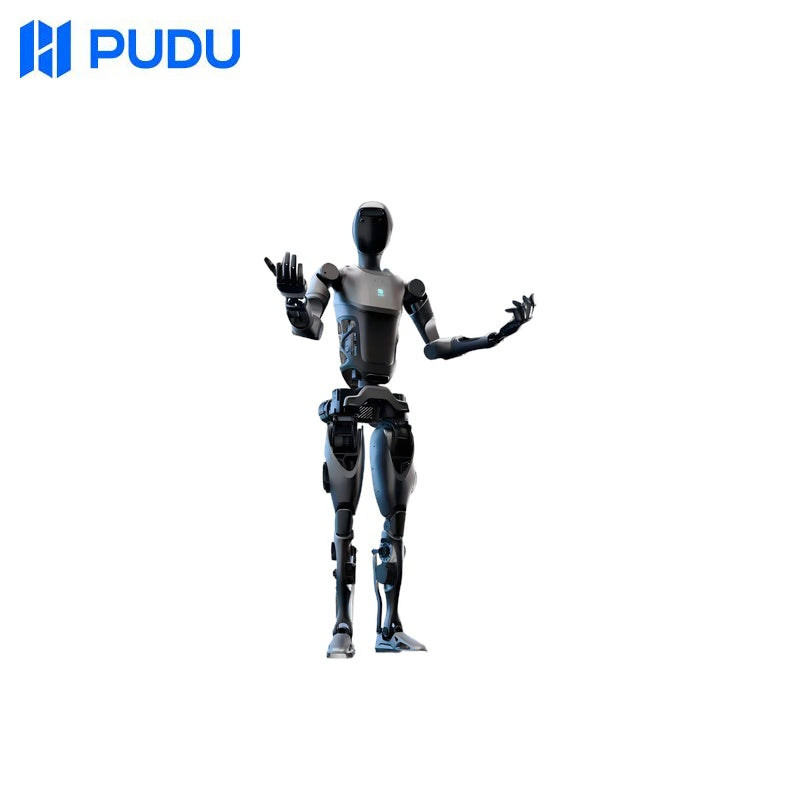

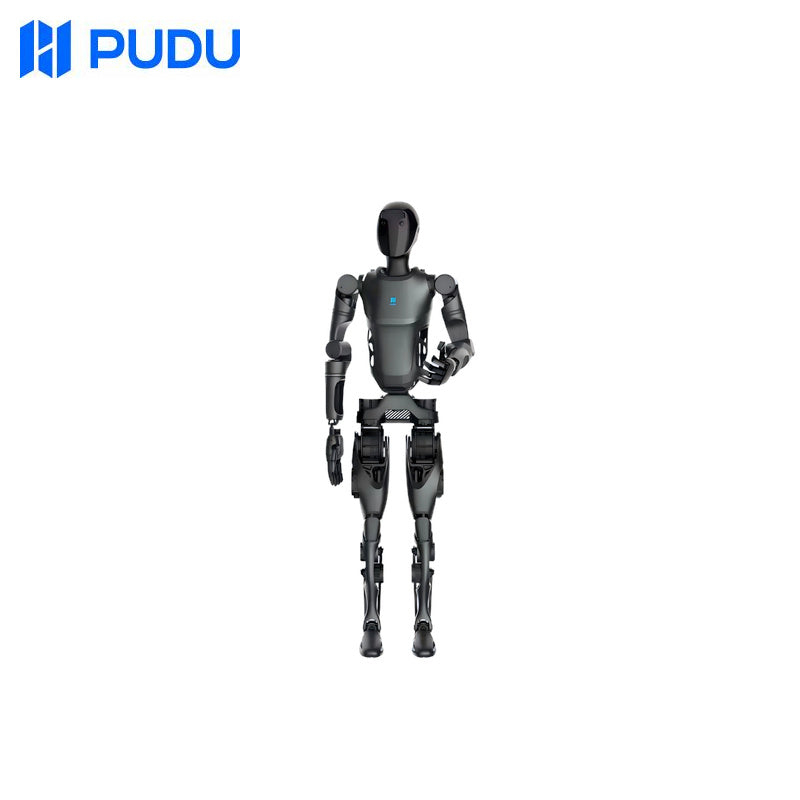

Pudu Robotics D9 Robot
Regular price
$356,000.00
Unit price
Pudu Robotics D9 Robot - PUDU D9 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Pudu Robotics D9 Robot
Regular price
$356,000.00
Unit price
Pudu Robotics D9 Robot - PUDU D9 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Height | 170 cm (66.93 inches) |
| Weight | 65 kg (143.30 pounds) |
| Leg Length |
Thigh 325 mm (12.80 inches) Calf 383 mm (15.08 inches) |
| Arm Length |
Arm 580 mm (22.83 inches) Hand 220 mm (8.66 inches) |
| Degrees of Freedom |
Total DOF 42 Single-leg DOF 6 Single-arm DOF 7 |
| Dexterous Hand（PUDU DH11) |
12 Tactile Sensing Regions Active DOF 6 Passive DOF 5 |
| Maximum Joint Torque | 352 N·m |
| Maximum Payload |
20 kg (44.09 pounds) Single-arm 10 kg (22.05 pounds) (Testing Environment) |
| Sensors |
RGB RGBD Tactile sensors IMU |
| Computing Power | 275 TOPS |
| Battery | 15 Ah (0.72 kWh) |
| Speaker | Stereo |
