Ti5 ROBOT

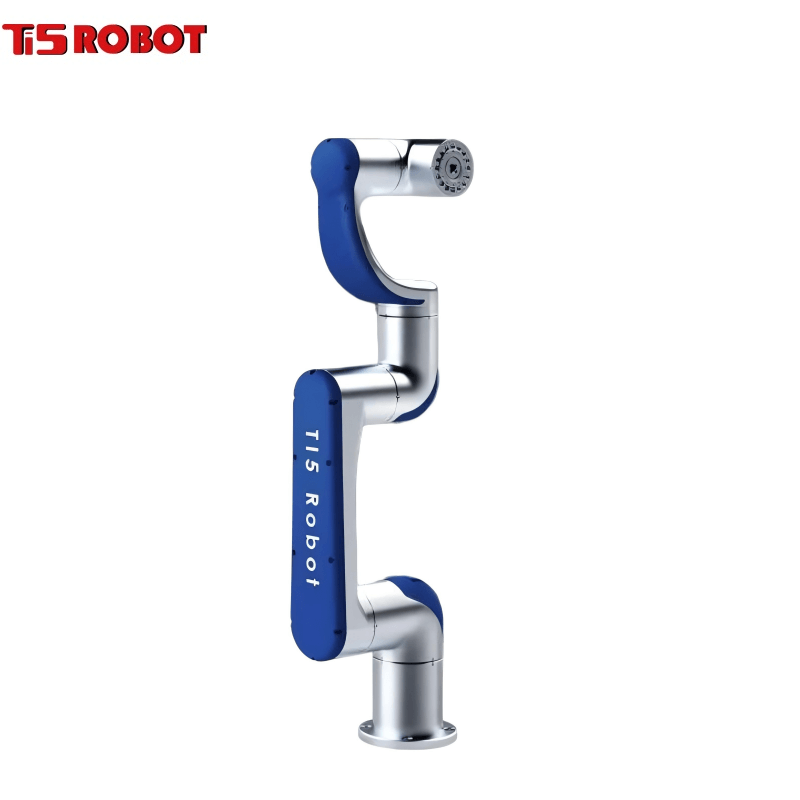

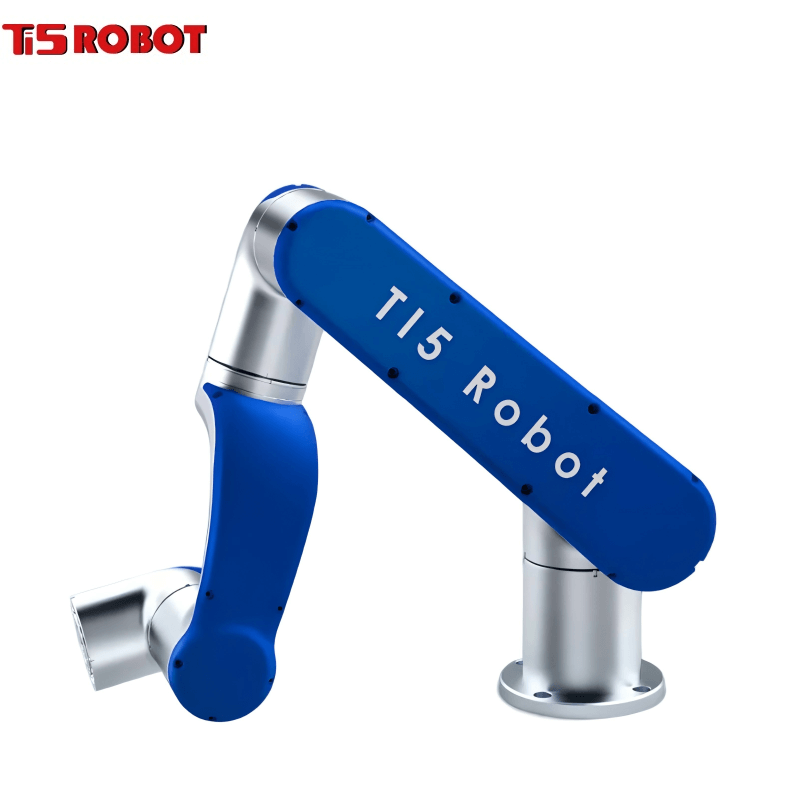

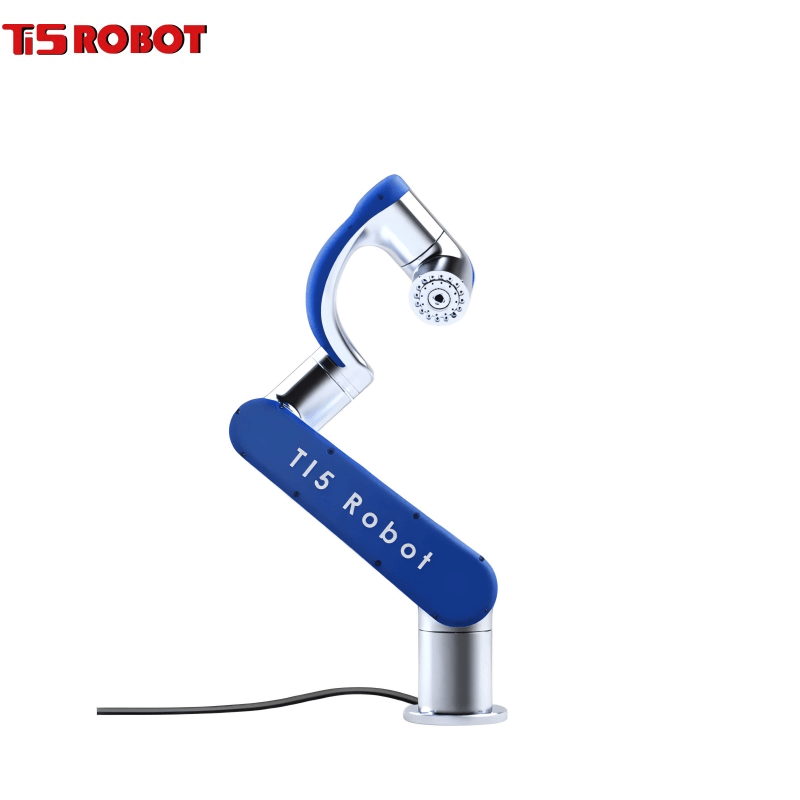

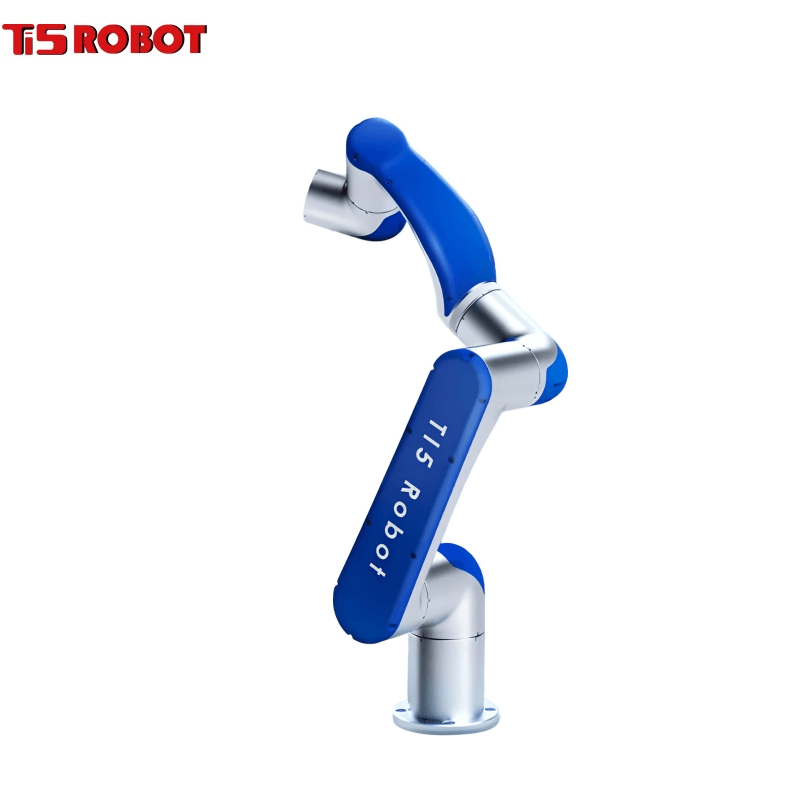

Ti5 ROBOT EBLM Series

$4,140.00 $5,030.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Technical Specifications

Parameter Ti5 Robot Arm-5 Ti5 Robot Arm-3
Name / Model  Ti5 Robot Eblm-1 Ti5 Robot Eblm-2
Mass 2.6kg 4.5kg
Payload 1kg 2kg
Working Radius 3800mm 520mm
Repeatability 0.05mm 0.05mm
DOF 6 6
Power 100W 200W
Interfaces & Openness ROS, PYTHON, C++ ROS, PYTHON, C++
Power Supply Voltage Range 28～48V 28～48V
Joint Range of Motion J1(±180°), J2(±90°), J3(±135°), J4(±180°), J5(±150°), J6(±180°) J1(±180°), J2(±90°), J3(±135°), J4(±180°), J5(±150°), J6(±180°)
Max. Joint Speed 106°/s 106°/s
IP Rating IP50 IP50
Material Aluminum alloy, Resin Aluminum alloy, Resin
Operating Temperature Range 0°C～50°C 0°C～50°C
Power Supply DC 48V, 5A; DC 28V, 10A DC 48V, 5A; DC 28V, 10A
USB USB3.0*4 USB3.0*4
HDMI HDMI2.0 HDMI2.0
I/O Interface SPI/12C/GPI0/MART SPI/12C/GPI0/LNRT
Standard Cable Length 1m 1m
