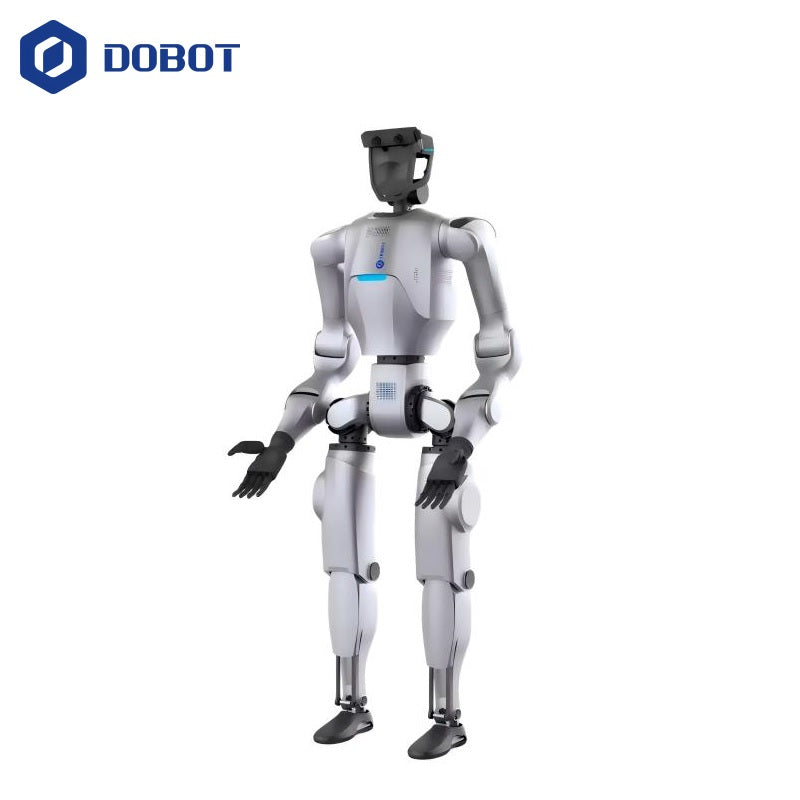

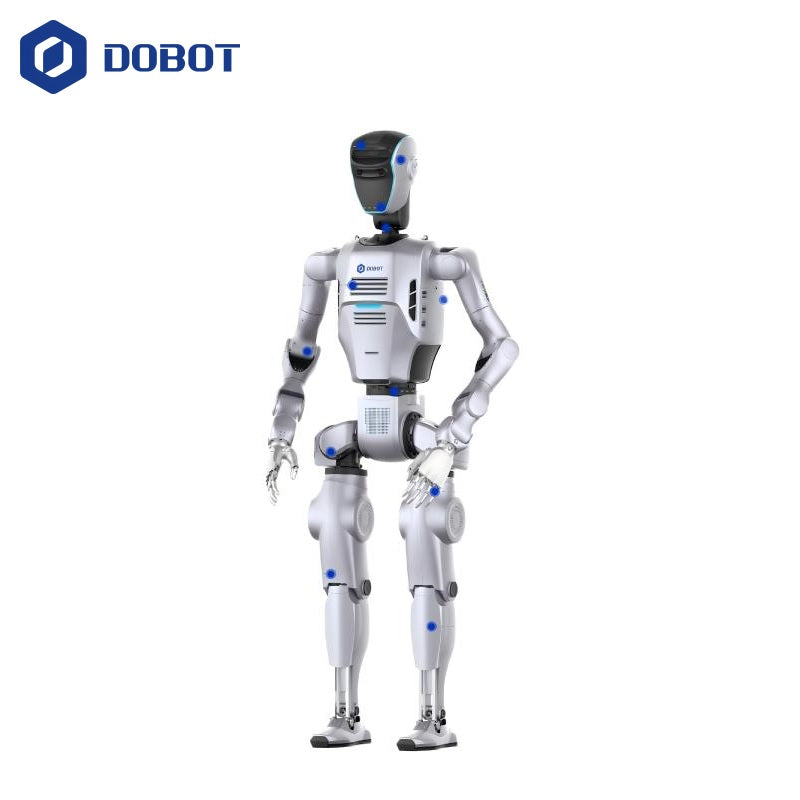

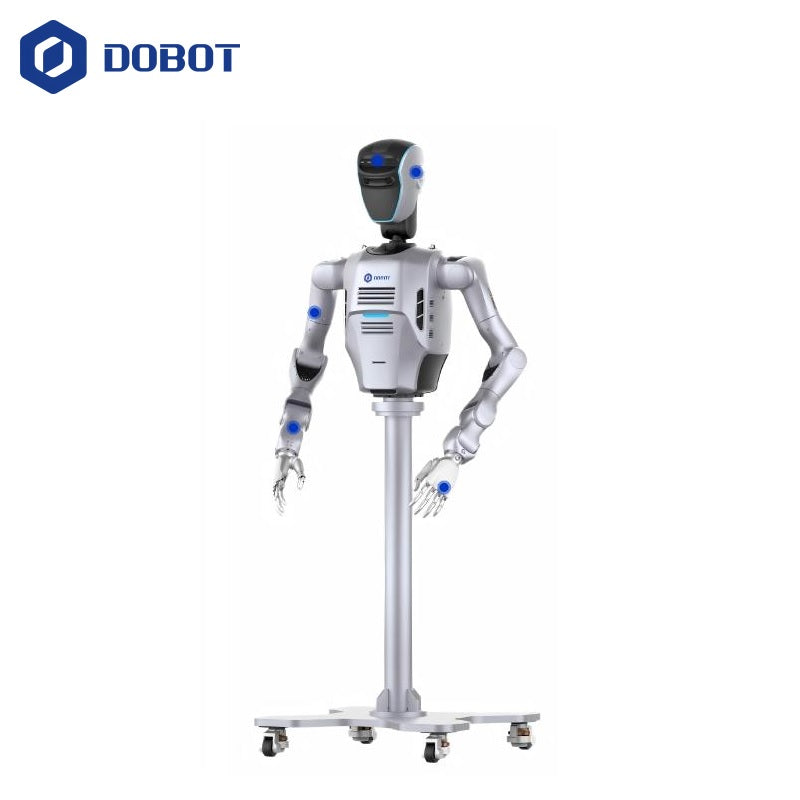

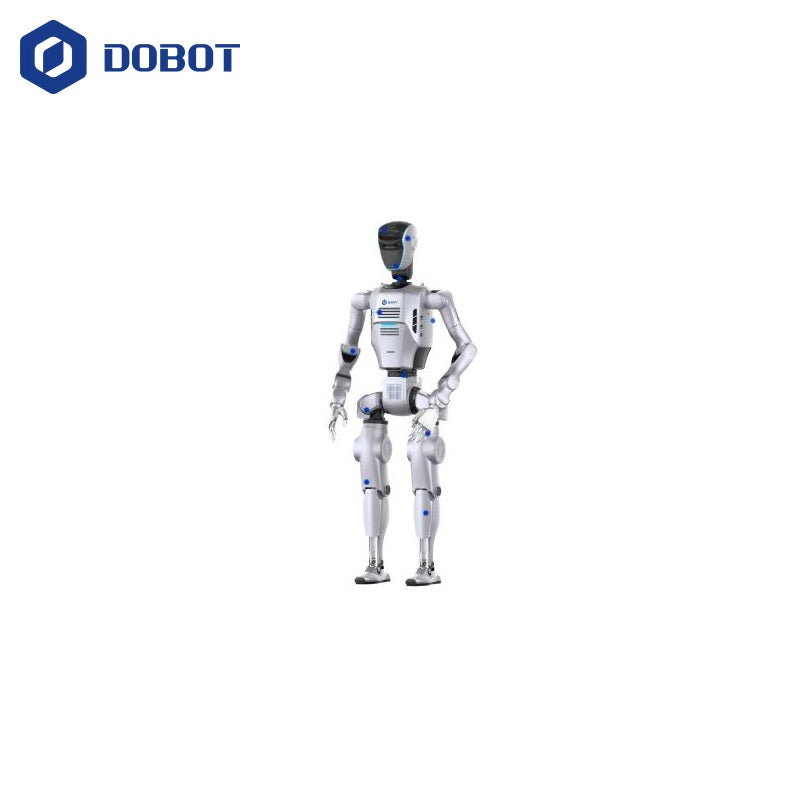

DOBOT Atom Humanoid Robot
Regular price
$53,000.00
Unit price
DOBOT Atom Humanoid Robot - Atom D is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
DOBOT Atom Humanoid Robot
Regular priceFrom
$53,000.00
Unit price
DOBOT Atom Humanoid Robot - Atom D is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | ||
|---|---|---|
| Model | Atom D | Max |
| Height | ≈650 mm | ≈1650 mm |
| Weight (without dexterous hands/jaws) | ≈26 kg | ≈58 kg |
| Full-body Degrees of Freedom (without dexterous hands/jaws) |
16 | 29 |
| Head Degree of Freedom | 2 | 2 |
| Single Arm Degrees of Freedom (without dexterous hand/gripper) |
7 | 7 |
| Waist Degree of Freedom | 0 | 1 |
| Single Leg Degree of Freedom | 0 | 6 |
| Single Arm Span (without dexterous hand/gripper) | 600mm | 600mm |
| Single Arm Weight (without dexterous hand/gripper) | ≈6.5 kg | ≈6.5 kg |
| Single Arm Rated Load | 3.5 kg | 3.5 kg |
| Single Arm Max Load | 5 kg | 5 kg |
| Single Arm Repetitive Positioning Accuracy | ± 0.05 mm | ± 0.05 mm |
| Maximum End Speed of Arm | 1.5 m/s | 1.5 m/s |
| Audio Devices | - | 360°microphone x1 + neodymium strong magnetic speaker x 2 |
| Maximum Walking Speed | - | 1.5 m/s |
| Joint Assembly Actuators Hollow Alignment | Yes | Yes |
| Basic Computing Module | intel i5 | intel i5 |
| 1500 TOPS Al Computing Module | Optional | Intel i9 (24 cores 32 threads)+ Graphics card with 16GB256bit GDDR6 (FP32 GPUcomputing power: 41.15 TFLOPS) |
| Battery Life |
2h
|
2h |
| Battery Charge | Power Supply | ≈1h |
|
End Actuator
|
Optional | 6 DoF dexterous hand x 2 |
| Head Sensor | RGB-D Camera x 1 + Full HD Binocular Camera x 1 | RGB-D Camera x 1 + Full HD Binocular Camera x 1 |
| Wrist Sensor | Optional | RGB-D Camera x 2 |
| Waist Sensor | 0 | RGB-D Camera x 2 |
| Head LiDAR | 0 | 3D LiDAR x 1 |
| SDK Suppor | Supported | Supported |
| Warranty | 1 Year | 1 Year |
| Onsite Training | Not available | Available |
