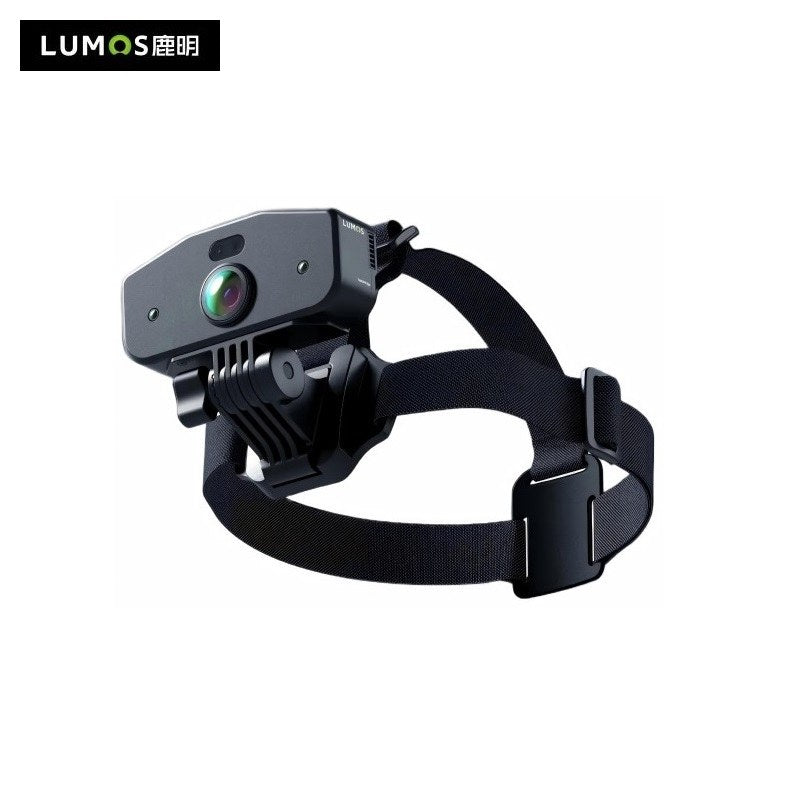

LUMOS FastUMI Ego

$6,300.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Item Specification
Fisheye Camera RGB Camera, FOV (D/V/H) > 180°, Resolution: 1280×1280, Frame Rate: 60 fps
SLAM Camera 4 Units, Resolution: 640×480, HFOV: 130°, Frame Rate: 30 fps
ToF Camera Resolution: 640×480, Frame Rate: 30 fps, Depth Error < 1% within 4m Range
IMU 9-Axis, Sample Rate: 500 Hz
Ergonomics & Comfort 235g, Elastic Nylon Headband, Tilt Adjustment: 20°–180°, Shell Surface Temperature < 40°C
Power 5V, Max Power Consumption < 4W
Interface & Connectivity USB 3.2 Gen 2 Type-C, 10 Gbps
Multi-Camera Time Synchronization Timestamp Alignment Across All Camera Streams
SDK Ubuntu 20.04 & 22.04
