AGIBOT | SKU:
AGIBOT OmniPicker Gripper
Regular price
$590.00
Unit price
AGIBOT OmniPicker Gripper - OmniPicker is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments

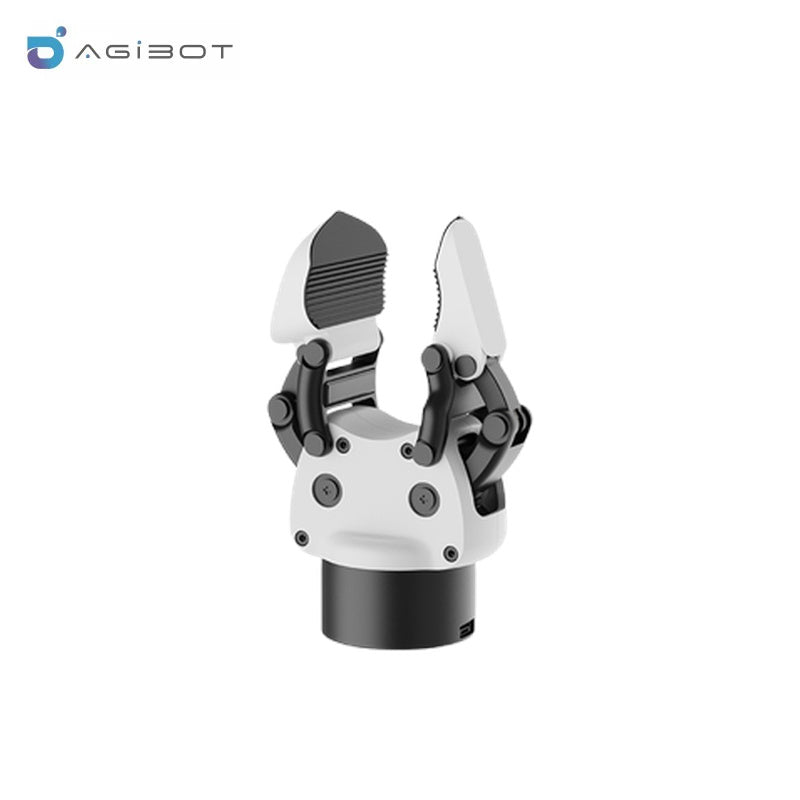

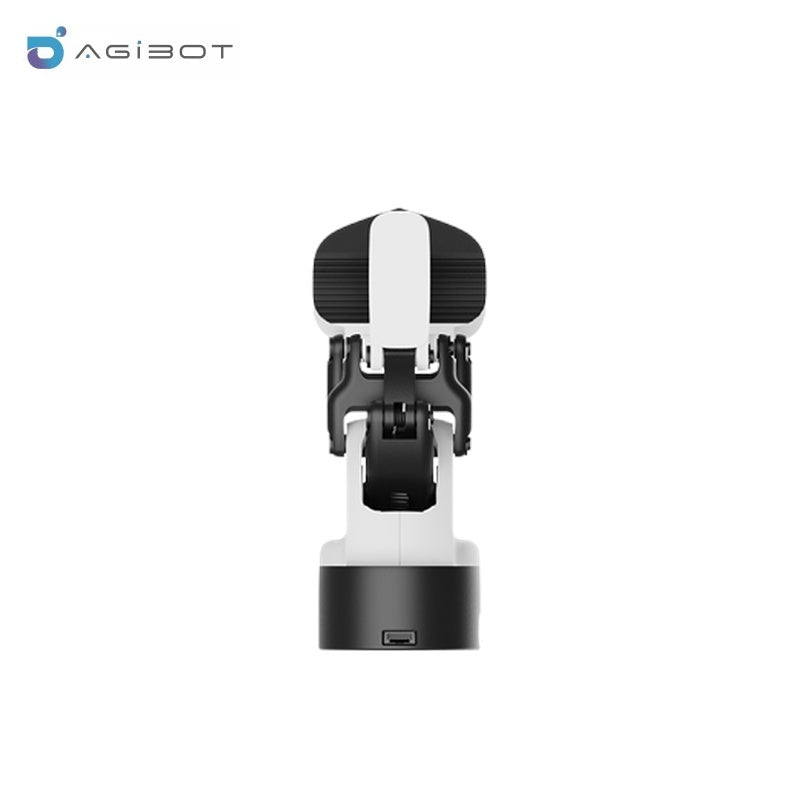

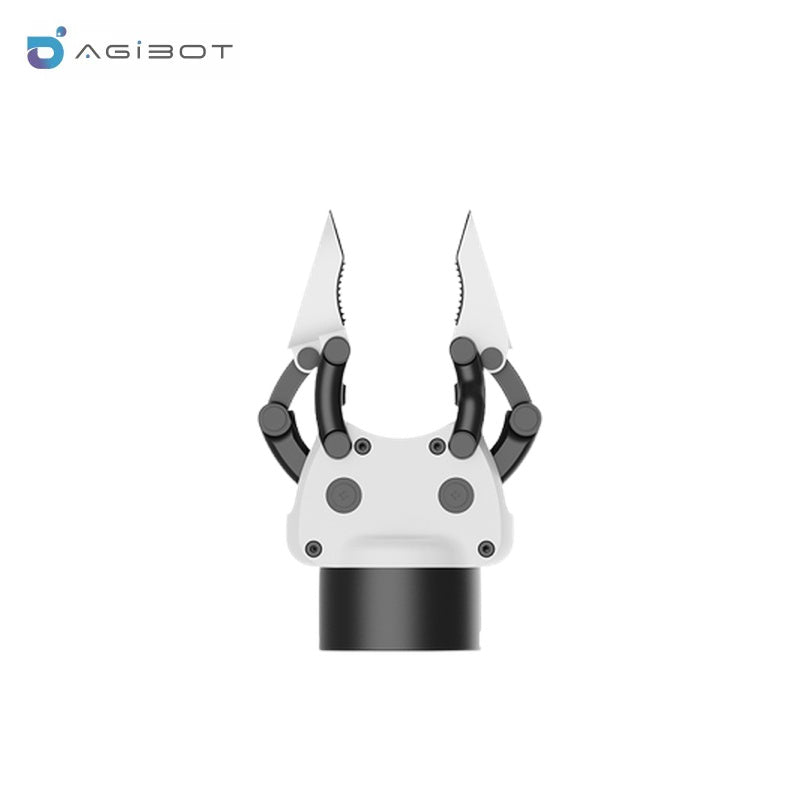

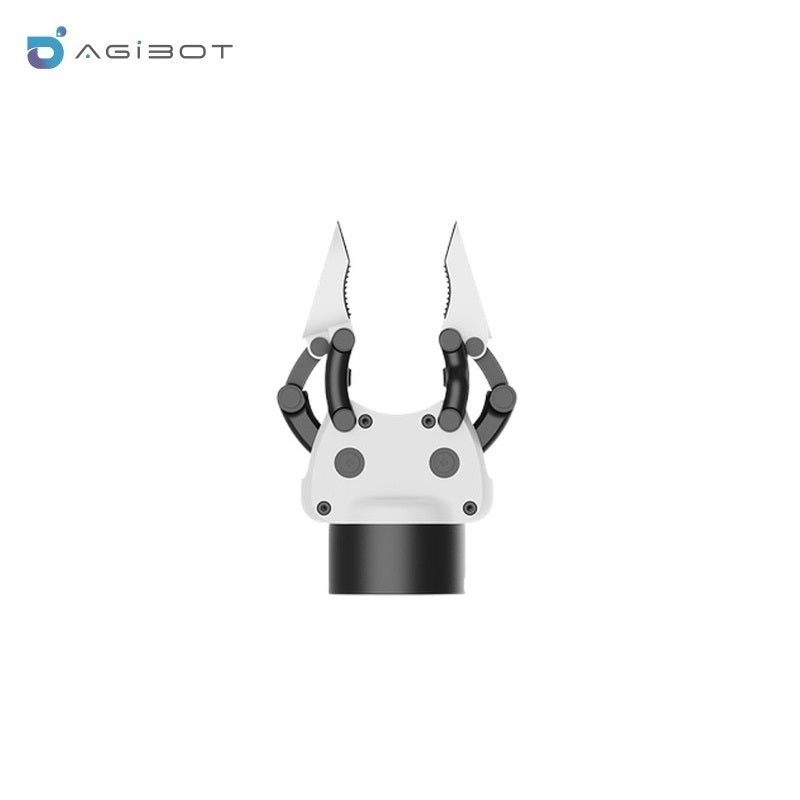

AGIBOT OmniPicker Gripper
Regular price
$590.00
Unit price
AGIBOT OmniPicker Gripper - OmniPicker is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Product Weight | 0.43kg |
| Maximum Gripping Force | 30N |
| Maximum Recommended Payload | 1.5kg |
| Maximum Stroke | 120mm |
| Opening/Closing Time | 0.7s |
| Repeat Positioning Accuracy | ±0.05mm |
| Communication Protocol | CAN, CAN-FD, RS485, Serial Port, Modbus RTU |
| Rated Operating Voltage | 24V DC |
AGIBOT OmniPicker Gripper-stp.zip

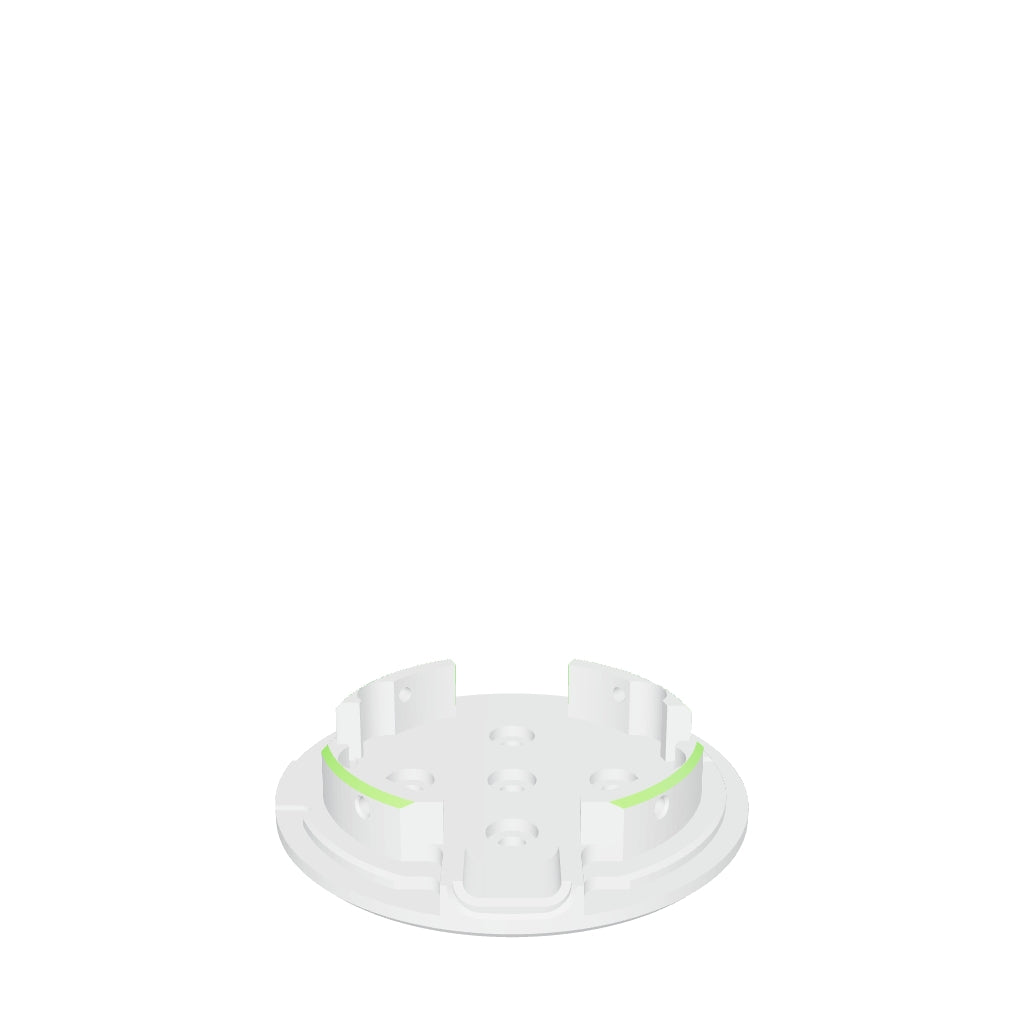

AGIBOT-Rear Connector Cover.stp
AGIBOT OmniPicker Gripper-Drawing.pdf
AGIBOT-Rear Connector Cover-Drawing.pdf
AGIBOT OmniPicker Product Manual.pdf
