LINKERBOT

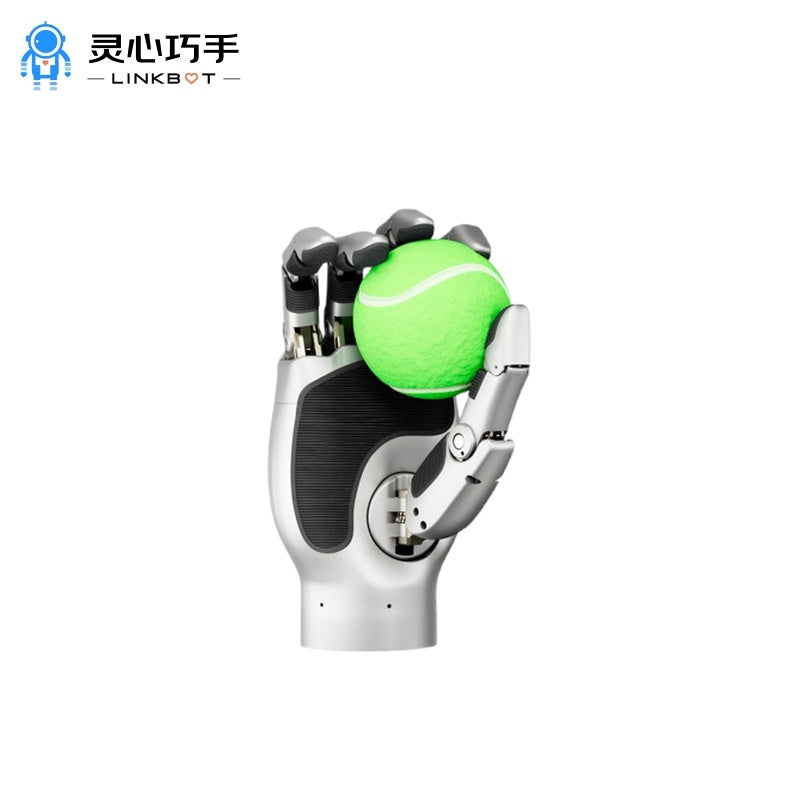

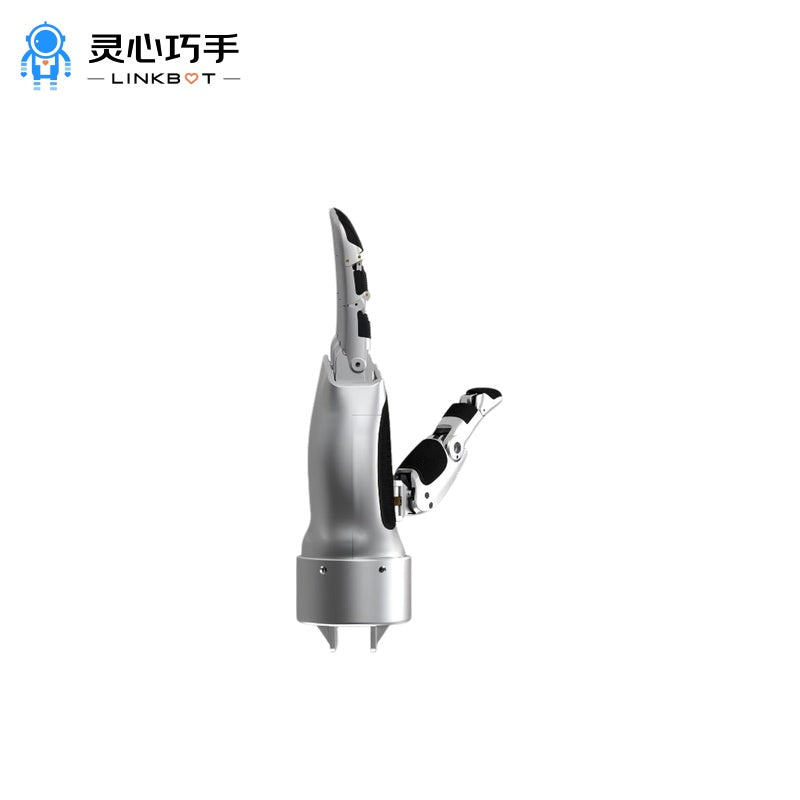

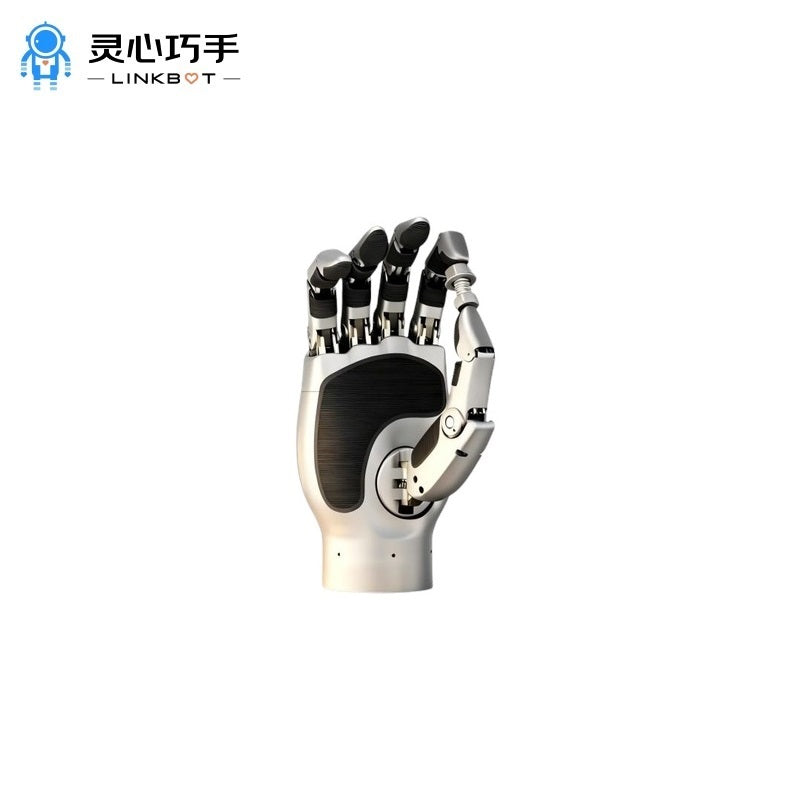

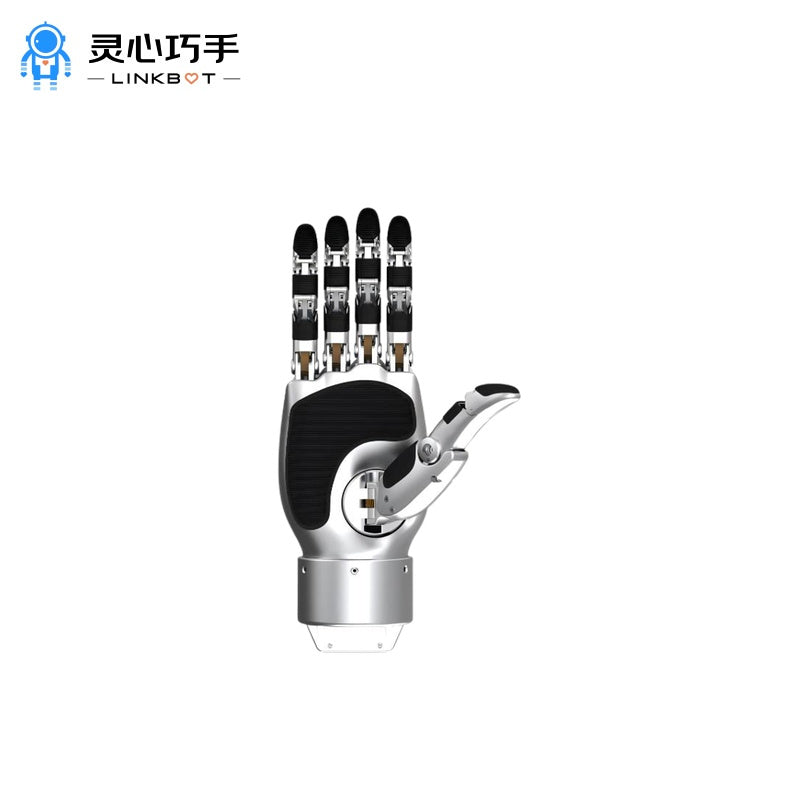

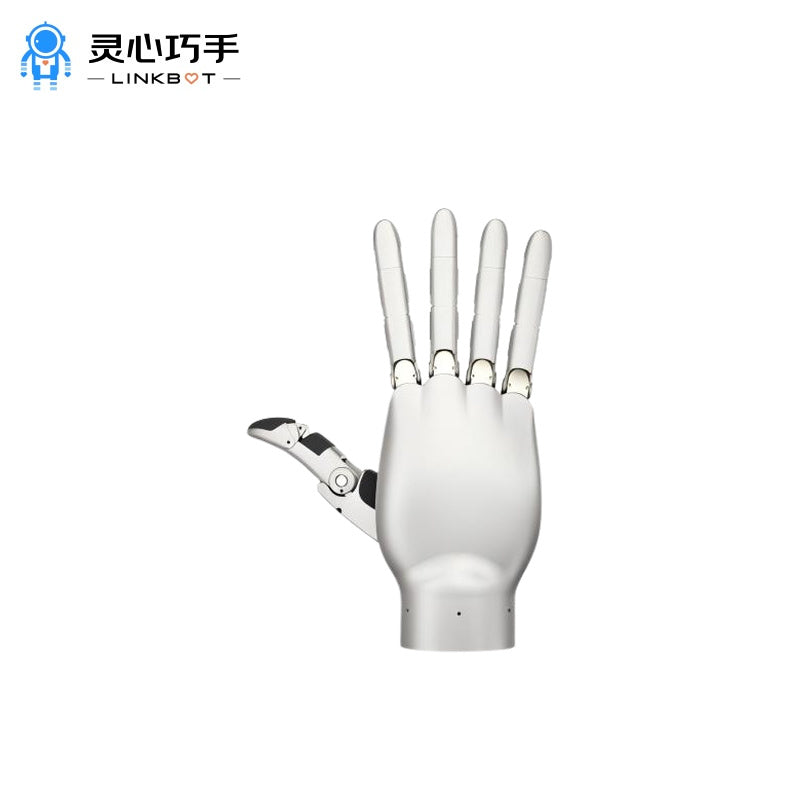

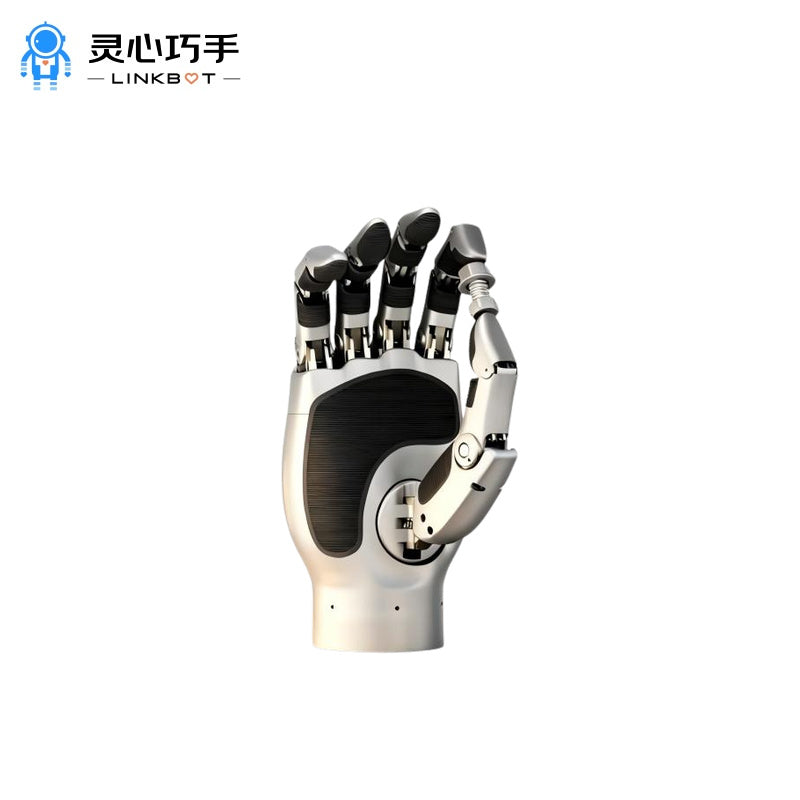

LINKERBOT Linker Hand L20 Lite

$3,999.00
Version
Left/Right

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Model Linker Hand L20 Lite
Degrees of Freedom 10 active DOF + 10 passive DOF
Transmission Mechanism Linkage drive
Control Interface CAN/RS485
Weight 800g
Maximum Payload 25kg
Operating Voltage DC24V±10%
Quiescent Current 0.2A
Average No-load Motion Current 0.5A
Maximum Current 3A
Repeat Positioning Accuracy <±0.2mm
Opening/Closing Time 1.2s
Thumb Maximum Fingertip Force 15N
Four-Finger Maximum Fingertip Force 15N
Five-Finger Maximum Grasping Force 80N
Thumb Lateral Rotation Range 0.75rad(43°)
Four-Finger Bending Angle 1.36rad(78°)
Thumb Lateral Swing Speed 1.1rad/s(63.21°/s)
Four-Finger Bending Speed 1.11rad/s(63.33°/s)
Thumb Bending Speed 0.78rad/s(44.7°/s)



LINKERBOT-Linker Hand L20 Lite-Drawing.pdf
