Daimon Robotics

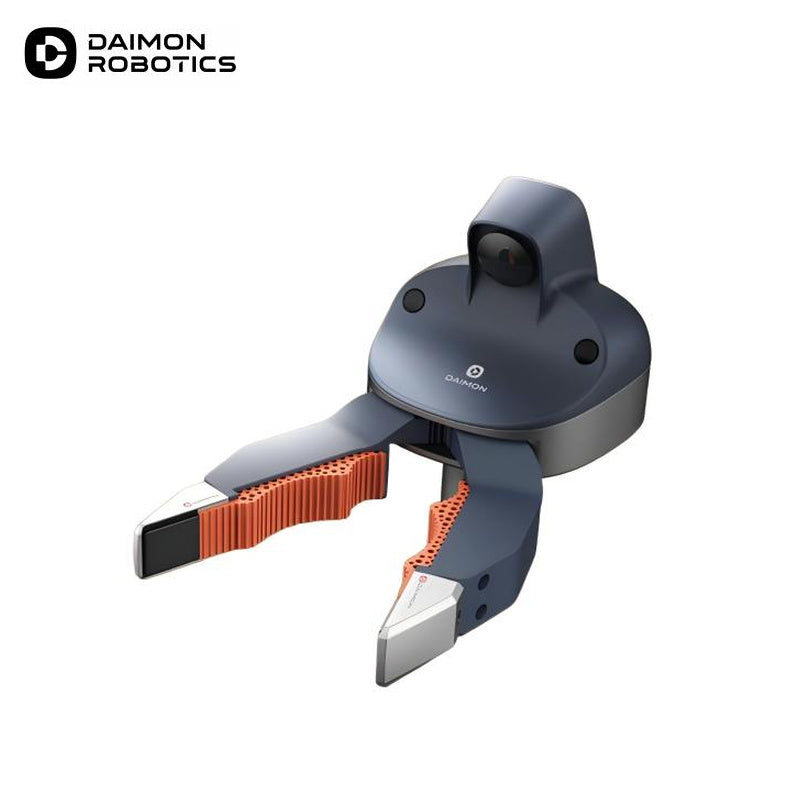

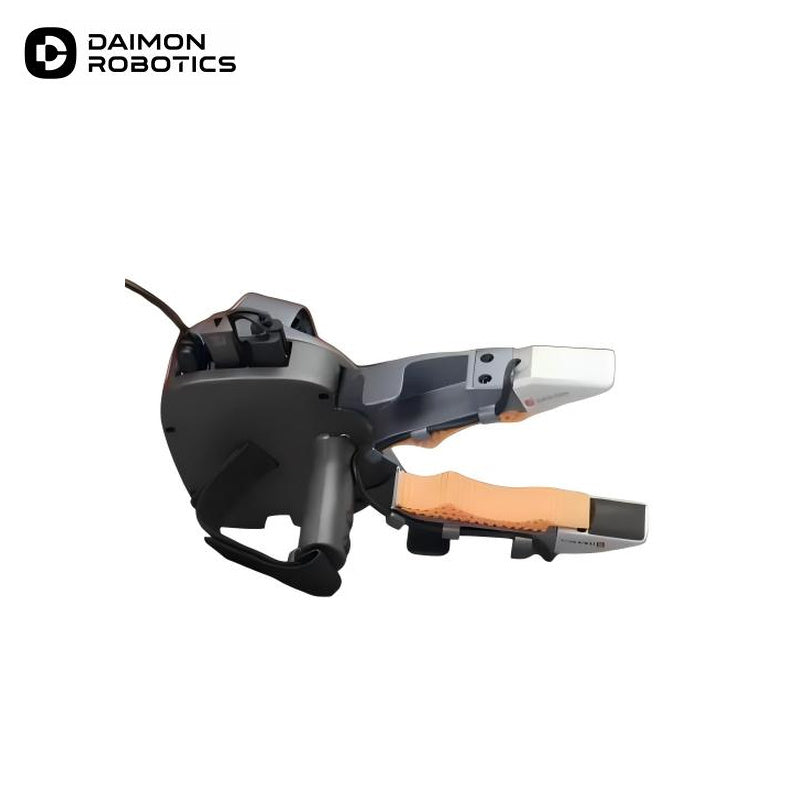

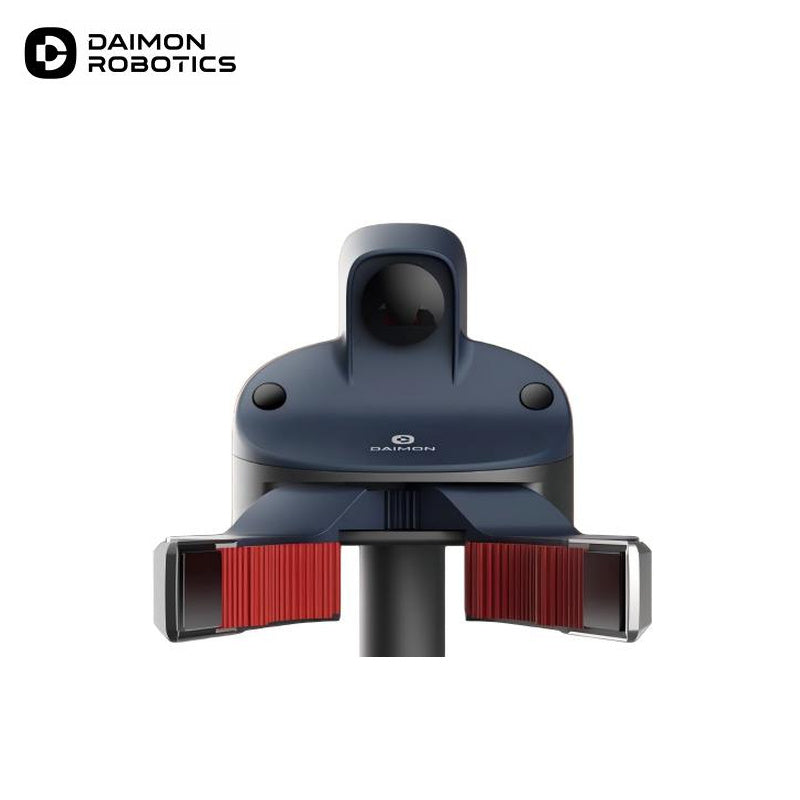

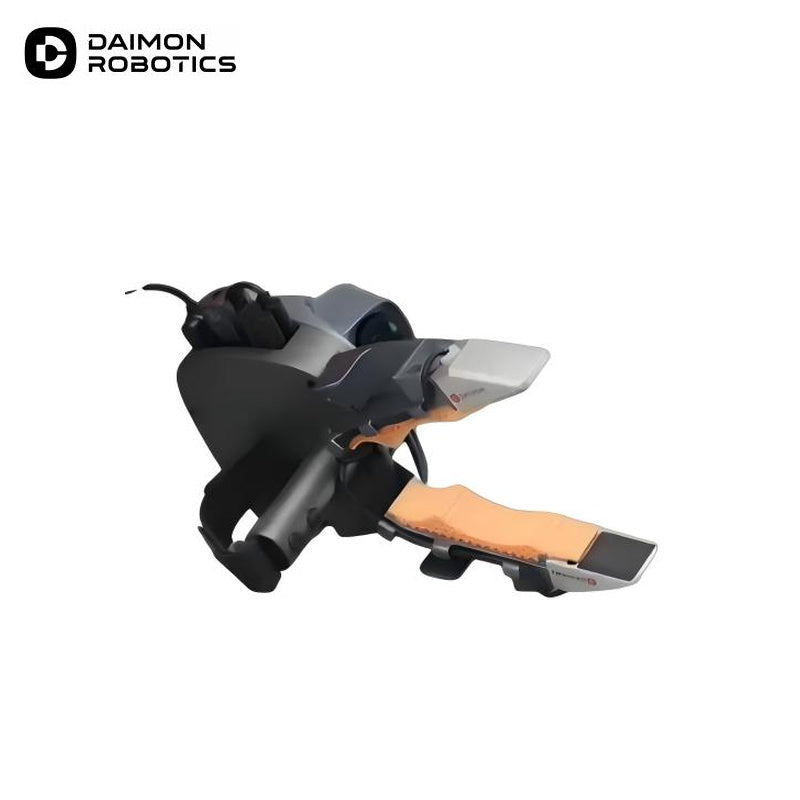

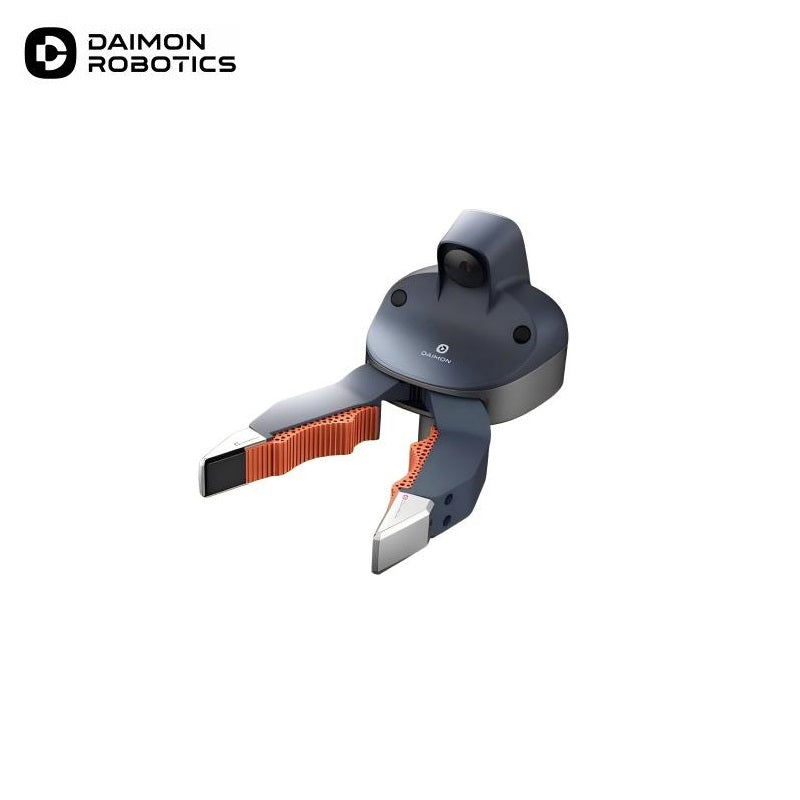

Daimon Robotics DM-DataClaw Gripper

$13,600.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Dimensions 215 mm * 124 mm * 172 mm
Gripper Weight Approx. 388 g (per gripper)
Gripper Structure Two‑finger design
Stroke & Opening Angle 0‑100 mm, ‑35.5°
Maximum Load Capacity 2 kg (maximum gripping force)
Positioning Accuracy Millimeter‑level (<10 mm)
Vision System Stereo cameras: 1280 × 400 @50FPS H264; Fisheye camera: 1920 × 1080 @6
IMU 6‑axis, 200 Hz sampling rate
Tactile Sensing Vision‑based tactile sensing with tens of thousands of units/cm², enabling high‑precision omnidirectional force perception
Audio Module Microphone and speaker (supports external headphones for voice annotation and task notes)
Battery Life 3.5‑4.5 hours for standard operation; supports hot‑swappable power supply
Output Data Types Fisheye images, stereo images, IMU data, spatial trajectory, audio, tactile data, gripper angle
Data Interfaces USB 3.2 / Wi‑Fi 6 / Ethernet
Data Transmission Local and cloud‑based
Data Collection Efficiency Ergonomic design optimized for long‑duration continuous data collection tasks
