MINDSYNC TECH | SKU:

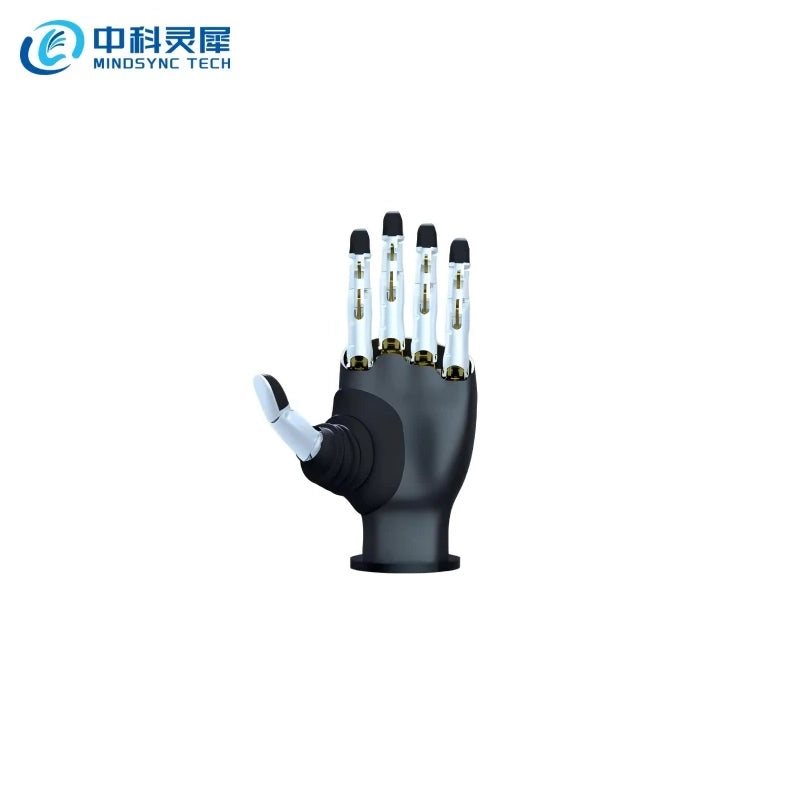

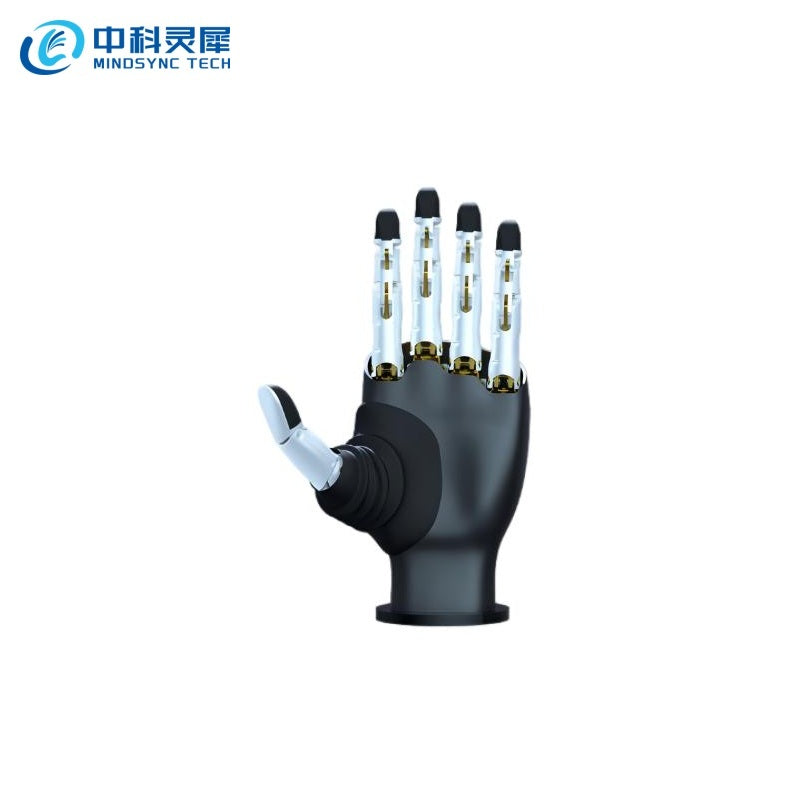

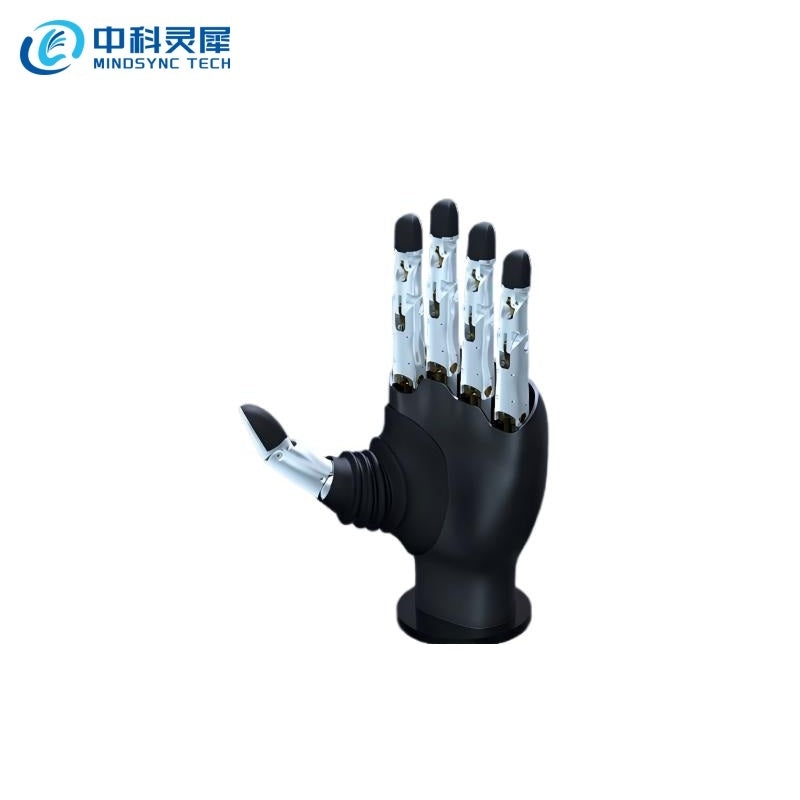

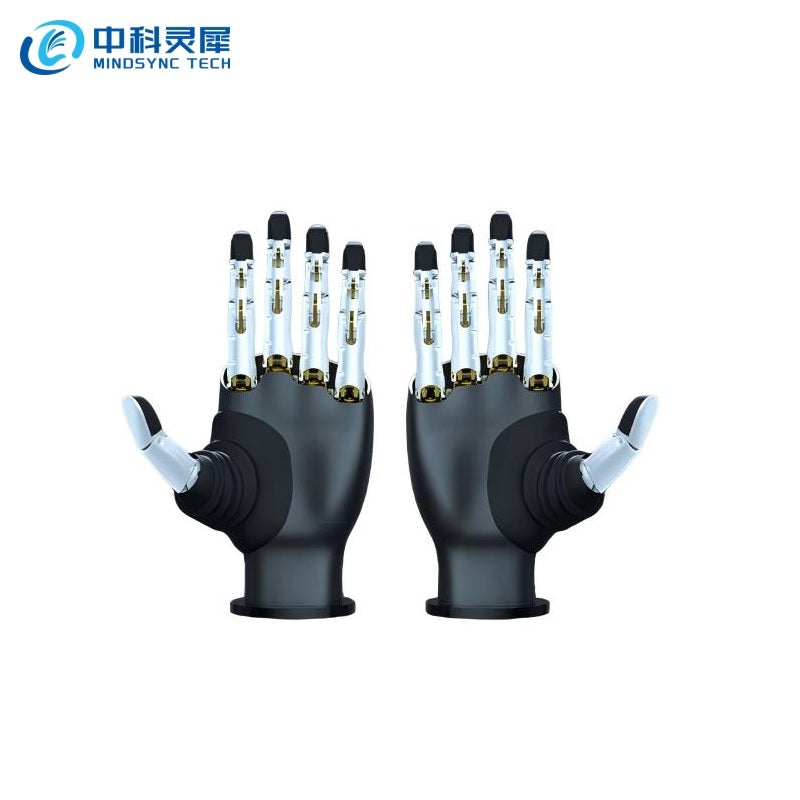

MINDSYNC TECH LG-601 Robotic Hand
Regular price
$6,000.00
Unit price
MINDSYNC TECH LG-601 Robotic Hand - LG-601 / Left is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
MINDSYNC TECH LG-601 Robotic Hand
Regular price
$6,000.00
Unit price
MINDSYNC TECH LG-601 Robotic Hand - LG-601 / Left is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Mechanical Specifications: | |
| Dimensions | 215×93×45mm |
| Drive Type | Worm Gear Drive |
| Active Degrees of Freedom (DoF) | 6 |
| Passive Degrees of Freedom (DoF) | 10 |
| Repeat Positioning Accuracy | 3mm |
| Motion Performance: | |
| Finger Motion Angle | ≥90° |
| Fingertip Angular Speed | 360°/s |
| Load & Force Capabilities: | |
| Static Load Capacity | 20kg |
| Fingertip Force | 3N |
| Grasping Force | 10N |
| Minimum Graspable Object Size | 5mm |
| Weight | 540g |
| Electrical & Control: | |
| Communication Interface | CAN |
| Operating Voltage | DC12V±10% |
| Average No-Load Operating Current | 0.15A @12V |
| Static Current / Maximum Current | 0.25A @12V / 5A @12V |
| Optional Accessories: | |
| Force-Tactile Sensor | 7 (5 fingertips, 1 palm, 1 6-axis force/torque sensor optional) |
| Sensor Resolution | 0.1N |
| Wrist Degrees of Freedom (DoF) | 2 |
