AGIBOT | SKU:

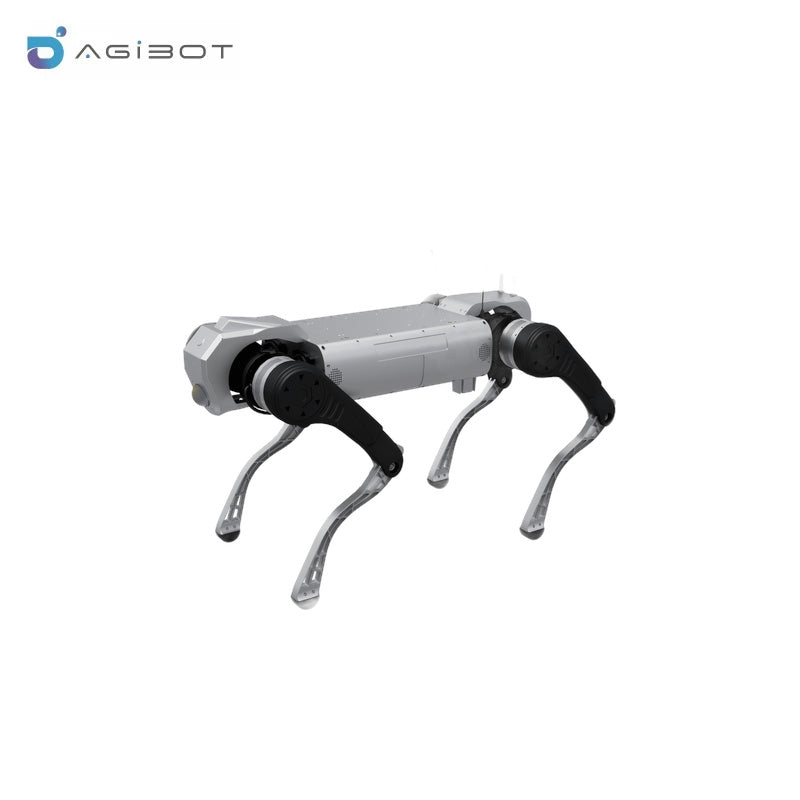

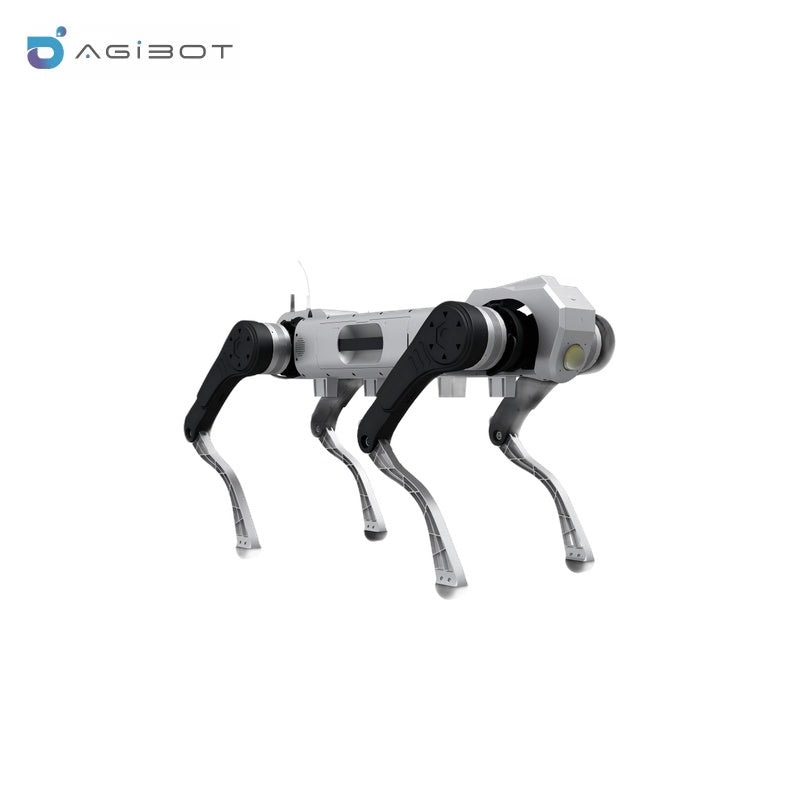

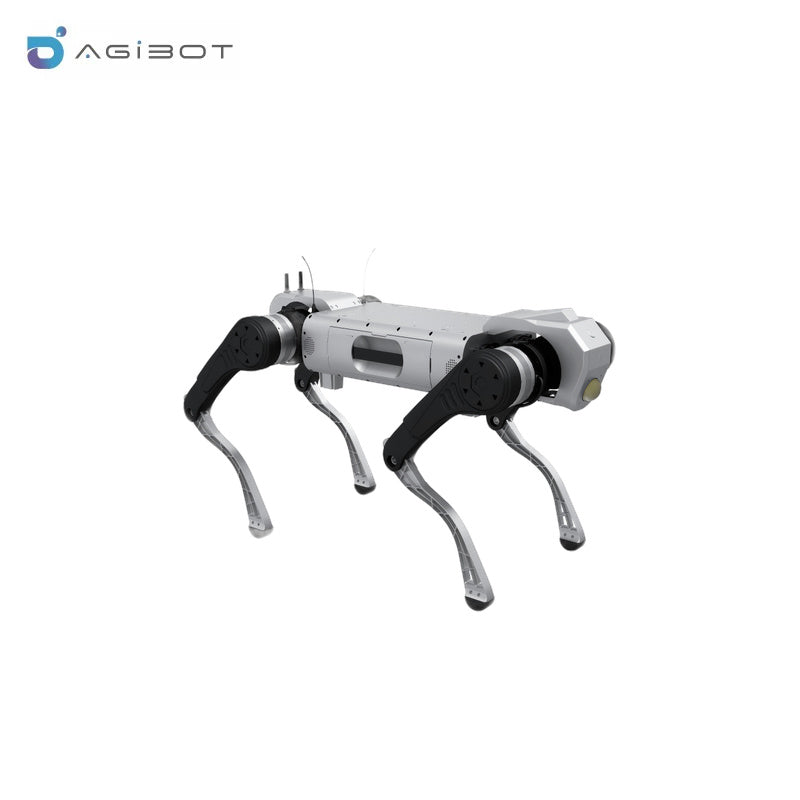

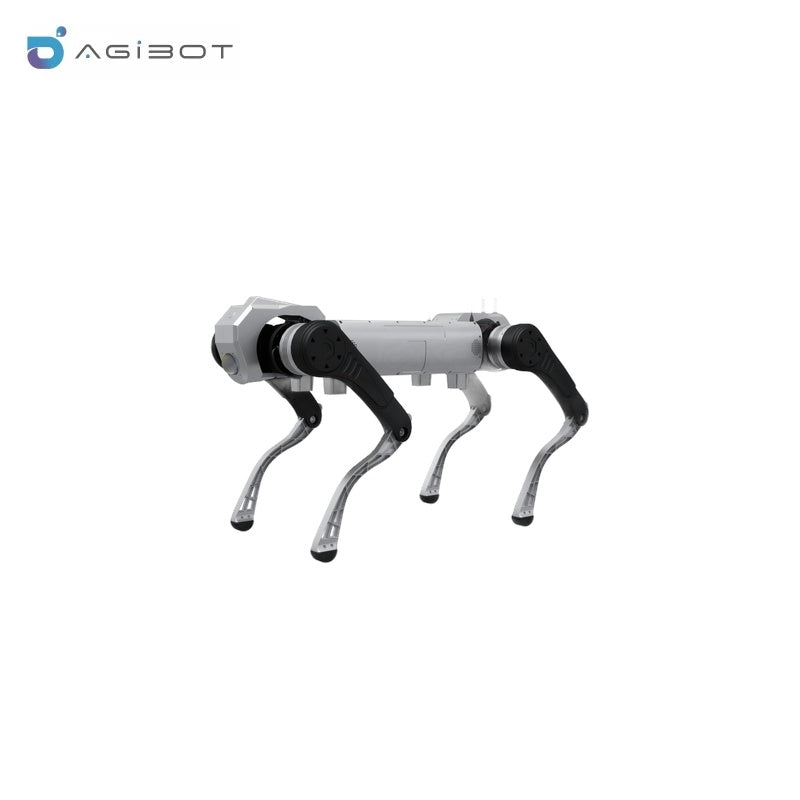

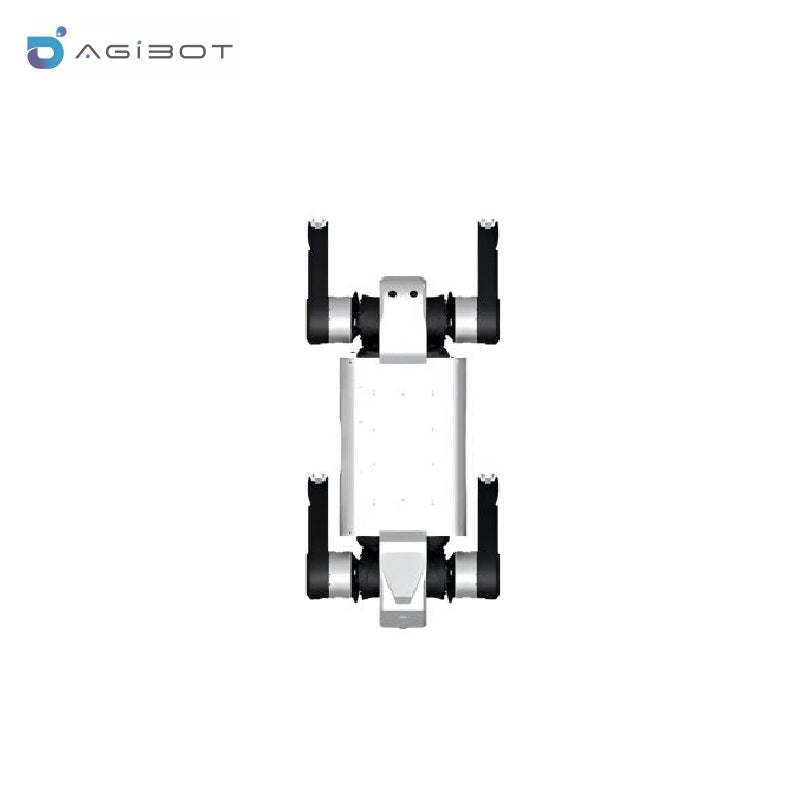

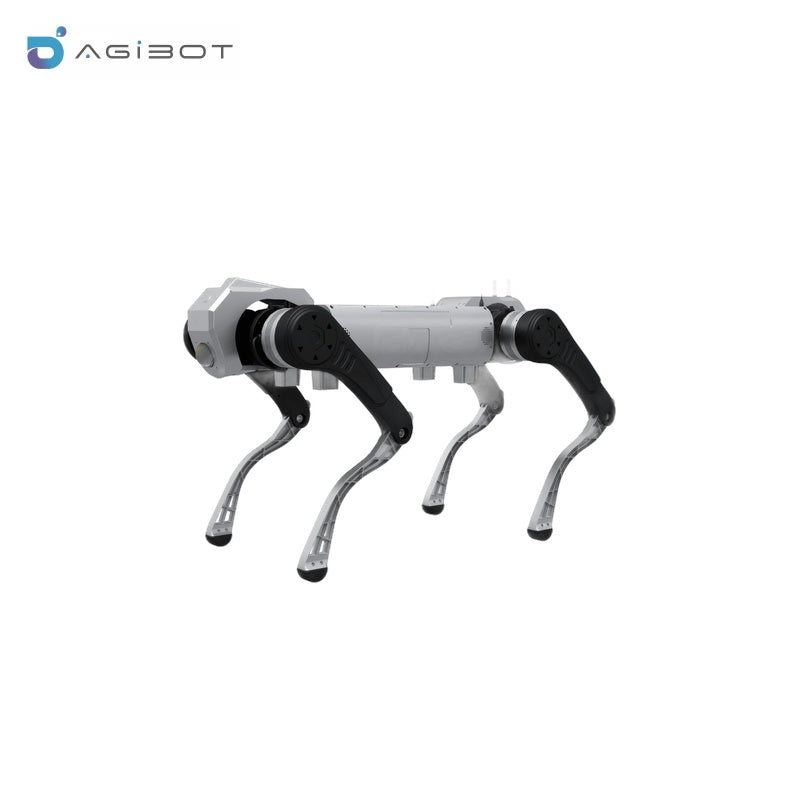

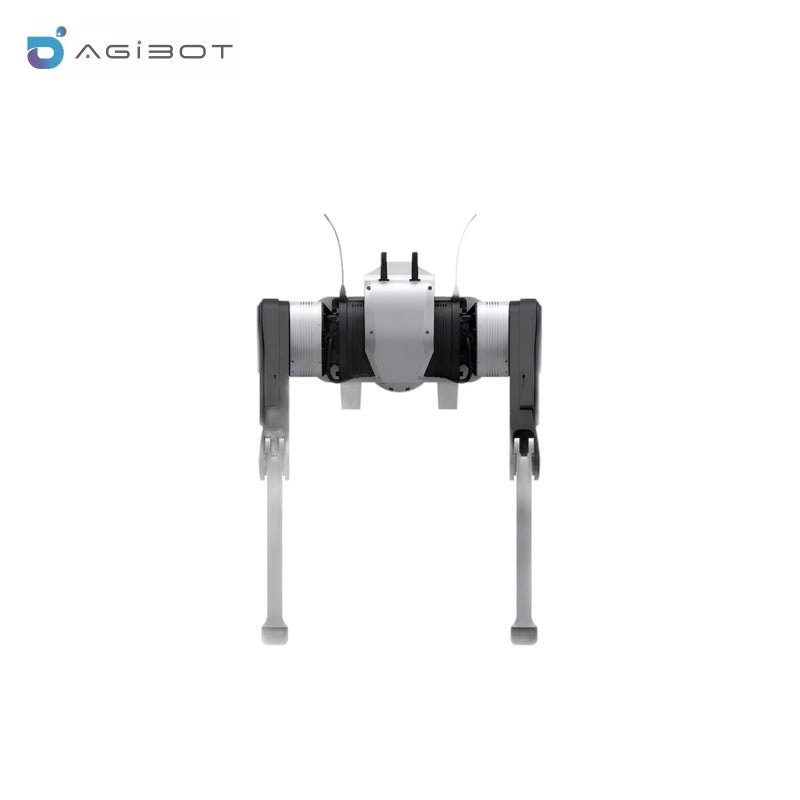

AGIBOT D1 Max Pro Robot
Regular price
$124,000.00
Unit price
AGIBOT D1 Max Pro Robot - D1 Max Pro is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
AGIBOT D1 Max Pro Robot
Regular price
$124,000.00
Unit price
AGIBOT D1 Max Pro Robot - D1 Max Pro is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Basic Information | |
| Model | D1 MaxPro |
| Material | Aluminum alloy + high-strength engineering plastic |
| Standing Dimensions (L×W×H) | 1270mm × 520mm × 730mm |
| Prone Dimensions (L×W×H) | 1360mm × 570mm × 300mm |
| Total Weight (including battery) | 68kg |
| Degrees of Freedom | 12 DoF total, 3 DoF per leg |
| Operating Temperature | -20°C to 55°C |
| Ingress Protection Rating | IP67 |
| Computing Module | 117 TOPS GPU, ARM CPU |
| Battery | Rated capacity 45 ± 1 Ah |
| Charging Time | Approx. 4.5 hours (10% to 90% charge) |
| Battery Life | 5.5h (no load) / 2h+ (50kg load) |
| Operational Range | 21±1km (no load) / 11±1km (full load) |
| Performance Parameters | |
| Continuous Walking Speed | 0-1.2m/s |
| Maximum Speed | 3m/s |
| Rated Payload | 50kg |
| Continuous Stair Climbing Height | 30cm |
| Maximum Climbing Angle | 45° |
| Joint Parameters | |
| Maximum Joint Torque | 300N·m (software limited to 180N·m) |
| Joint Range of Motion (Body) | -45° to 45° |
| Joint Range of Motion (Thigh) | -200° to 20° |
| Joint Range of Motion (Calf) | 30° to 160° |
| Sensing Units | |
| LiDAR | Front 96-channel, 360°×90°, range up to 120m, accuracy 1.5cm |
| Wide-Angle Camera | Front + Rear, industrial-grade 2MP, DFOV 150°, HFOV 130°, VFOV 73°, 30fps |
| IMU | 1 × automotive-grade IMU |
| Function List | |
| Standard Movements | Standing, prone, damping, force unloading; stair climbing, obstacle crossing |
| Real-Time Video Transmission | Supported |
| Secondary Development | SDK supports TCP/ROS, X86/ARM architectures |
| Connectivity | Wi-Fi 6.0, Bluetooth 5.2, optional 4G module |
| Expansion Interfaces | 3×Gigabit Ethernet, 2×USB 3.0, 1×Fast Ethernet, serial port; 12V/24V/48V power output up to 720W, battery plug-in charging |
| Accessories | |
| Adapter | Standard |
| Battery Charging Connector | Standard |
| Remote Controller | Integrated display, manual emergency stop, max range 500m |
| Autonomous Charging Station | Optional |
