ROBOTERA | SKU:
ROBOTERA L7
Regular price
$100,000.00
Unit price
ROBOTERA L7 - ROBOTERA L7 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments

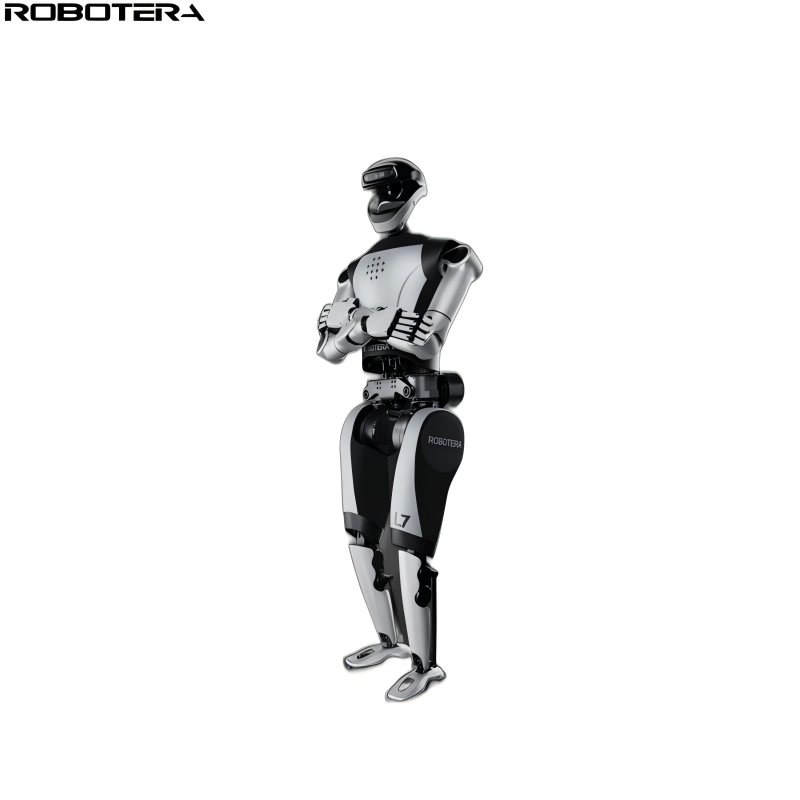

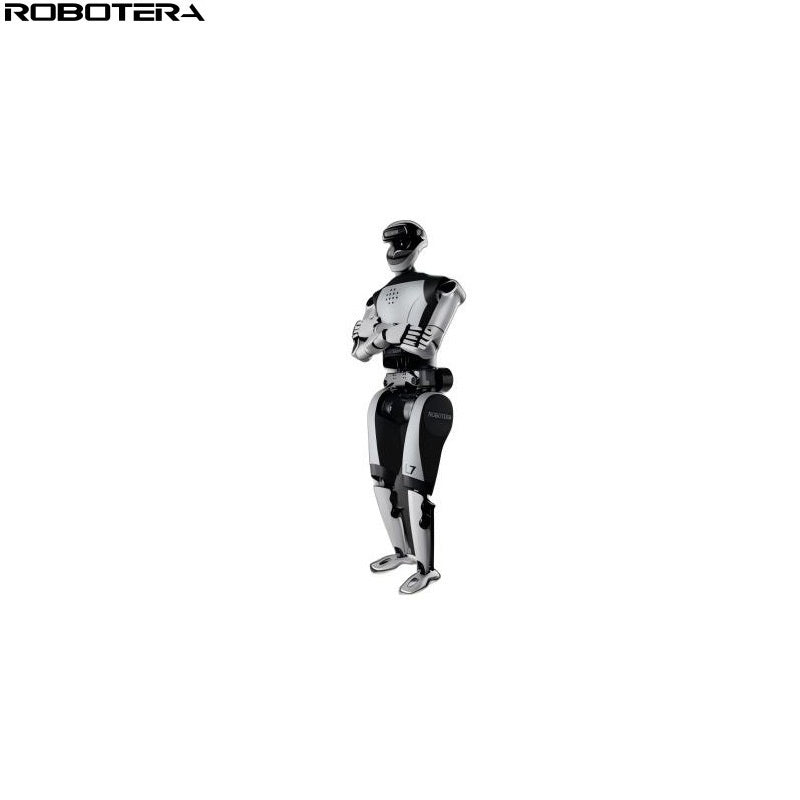

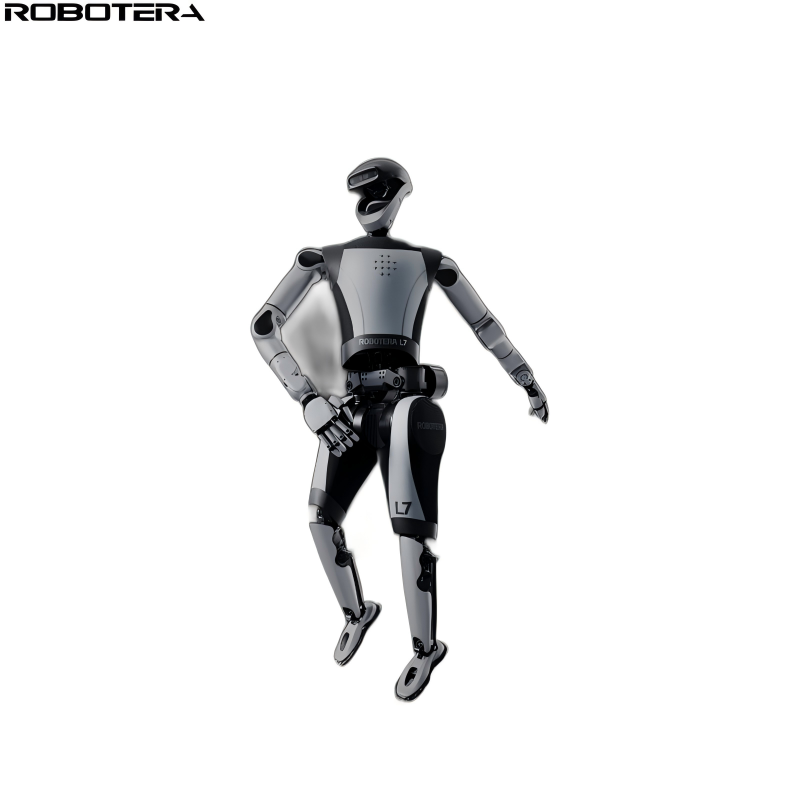

ROBOTERA L7
Regular price
$100,000.00
Unit price
ROBOTERA L7 - ROBOTERA L7 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | ROBOTERA L7 |
| Height | 1.71 m |
| Weight (without dexterous hand) | 65 Kg |
| Total DOF (with dexterous hand) | 55 |
| Whole-body DOF (excluding dexterous hands) | 31 |
| Knee Joint Peak Torque | 400 N·m |
| Knee Joint Peak Speed | 25 rad/s |
| Running Speed | 4 m/s |
| Battery Capacity | 60 V 15 Ah |
| Compute Performance | 80 TOPS(x86)+275 TOPS(Orin) |
| Binocular Camera | ✓ |
| 3D LiDAR | ✓ |
| Microphone Array & Speaker | ✓ |
| Dual-arm Payload (with arms flexed at 90 degrees) | 20 Kg |
| Arm Span | 1660 mm |
| Diameter of Operating Range | 2.1 m |
| Dexterous Hand | XHAND1 (Fully Direct-driven, 12 Active DOF, Humanoid Five-finger Dexterous Hand) |
