PaXini Tech

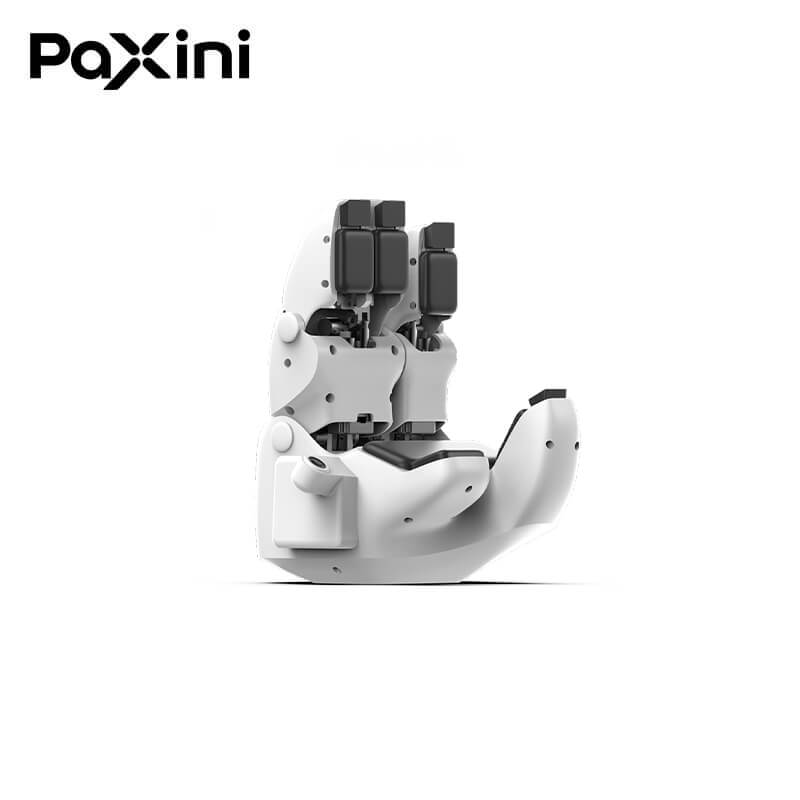

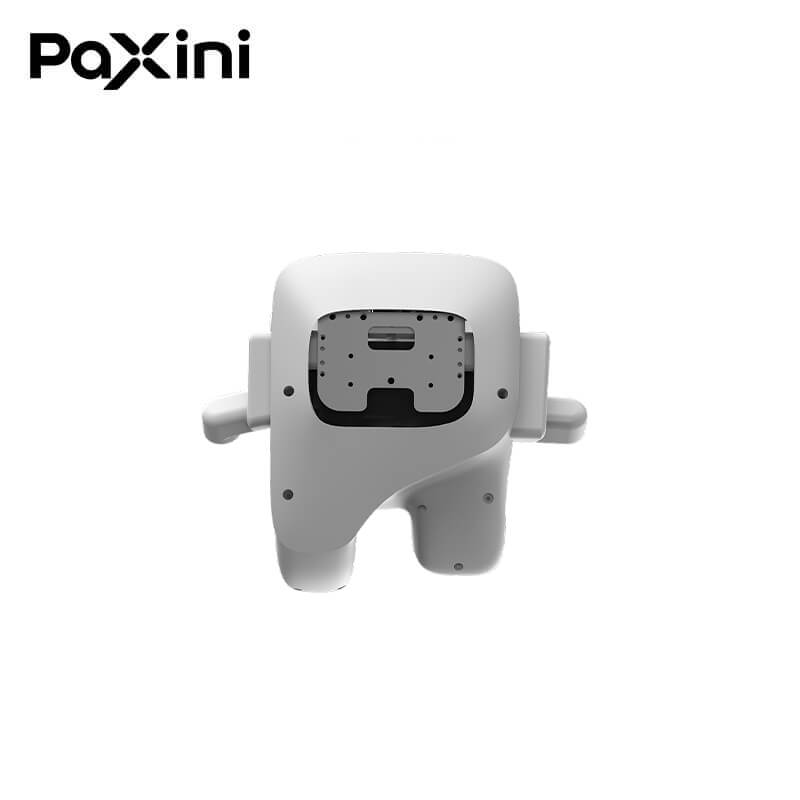

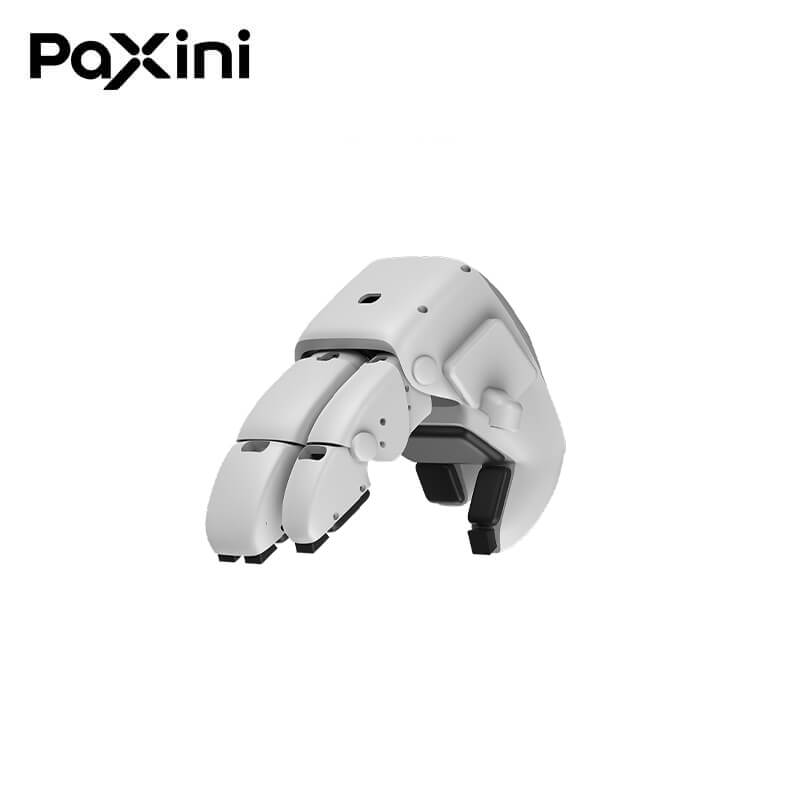

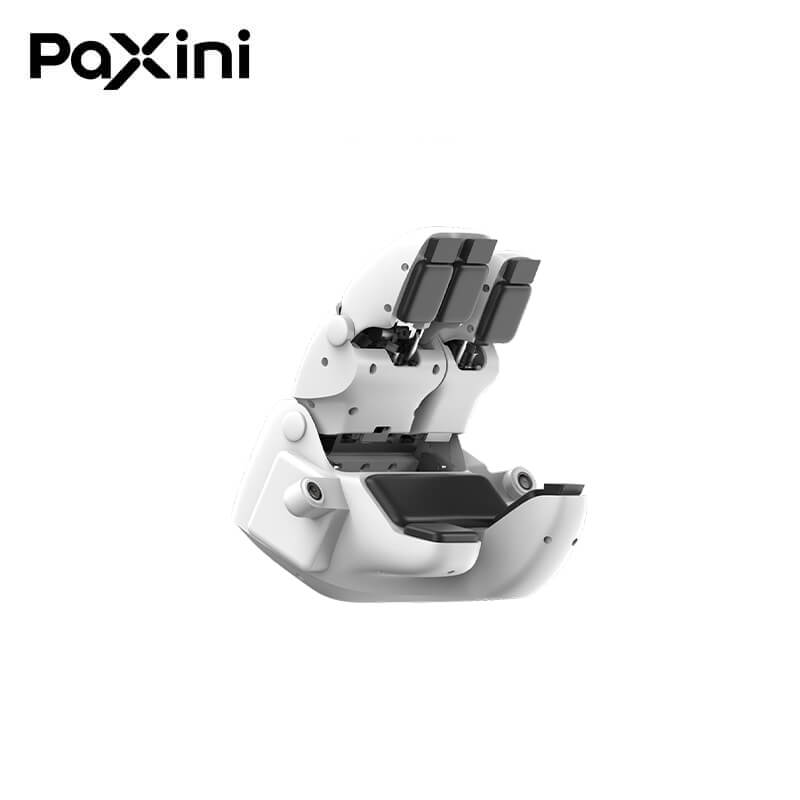

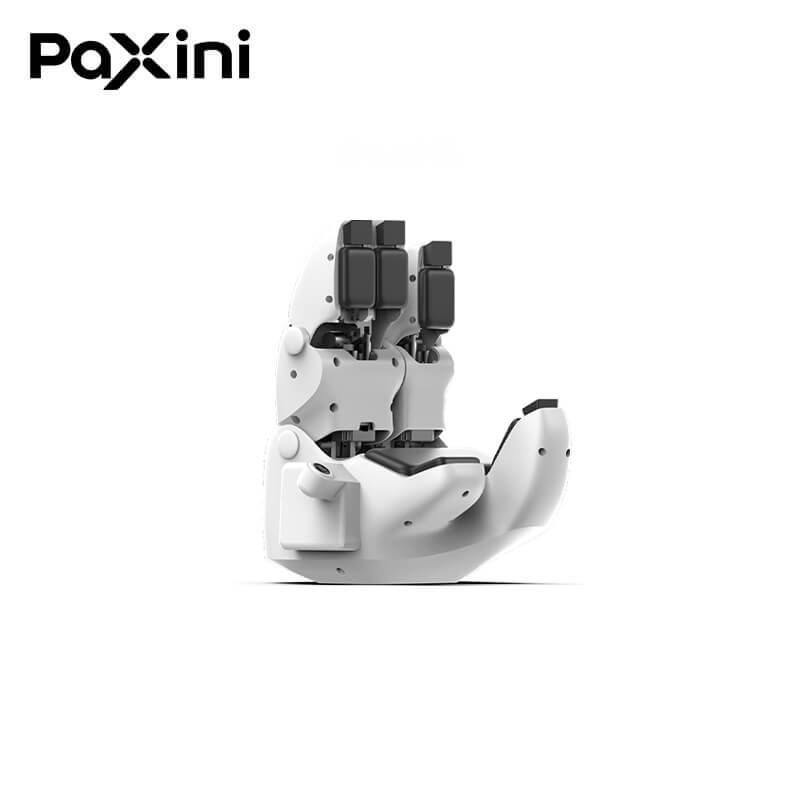

PaXini PXDex III Three-Finger End Effector

$8,930.00
Version
Left/Right

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Weight 836 g
DoF -
Tactile Perception PaXini 6D Hall Array Tactile Sensor
Tactile Force Sensor Precision 0.1N
Tactile Data Type Resultant Force & Distributed Force Array
Joint Angle Sensing Capability PaXini Self-Developed High-Precision Anti-Magnetic Encoder
Angle Encoder Precision ±0.15°
Camera RGB*2

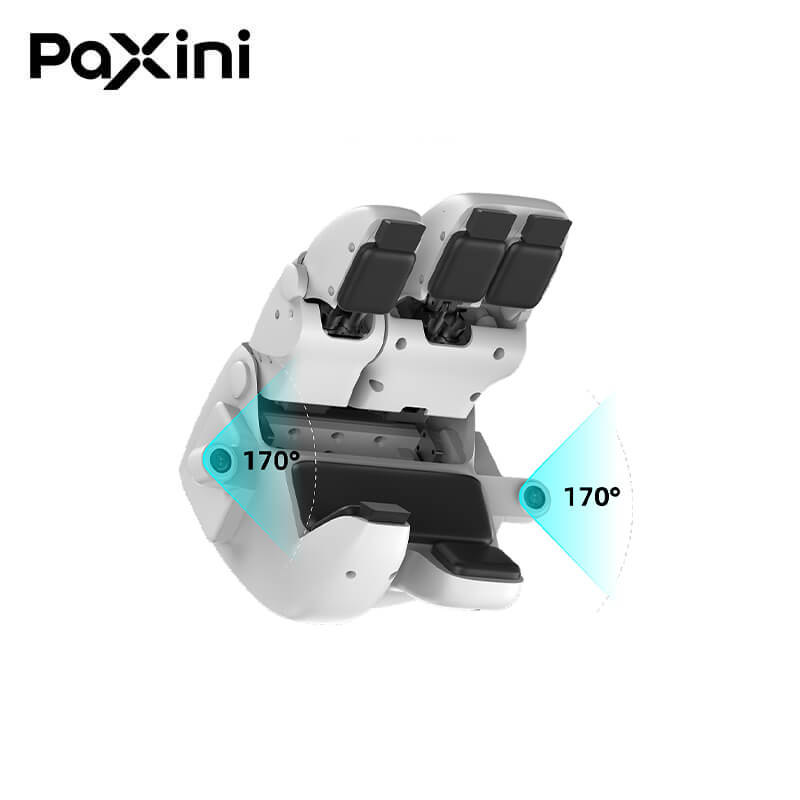

Camera FOV D170°
Camera Resolution 1080p
Camera FPS 30fps
Maximum Grasping Diameter 55mm
Minimum Pinching Diameter 2mm
Power Supply 19~48V DC
Drive Method Coreless Motor
Maximum Grasping Load 5kg
No-Load Open/Close Lifespan 1,000,000 cycles
Communication Ethercat / Modbus / USB
