LINKERBOT | SKU:
Sold out

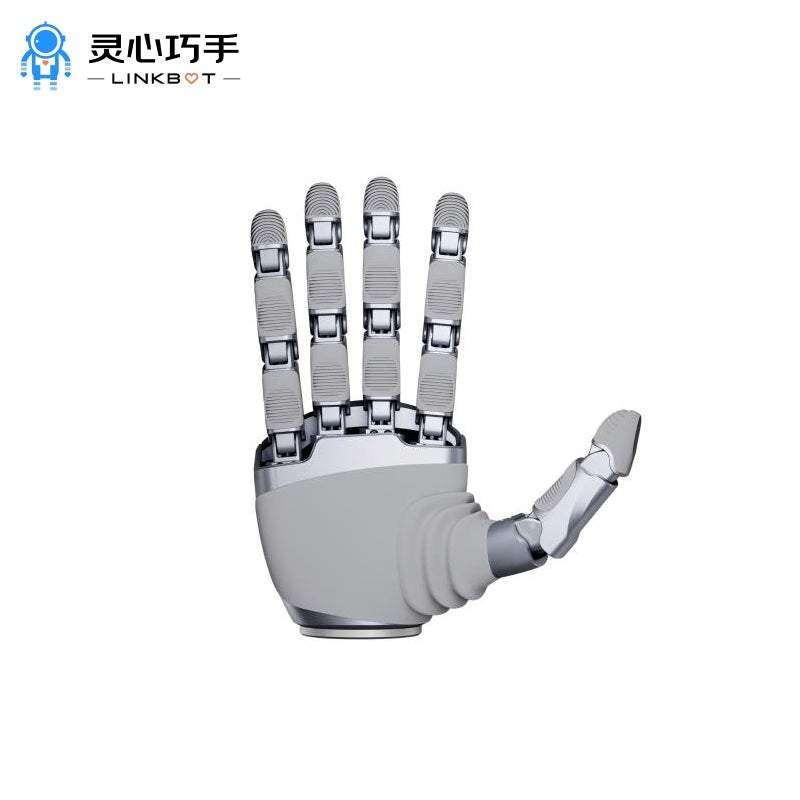

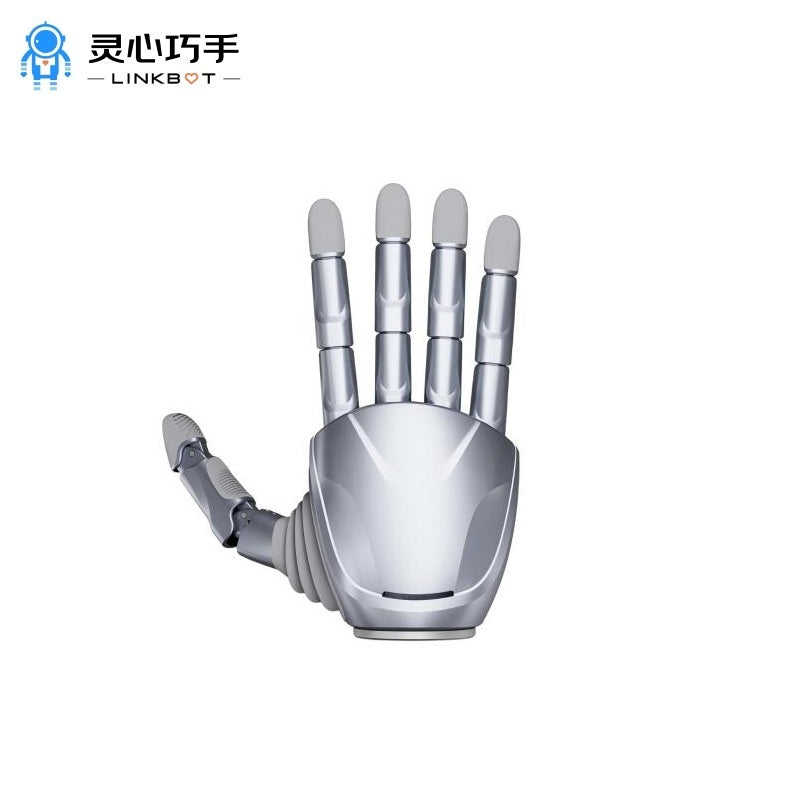

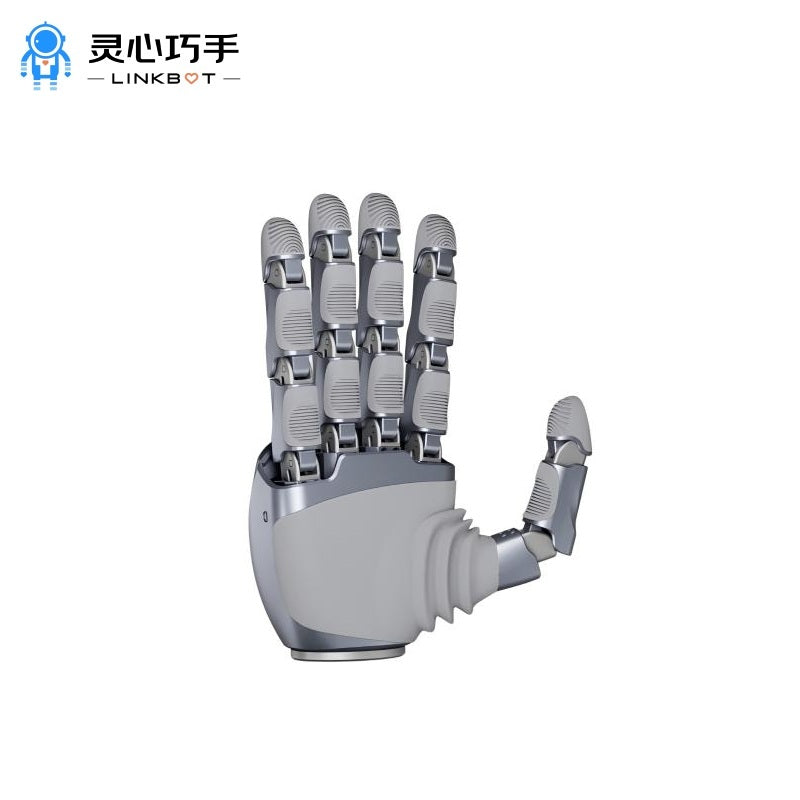

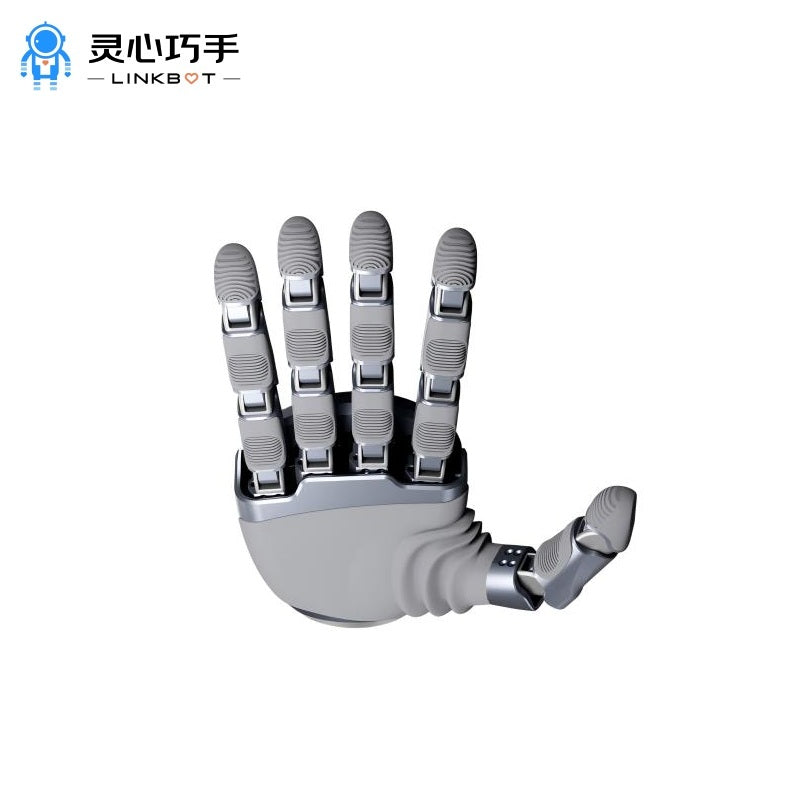

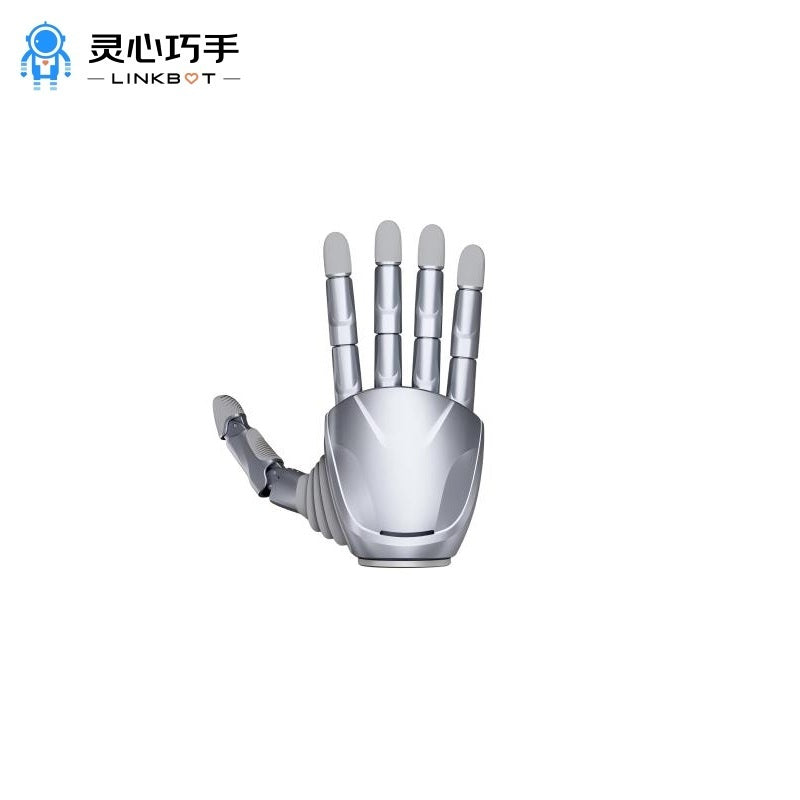

LINKERBOT Linker Hand O30
Regular price
$9,999.00
Unit price
LINKERBOT Linker Hand O30 - Linker Hand O30 / Left is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
LINKERBOT Linker Hand O30 - Linker Hand O30 / Left is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Specification |
|---|---|
| Degrees of Freedom | 20 |
| Number of Joints | 20 |
| Drive Mode | Direct Drive |
| Control Interface | CAN / CAN‑FD |
| Communication Frequency | 500 Hz |
| Weight | 740 g |
| Max Payload | 30 kg |
| Operating Voltage | DC 24 V – 48 V |
| Static Current | 0.4 A |
| Average Current (no‑load motion) | 1.1 A |
| Max Power | 150 W |
| Repeat Positioning Accuracy | 0.2 mm |
| Opening/Closing Time | 0.8 s |
| Thumb Max Fingertip Force | 24 N |
| Four‑Finger Max Fingertip Force | 15 N |
| Five‑Finger Max Grasping Force | 70 N |
