Xense Robotics | SKU:

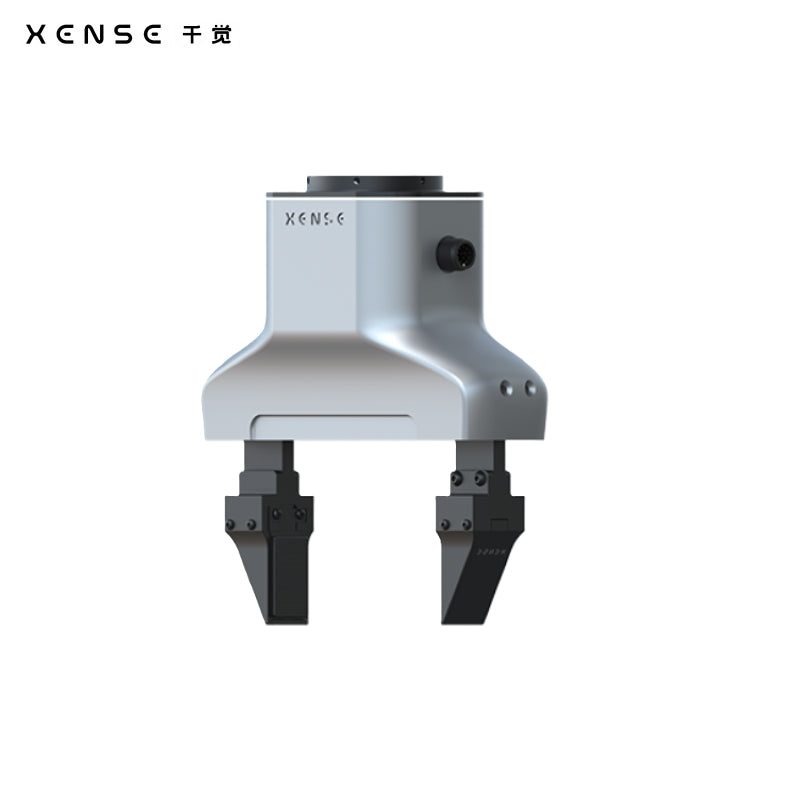

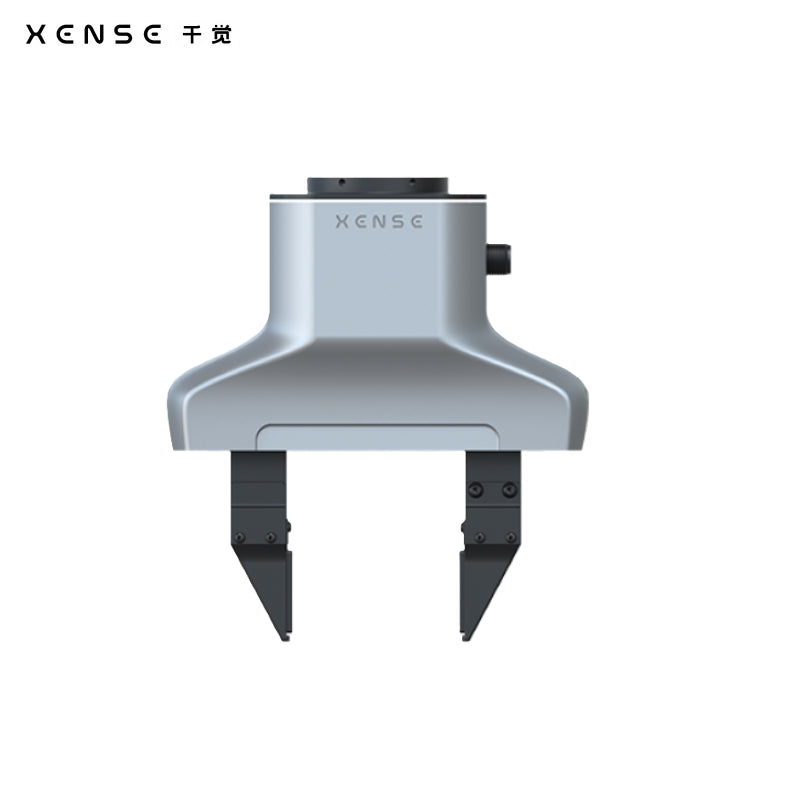

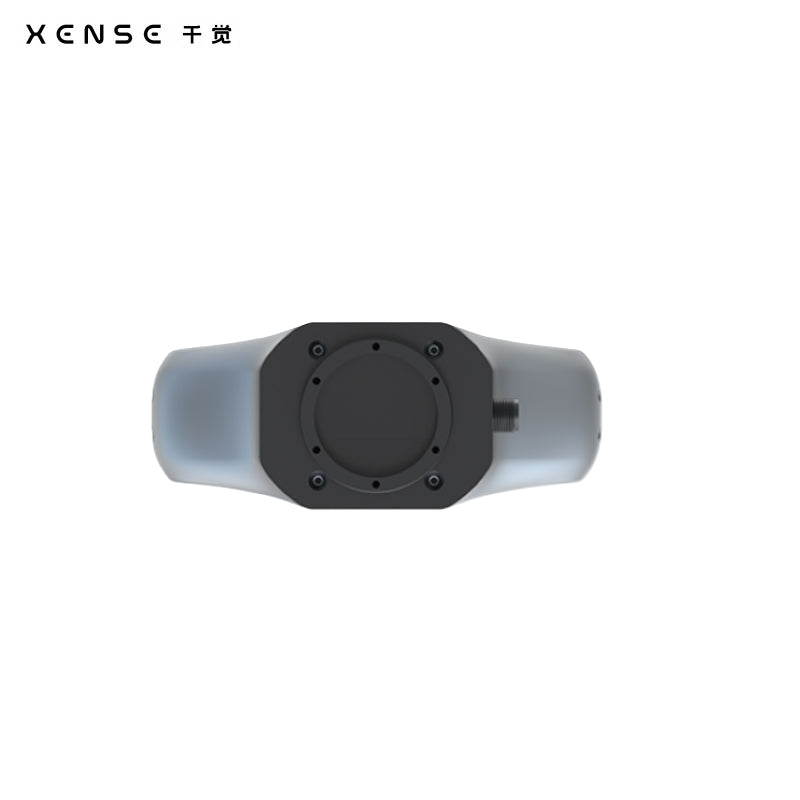

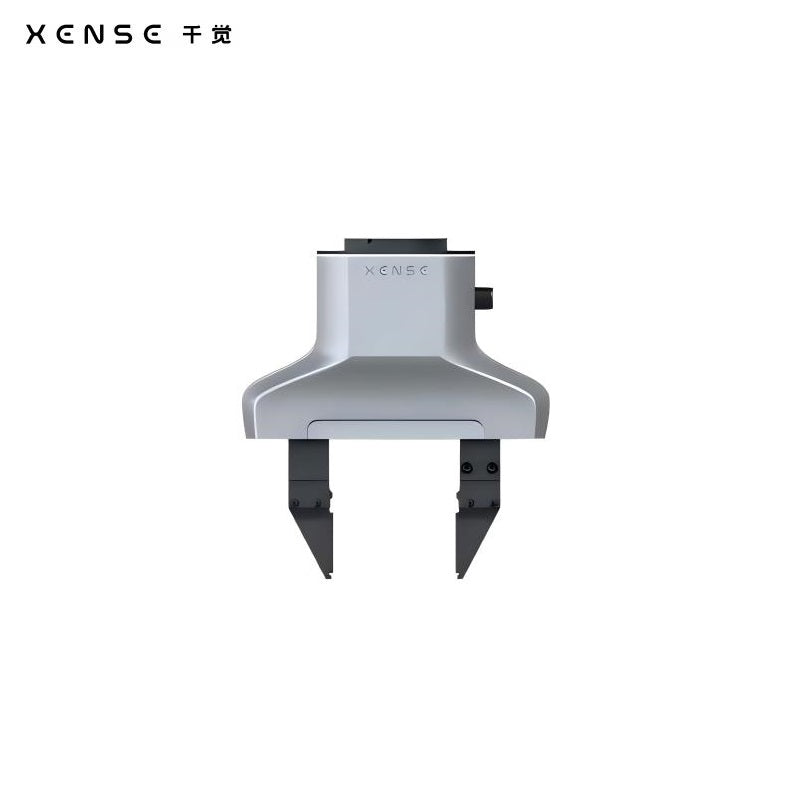

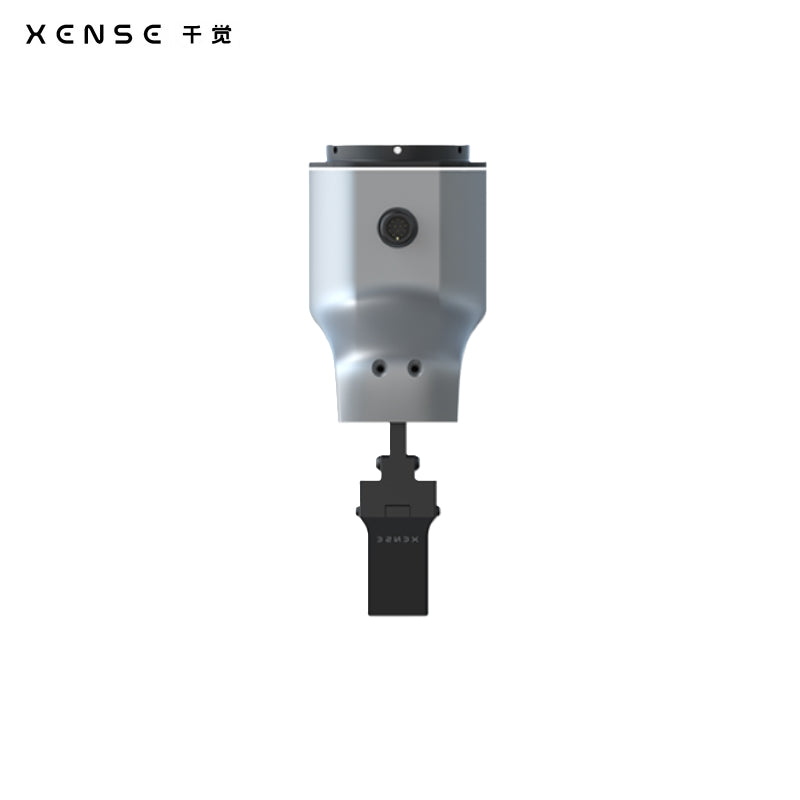

Xense Robotics Aurora Lite Gripper
Regular price
$4,500.00
Unit price
Xense Robotics Aurora Lite Gripper - Aurora Lite is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Xense Robotics Aurora Lite Gripper
Regular price
$4,500.00
Unit price
Xense Robotics Aurora Lite Gripper - Aurora Lite is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Gripping Force (One Side) | 40 N max |
| Total Stroke | 85 mm |
| Maximum Speed | 140 mm/s |
| Backlash | <0.1 mm per side |
| Resultant Force Sensing Resolution | 0.02 N |
| Dimensions (L × W × H) | L150 mm × W60 mm × H152 mm |
| Operating Voltage | 24 V |
| Operating Temperature | 0–45°C |
| Ingress Protection (IP) Rating | IP54 |
| Maximum Recommended Load | 2 kg |
| Full Stroke Open/Close Time | 0.3 s max |
| Position Repeatability | ±0.01 mm |
| Distributed Force Sensing Resolution | 0.0005 N |
| Operating Noise | << 50 dB |
| Weight | 615 g |
| Rated Current | 2 A |
| Operating Humidity | 35–80 % RH (non-condensing) |
| NPU Computing Power | 6 TOPS INT8 |
| Supported Data Types | INT4 / INT8 / INT16 / FP16, etc. |
