SLAMTEC

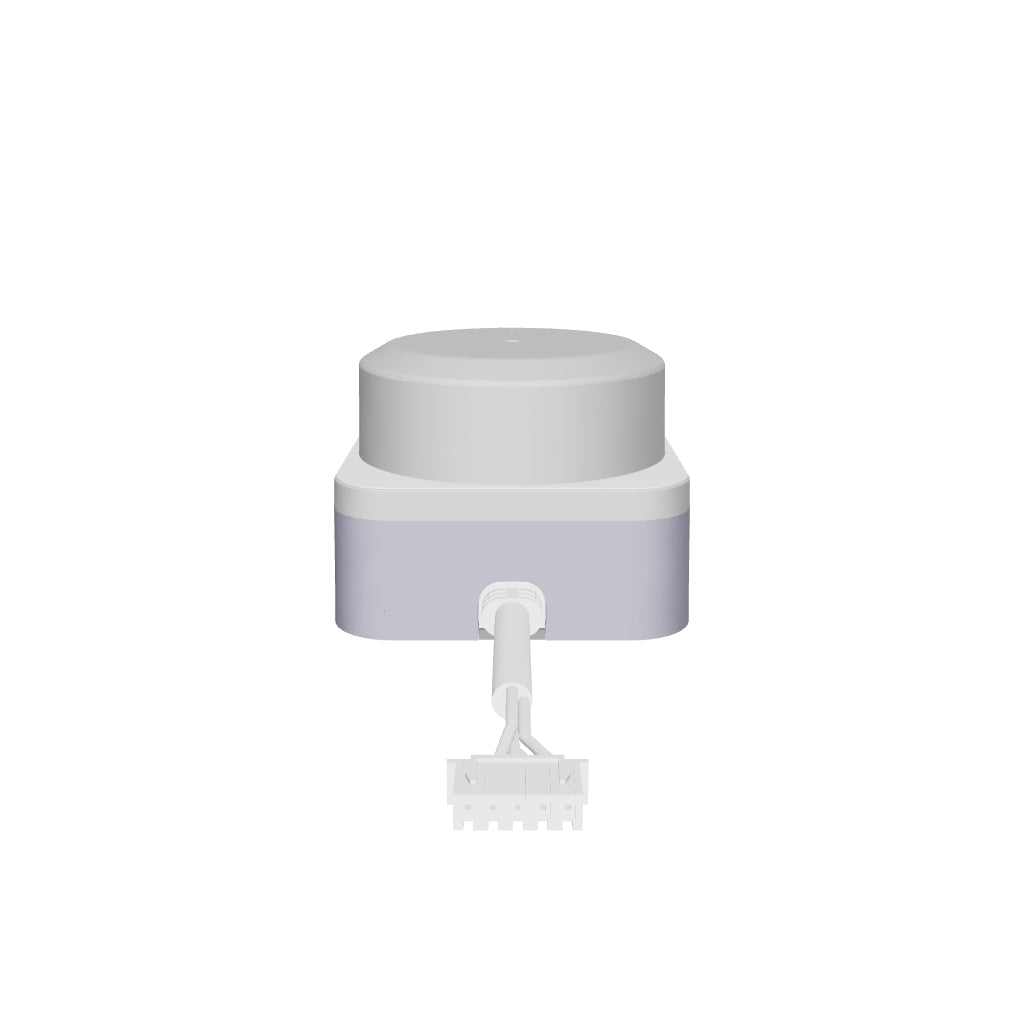

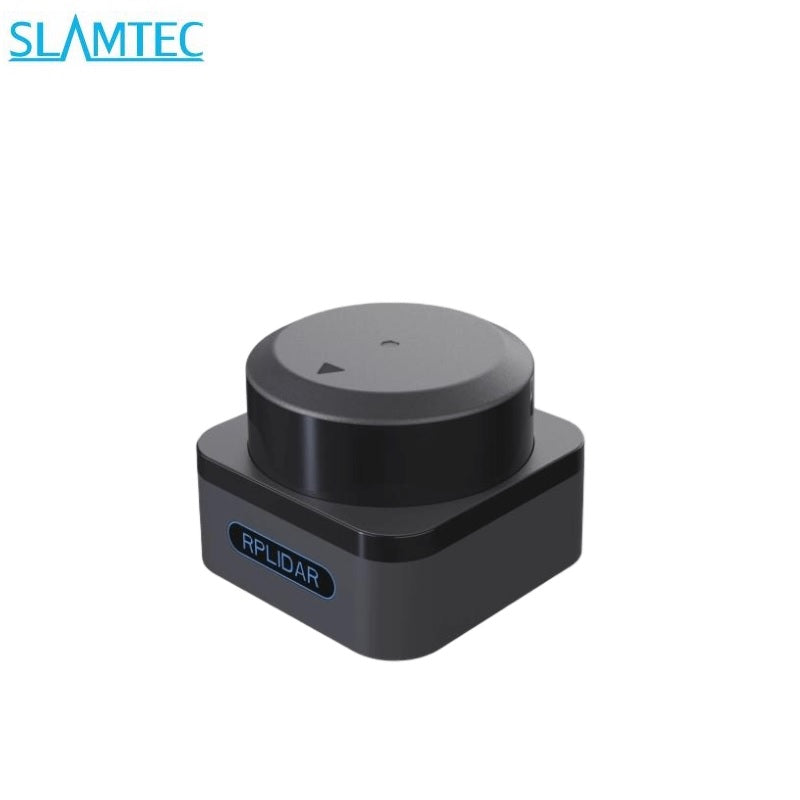

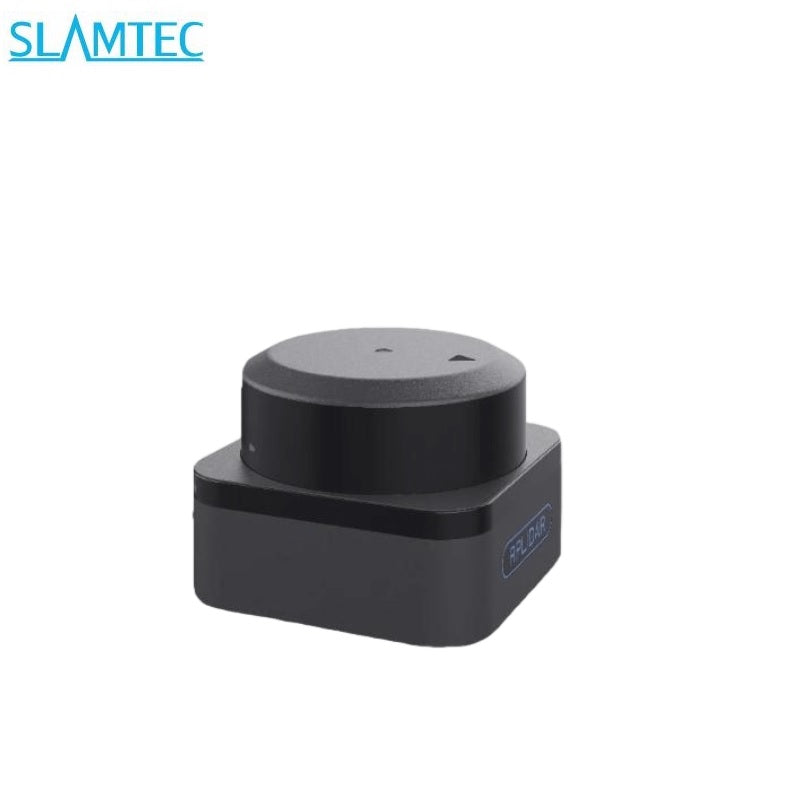

SLAMTEC RPLIDAR S3 LiDAR

Regular price $620.00

Version

Delivery and Shipping

  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information




Technical Specifications

Parameter Value
Model

SLAMTEC RPLIDAR S3

Application Scenarios

Ideal for both outdoor and indoor environments with reliable resistance to daylight(≥80Klux)

Distance Range White object: 0.05-40 meters (under 70% reflection)
Distance Range

Black object: 0.05-15 meters (under 10% reflection)

0.05 - 5 meters (under 2% reflection)

Scan Field Flatness 0°-1.5° (other angle requirements can be customized)
Sample Rate

32kHz

Scanning Frequency
Typ. 10Hz, 10~20Hz
Angular Resolution Typ.  0.1125°, 0.1125°~0.225°
Communication Interface TTL UART
Communication Speed 1M
Accuracy ±30mm
Resolution 10mm
Working Wavelength

895-915nm

Laser Power

25W

Pulse Length

5ns

Laser Safety Class

IEC-60825 Class 1

Power Voltage

4.9—5.2V

Power Voltage Ripple

150mV(Max)

System Start Current

1200mA

Power Current 450mA
Weight
115g
Working Temperature Range
-10—50ºC
Storage Temperature Range
-20—60ºC
