Daimon Robotics | SKU:

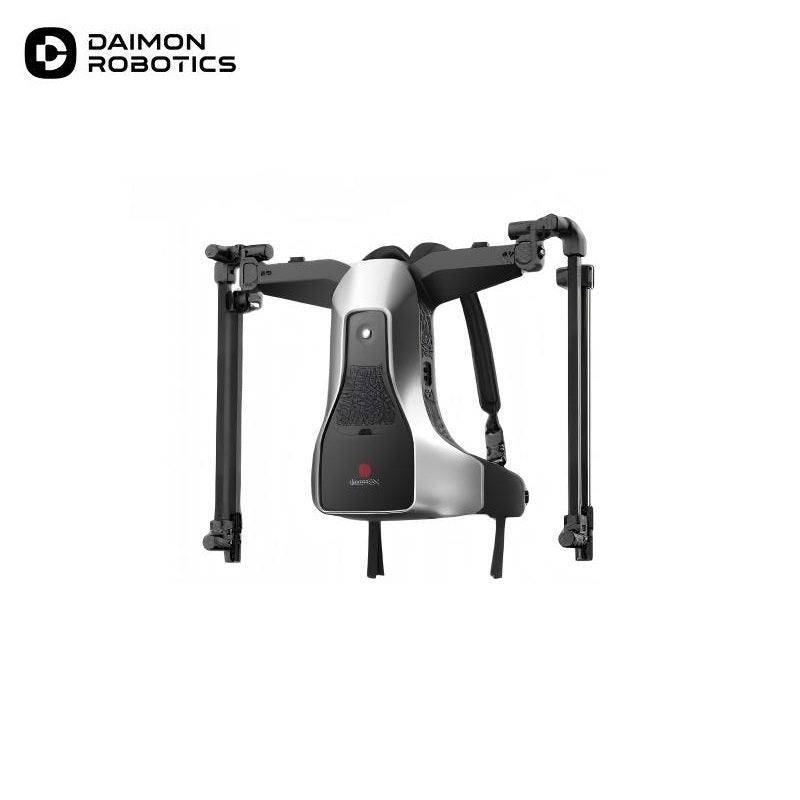

Daimon Robotics DM-DataMaster Backpack Version
Regular price
$9,800.00
Unit price
Daimon Robotics DM-DataMaster Backpack Version - DM-DataMaster Teleoperation Data Acquisition System Backpack Version / Gripper Control Terminal is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Daimon Robotics DM-DataMaster Backpack Version
Regular price
$9,800.00
Unit price
Daimon Robotics DM-DataMaster Backpack Version - DM-DataMaster Teleoperation Data Acquisition System Backpack Version / Gripper Control Terminal is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Backpack Version |
|---|---|
| Weight | 4kg |
| Dimensions (mm) | 589*200*808 mm |
| Sampling Frequency | 1000Hz |
| Communication | Ethernet / WiFi |
| Angular Resolution | 0.01° |
| API Interface | C++ / ROS / ROS 2 |
| Encoder Type | Single‑turn Absolute |
| Battery Specs | 25.9V 5Ah |
| Operation Time | ≥6h |
| Charging Method | Manual Charging |
| Charging Time | ≤2h |
| Battery Quick‑Release | Supported |
| LED Indicators | Status, Fault Alarm, etc. |
| Vibration Indicators | Button Press, Exception Alerts, Haptic Feedback |
| Operating Temperature | 0~40°C |
| Working Environment | Indoor |
| Operating Humidity | 10~90%RH (non‑condensing) |
