DEEP Robotics

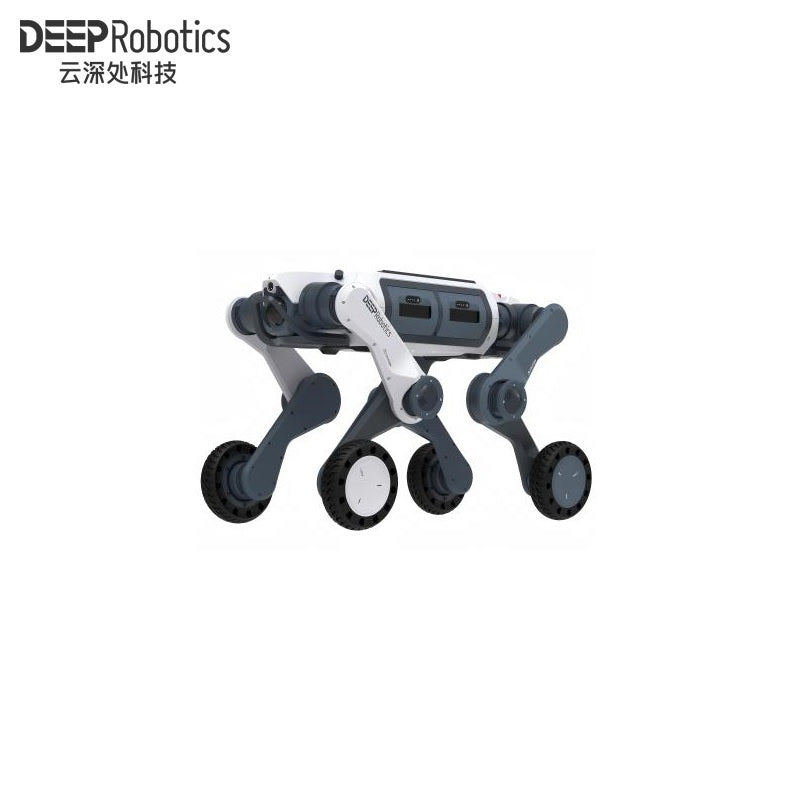

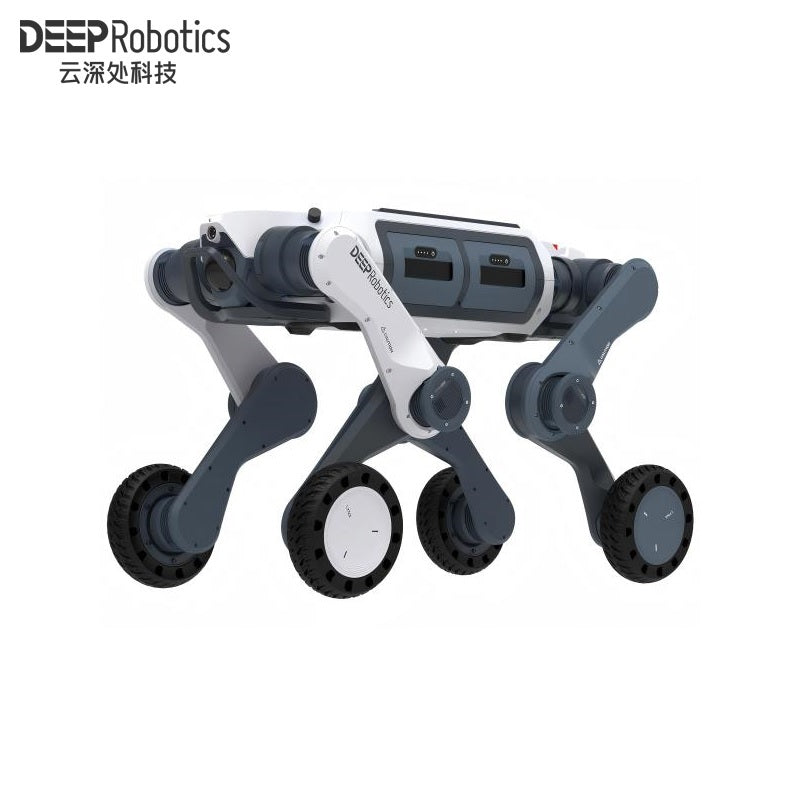

DEEP Robotics LYNX M20 Robot

$49,000.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Technical Specifications

Parameter LYNX M20 LYNX M20 Pro
Standing Dimensions 820mm×430mm × 570mm 820mm×430mm × 570mm
Weight (Incl. Battery)
 33kg 33kg
Payload Capacity 15kg
 15kg
Max. Load Capacity
 50kg 50kg
Unloaded Endurance/Range
 3h/15km 3h/15km
Loaded Endurance/Range (15kg)
 2.5h/12km 2.5h/12km
Charging Time (Single Battery)
 1.5h 1.5h
Lab-Tested Max. Speed[1]
 5m/s 5m/s
Operating Max. Speed
 2m/s 2m/s
Max. Continuous Stair Height
 25cm 25cm
Max. Single-Step Height 80cm 80cm
Max. Slope[2] 45° 45°
Computing Power Dual octa-core 64-bit industrial processors (16GB+128GB)×2 Dual octa-core 64-bit industrial processors (16GB+128GB)×3
LiDAR ×2 96line, 360°×90°, ~860000pts/s 96line, 360°×90°, ~860000pts/s
Wide-Angle Cameras ×2 √ √
Protection Rating IP66 IP66
Operating Temperature -20℃~55℃ -20℃~55℃
SLAM Mapping and Positioning \ √
Autonomous Navigation \ √
Omnidirectional obstacle avoidance[3] √ √
Point cloud surround view[4] √ √
Front/rear bidirectional lighting √ √
RF image transmission √ √
OTA upgrades √ √
Electrical Ports 72V power input, Gigabit Ethernet 24/72V power input, Gigabit Ethernet, USB3.0
[1] Lab-tested extreme speed; safety-limited to 3m/s in user mode.
[2] Lab-tested slope angle; actual performance varies by surface material.
[3][4] Feature enabled via future OTA update.
