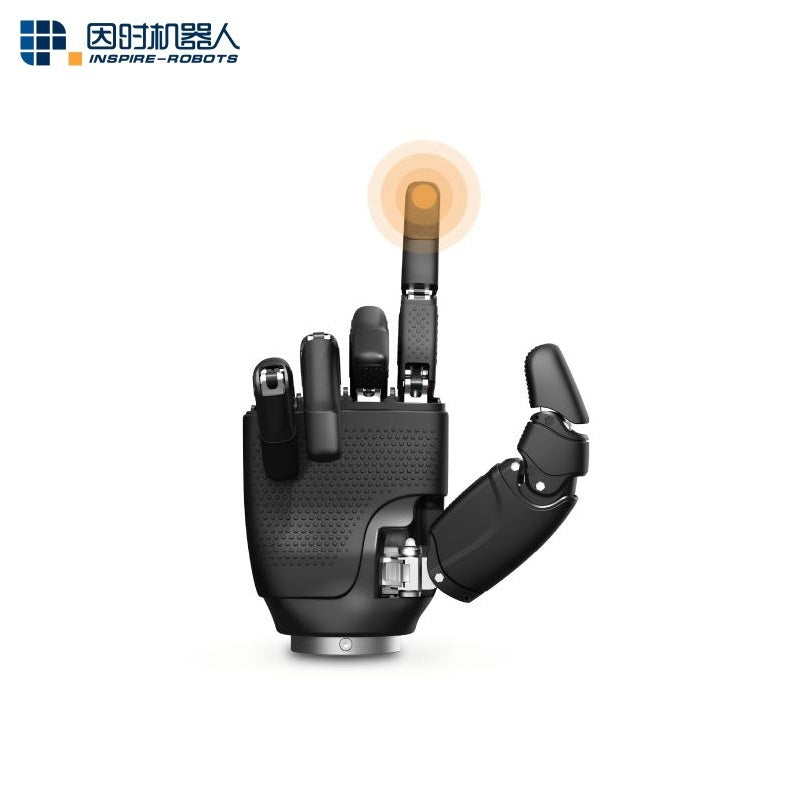

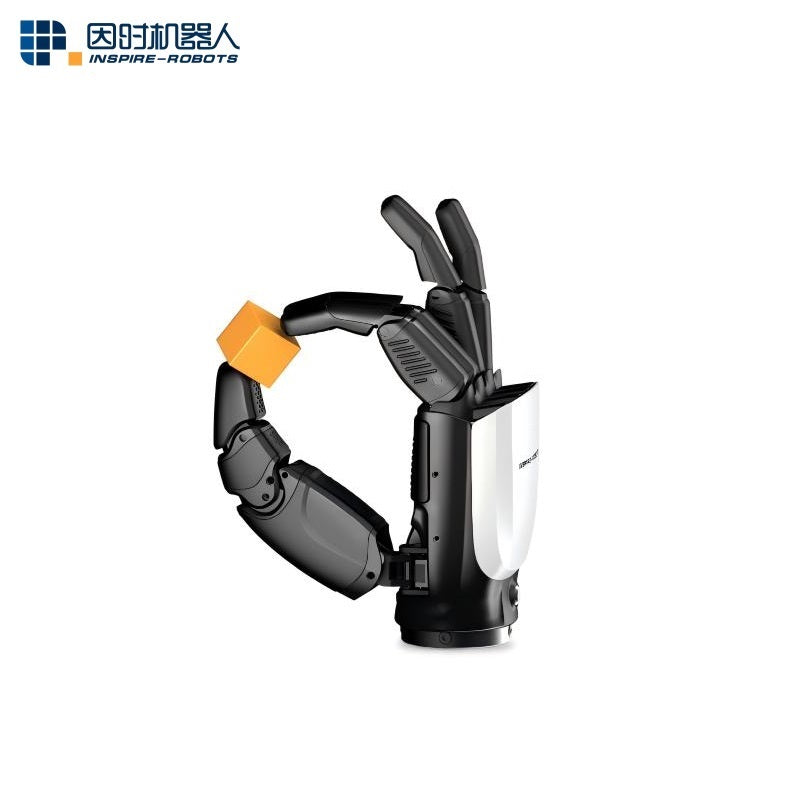

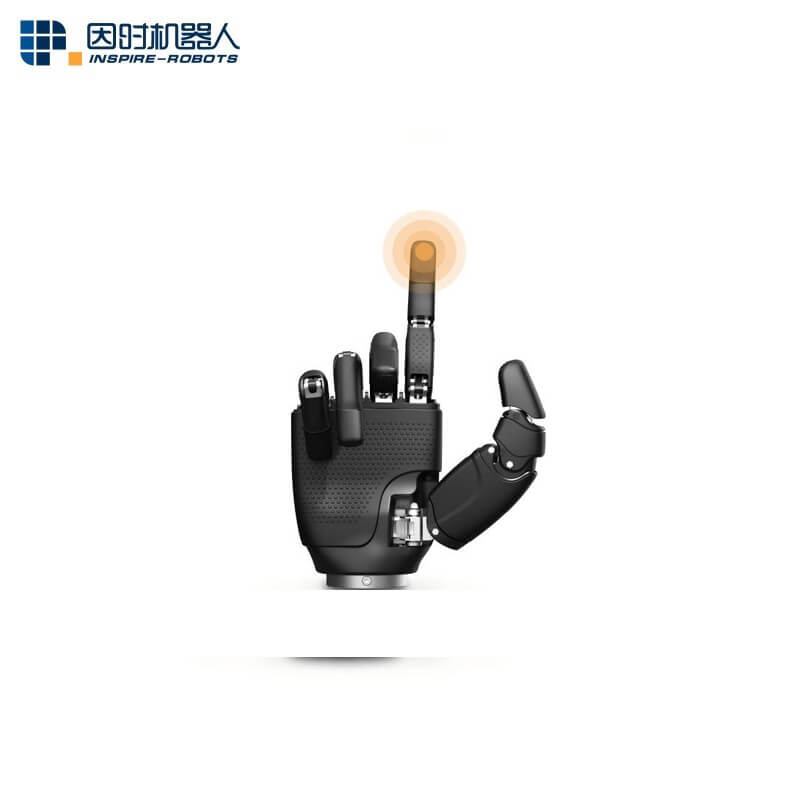

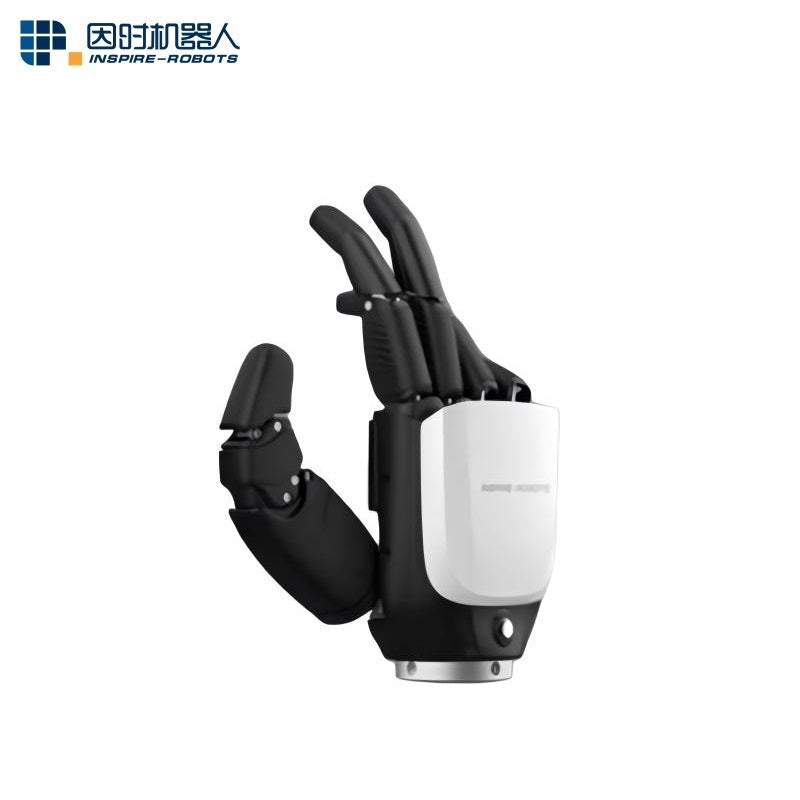

INSPIRE-ROBOTS RH56E2 Robotic Hand
Regular price
$10,900.00
Unit price
INSPIRE-ROBOTS RH56E2 Robotic Hand - RH56E2 (CAN+RS485) / Left is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
INSPIRE-ROBOTS RH56E2 Robotic Hand
Regular price
$10,900.00
Unit price
INSPIRE-ROBOTS RH56E2 Robotic Hand - RH56E2 (CAN+RS485) / Left is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Degrees of Freedom | 6 |
| Number of Joints | 12 |
| Force Sensors | 6 |
| Tactile Sensors | 5-17 |
| Control Interface | CAN+RS48 |
| Operating Voltage | DC24V±10% |
| Static Current | 0.15A |
| Maximum Current | 4A |
| Repeatability | ±0.2mm |
| Weight | 790±10g |
| Fingertip Maximum Output Force | 30N |
| Thumb Lateral Rotation Range | >85° |
| Thumb Angular Velocity | >130°/s |
| Four Fingers Angular Velocity | >200°/s |
INSPIRE-ROBOTS-THE-DEXTEROUS-HAND-RH56-SERIES-USER-MANUAL.pdf
INSPIRE-ROBOTS-THE-DEXTEROUS-HANDS-INSTRUCTIONS.pdf
INSPIRE-ROBOTS-The-Dexterous-HandsCAN-Supplemental-ProtocolV0.0.2.pdf
INSPIRE-ROBOTS-THE-Dexterous-Hand-PC-Instructions.pdf
INSPIRE-ROBOTS-The-Dexterous-Hand-RH56DFTP-User-Manual-V1.0.0.pdf
INSPIRE-ROBOTS-WRIST-MODULE-OF-THE-DEXTEROUS-HAND-INSTRUCTIONS.pdf
