LEBAI | SKU:

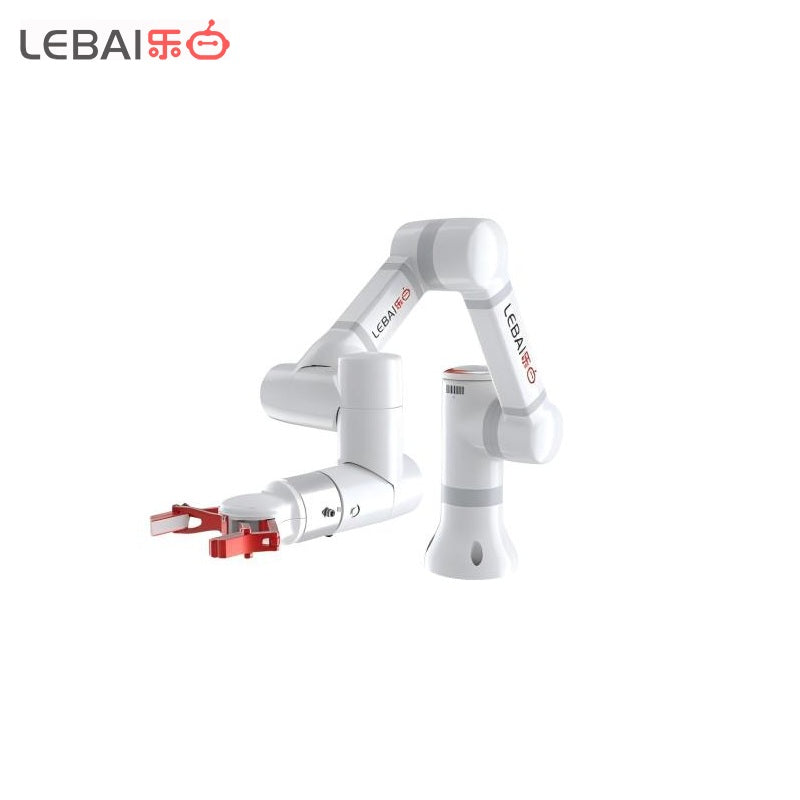

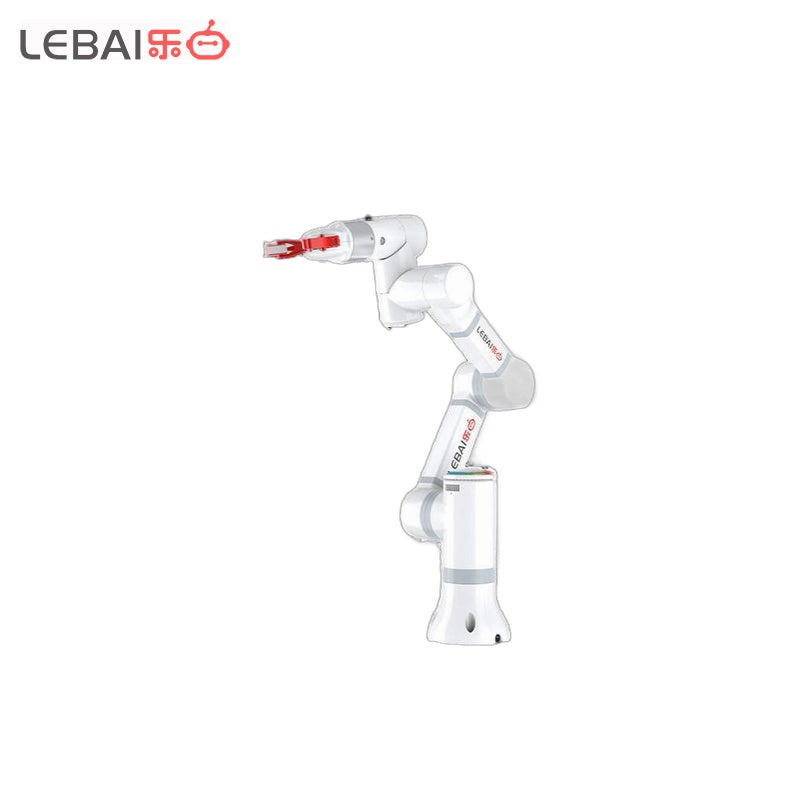

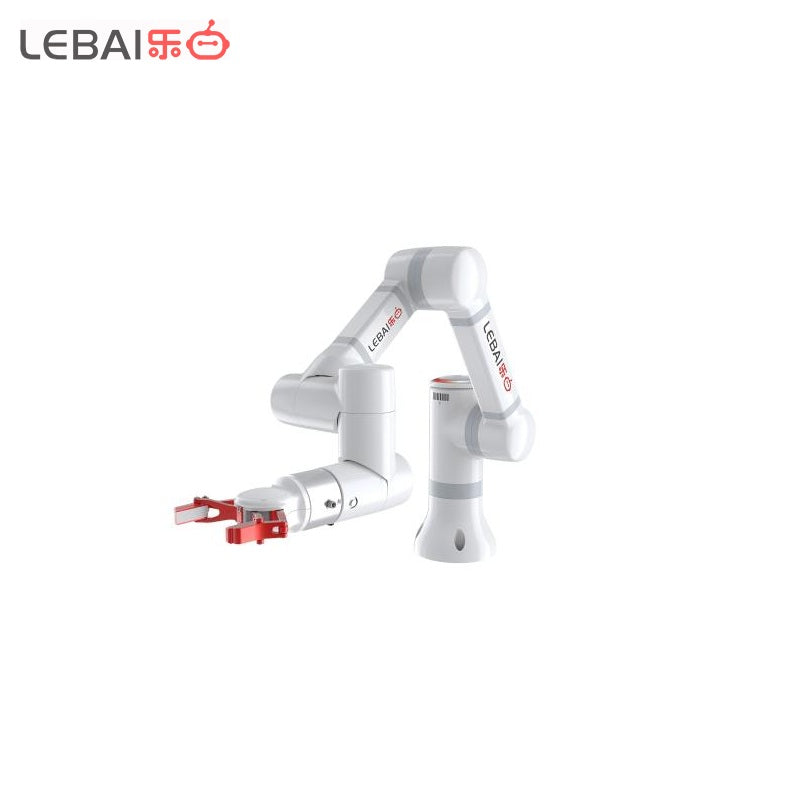

LEBAI LM3-L1 Robotic Arm
Regular price
$8,700.00
Unit price
LEBAI LM3-L1 Robotic Arm - LM3-L1 (220V AC) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
LEBAI LM3-L1 Robotic Arm
Regular price
$8,700.00
Unit price
LEBAI LM3-L1 Robotic Arm - LM3-L1 (220V AC) is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Working Radius | 833mm |
| Rated Payload | 1kg |
| Repeatability | ±0.5mm |
| End Effector Speed | 2.5m/s |
| Self-Weight | 10kg |
| Control Box Weight | 3.8kg |
| Communication Interface | TCP/IP, Modbus |
| Power Supply Voltage | AC 100-240V |
| Energy Consumption | 150W |
| Working Temperature | 0-50°C |
| Installation Method | Front, Back, Side |
| Installation Area | ≈160cm² |
| Terminal I/O Interface | 2 DI / 2 DO |
| Control Box Size | 270 × 250 × 130(H) mm |
| Power Supply Voltage | 100-240 V (AC) / 50-60Hz |
| Cable Length | 2m |
| Protection Level | IP54 |
| Communication | Ethernet |
| Control Box I/O Interface | 4 DI / 4 DO / 2 AI / 2 AO |
