DOBOT | SKU:

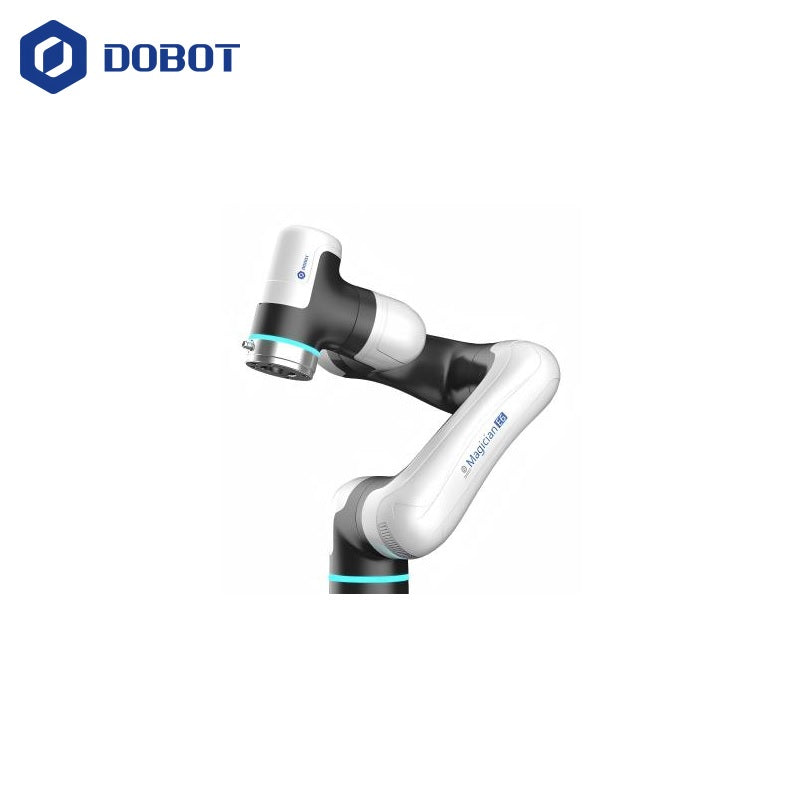

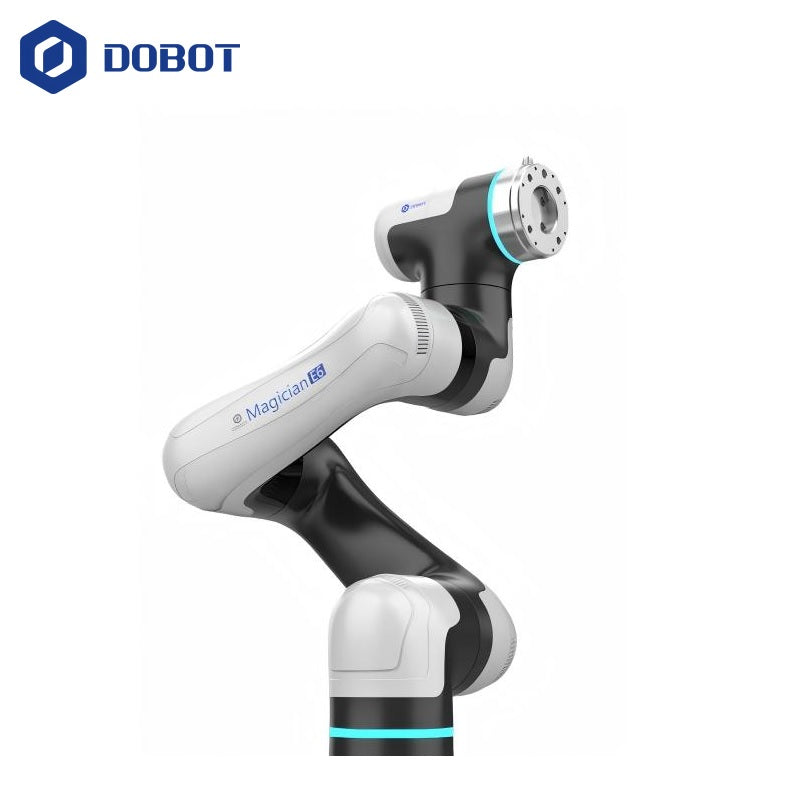

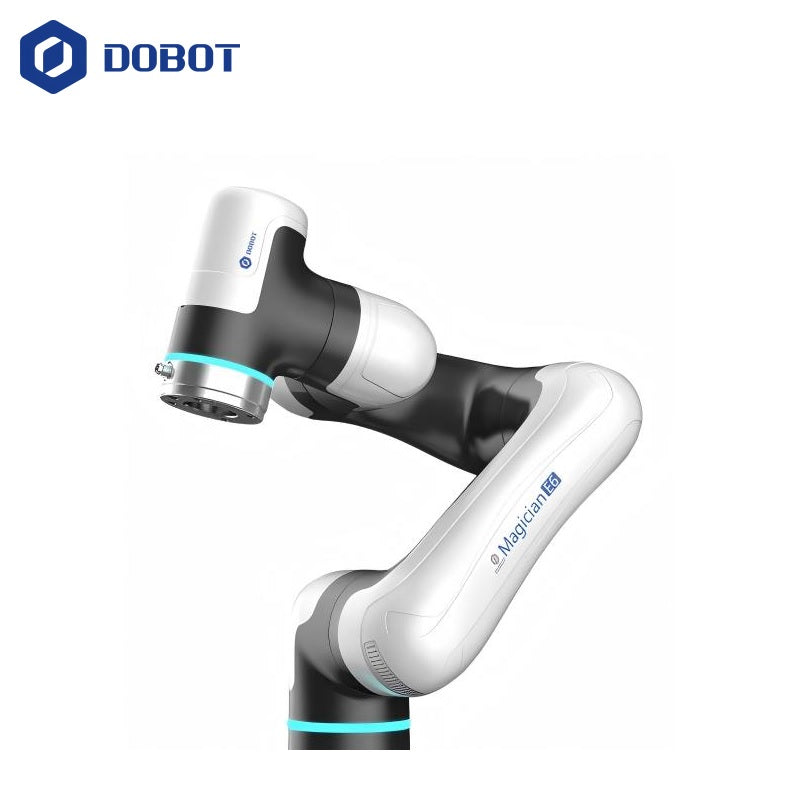

DOBOT Magician E6 Collaborative Robot
Regular price
$6,900.00
Unit price
DOBOT Magician E6 Collaborative Robot - Magician E6 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
DOBOT Magician E6 Collaborative Robot
Regular price
$6,900.00
Unit price
DOBOT Magician E6 Collaborative Robot - Magician E6 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | |
|---|---|
| Model | Magician E6 |
| Weight | 7.2kg |
| DOF | 6 |
| Payload | 750g |
| Working Range(mm) | 450mm |
| Repeatability | ±0.1mm |
| Max TCP Speed | 0.5m/s |
| Joint Range | J1: ±360° J2: ±135° J3: ±154° J4: ±160° J5: ±173° J6: ±360° |
| Joint Speed | 120°/s |
| Power Input | 100V~240V AC，50/60 Hz |
| Rated Power | 48V⎓ 5A DC |
| Rated Power Consumption | 130W |
| Communication Interface | Ethernet USB 2, for TCP/IP and Modbus TCP communication 1, wireless connection |
| IO Interface | end-effector base DI*2，DO*2，24V*1，GND*1 DI*16，DO*16，24V*4，GND*4 |
| IO Power | 24V，Max 2A, Max 0.5A for each channel |
| External Interface | EMO*1，ABZ encoder*1，power connector*1 |
| Control Software | DobotStudio Pro, CRStudio |
| IP Class | IP20 |
| Base size | 162*120*103mm |
| Working Environment | Temperature：0°C - 50°C Humidity：25%-85%，non-condensing |
| Noise | 50dB(A) |
| Installation | Desktop |
| Material | Aluminum Alloy, ABS |
