ROBOTERA

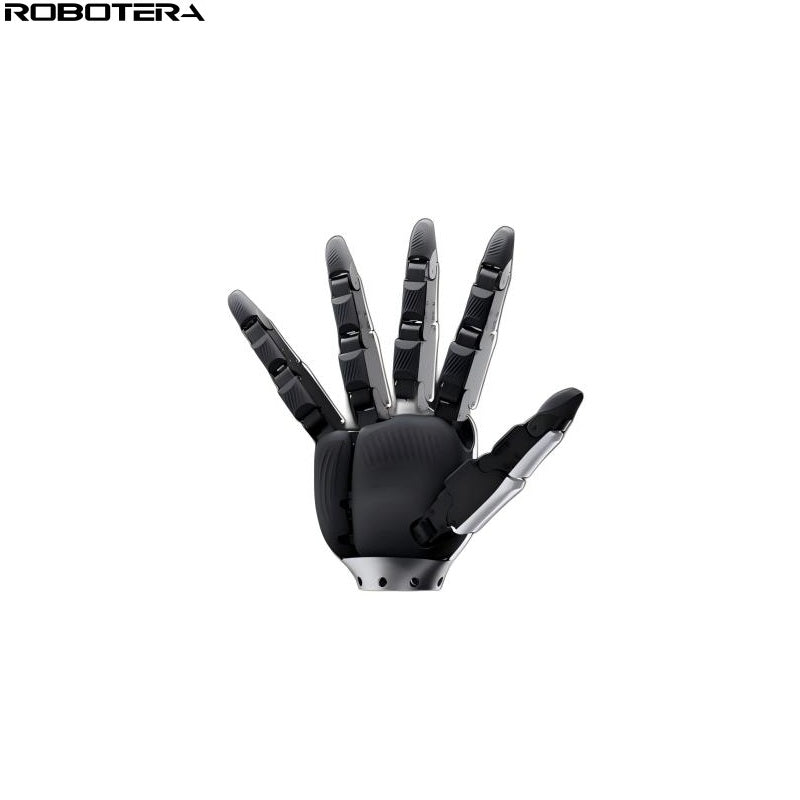

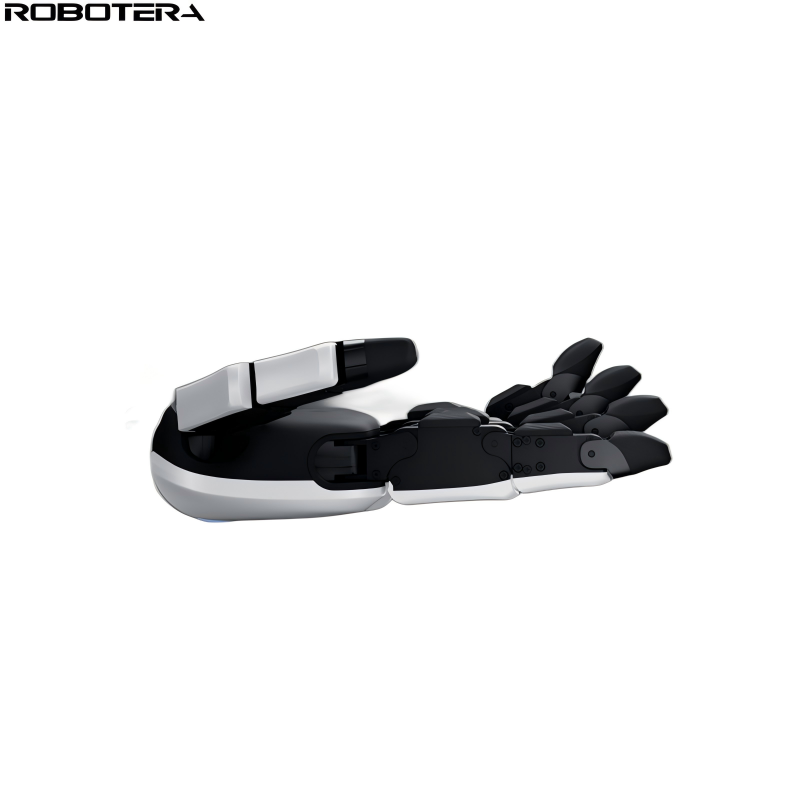

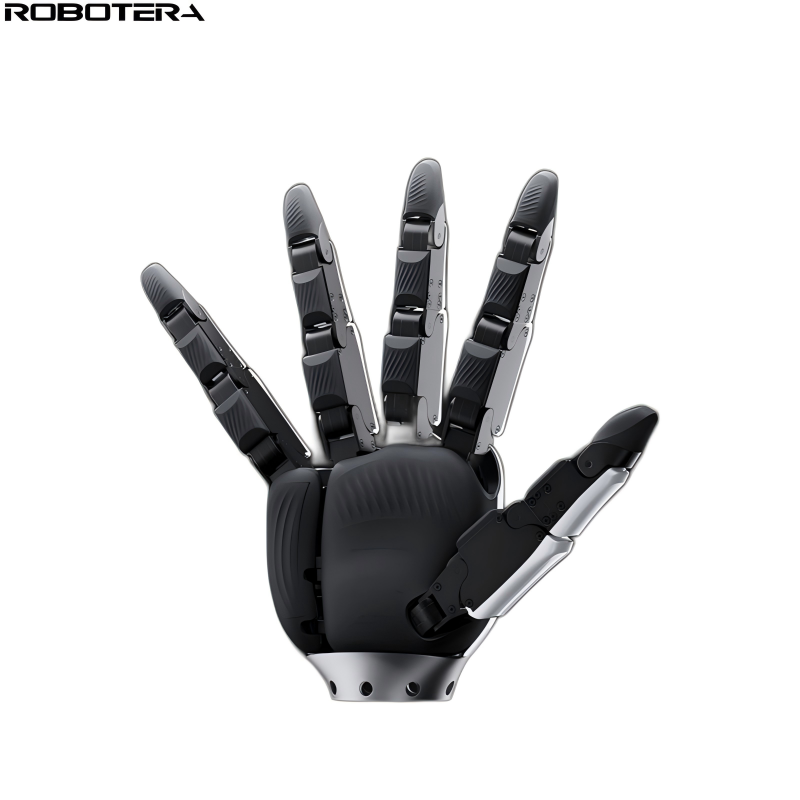

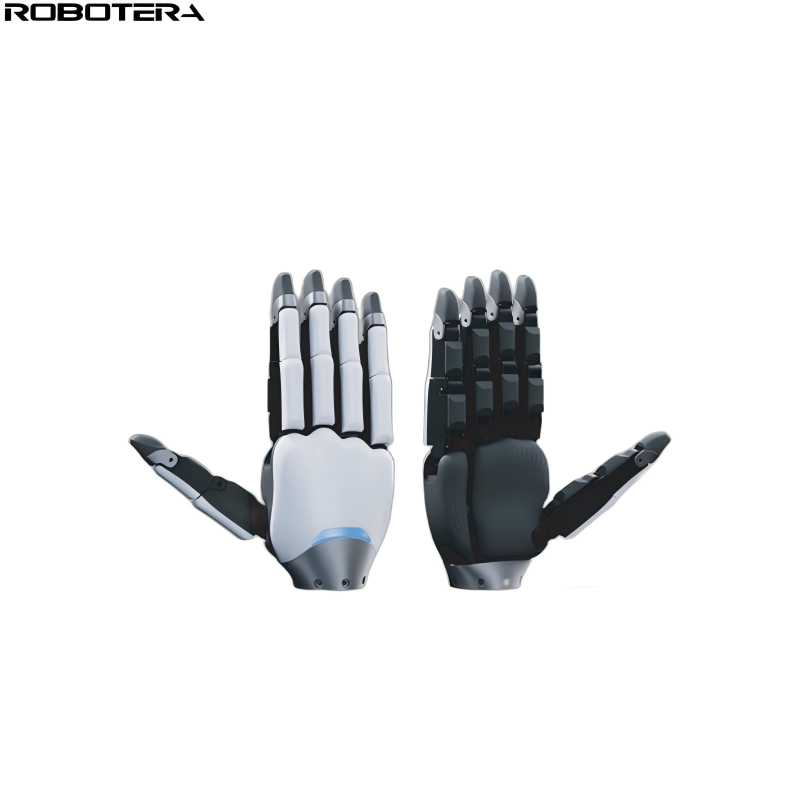

ROBOTERA XHAND 1 Pro

$30,000.00
Version
Left/Right

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Specifications
Weight 0.884 kg
Dimensions (L × W × H) 210 mm × 102 mm × 44 mm
Active Degrees of Freedom (DOF) 21 (fully backdrivable)
Maximum Grasp Diameter 160 mm
Fingertip Force 15 N *
Repeated Open/Close Speed >5 Hz
Repeat Positioning Accuracy Pitch joint: ±0.1 mm
Lateral Joint: ±0.2 mm
Backlash Single joint: <±0.25 mm
full finger: <±1 mm
Voltage Range 24V – 72V (wide-voltage input)
Communication Protocol EtherCAT / RS-485 / CAN FD
Service Life >200,000 times with loading
Tactile Coverage Fingertips * 5, finger pads * 10, palm * 3
Tactile Force Sensing Fingertip: three-dimensional
Others: one-dimensional
Tactile Measurement Range 0.1 – 25 N, resolution: 0.01 N
Non-contact Detection (Proximity) 10 mm
Host Software Real-time full-hand haptic display, dynamic URDF
Teleoperation Support Manus Pro Haptic / Manus Pro / IO-Tech Exoskeleton
Control Modes MIT mode / Feedforward force control / Position control / Kinesthetic teaching
