BrainCo | SKU:
Sold out

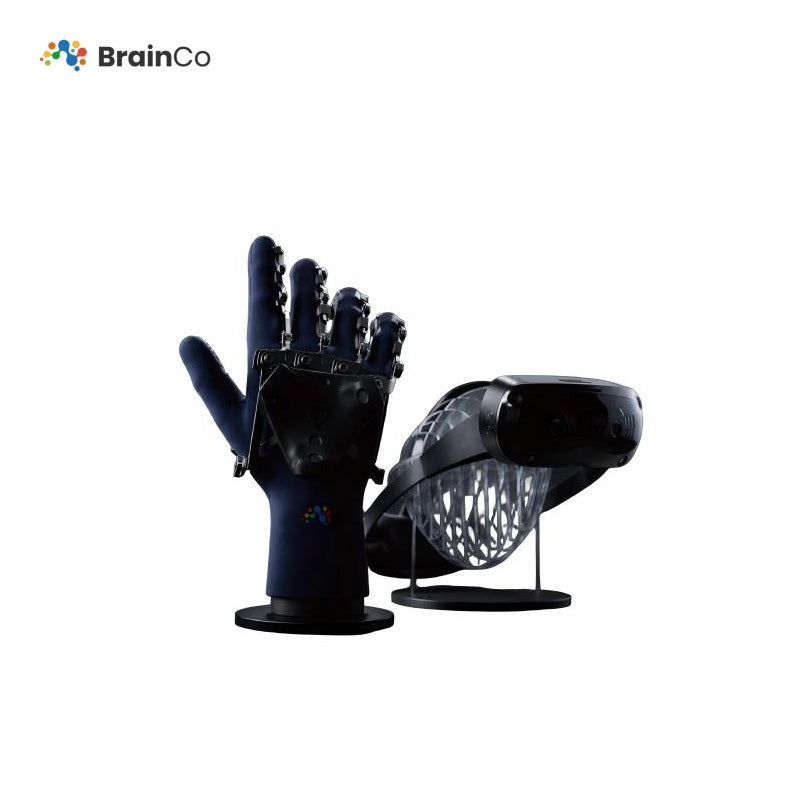

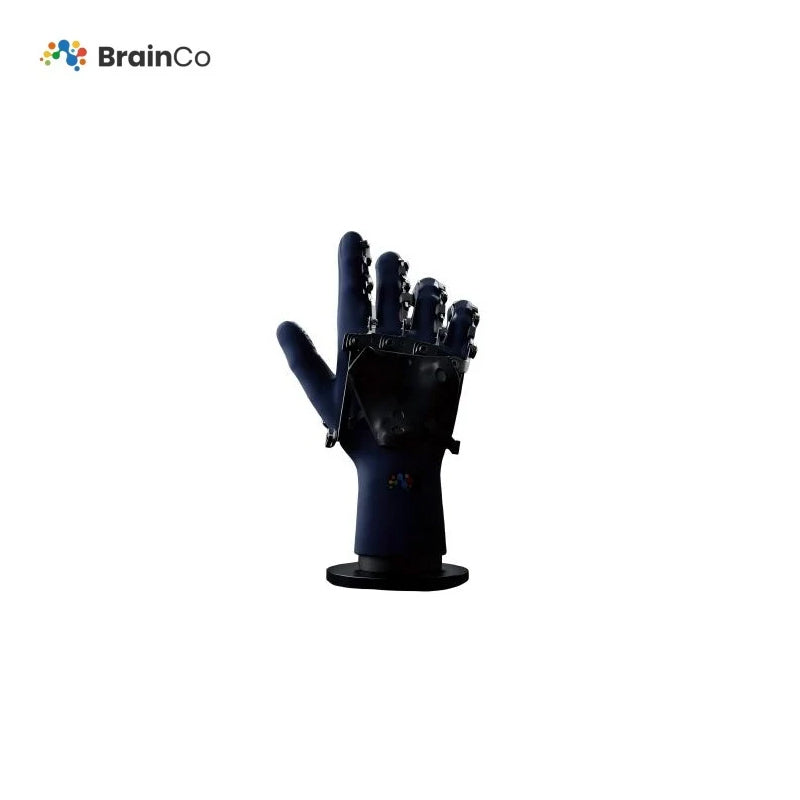

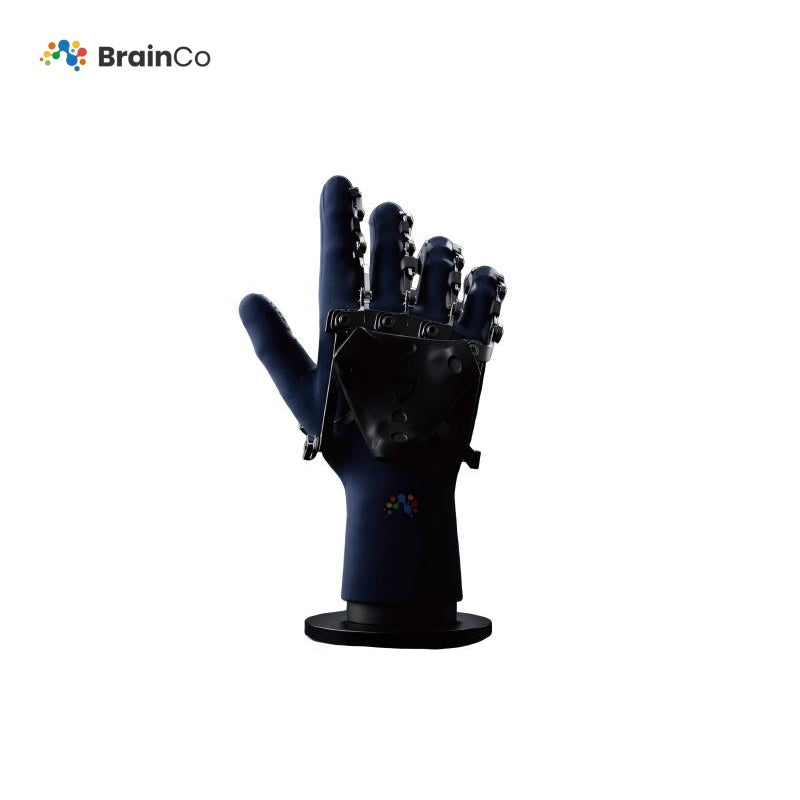

BrainCo RevoHuman Exoskeleton Glove
Regular price
$6,800.00
Unit price
BrainCo RevoHuman Exoskeleton Glove - RevoHuman P1 Glove is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
BrainCo RevoHuman Exoskeleton Glove - RevoHuman P1 Glove is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | RevoHuman PT Glove | RevoHuman PTV1 Glove | RevoHuman PTVE1 |
|---|---|---|---|
| DOF Distribution | Hand encoder: 21 DOF ×2 Wrist tracker: 6D pose ×2 |
Hand encoder: 21 DOF ×2 Wrist tracker: 6D pose ×2 |
Hand encoder: 21 DOF × Head vSLAM: 6D pose |
| Angle Sensor | Accuracy: ±0.1° Range: 0–360° |
Accuracy: ±0.1° Range: 0–360° |
Accuracy: Range: 0–360° |
| Tactile | / | 211 tactile points ×2 Resolution 0–25N Range 0.01N |
211 tactile points ×2 Resolution 0–25N Range 0.01N |
| Wrist Camera | / | FOV: 90° 1080P/720P/VGA@30FPS Shutter: electronic rolling |
FOV: 90° 1080P/720P/VGA@30FPS Shutter: electronic rolling |
| Ego Headband | / | / | RGB1080p global shutter ×2 Grayscale 640×480 global shutter ×4 vSLAM accuracy 2mm FOV: 190° ultra‑wide |
| Sampling Frequency | Angle: 200Hz | Angle/Tactile: 200Hz Wrist camera: 30FPS |
Angle/Tactile: 200Hz, 300Hz, 350Hz, 500Hz Wrist camera: 30FPS Ego headband: 60FPS |
| Power Supply | 5V wired | 5V wired | 5V wired (glove) Ego headband: wireless (replaceable power bank) |
| Communication Interface | USB | USB | Data storage on local industrial PC (supports cloud upload / direct export) |
| Weight | Glove: 100g | Glove: 125g | Glove: 125g Ego headband: 350g Industrial PC: 500g |
| Glove Dimensions | 180×145×35 mm | 180×145×35 mm | 180×145×35 mm |
| Output Mode | USB wired, SDK + host computer provided | USB wired, SDK + host computer provided | Turnkey solution with industrial PC, power, time sync, system integration |
| Recommended Use Case | Real robot teleoperation Pure angle human data collection |
Angle + tactile + wrist vision human data collection Requires SDK integration and secondary development |
Ego + tactile exoskeleton dexterous operation Complete human data collection solution |
