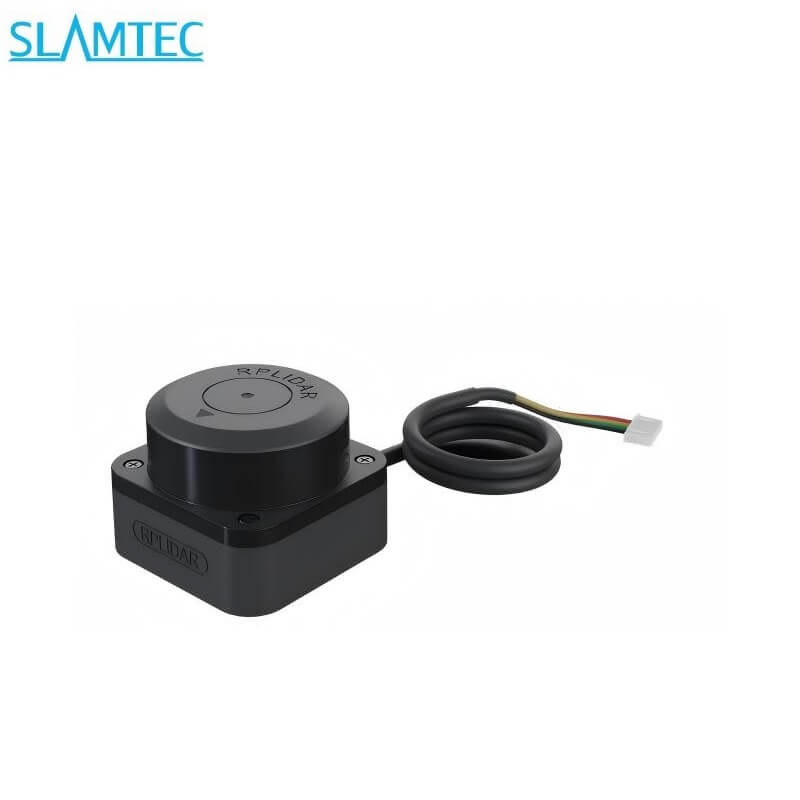

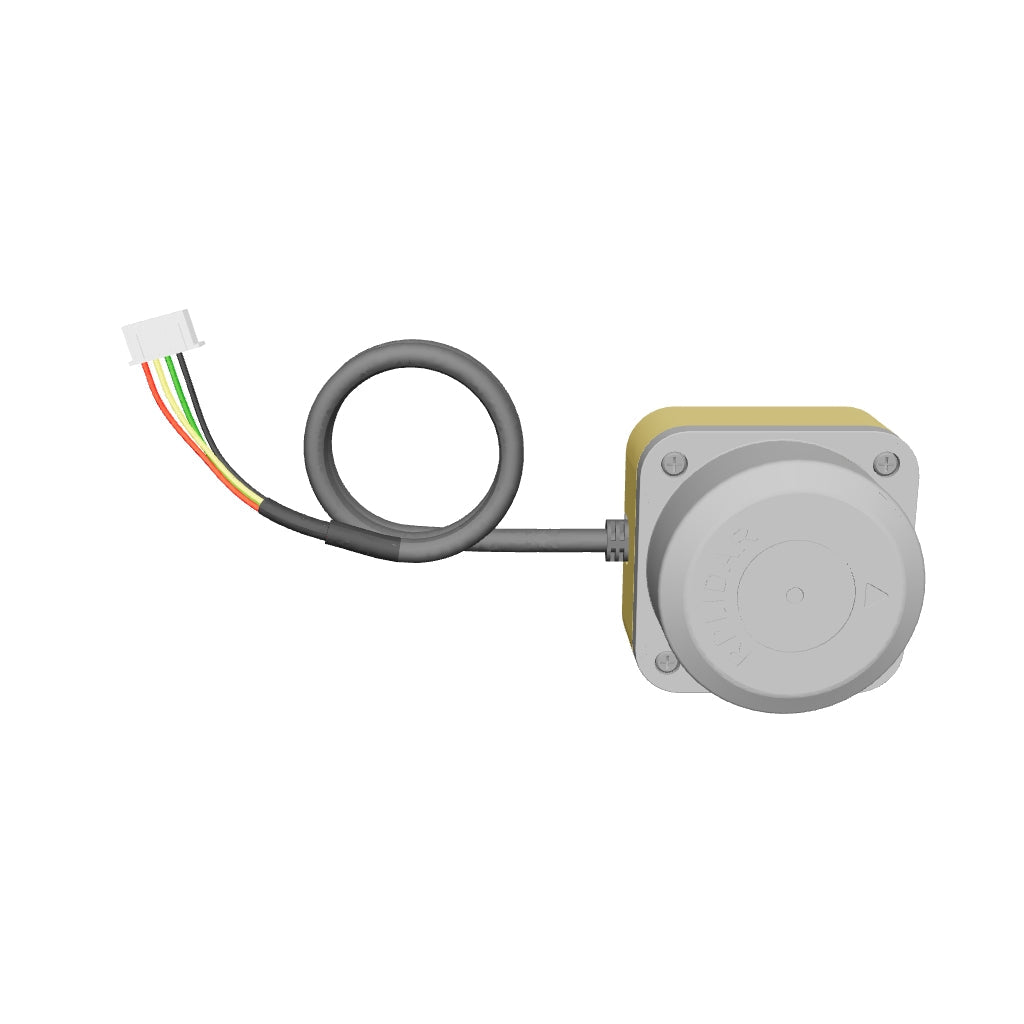

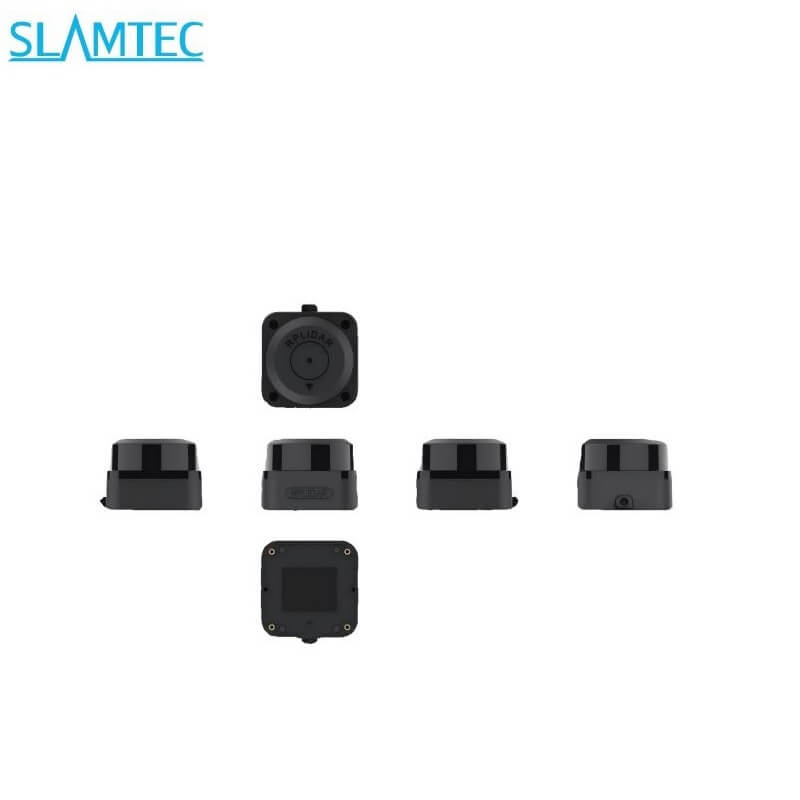

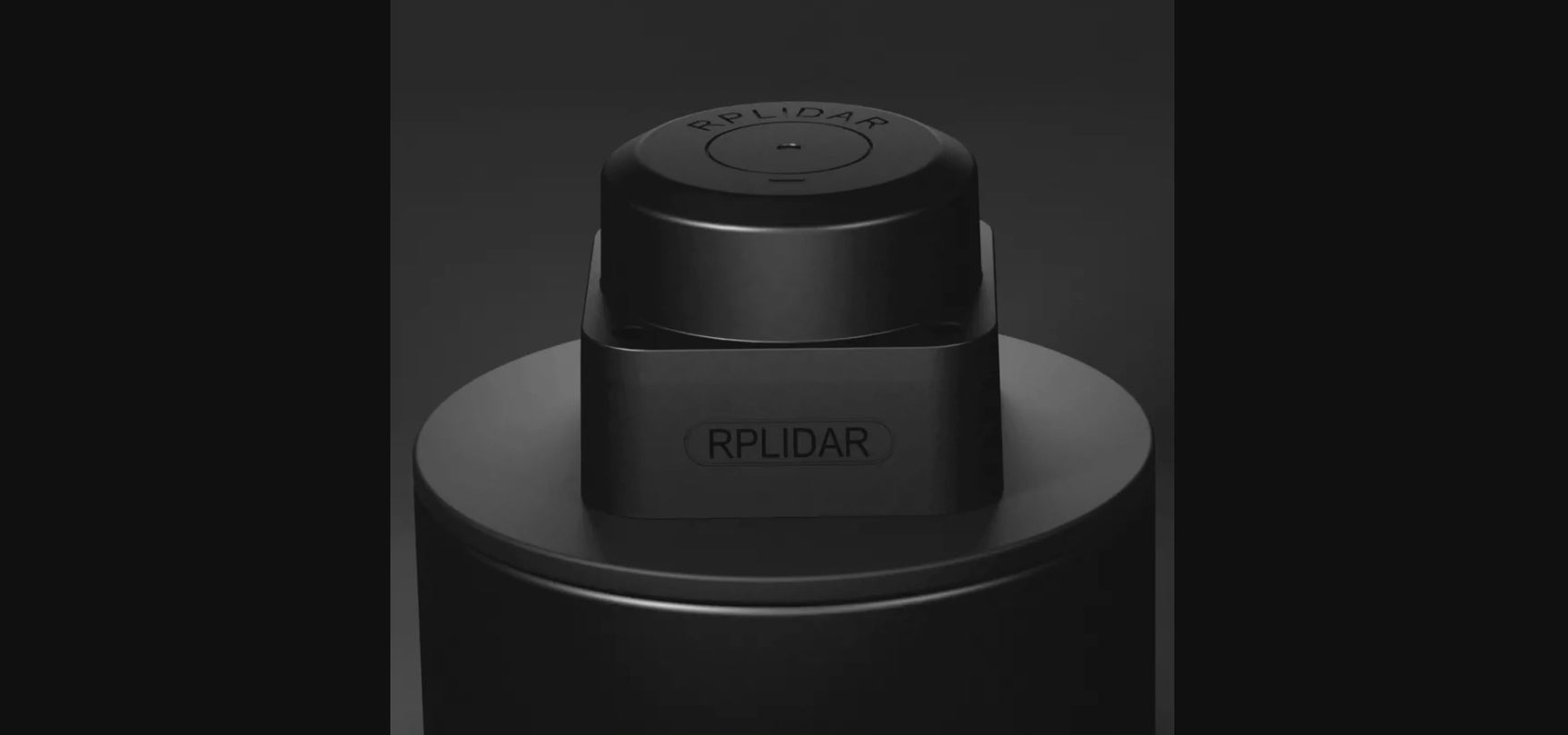

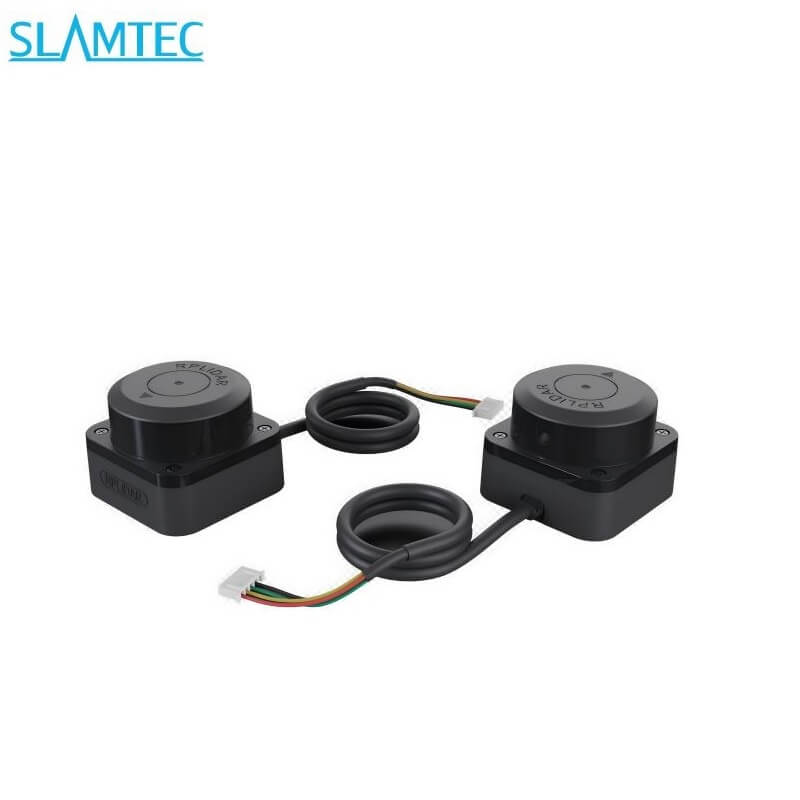

SLAMTEC RPLIDAR C1 LiDAR
Regular price
$90.00
Unit price
/
Unavailable
SLAMTEC RPLIDAR C1 LiDAR - RPLIDAR C1 LiDAR is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Product Information
Technical Specifications
Parameter | Value |
---|---|
Model |
SLAMTEC RPLIDAR C1 |
Distance Range | White object: 0.05-12 meters (under 70% reflection) |
Distance Range |
Black object: 0.05-6 meters (under 10% reflection)
|
Scan Field Flatness | 0°~1.5° (can be customized) |
Sample Rate |
5KHz |
Scanning Frequency | 8~12Hz, 10Hz@typical |
Angular Resolution | 0.72°@typical |
Communication Interface | TTL UART |
Communication Speed | 460800 |
Accuracy |
±30mm*
|
Resolution | 15mm* |
Degree of Protection | IP54 |
Ambient Light Limit | 40,000lux |
Working Wavelength |
895-915nm |
Laser Power |
20W |
Pulse Length |
1.4ns |
Laser Safety Class |
IEC-60825 Class 1 |
Power Voltage |
4.8—5.2V |
Power Voltage Ripple |
150mV(Max) |
System Start Current |
800mA |
Power Current |
230mA |
Weight
|
110g |
Working Temperature Range
|
-10—40ºC |
Storage Temperature Range
|
-20—60ºC |
