Yunshis | SKU:

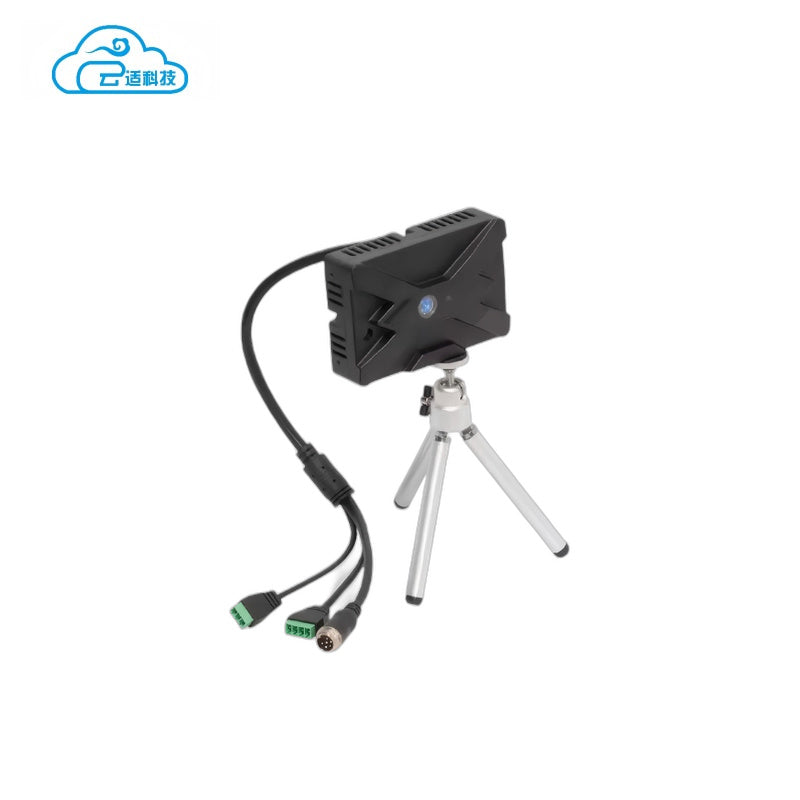

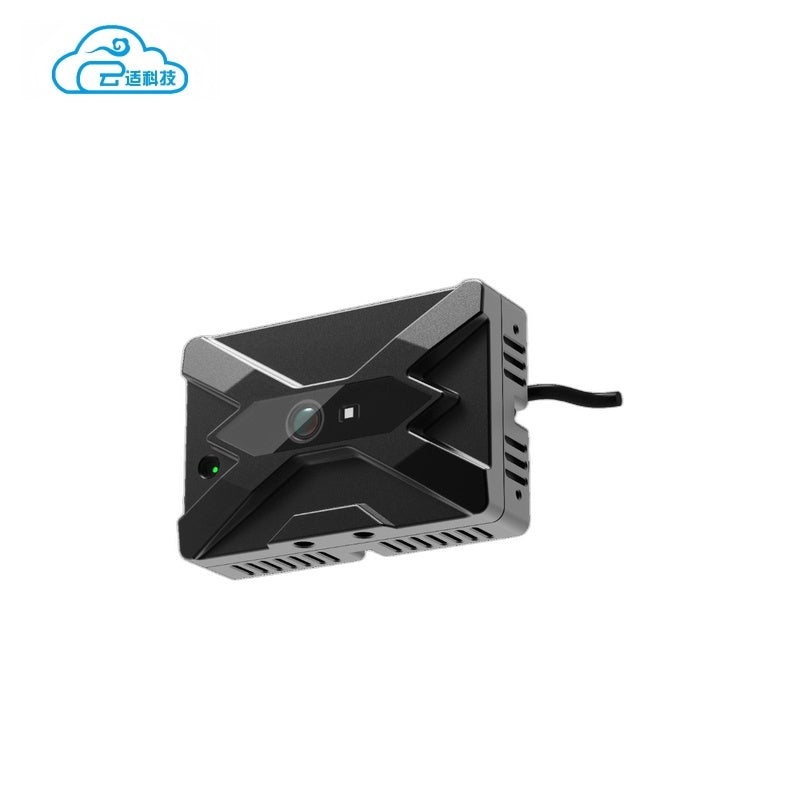

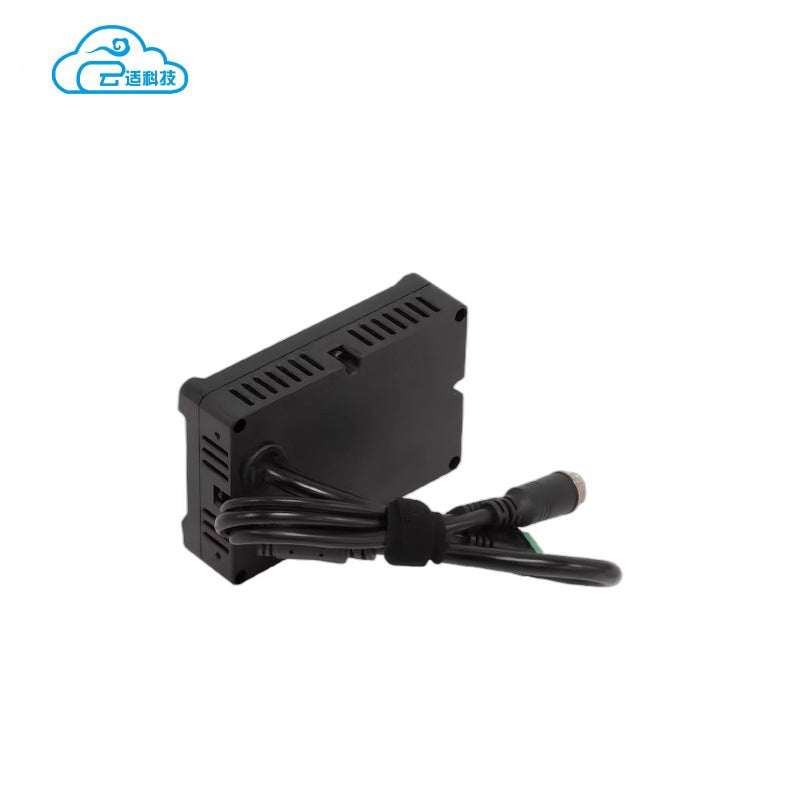

Yunshis CS20-P LiDAR
Regular price
$435.00
Unit price
Yunshis CS20-P LiDAR - CS20-P is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Yunshis CS20-P LiDAR
Regular price
$435.00
Unit price
Yunshis CS20-P LiDAR - CS20-P is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value | |
|---|---|---|
| Depth Image | Resolution: | 320 × 240 @ 30 fps |
| FOV: | H100° × V75° | |
| Basic Parameters | Working Distance: | 0.1 - 5 m, indoor |
| VCSEL Wavelength: | 940 nm | |
| Accuracy: | 0.1~0.5m:±3cm; 0.5~5m: ±2% @ 90% reflectivity | |
| Product Dimension: | 103.6 × 70 × 30 mm | |
| Data Transmission: | TCP/IP Interface | |
| Power Supply: | 12-24V / 2A | |
| Power Consumption: | Average 3.0 W | |
| Operating System: | Win 10 | |
| Operating Temperature: | -10 ~ 50°C | |
| Safety Class: | Laser CLASS 1 |
