Xike Sensor | SKU:
Sold out

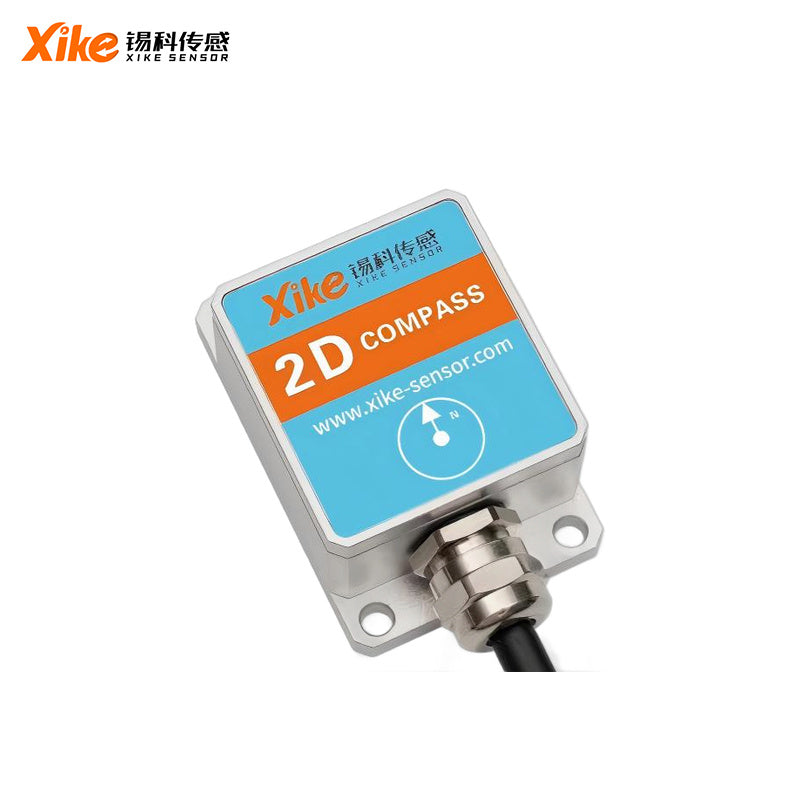

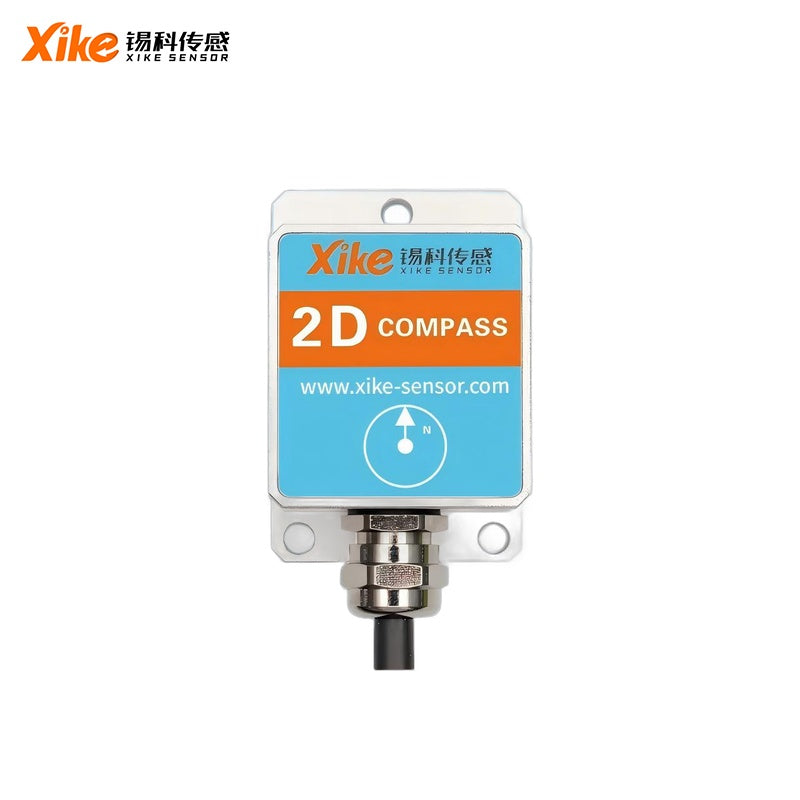

Xike SEC250D Sensor
Regular price
$95.00
Unit price
Xike SEC250D Sensor - Encapsulated housing (DC9-35V) / CAN 2.0 / HEC3300D-77 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Xike SEC250D Sensor - Encapsulated housing (DC9-35V) / CAN 2.0 / HEC3300D-77 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Temperature Range | -40°C ~ +85°C |
| Storage Temperature Range | -55°C ~ +125°C |
| Connector | Lead wire (1.5 m) or waterproof aviation socket (custom) |
| Protection Class | IP67 (IP68 customizable) |
| Housing Material | Aluminum alloy, sandblasted anodized |
| Mounting | Four M4 screws |
| Cable | 1.5 m, wear‑resistant, oil‑resistant, wide‑temperature, shielded 5×0.2 mm² |
| Weight (excluding packaging) | 55 g |
| Supply Voltage | Standard: 5 V; Custom: 9~35 V (12/24 V typical) |
| Operating Current (No load) | 35 mA |
| Heading Accuracy | 0.8° |
| Heading Resolution | 0.1° |
| Heading Repeatability | 0.3° |
| Tilt Range | — |
| Hard Iron Calibration | Yes |
| Soft Iron Calibration | Yes |
| Tilt Calibration | Yes |
| Long‑term Stability | <1° (-40 to +85°C) |
| Power‑on Startup Time | 0.15 s |
| Response Time | 0.1 s |
| Automatic Output Frequency | 5 Hz, 15 Hz, 35 Hz, 50 Hz settable |
| Output Signal | CAN, CANopen optional |
| Mean Operating Time | ≥45,000 hours |
| Shock Resistance | 20000 g, 0.5 ms, 3 times/axis |
| Vibration Resistance | 10 grms, 10~1000 Hz |
| Insulation Resistance | ≥100 MΩ |
