Xike Sensor
Sold out

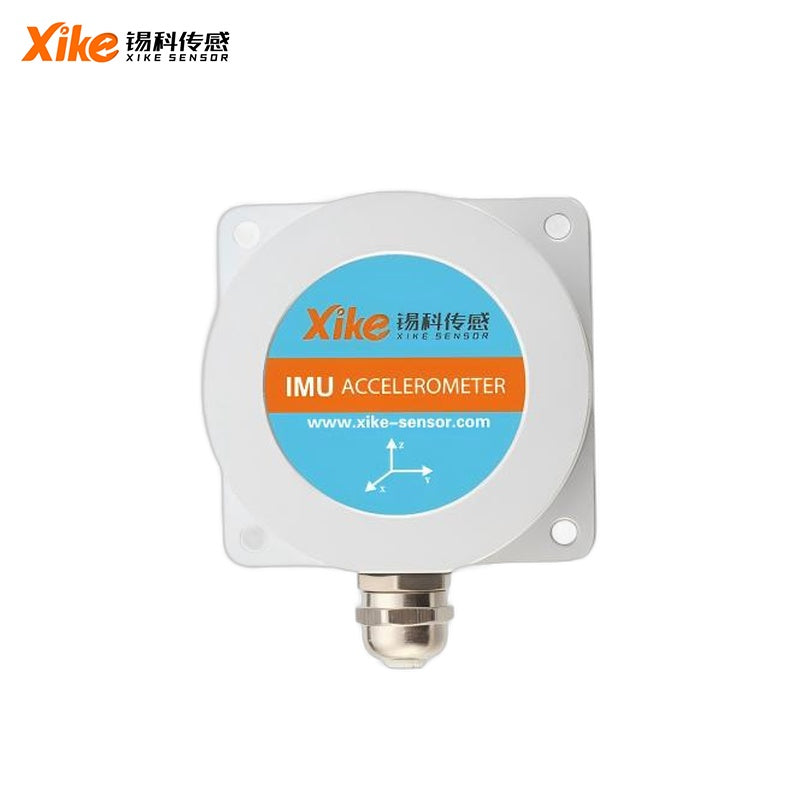

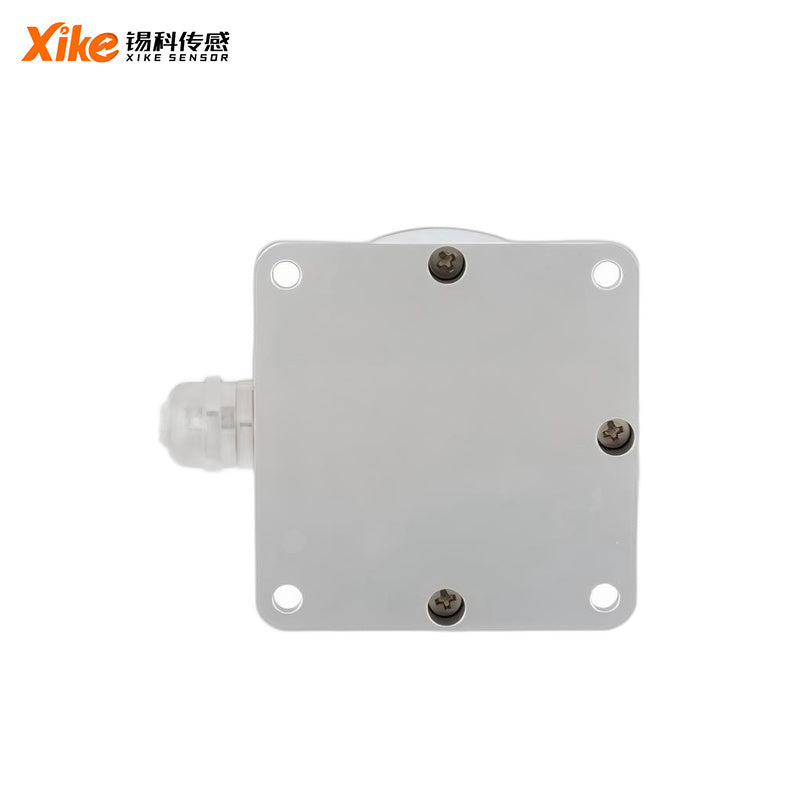

Xike MAX785I Sensor

$380.00
Version
Communication
Range

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Range ±2g ±4g ±8g ±16g ±32g ±40g
Bias Calibration <0.001 g <0.001 g <0.001 g <0.001 g <0.01 g <0.001 g
Resolution / Threshold (@1 Hz) <0.001 g <0.001 g <0.001 g <0.001 g <0.01 g <0.001 g
Power‑on / off Repeatability <0.002 g <0.002 g <0.002 g <0.002 g <0.007 g <0.002 g
Bias Temperature Coefficient 0.01 %/°C 0.01 %/°C 0.01 %/°C 0.01 %/°C 0.01 %/°C 0.1 %/°C
Nonlinearity <0.5 %FS <0.8 %FS <1 %FS <1 %FS <1 %FS <1 %FS
Cross‑axis Sensitivity 1 % 1 % 2 % 3 % 3 % 5 %
Transverse Vibration Sensitivity 1 % 1 % 2 % 3 % 3 % 5 %
Noise Density 20 μg/√Hz 20 μg/√Hz 21 μg/√Hz 80 μg/√Hz 80 μg/√Hz 85 μg/√Hz
Resonant Frequency 2.4 kHz 2.4 kHz 2.4 kHz 5.5 kHz 5.5 kHz 5.5 kHz
Bandwidth (-3 dB) 400 Hz
Measurement Axes X, Y, Z
Output Interface 0‑20mA, 4‑20mA, simultaneous RS232
Reliability MIL‑HDBK‑217, Level II
Shock Resistance 2000 G
Protection Class IP67 (IP68 customizable)
Cable 1.5 m, wear‑resistant, oil‑resistant, wide‑temperature, shielded 5×0.2 mm²
Weight (excluding packaging) 150 g
Operating Temperature -40°C ~ +85°C
Storage Temperature -55°C ~ +125°C
Supply Voltage 9~35 V (12/24 V typical)
Operating Current 40 mA
Output Load 0~500 kΩ
