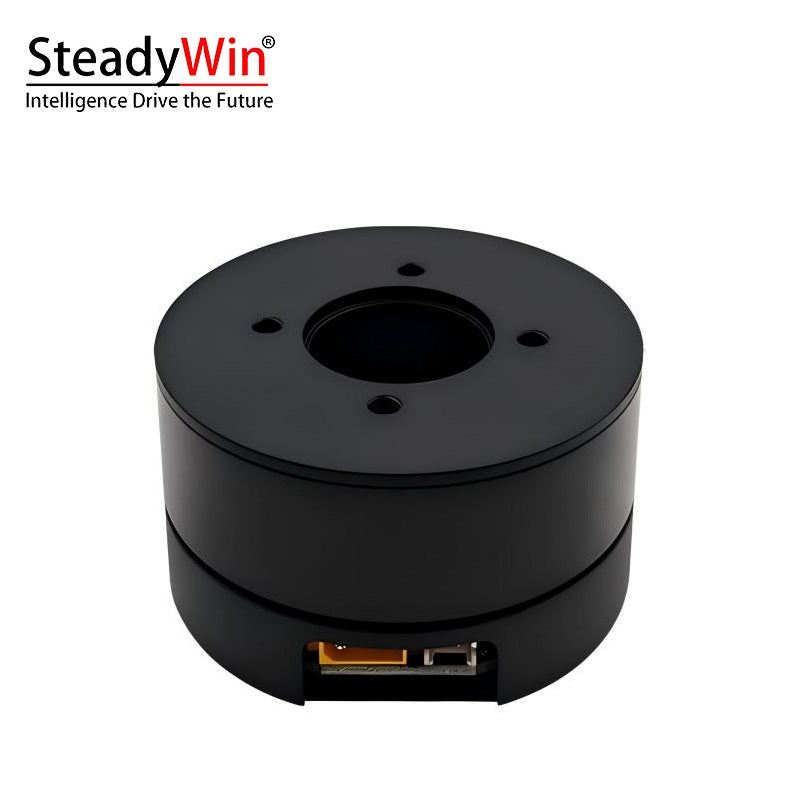

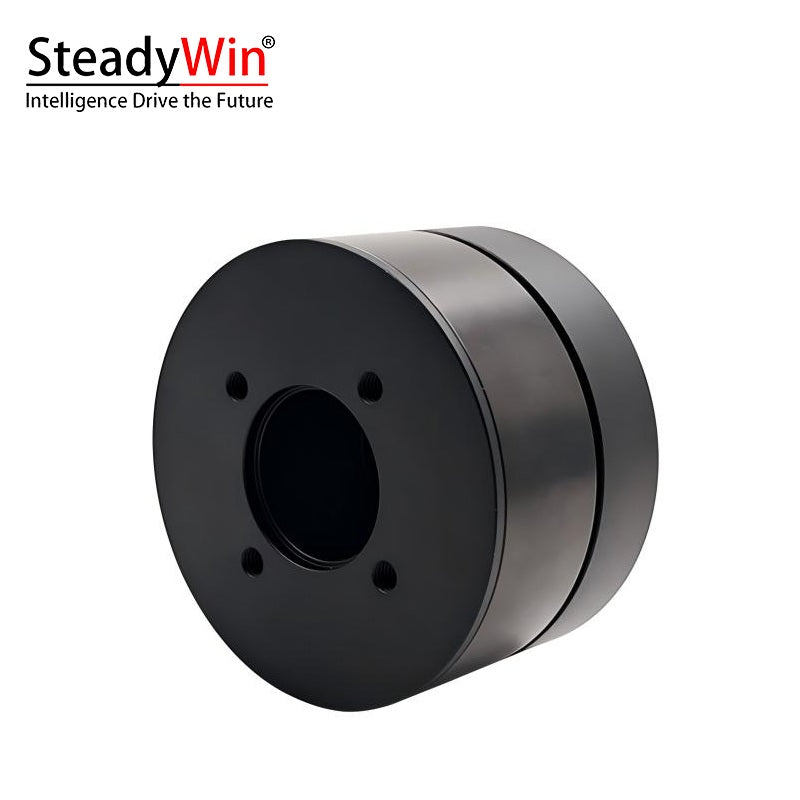

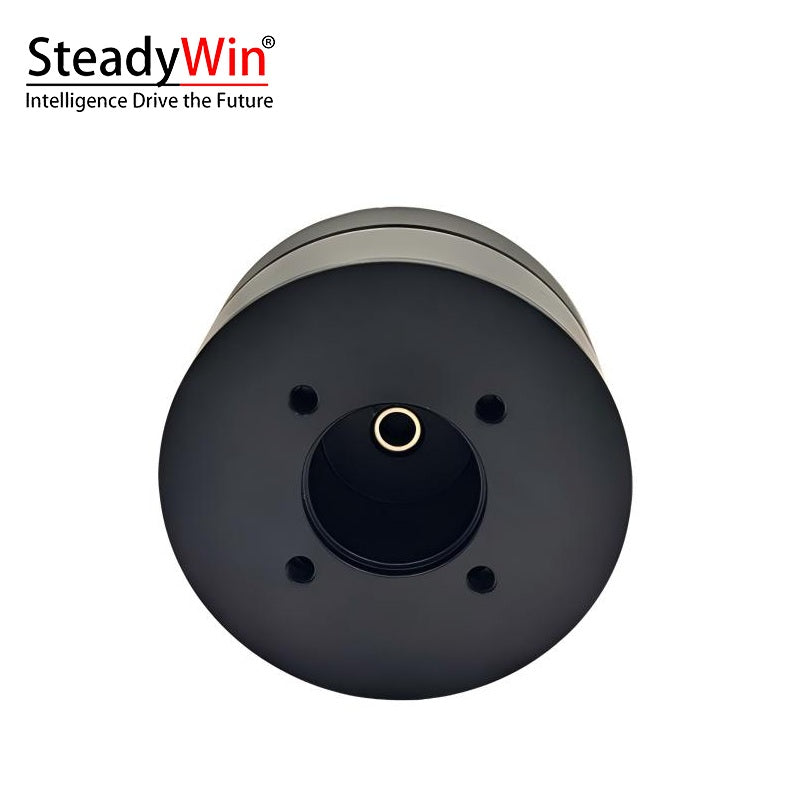

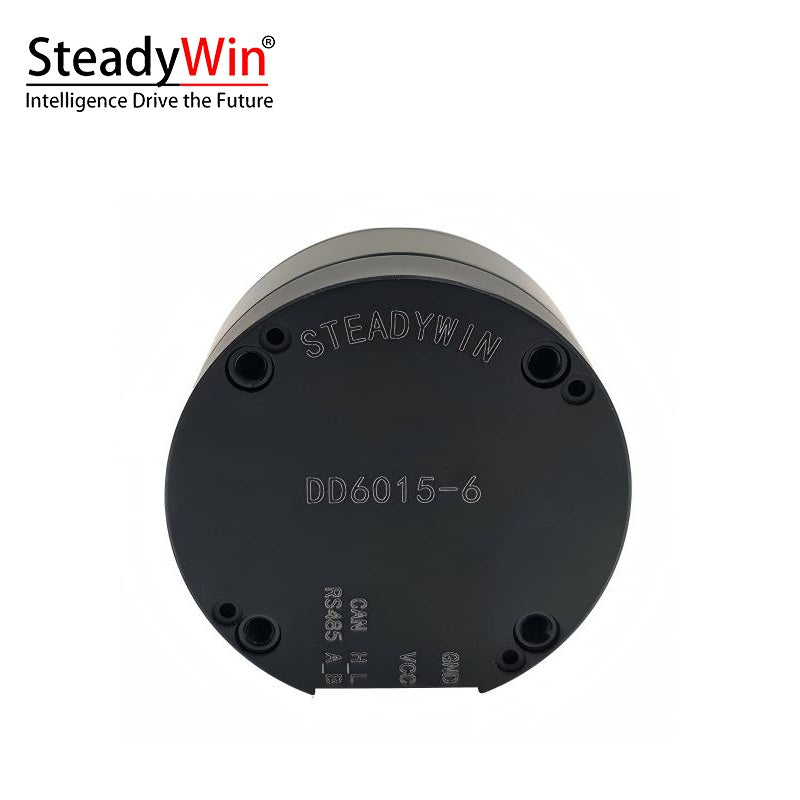

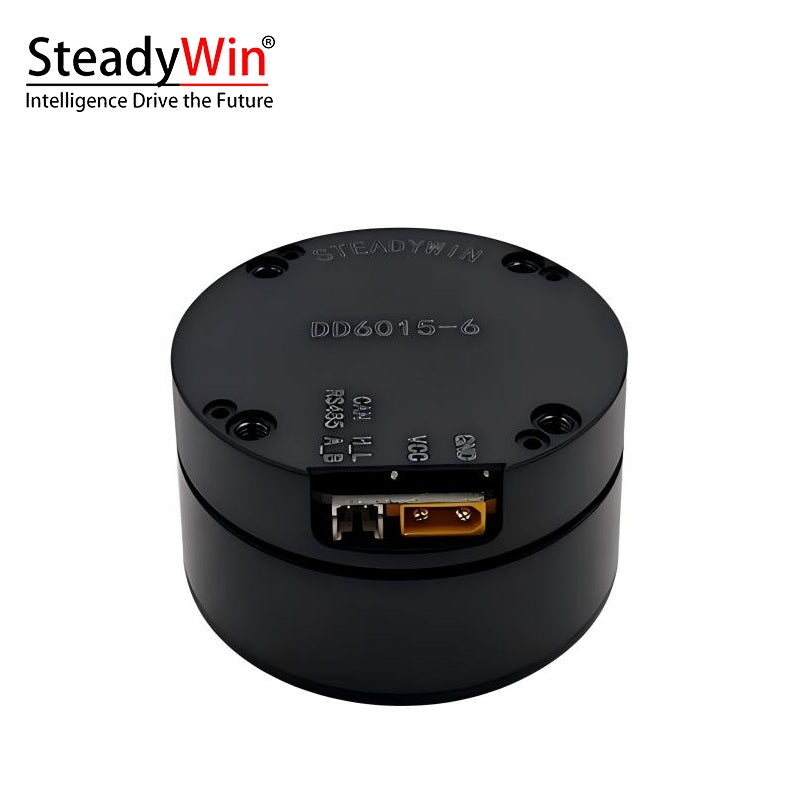

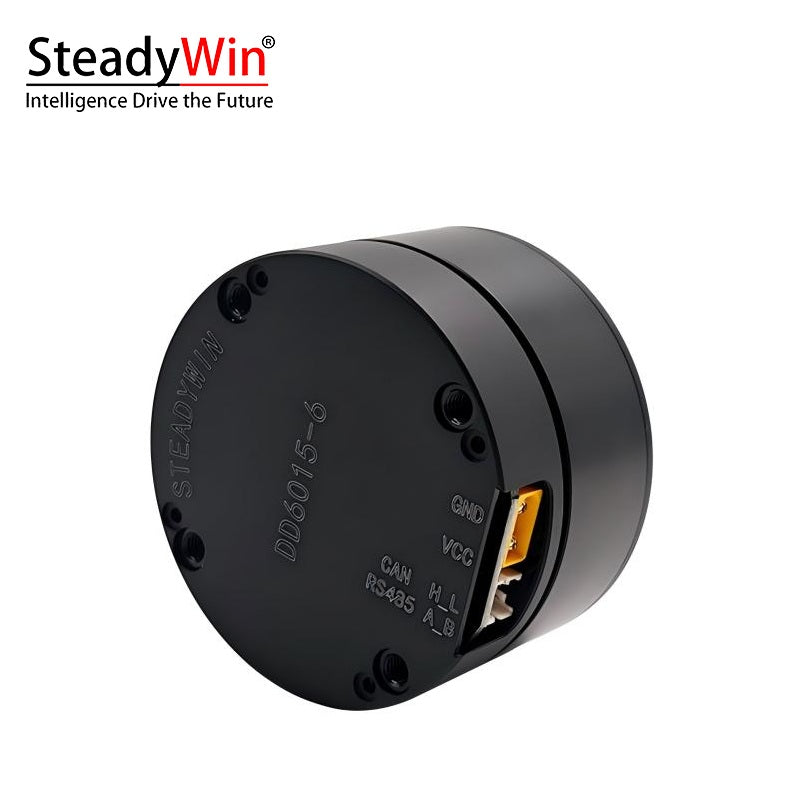

SteadyWin DD6015 Motor
Regular price
$110.00
Unit price
SteadyWin DD6015 Motor - DD6015-6 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
SteadyWin DD6015 Motor
Regular price
$110.00
Unit price
SteadyWin DD6015 Motor - DD6015-6 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Nominal voltage | 24V |
| Voltage range | 10~40V |
| Nominal current | 1.6A |
| Nominal power | 38.4W |
| Nominal torque | 0.65N.M |
| Nominal speed | 264rpm |
| No-load max speed |
558rpm |
| Peak torque | 1.26N.m |
| Peak current | 3.2A |
| Speed constant |
23.3rpm/v |
| Torque constant | 0.43N.M/A |
| Number of pole pairs | 14Pairs |
| Phase resistance | 5.77Ω |
| Phase inductance | 3.82Mh |
| Rotor inertial | 504gcm^2 |
| Communication | RS485 & CAN |
| Encoder type |
Single-turn absolute |
| Resolution | 14bit |
| Motor weight | 251g |
| Working temperature | -20~80℃ |
DD6015_installation_drawing.pdf

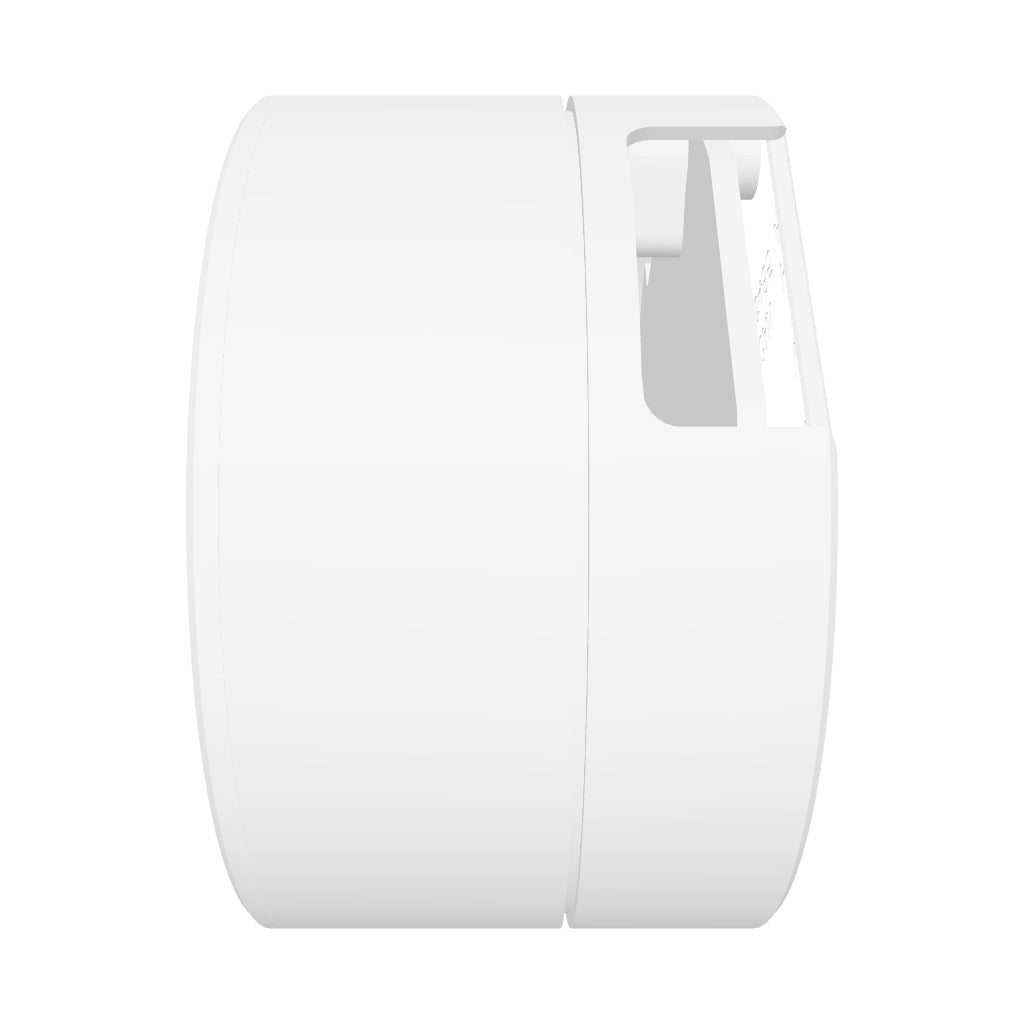

SteadyWin_DD6015_motor.stp
