Description
x
Technical Specifications
| Parameter | Value |
|---|---|
| Model |

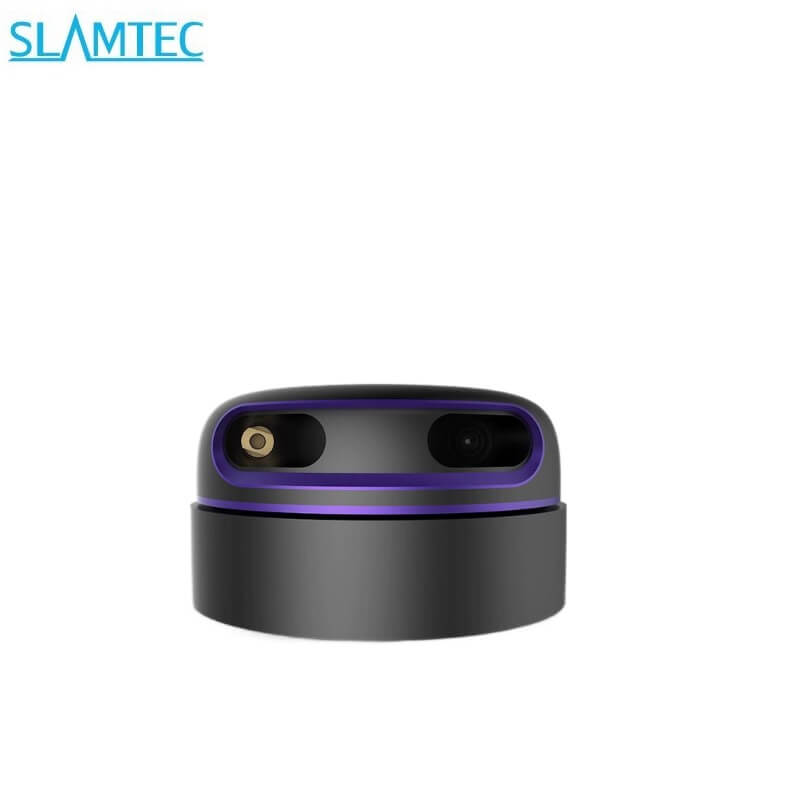

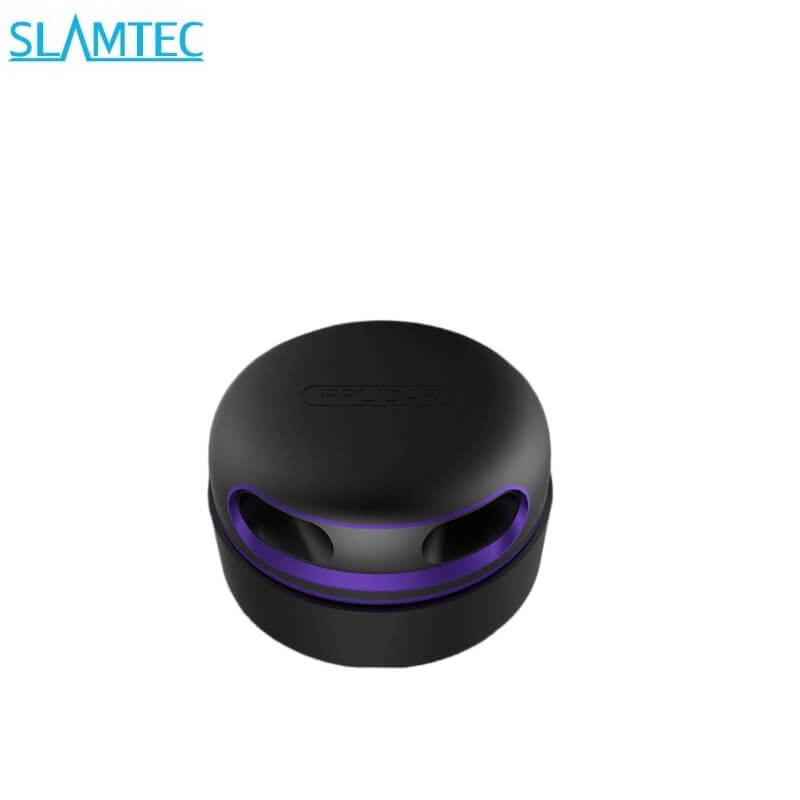

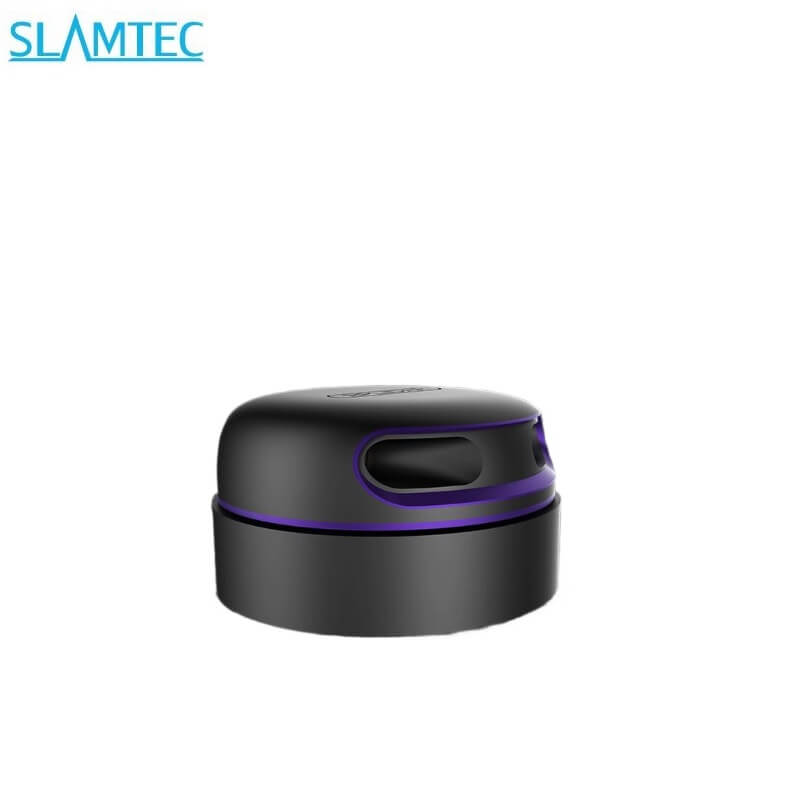

SLAMTEC RPLIDAR A3 |
| Operating Range | White object: 20 meters |
| Operating Range |
Black object: TBD |
| Minimum Operating ranging | 0.2m |
| Sample Rate |
16KHz |
| Scan Rate | Typical value: 10 Hz (adjustable between 5 Hz-15 Hz) |
| Angular Resolution | 0.225° |
| Scan Field Flatness | ±1.5 |
| Communication Interface | TTL UART |
| Communication Speed | 256000 bps |
| Compatibility | Support former SDK protocols |
| Laser wavelength |
785nm
|
| Laser power | 10mW |
| Pulse length | 87us |
| Laser Safety Class | IEC-60825 Class 1 |
| Power Voltage |
4.9—5.2V |
| Power Voltage Ripple |
20mV |
| Inrush Current |
2500mA(Max) |
| System Start Current |
1500mA(Max) |
| Power Current |
200mA (5V Power，power off ) 450mA (5V Power，power on) |
|
Weight
|
190g |
|
Temperature range
|
0—40ºC |
