Technical Specifications
| Parameter | Value |
|---|---|
| Model |

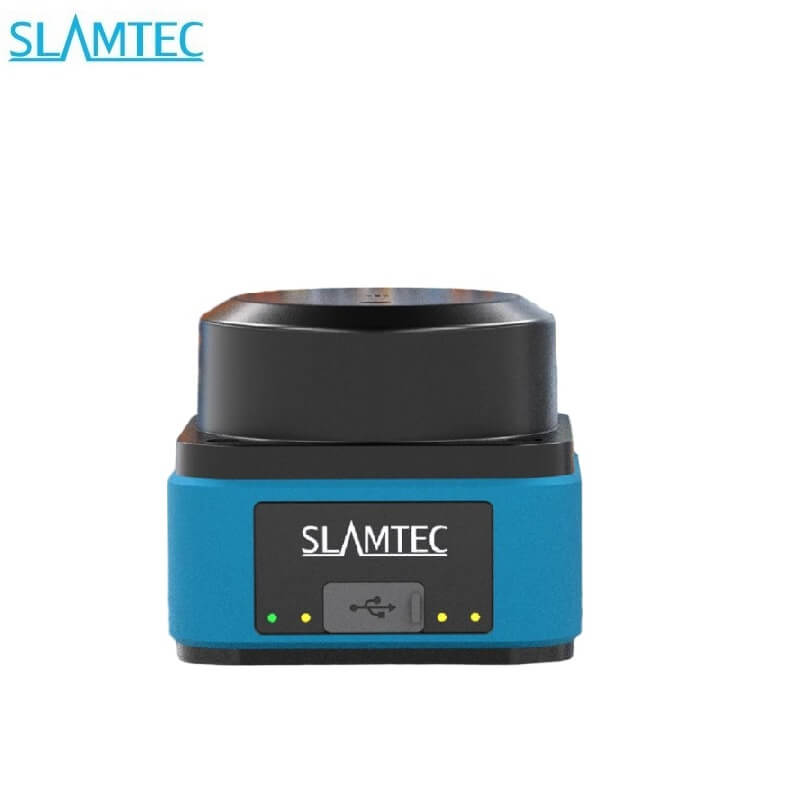

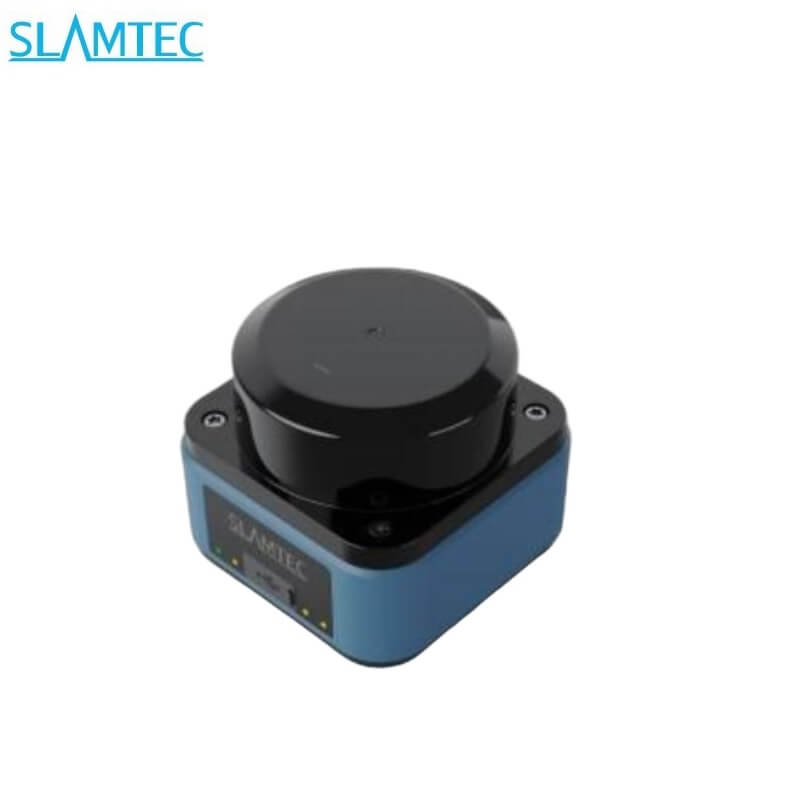

SLAMTEC LPX-E3P1 |
| Measurement principle | SL-dTOF |
| Application | Indoor and Outdoor (≥80Klux) |
| Light Source |
Infrared Laser(905nm) |
| Laser Safety Level |
1(IEC60825-1:2014,EN60825-1:2014)
|
| Horizontal aperture angle | 360° |
| Scanning frequency | 20Hz |
| Angular Resolution | 0.225° |
| Distance Range | 0.05m-25m(≥70%remission) |
| Connection type | 1xSH1.012-pinmale(0.8m) |
| Supply voltage | 9VDC-30VDC |
| Power consumption | Typ. 3W |
| IO Output Power | ≤1.2W |
| Housing color | SLAMTECBLUE |
| Enclosure rating | IP65(IEC60529:1989+AMD1:1999+AMD2:2013) |
| Protectionclass |
III (IEC61140:2016-1) |
| Weight |
180g.withoutconnectingcables |
| Dimension(length*width*height) |
56.63x56.63x48.00mm |
| MTBF |
>10years |
| Storage temperature | -30°C—+70°C |
