SkylandX | SKU:

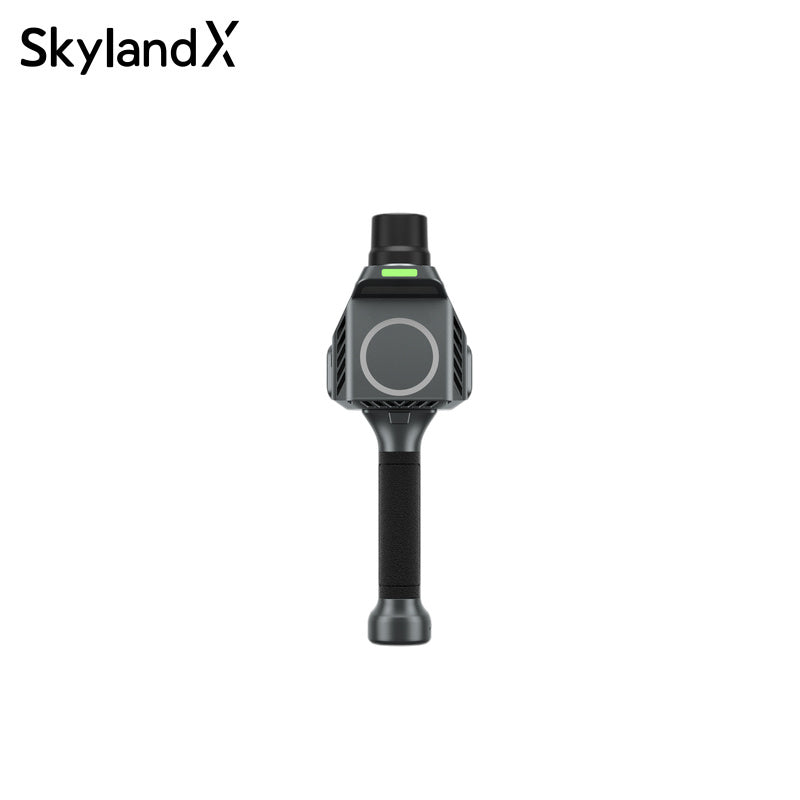

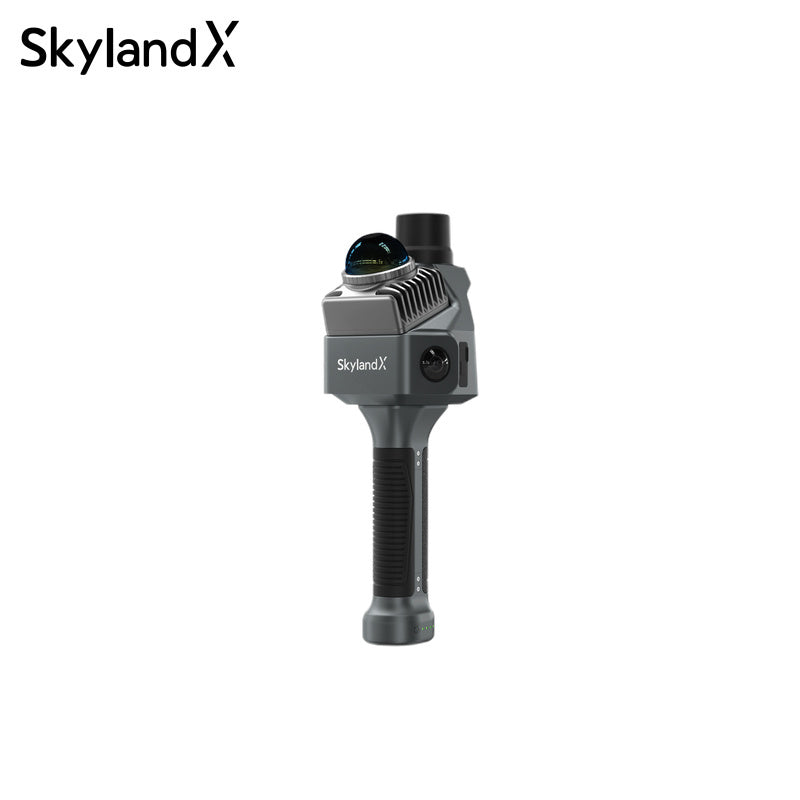

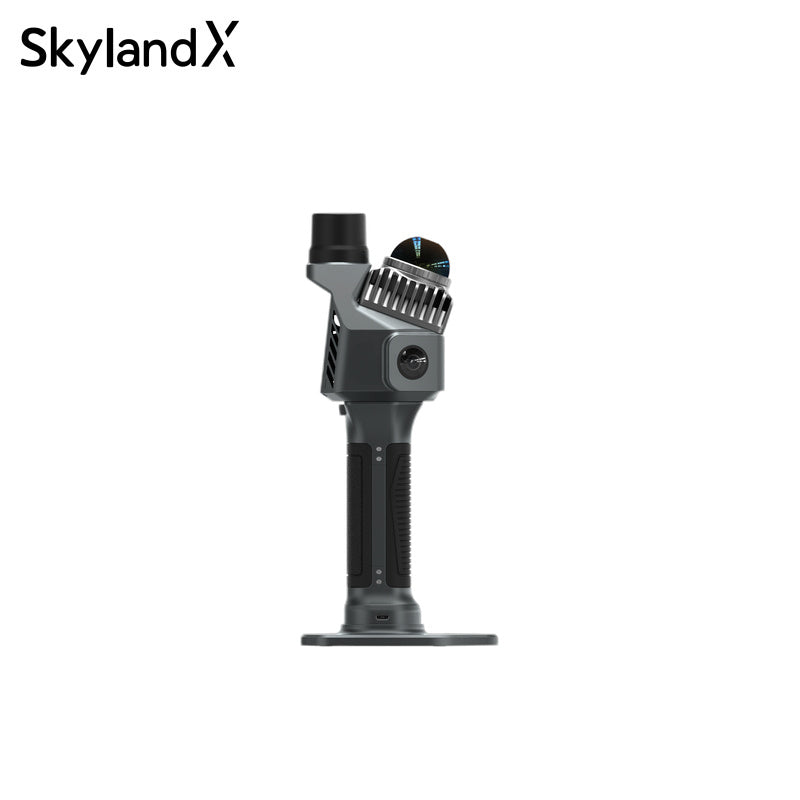

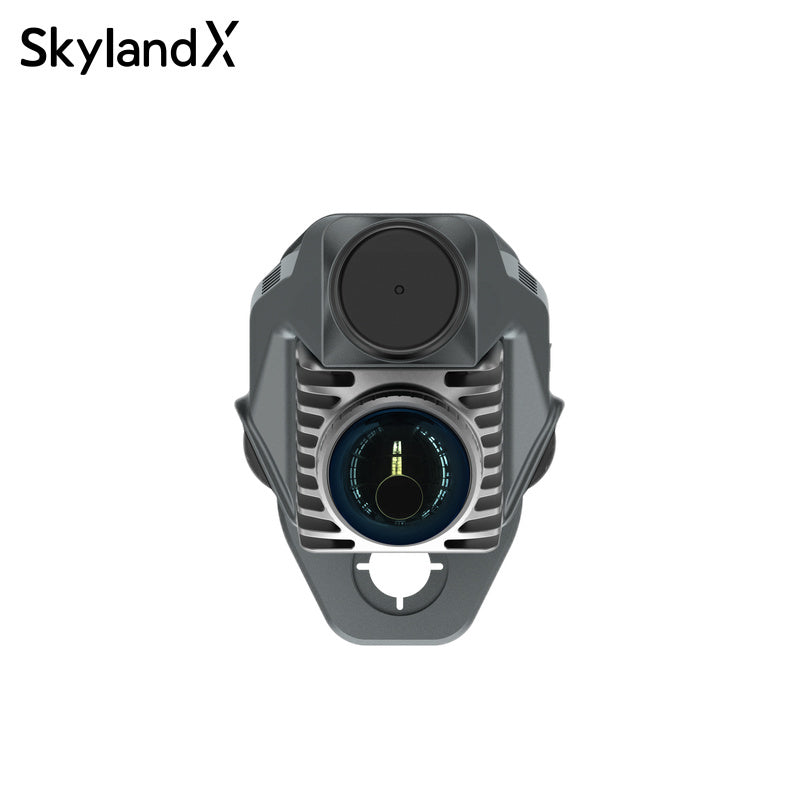

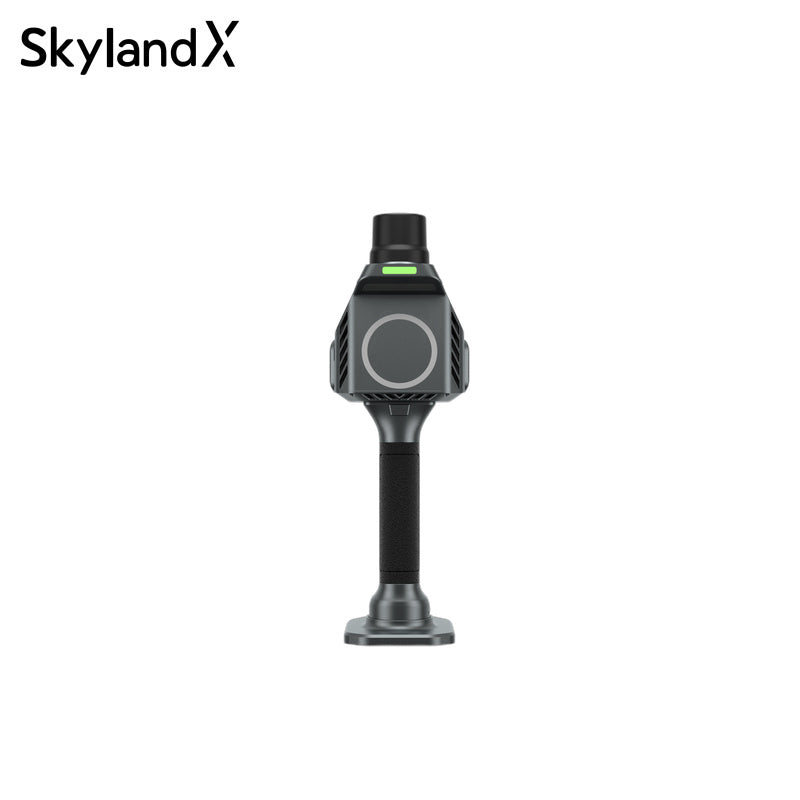

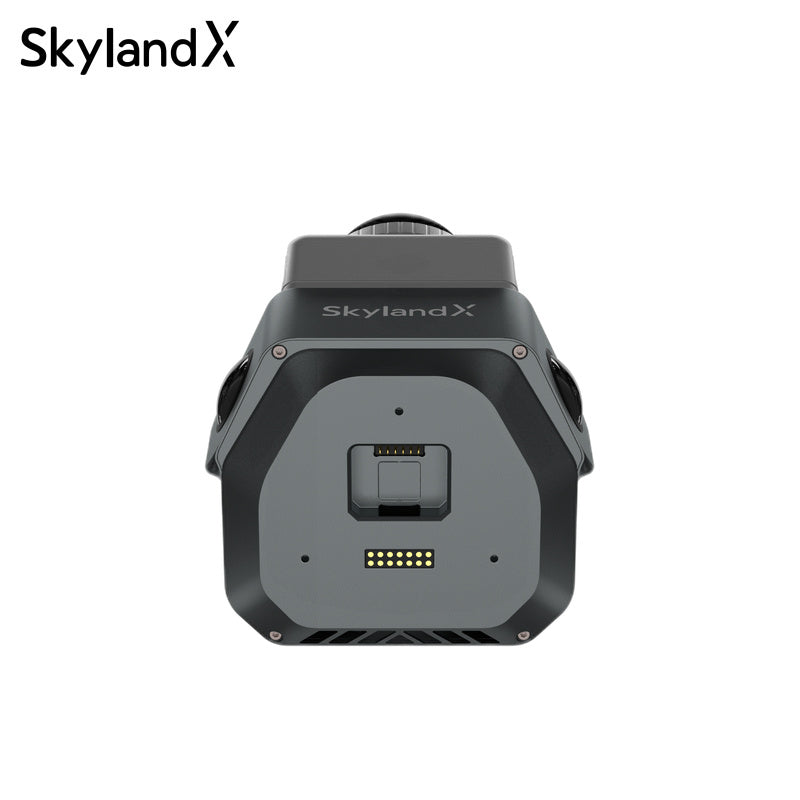

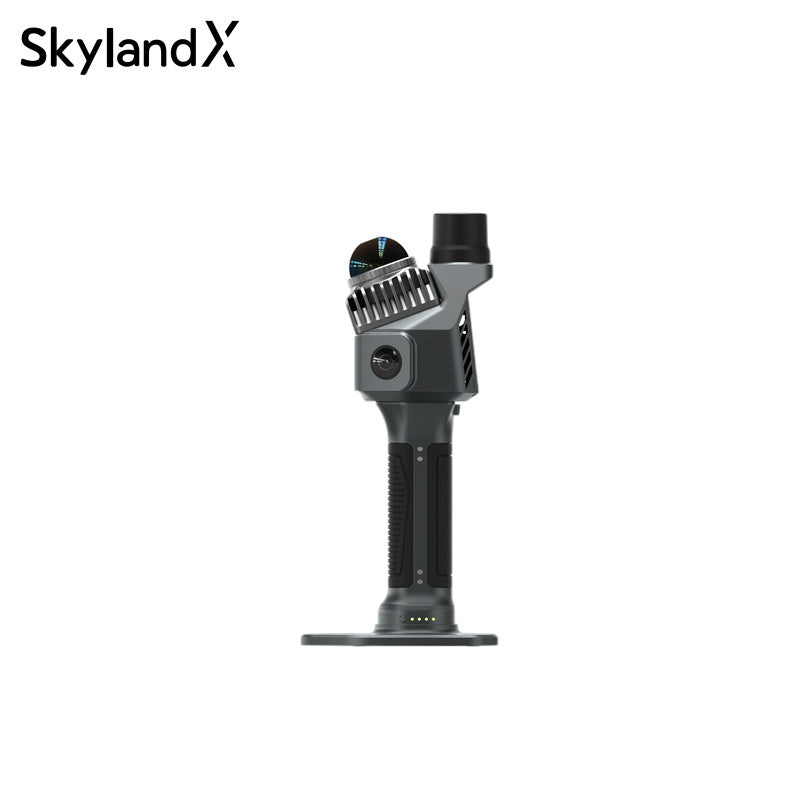

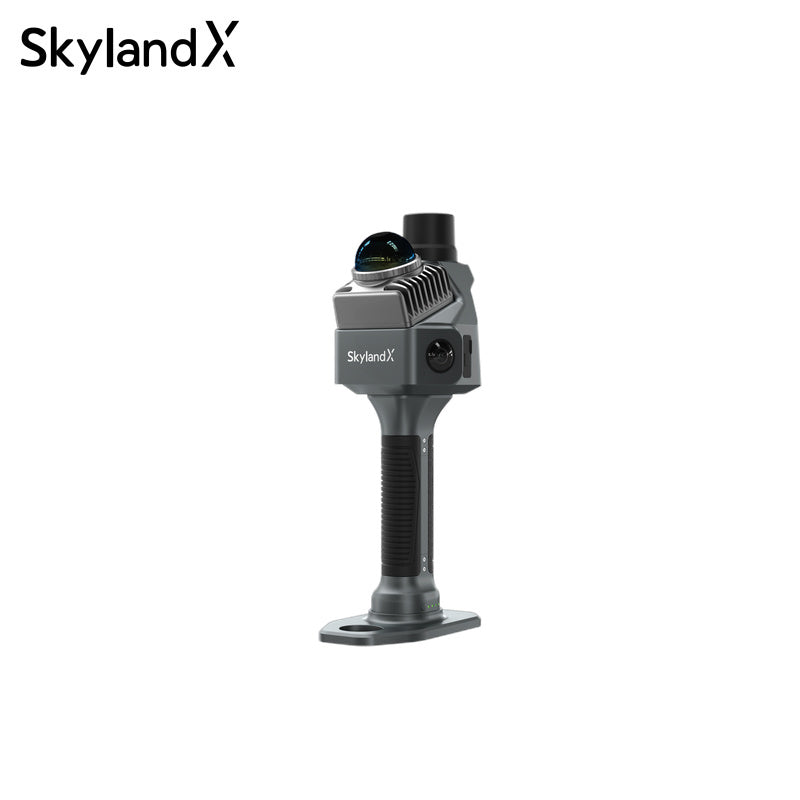

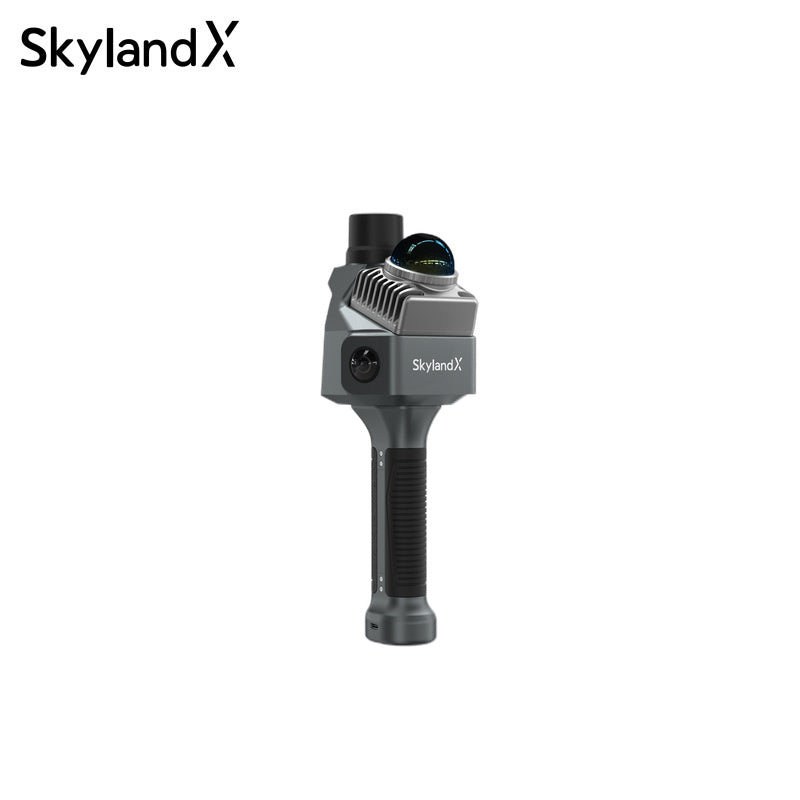

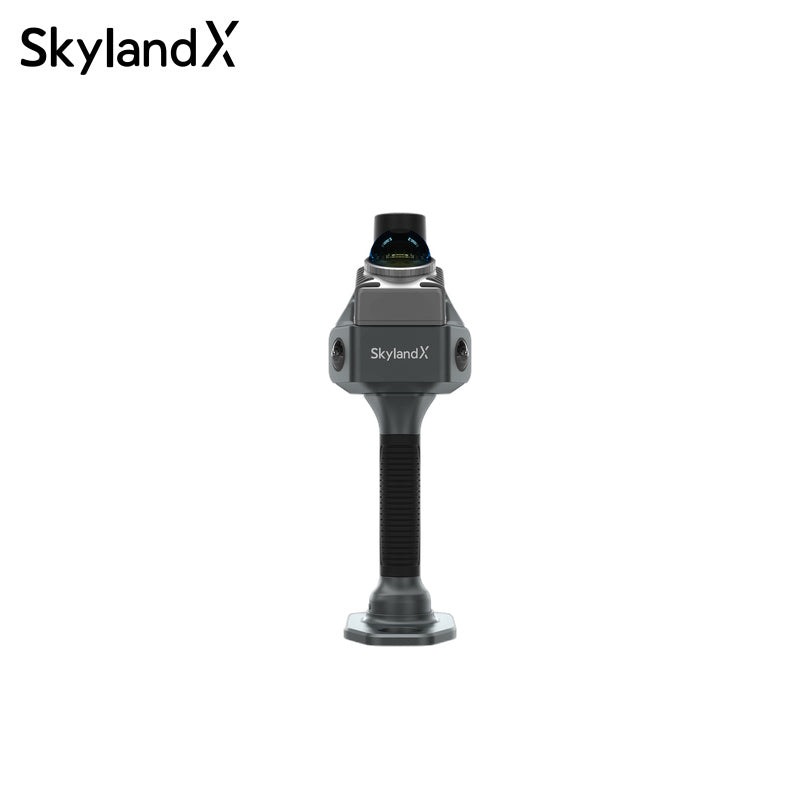

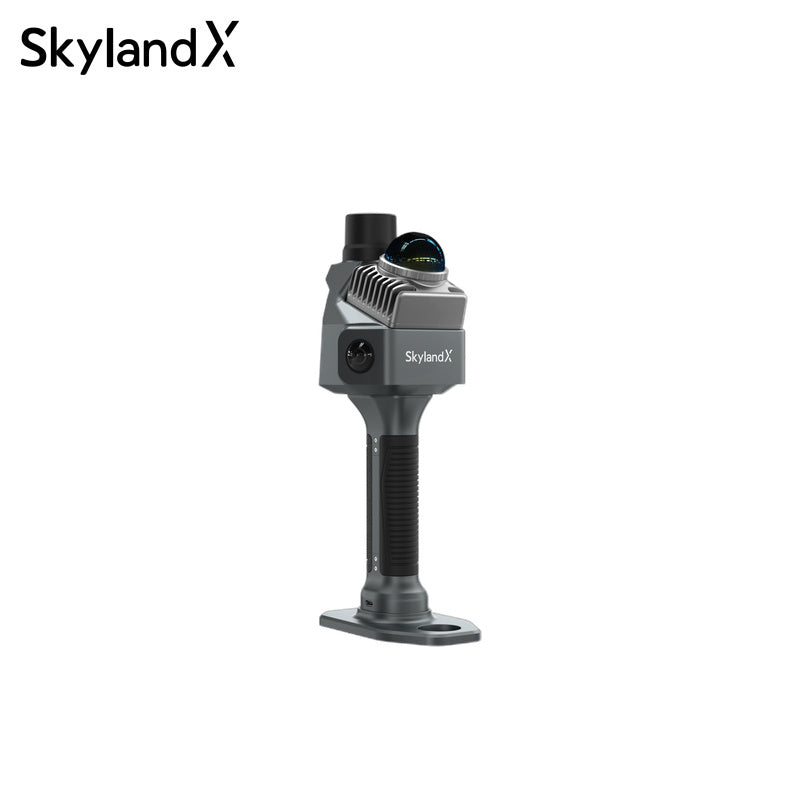

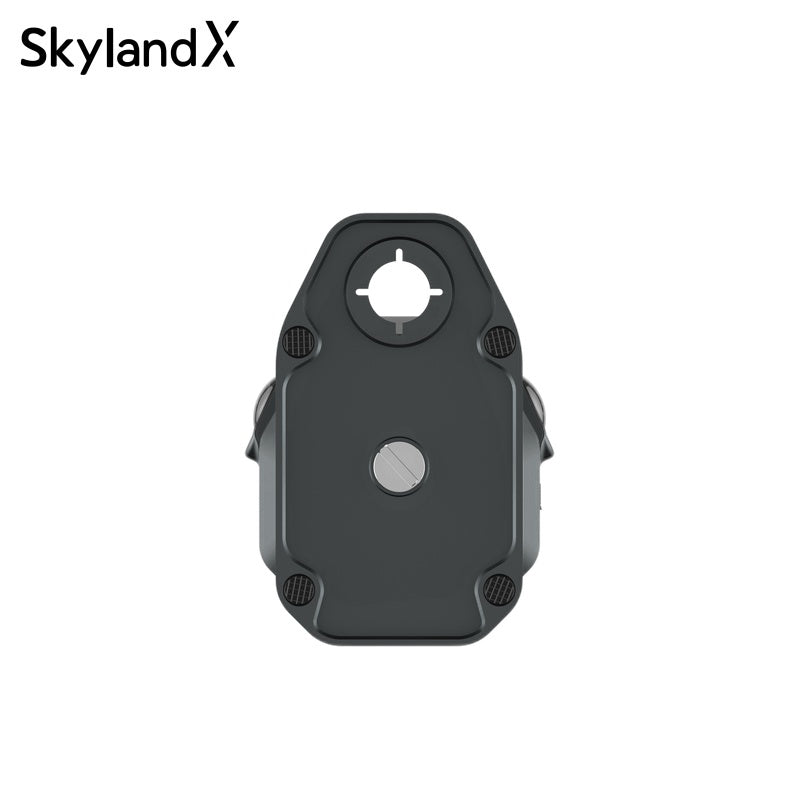

SkylandX MetaCam Air2 LiDAR Scanner
Regular price
$5,000.00
Unit price
SkylandX MetaCam Air2 LiDAR Scanner - MetaCam Air2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
SkylandX MetaCam Air2 LiDAR Scanner
Regular price
$5,000.00
Unit price
SkylandX MetaCam Air2 LiDAR Scanner - MetaCam Air2 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 680g (without battery) / 1010g (with battery) |
| Dimensions | 298*105*104mm, 133*105*104mm |
| Wireless Connection | Built-in WiFi Hotspot |
| Operating Temperature | -20°C ~ 55°C |
| Ingress Protection | IP54 |
| Power Supply | Handle battery / External power |
| Supply Voltage | 14.4V |
| Battery Capacity | 3150mAh |
| Power | 25W |
| Operating Duration | >100 min per battery |
| Charging Method | Type-C, PD fast charge |
| Storage Capacity | 256GB (expandable) |
| Housing Material | Aviation aluminum |
| RTK | Embedded integrated |
| RTK Accuracy | Horizontal: 0.8cm+1ppm / Vertical: 1.5cm+1ppm |
| Solution Method | Real-time / Post-processing |
| Point Cloud Format | .las |
| Laser Lines | 40 lines |
| Laser Class | Class 1 / 905nm |
| Relative Accuracy | < 1cm |
| Absolute Accuracy | < 5cm |
| Point Cloud Thickness | < 1cm |
| Point Cloud Frequency | 10Hz |
| Scanning Radius | 0.1m~40m @10% reflectivity / 0.1m~70m @80% reflectivity |
| Laser FOV | 59° × 360° |
| Point Cloud Density | 200,000 pts/s |
| Display Mode | Real-time color point cloud |
| Image Quality | 2 × 12MP, Sony 1/2.3inch, F2.0 |
| Image FOV | 270° × 360° |
