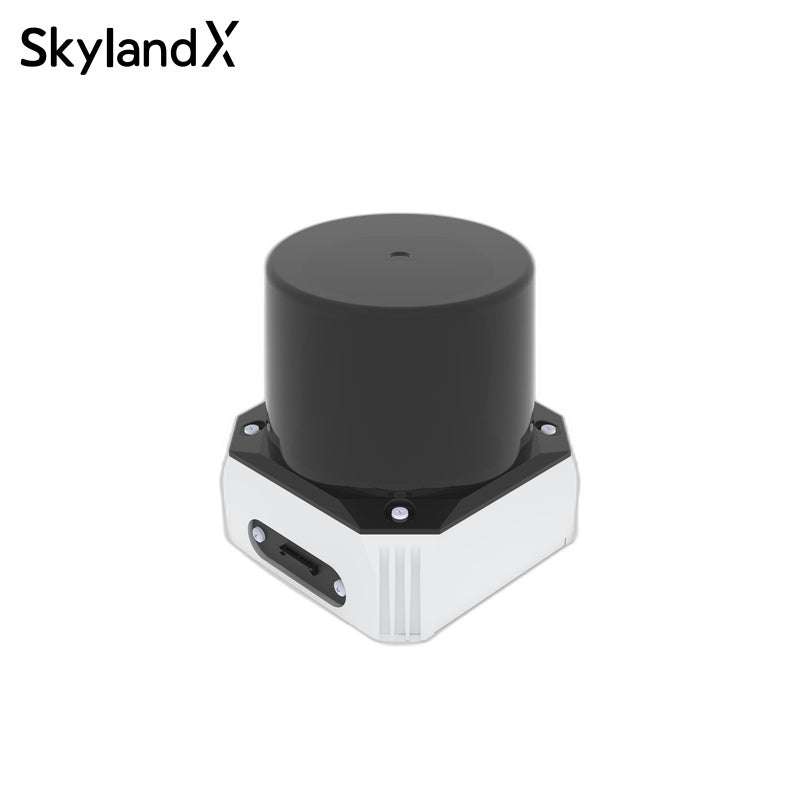

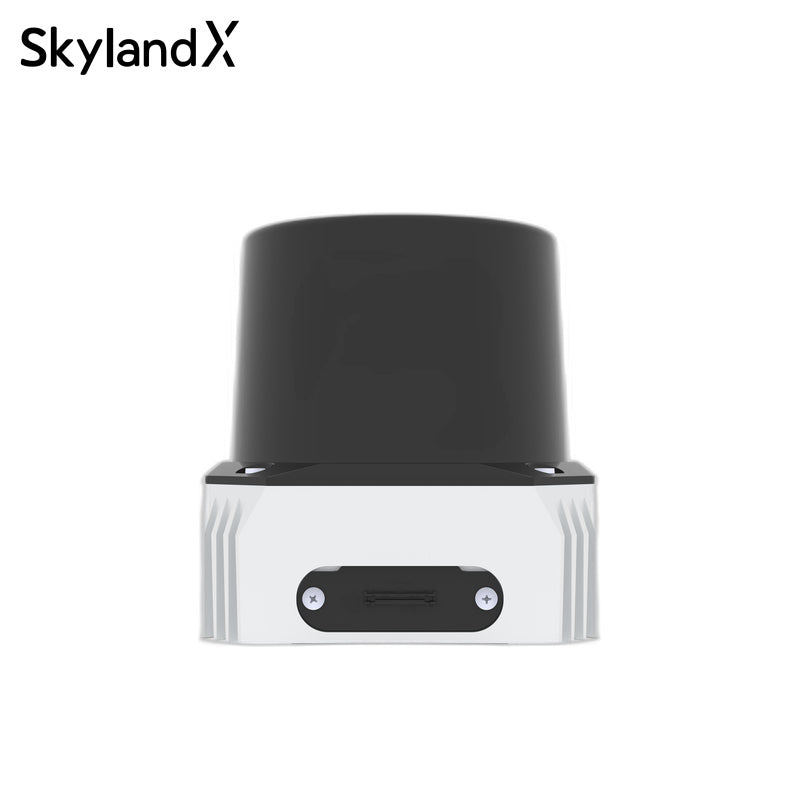

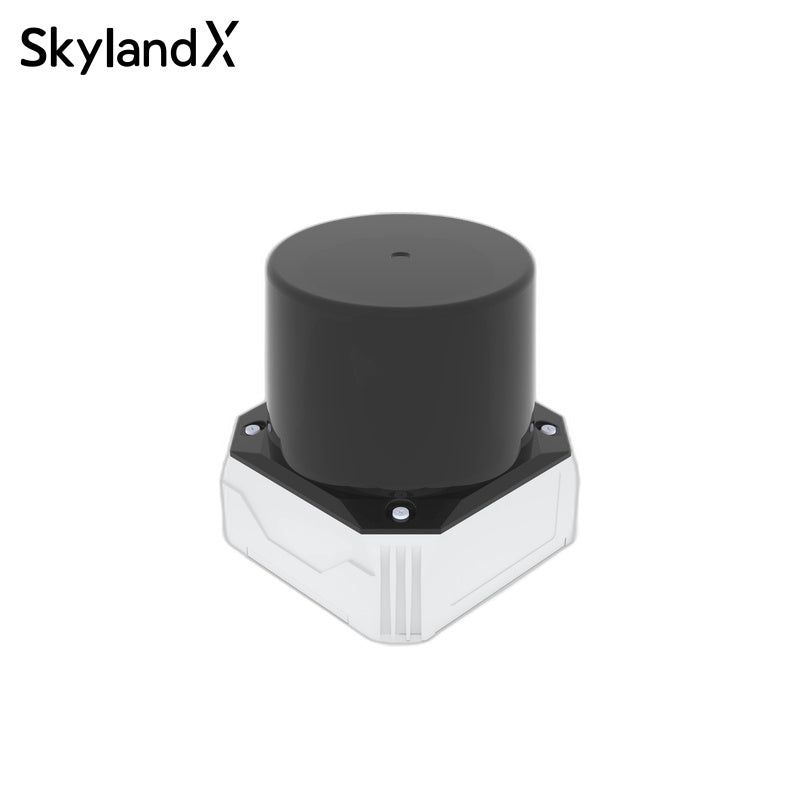

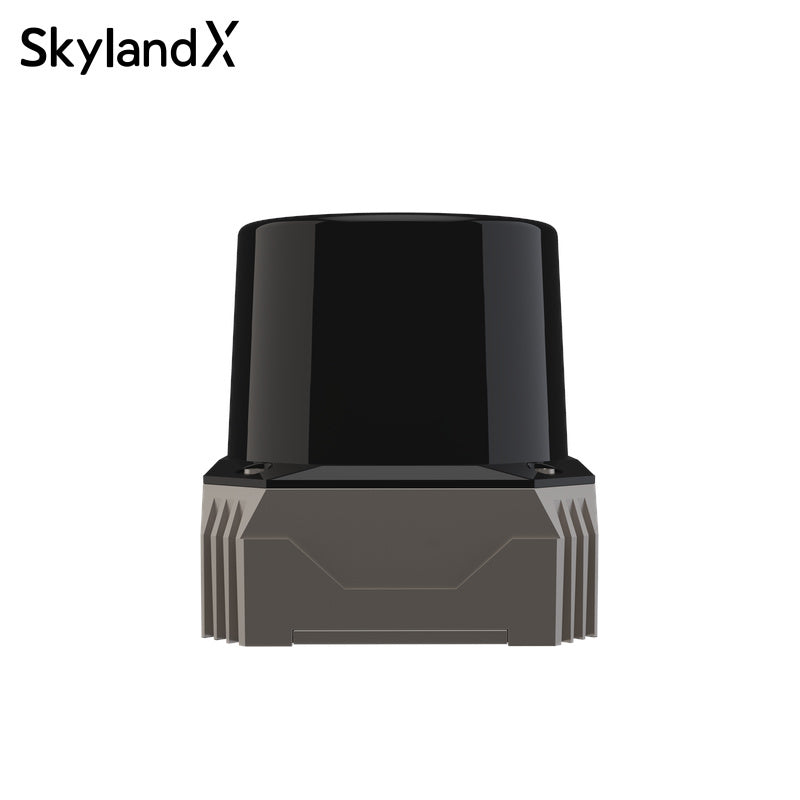

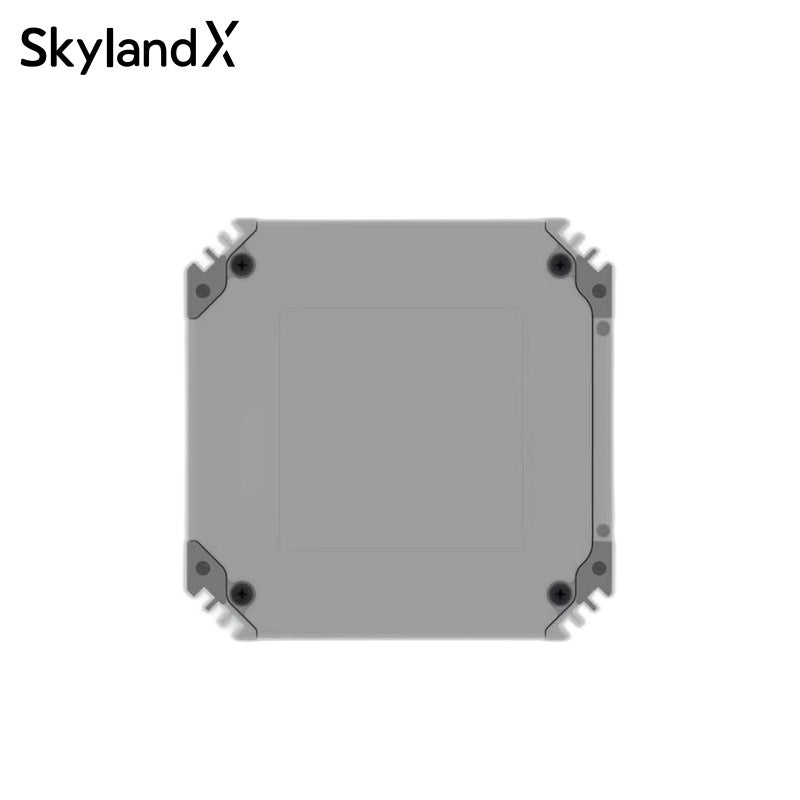

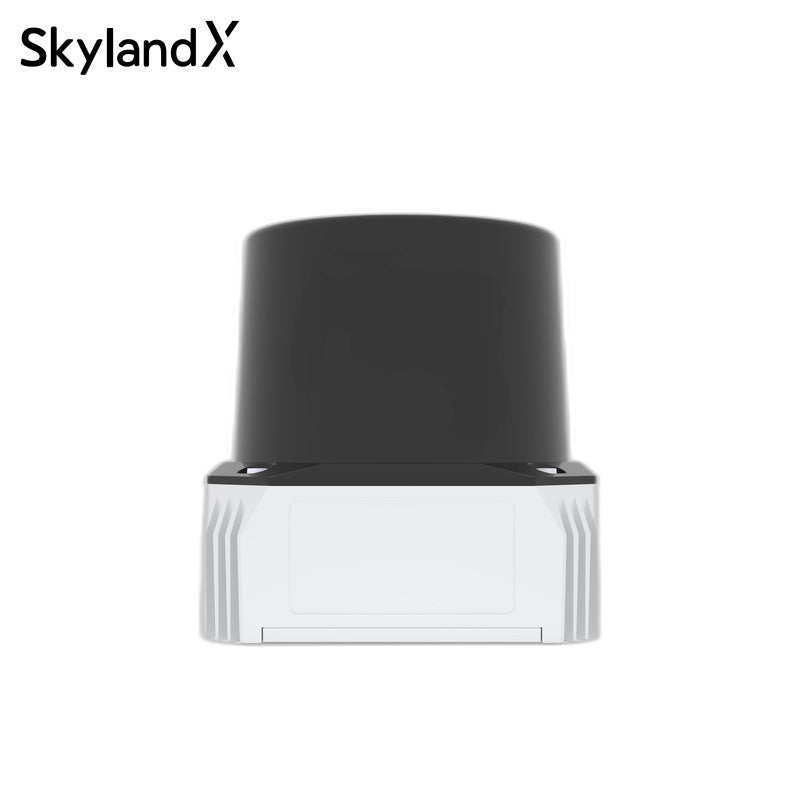

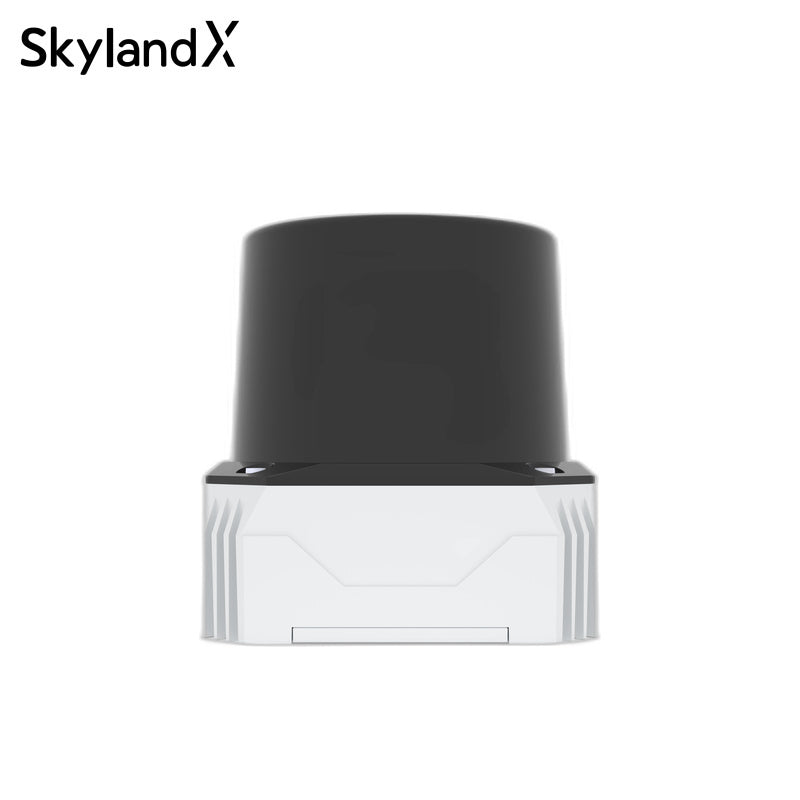

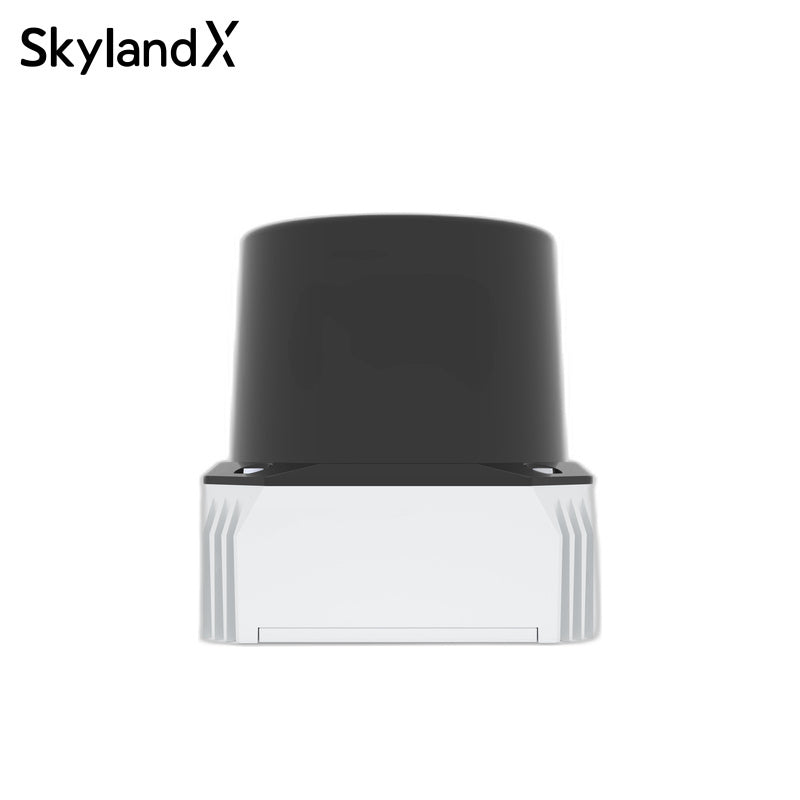

SkylandX C01 LiDAR
Regular price
$600.00
Unit price
SkylandX C01 LiDAR - C01 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | SKYLAND-AIO-C01 3D LiDAR |
| Laser Wavelength | 905nm |
| Laser Class | Class 1 (IEC60825-1:2014) |
| Maximum Range | 50m (@90% reflectivity) / 25m (@10% reflectivity) |
| Minimum Range | 0.05m |
| Field of View (FOV) | 360°(H) × 65°(V) (Vertical: -20° ~ 45°) |
| Sampling Rate | 200K/s (Dual-line mode) / 100K/s (Single-line mode) |
| Frame Rate | 30Hz |
| Scanning Mode | Non-repetitive scanning |
| 3D Information | 3D position |
| Communication Interface | UDP |
| Measurement Accuracy | ≤ 2.0cm |
| Angular Resolution | 0.3°(H)/0.36°(V) (Integration: 1s) / 0.15°(H)/0.36°(V) (Integration: 2s) |
| IMU Sampling Rate | 200Hz |
| IMU Output | 3-axis acceleration + 3-axis angular velocity |
| Ambient Light Immunity | 100Klux |
| Operating Temperature | -20°C ~ 55°C |
| Storage Temperature | -30°C ~ 70°C |
| Ingress Protection | IP67 |
| Power Consumption | Max 15W |
| Operating Voltage | 12V ~ 30V DC |
| Dimensions | 73(L) × 73.75(W) × 77.8(H) mm |
| Weight | 420g |
