SITO DRIVE | SKU:

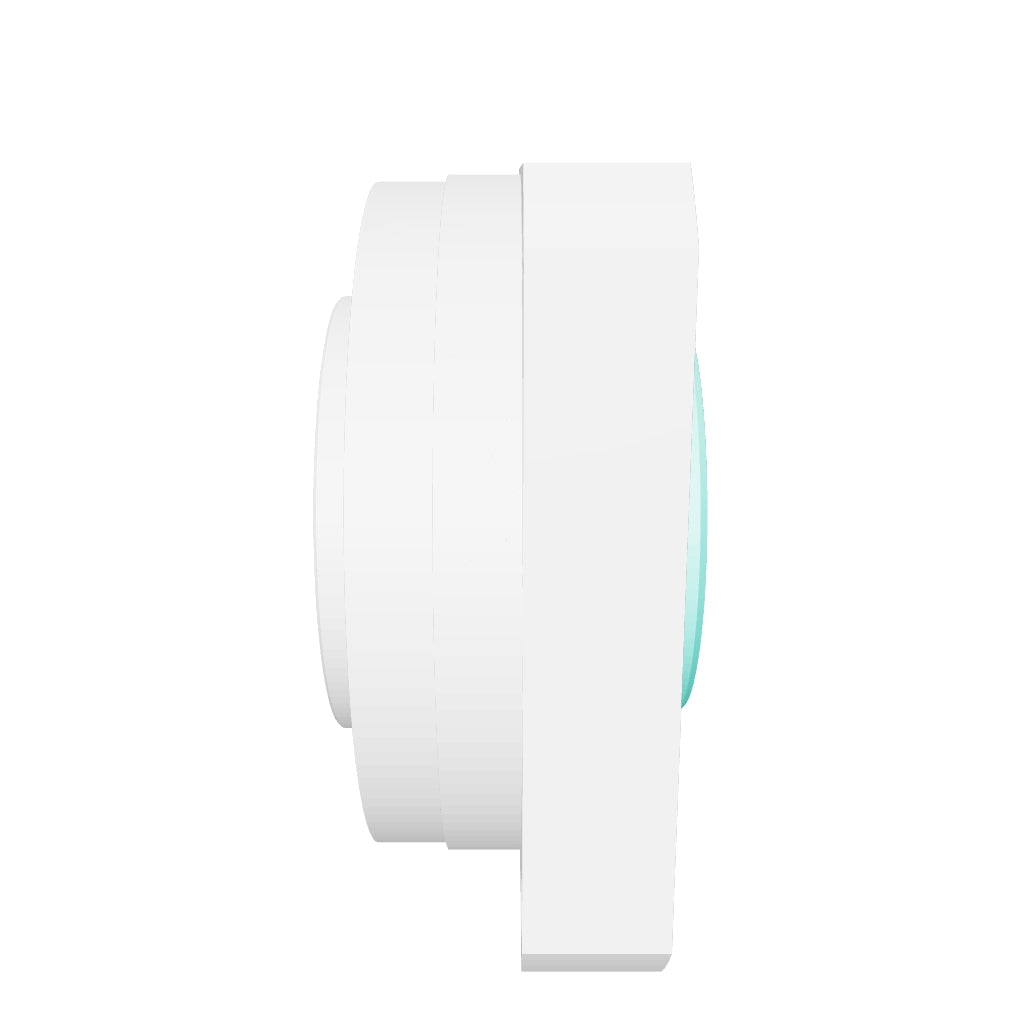

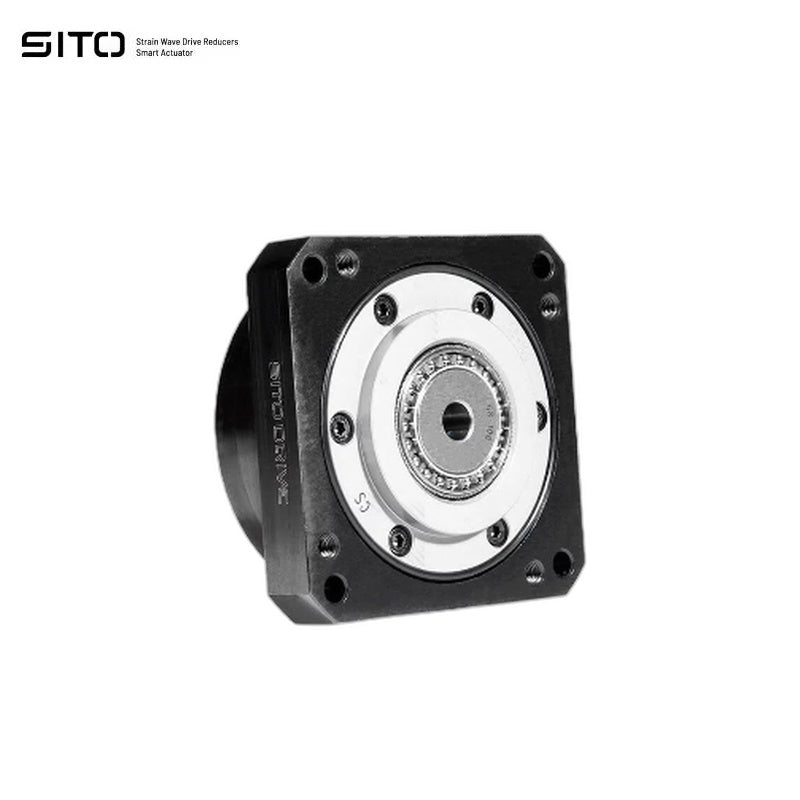

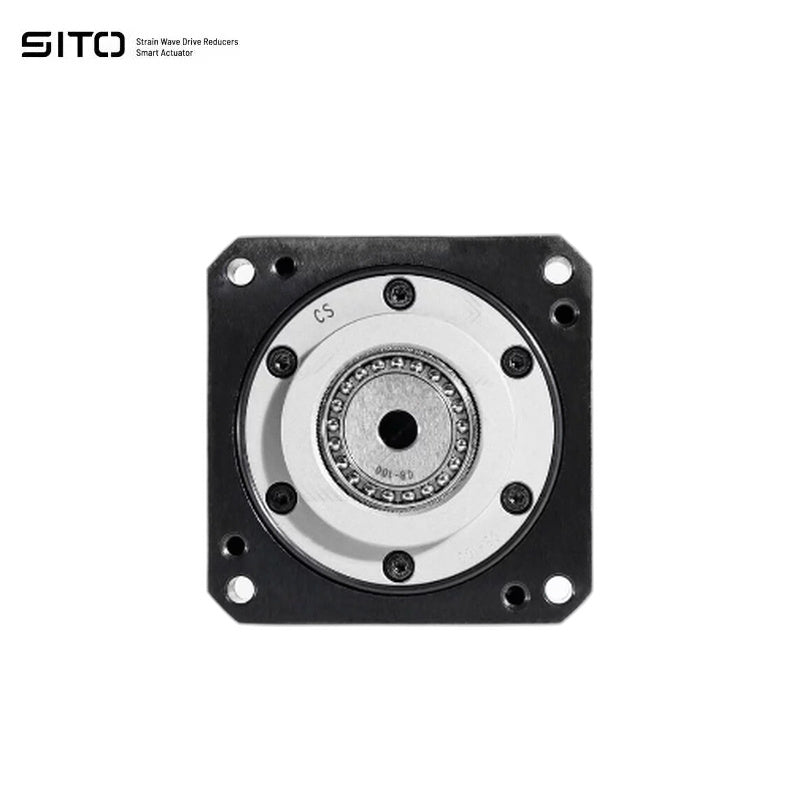

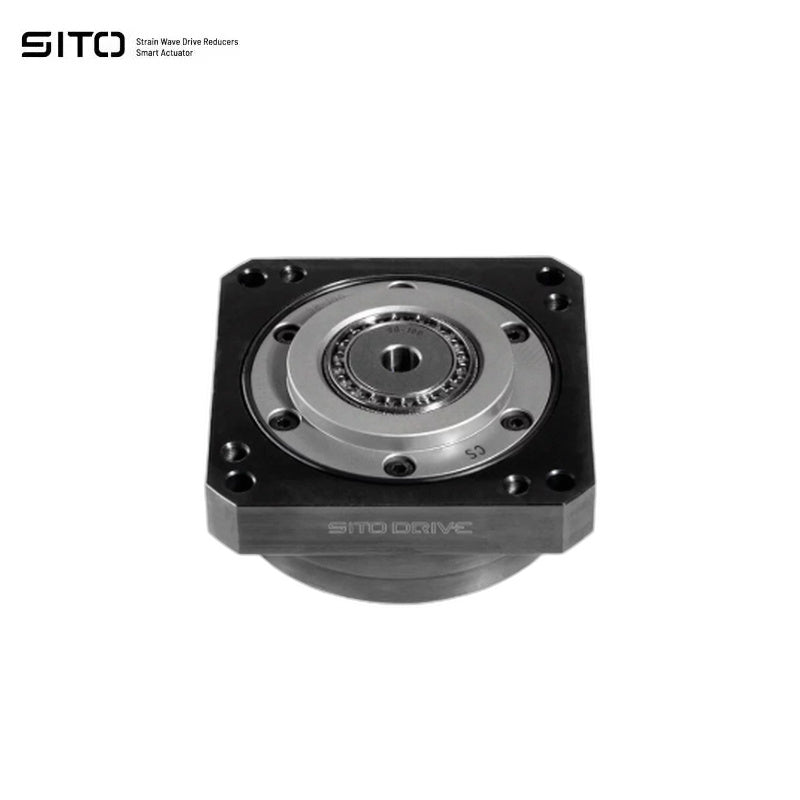

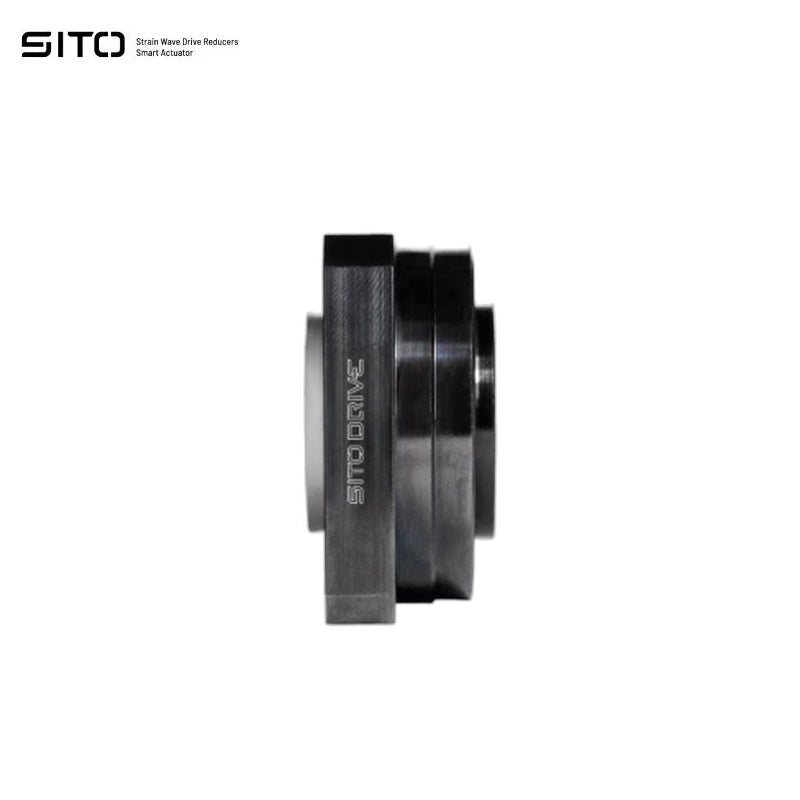

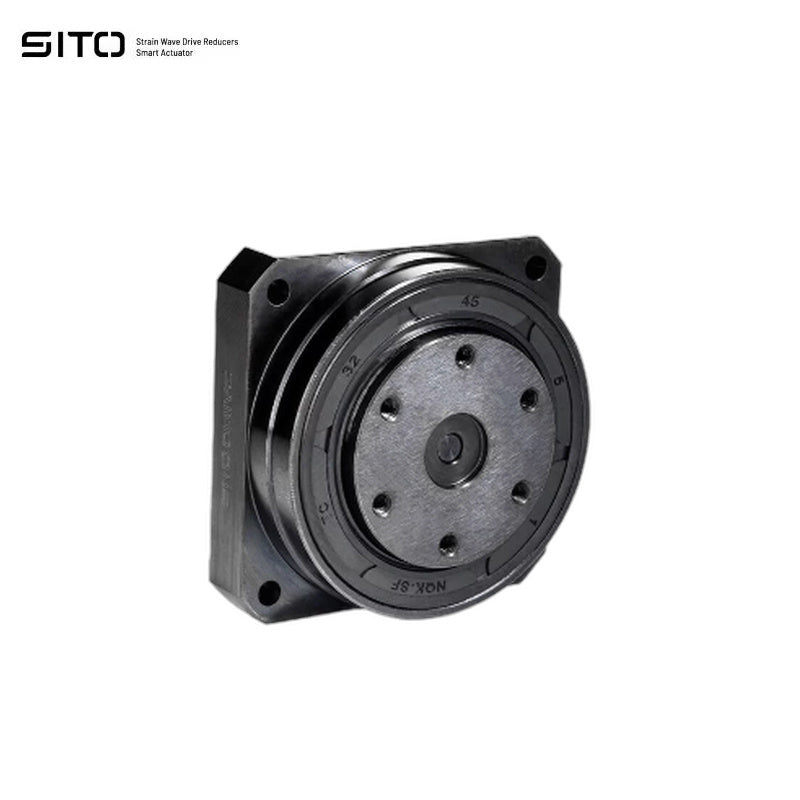

SITO DRIVE CS Mini-08 2UP Reducer
Regular price
$158.00
Unit price
SITO DRIVE CS Mini-08 2UP Reducer - 30 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
SITO DRIVE CS Mini-08 2UP Reducer
Regular price
$158.00
Unit price
SITO DRIVE CS Mini-08 2UP Reducer - 30 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value | Value | Value |
|---|---|---|---|
| Model | CS Mini-08 2UP | CS Mini-08 2UP | CS Mini-08 2UP |
| Transmission Ratio | 30 | 50 | 100 |
| Rated Torque at 2000r/min input [Nm] | 0.9 | 1.8 | 2.4 |
| Peak Torque allowed during start/stop [Nm] | 1.8 | 3.3 | 4.8 |
| Maximum allowable average load torque [Nm] | 1.4 | 2.3 | 3.3 |
| Instantaneous Maximum Torque [Nm] | 3.3 | 6.6 | 9 |
| Maximum allowable input speed [rpm] | 8500 | 8500 | 8500 |
| Allowable average speed [rpm] | 3500 | 3500 | 3500 |
| Moment of inertia [1×10^-4 kgm^2] | 3.2×10^-3 | 3.2×10^-3 | 3.2×10^-3 |
| Backlash [Arcsec] | ≤20 | ≤20 | ≤20 |
