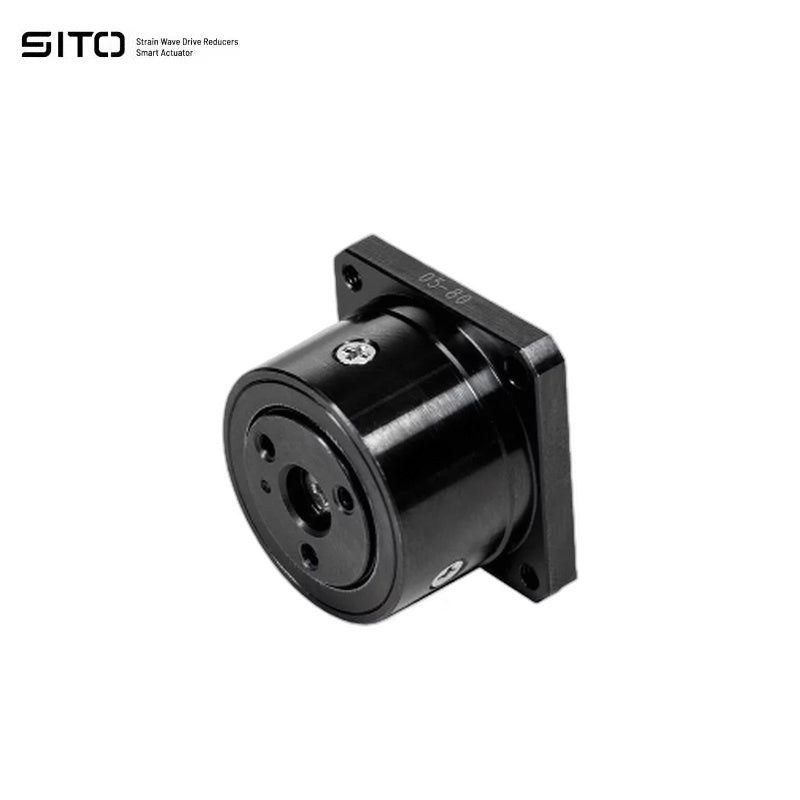

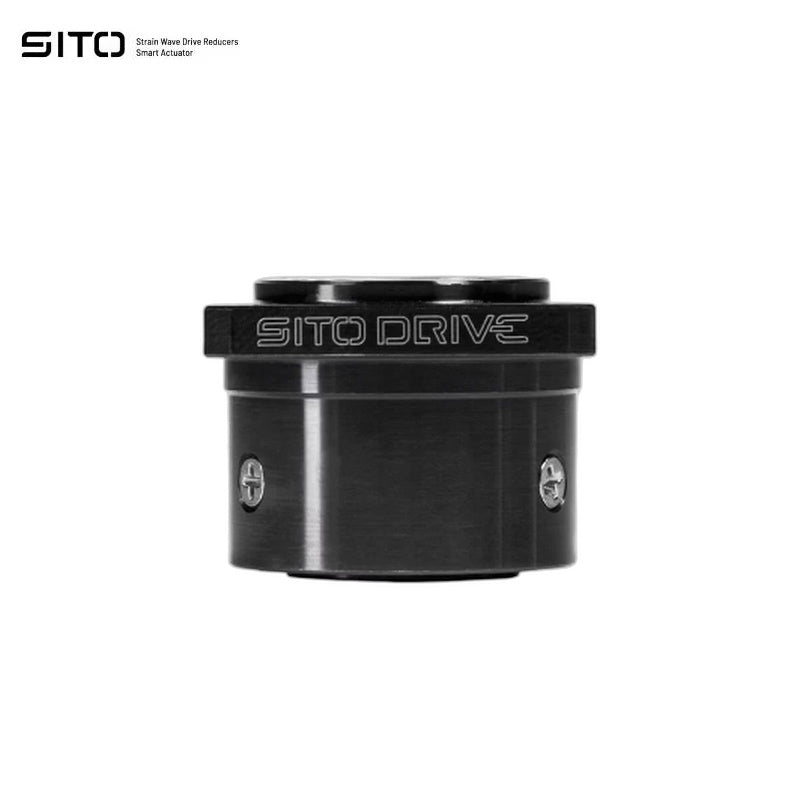

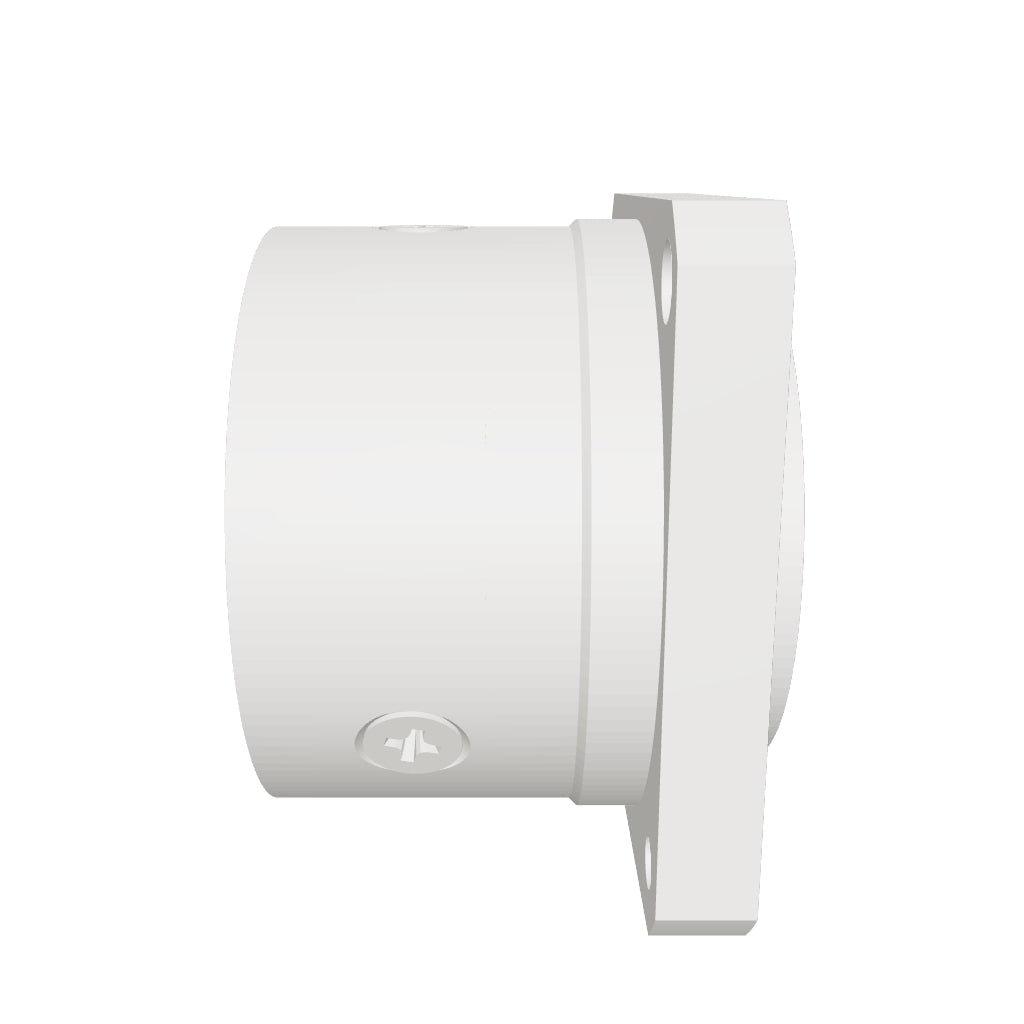

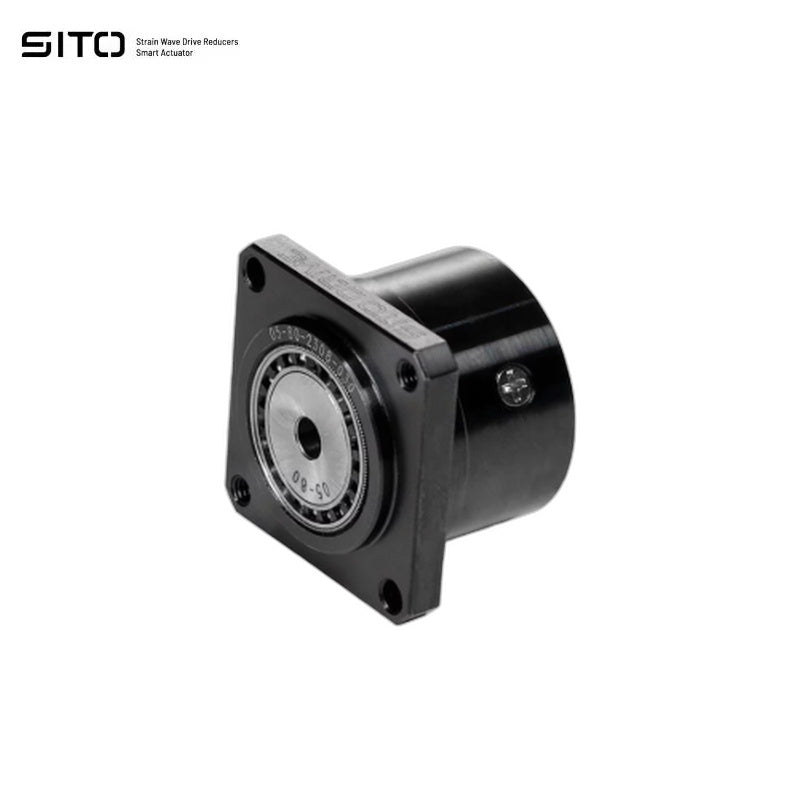

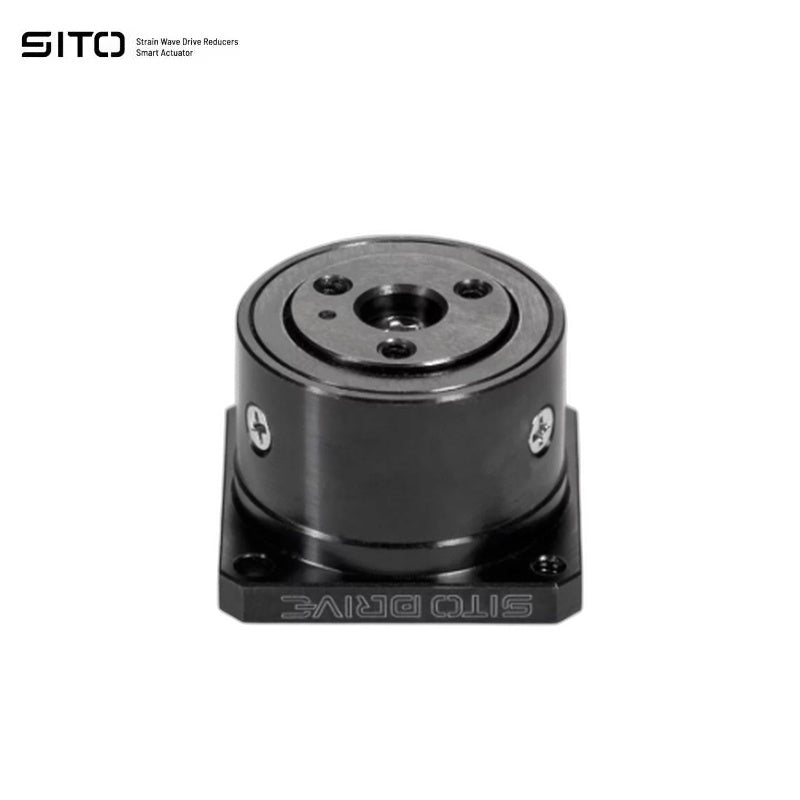

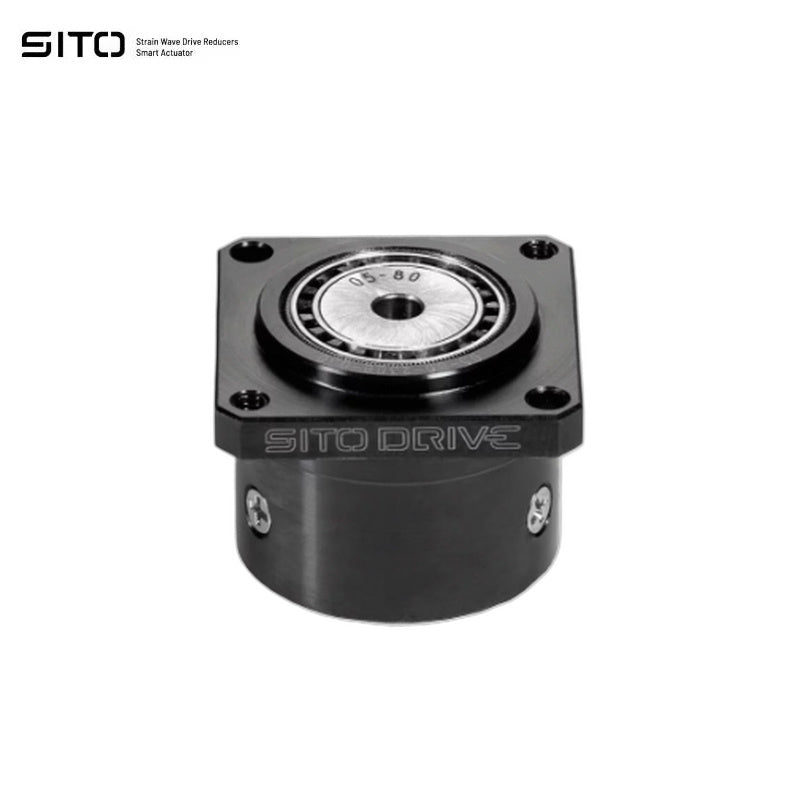

SITO DRIVE CS Mini-05 2XH-A Reducer
Regular price
$148.00
Unit price
SITO DRIVE CS Mini-05 2XH-A Reducer - 30 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
SITO DRIVE CS Mini-05 2XH-A Reducer
Regular price
$148.00
Unit price
SITO DRIVE CS Mini-05 2XH-A Reducer - 30 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | 30 | 50 | 80 |
|---|---|---|---|
| Model | CS Mini-05 2XH-A | CS Mini-05 2XH-A | CS Mini-05 2XH-A |
| Rated Torque at 2000r/min input [Nm] | 0.25 | 0.4 | 0.52 |
| Peak Torque allowed during start/stop [Nm] | 0.5 | 0.9 | 1.35 |
| Maximum allowable average load torque [Nm] | 0.38 | 0.53 | 0.84 |
| Instantaneous Maximum Torque [Nm] | 0.9 | 1.8 | 2.5 |
| Maximum allowable input speed [rpm] | 10000 | 10000 | 10000 |
| Allowable average speed [rpm] | 6500 | 6500 | 6500 |
| Moment of inertia [1×10⁻⁴ kg·m²] | 2.5×10⁻⁴ | 2.5×10⁻⁴ | 2.5×10⁻⁴ |
| Backlash [Arcsec] | ≤20 | ≤20 | ≤20 |
